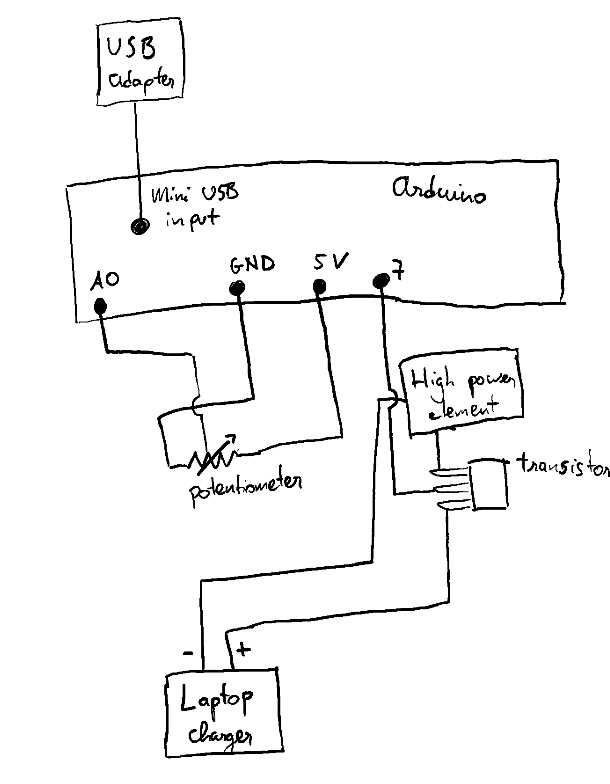

Step-by-Step Power Adapter Circuit Design and Wiring Guide

Start with a linear regulator design if stability is critical. For low-current applications under 1A, a simple 78xx series chip (e.g., 7805 for 5V output) paired with a smoothing capacitor (1000µF) and a bridge rectifier (1N4007 diodes) will handle most basic needs. Ensure the input voltage exceeds the desired output by at least 2V–this margin prevents dropout under load fluctuations.

Avoid off-the-shelf transformers rated below 3W unless you confirm their actual current delivery. Many cheap components list peak values, not sustained, leading to overheated coils. Test with a multimeter: apply a known load (e.g., a 10Ω resistor) and check for voltage sag. If it drops below 80% of the rated value, upgrade the core or rewire for thicker gauge.

Switched-mode topologies dominate above 5W–for good reason. A buck converter (e.g., LM2596) reduces heat loss by 60%+ compared to linear designs. Layout is non-negotiable: keep the feedback trace (V_fb pin) isolated from switching nodes. Use a star ground configuration–connect all grounds at a single point near the output capacitor to eliminate noise coupling.

For overcurrent protection, integrate a polyfuse (e.g., 1.1A trip) or a current-sense resistor (0.1Ω) with a comparator (LM393). Set the threshold at 120% of nominal load. Without it, a shorted output can melt traces in under 3 seconds. Always verify fuse response time–some ceramic types delay by 50ms, enough to damage sensitive ICs.

EMI suppression isn’t optional for 20kHz+ designs. Add a common-mode choke (2x 47µH) and X-class capacitors (0.1µF) across input lines. Route the switching node (drain/switch pin) away from control traces–even 2mm separation cuts radiated noise by 15dB. For medical or RF-sensitive equipment, shield the entire board with copper tape grounded at one point.

Designing a Reliable Voltage Converter Schematic

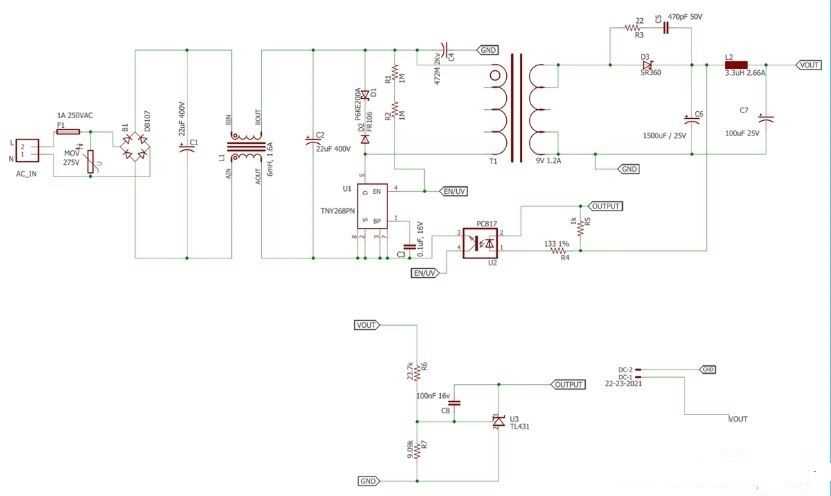

Begin with a flyback transformer rated for input voltages between 85–265V AC to handle global mains variability. Select a primary-side MOSFET like the Infineon IPA60R160P7 (600V, 16A) for its low R_DS(on) of 0.16Ω, minimizing conduction losses. Pair it with a snubber network (1nF/1kV capacitor + 47Ω resistor) across the primary winding to suppress voltage spikes exceeding 500V. Use an isolation feedback optocoupler (e.g., Vishay SFH620A) with a 1% precision shunt regulator (TI TL431) to maintain output regulation within ±2%. Calculate the turns ratio (N_P/N_S) using the formula:

N_P/N_S = (V_{IN_MIN} × D_MAX) / (V_OUT + V_D)

Where V_{IN_MIN} = 90V, D_MAX = 0.45, V_OUT = 5V, and V_D = 0.7V (Schottky forward drop).

Critical Component Selection and Layout

Function	Component	Key Parameters	Test Condition
Input Rectifier	GBU4J	600V, 4A,	100VRMS, 1A, 25°C
Primary Capacitor	Rubycon 68μF/400V	ESR 1A	100Hz, 25°C, 20% ripple
Output Diode	DFLS240L	40V, 2A, Vf = 0.38V @ 1A	3.3VOUT, 500mA, 85°C
Feedback Resistor	Vishay CRCW0805	1% tolerance, 1/8W	0.1mA current, 25°C

Route high-current traces (transformer primary, MOSFET drain) with ≥2oz copper weight to reduce temperature rise; keep loop area under 20mm² to limit EMI. Place the Y-capacitor (2.2nF/250V AC) within 5mm of the transformer pins and earth ground terminal. Validate stability by injecting a 100mA step load at the output–overshoot should not exceed 5% of nominal voltage, and settling time must stay under 500μs.

Core Elements of a Fundamental Voltage Converter Blueprint

Ensure the transformer’s primary coil matches the input AC specifications–typically 120V/230V at 50-60Hz–to prevent saturation or inefficient energy transfer. Select core material based on frequency: silicon steel for line-frequency designs (≤400Hz) or ferrite for high-frequency switchers (>20kHz), as eddy current losses rise exponentially with frequency.

Rectifier stage demands careful diode selection. For low-current outputs (2A) benefit from Schottky diodes (e.g., SB560) with

Filter capacitors should withstand at least 1.5× the peak AC voltage–calculate ripple voltage using V_ripple = I_load / (2 × f × C), where f is the rectification frequency (100/120Hz for full-wave). Tantalum or low-ESR electrolytics (e.g., Nichicon UHE series) reduce equivalent series resistance, critical for transient response. For 12V outputs, target ≤200mV ripple at full load.

Voltage regulation hinges on the error amplifier’s loop stability. Linear regulators (e.g., LM7805) require input-to-output differential ≥2.5V to maintain regulation; derate input voltage if dropout voltage exceeds 1.5V to avoid excessive heat. Switching regulators (e.g., LM2596) demand precise inductor sizing–use L_min = (V_in – V_out) × D / (ΔI × f_sw), where D is duty cycle and ΔI is 20-40% of maximum load current.

Thermal considerations dominate reliability. Mount TO-220 packages on heatsinks with

Protection Mechanisms Against Faults

Fuses must be slow-blow for inrush currents (e.g., 2× steady-state rating) but fast-acting for short circuits–use PTC resettable fuses (e.g., Littelfuse 1210L) if manual replacement is impractical. Transient voltage suppressors (e.g., 1.5KE series) clamp spikes to

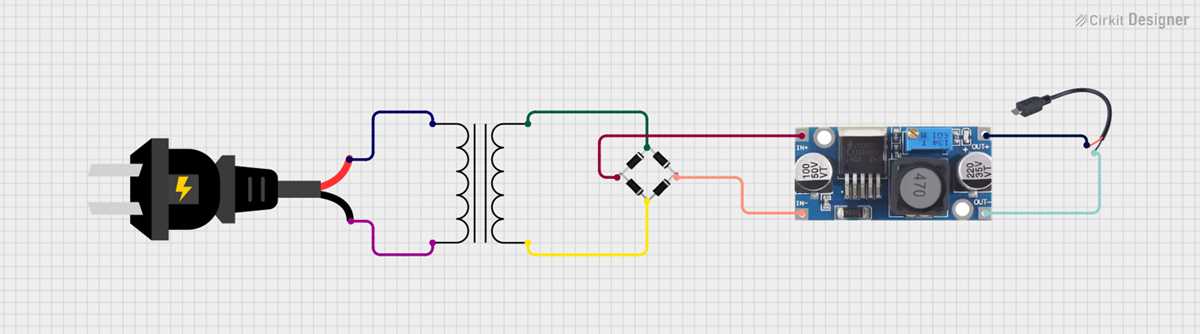

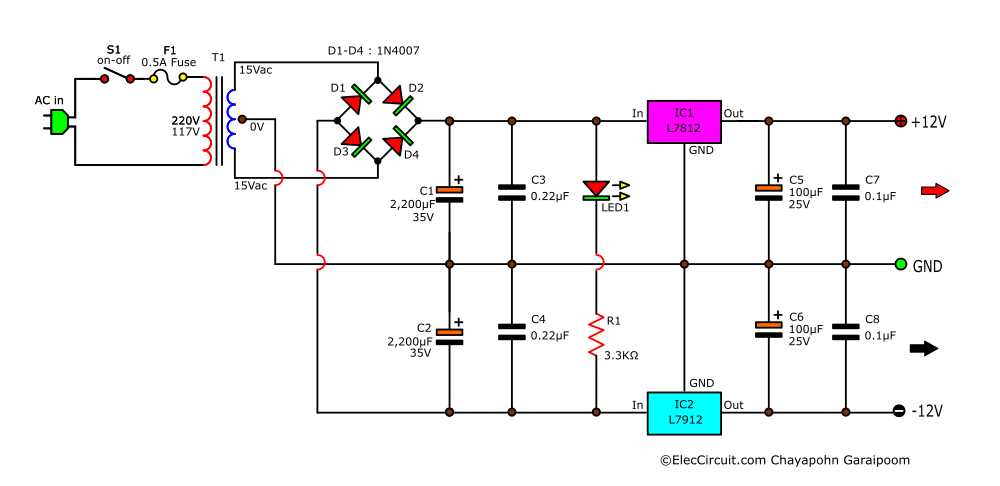

Step-by-Step Guide to Sketching a Transformer-Based Energy Conversion Schematic

Begin with the input line symbol: a straight vertical line on the far left. Mark it at 220–240 VAC if designing for mains voltage, or 110–120 VAC for regions with lower grid frequency. Place a small circle at the terminal end to denote the live connection.

Draw the transformer core next–two parallel rectangles spaced 15–20 mm apart. Label the primary winding counts immediately: 500–800 turns for 220 V input, adjusted proportionally for lower voltages. Add a secondary coil on the opposite side with turns calculated via V_out = (V_in × N_s) / N_p, rounding to nearest integer.

Connect a bridge rectifier below the secondary. Use four diodes arranged in a diamond; mark cathode and anode sides clearly. For 5 VDC output, select diodes rated ≥ 1 A and ≥ 100 V reverse voltage–common 1N4007 suffices for most low-load designs.

Attach smoothing capacitors directly after the rectifier. A 1000 µF capacitor at 16 V or higher eliminates ripple below 10%. Position it 10–15 mm from the diodes’ output nodes; label capacitance and voltage tolerance explicitly on the sketch.

Insert a linear regulator or resistor-based voltage divider for final trimming. For fixed outputs, a 7805 IC placed 20 mm downstream of the capacitor holds 5 VDC ± 0.2 V under 500 mA load. Indicate pin configuration (1–input, 2–ground, 3–output) alongside.

Terminate with load symbols: a series 220 Ω resistor for LED indicators, or a rectangle for generic resistive loads. Verify clearance: maintain ≥ 5 mm between high-voltage traces and low-voltage sections to prevent arc-over. Scan the completed layout for missing annotations; add turn ratios, component codes, and test points before finalizing.

How to Calculate Resistor and Capacitor Values for Voltage Regulation

To determine the dropping resistor for a linear stabilizer, first measure the input voltage (V_in) and subtract the desired output voltage (V_out). Divide the result by the load current (I_load) to find the resistance: R = (Vin - Vout) / Iload. For example, if V_in = 12V, V_out = 5V, and I_load = 0.1A, the resistor should be 70Ω. Verify the component’s power rating using P = Iload² × R; in this case, a 0.7W or higher resistor is required.

Selecting Capacitor Values for Ripple Reduction

Use the formula C = Iload / (2 × f × Vripple), where f is the switching frequency (for linear setups, use mains frequency, typically 50/60Hz) and V_ripple is the maximum acceptable ripple voltage. For a 5V output with I_load = 0.5A, f = 50Hz, and V_ripple = 0.1V, the calculation yields C = 50,000µF. Practical designs often use 47µF–100µF for small loads, but adjust based on:

• ESR (Equivalent Series Resistance) – lower values improve performance.
• Voltage rating – select a capacitor with at least 1.5× V_in.
• Temperature stability – X-rated capacitors for high temperatures.

For Zener diode-based regulators, pair the dropping resistor with a capacitor to stabilize transient responses. Calculate the resistor using R = (Vin - Vzener) / (Izener + Iload), where I_zener is typically 5–10mA. A 100nF–1µF ceramic capacitor across the Zener diode filters high-frequency noise. Ensure the capacitor’s voltage rating exceeds V_zener by 20–30%. Test tolerances: ±5% resistors and ±20% capacitors may require iterative adjustments in prototypes.

1. Measure actual V_in under load–unregulated sources vary ±10%.
2. Simulate worst-case scenarios: I_load(min) and I_load(max).
3. Replace fixed resistor values with trimpots for fine-tuning (e.g., 10kΩ for 5V outputs).
4. Use bypass capacitors (0.1µF) near semiconductors to suppress oscillations.

Key Errors in Energy Supply Block Layouts and Corrections

Underestimating thermal dissipation requirements leads to premature component failure. A 1W resistor operating at 70°C ambient needs a derating factor of 0.5–ignoring this reduces lifespan by 60%. Use copper pours on PCB layers with thermal vias spaced ≤2mm apart for passive cooling. Forced-air solutions must target hotspots with CFD-validated airflow paths, not uniform distribution.

Choosing electrolytic capacitors with inadequate ripple current ratings causes dielectric breakdown within months. Replace generic 470μF/16V caps with polymer types rated for ≥1A ripple at 120Hz. ESR values below 50mΩ prevent overheating; measure post-assembly with an LCR meter at operating frequency. Temperature derating curves show electrolytics lose 50% capacity at 85°C–design for 60°C ambient.

High-frequency switching nodes radiating EMI exceed FCC Class B limits if shielded improperly. Keep loop areas

Failures in voltage regulation accuracy often stem from poor load transient response. A 5V output with ±100mV tolerance requires compensation networks tailored to the feedback loop–overshooting 300mV during load steps indicates insufficient phase margin. Use Type III compensation for buck converters with ceramic caps; simulate load steps from 10% to 100% in SPICE before prototyping.

Overlooking input surge protection results in irreversible damage from line spikes. Install transient voltage suppression diodes with clamping voltages ≤1.5× the nominal input. MOVs must handle ≥10J energy for 2ms pulses; test with a 1kV/μs surge generator. Fuse selection: time-lag types rated 125% of steady-state current prevent nuisance trips while protecting against short circuits.
