Op Amp PWM Circuit Design Step-by-Step Schematic and Operation

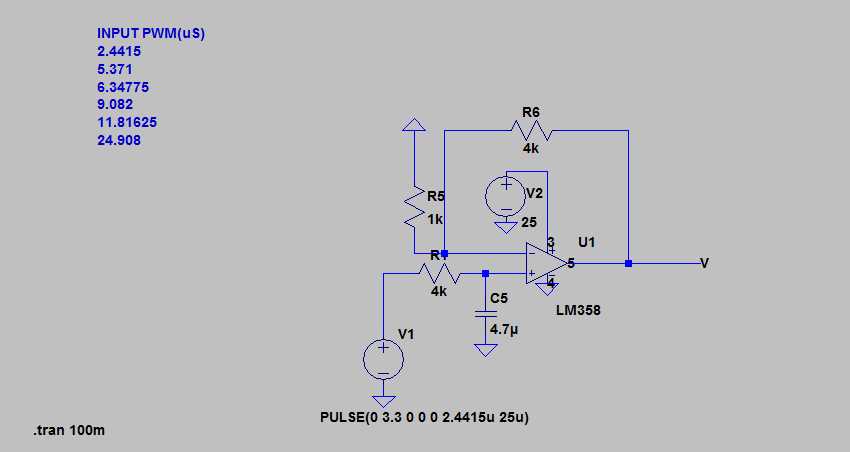

For a stable and adjustable duty-cycle generator, begin with a standard non-inverting comparator topology. Connect the inverting input of the op-amp to a sawtooth waveform generator–achieved with a simple RC network and a feedback loop–while feeding the reference voltage to the non-inverting input. This configuration directly translates input voltage into proportional pulse width, eliminating complex digital control. A rail-to-rail output op-amp (e.g., LM358 or OPA2134) ensures clean switching at supply extremes.
To refine performance, incorporate a hysteresis loop by adding positive feedback via a resistor from the op-amp output to the non-inverting input. This prevents false triggering from noise while maintaining sharp transitions. A suggested hysteresis range of 50–200 mV balances stability and precision. For high-frequency applications (above 50 kHz), reduce the RC time constant–values between 1 kΩ and 10 nF yield reliable triangular waveforms.

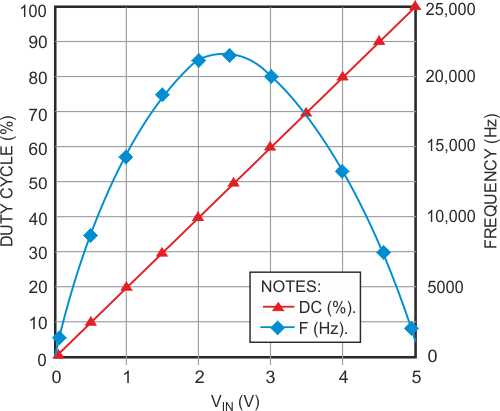

The modulation depth depends on the reference-to-sawtooth amplitude ratio. For 0–100% control, ensure the sawtooth peak-to-peak voltage matches the op-amp’s input range. If linearity is critical, buffer the sawtooth signal with a unity-gain follower before comparison. Avoid common pitfalls: excessive load capacitance (>100 pF) on the output can distort edges, while insufficient bypass capacitors (1 μF ceramic near supply pins) introduce ripple.
For isolation, pair the op-amp output with an optocoupler (e.g., PC817) or a MOSFET driver (TC4427). This isolates control signals from power stages, reducing interference. If driving inductive loads, add a flyback diode (1N4007) across the output to clamp voltage spikes. Test the setup with a dual-channel oscilloscope: verify sawtooth integrity on one channel and pulse width on the other, adjusting hysteresis and RC values until transitions are crisp.
Constructing a Variable Duty Cycle Generator with Operational Amplifiers

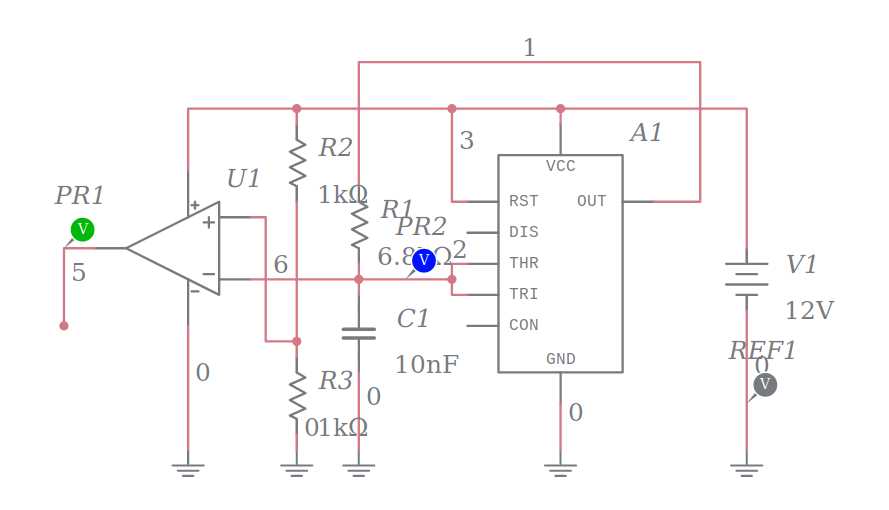

Build a sawtooth oscillator feeding an analog comparator to achieve precise signal modulation. For the triangular waveform, configure an integrator with a TL072: connect a 10 kΩ resistor from the output of a 555 timer (set to 10 kHz) to the inverting input (−), connect a 10 nF capacitor from this node to ground, and tie the non-inverting input (+) to 2.5 V via a voltage divider. The comparator–use an LM311 with its open-collector output–should receive the sawtooth at (+) and a control voltage (0–5 V) at (−); pull the output up to 5 V with a 1 kΩ resistor.
- Supply rails: ±12 V to the TL072, +5 V to the 555 and LM311.
- Ensure slew rate exceeds 5 V/µs on both ICs for clean edge transitions.
- Thermal compensation: solder a 0.1 µF bypass capacitor within 5 mm of each IC’s V+ pin.
- Adjust the control voltage range by scaling the divider on the comparator’s (−) input.
- Replace the 555 with a Schmitt-trigger gate if ultra-low jitter (
Selecting the Right Operational Amplifier for Signal Modulation
Prioritize high slew rate for clean, sharp transitions–values above 10 V/μs (e.g., LM318, OPA2134) prevent distortion in edge-heavy waveforms. Fast settling time (500 ns or less) ensures minimal phase lag, critical for precise timing in switching patterns. Choose rail-to-rail output models (e.g., TLV2371) if operating near supply limits to avoid clipping; input rail-to-rail variants (e.g., LT1638) help maintain linearity when signal excursions approach ground or VCC.
For low-noise applications, target devices with noise density below 5 nV/√Hz (e.g., OPA1612) and low input bias current (1 pA typical) to reduce offset errors in long-duration cycles. Thermal drift (<2 μV/°C) matters in fluctuating environments–consider precision models like OP07 or AD8675 for stable performance. Match supply voltage to your desired signal swing: single-supply op-amps (e.g., MCP6002) simplify designs for unipolar outputs, while dual-supply types (e.g., NE5532) accommodate bipolar waveforms without additional biasing.
Designing a Triangle Wave Generator for Modulated Signal Control
Begin with a Schmitt trigger configuration paired with an integrator stage to produce stable triangular waveforms. Select resistor values for the positive feedback loop that ensure hysteresis–typically a 10 kΩ resistor on the non-inverting input and a 100 kΩ resistor connecting the output to the inverting input. The integrator stage, built around a precision operational element, should use a high-quality capacitor (e.g., 10 nF polyester or polypropylene) and a resistor in the range of 10 kΩ to 100 kΩ to set the charging rate. Adjust the resistor ratio to achieve symmetry in the rising and falling slopes, targeting frequencies between 1 kHz and 50 kHz for most switched-mode applications.
Ensure low-noise performance by decoupling the power supply pins of the active component with 0.1 µF ceramic capacitors placed as close as possible to the IC. Ground the reference point of the triangular output through a low-impedance path to avoid phase distortion; a star-ground configuration is advisable. For temperature stability, use metal-film resistors with a tolerance of 1% or better and avoid electrolytic capacitors in the signal path. The amplitude of the generated waveform can be fine-tuned by varying the supply voltage, but maintain a minimum of ±2 V below the rail voltage to prevent output clipping.
To synchronize multiple control arrangements, add a comparator stage with a variable threshold–implement this using a potentiometer (e.g., 50 kΩ) to set the reference voltage against the triangular signal. This enables adjustable duty cycle modulation without redesigning the waveform generation block. Verify frequency consistency with an oscilloscope, ensuring less than 2% deviation across the operating temperature range. If frequency drift occurs, replace the timing capacitor with a high-stability NPO ceramic type and consider shielding the integrator section to minimize stray capacitance effects.
Configuring the Operational Amplifier as a Switching Comparator for Modulated Signals
Set the op-amp’s non-inverting (+) input to a fixed reference voltage between 0.5 V and 2.5 V to define the switching threshold–this directly controls the duty cycle of the output waveform. Apply a triangle or sawtooth waveform (1–10 kHz, 0–5 V peak-to-peak) to the inverting (-) terminal; the intersection with the reference determines the on/off transition points. Ensure the op-amp operates in open-loop configuration (no feedback) for maximum slew rate, typically ≥10 V/µs, to achieve clean, rapid toggling without distortion.
| Component | Recommended Values | Purpose |
|---|---|---|
| Reference Voltage (Vref) | 0.5–2.5 V | Adjusts duty cycle range |
| Modulating Signal | 1–10 kHz, 0–5 Vpp | Provides ramp for comparison |
| Output Stage Pull-Up Resistor | 1–10 kΩ | Ensures logic-level output compatibility |
| Supply Voltage (±Vcc) | ±5 to ±15 V | Matches op-amp’s rated swing |
Select a rail-to-rail output op-amp (e.g., LM358, TL081) if driving loads directly; otherwise, buffer the output with a push-pull stage for currents >50 mA. Decouple the power supply with 0.1 µF capacitors adjacent to the IC pins to suppress high-frequency noise during transitions. Verify the comparator’s response with an oscilloscope: rise/fall times should be
Fine-Tuning Edge Sharpness and Avoiding Common Pitfalls
Add a small hysteresis (10–50 mV) between the inputs by connecting a resistor (100 kΩ–1 MΩ) from the output to the non-inverting input–this prevents chatter when the modulating signal hovers near the reference threshold. Avoid exceeding the op-amp’s maximum output current (typically 25–40 mA) by limiting load impedance; exceed this and distortion or thermal shutdown occurs.
For bipolar supply designs, ensure the modulating signal’s DC offset matches the reference; a mismatch shifts the duty cycle erratically. If phase inversion is observed, swap the input terminals or invert the modulating signal. For single-supply operation, bias the reference voltage above ground (e.g., 1 V) to maintain modulation headroom; failure to do so truncates the lower portion of the waveform.
Fine-Tuning Pulse Width via Potentiometer
Place a 10kΩ linear potentiometer between the feedback node and ground to dynamically alter the output signal’s on-off ratio. The wiper connects to the summing junction of the operational element, where even minor resistance shifts–typically 5% of the total range–produce measurable duty-cycle changes. For precision applications, match the pot’s tolerance (±1%) to the op-amp’s input offset voltage (≤1mV) to avoid non-linear behavior near extremes.
- 50% setting: center wiper position, balanced high-low intervals
- 25% setting: adjust counterclockwise until the off duration doubles
- 75% setting: turn clockwise until the on period tripled the off
Validate adjustments with an oscilloscope probing the output node: expect clean square transitions without overshoot (>2V/µs slew rates). If ringing occurs, add a 100nF decoupling capacitor across the pot’s outer terminals to suppress HF noise. For microcontroller interfacing, ensure the op-amp’s output swing (±12V typical) aligns with the logic threshold (3.3V/5V) via a voltage divider or comparator stage.
