Complete RCWL-0516 Motion Sensor Schematic and Circuit Analysis

For reliable performance in Doppler-based sensing modules, pin 6 (VIN) must connect to a regulated 5V DC source with a minimum 500mA capacity. Bypass capacitors–10μF electrolytic paired with 0.1μF ceramic–should be placed as close as possible to this input to suppress noise transients. Failure to observe these values risks erratic triggering and false positives, especially in high-EMI environments.

The RF output at pin 2 (OUT) delivers a 3.3V PWM signal with a frequency shift proportional to detected motion. Interface this directly to a microcontroller’s interrupt-capable pin (Arduino: D2/D3, ESP32: GPIO 4/5)–avoid using ADC inputs due to signal characteristics. A 1kΩ pull-down resistor is critical to prevent floating states during idle periods. For extended range (up to 9 meters), replace the default 22pF SMD capacitor on the antenna trace with a 33pF variant, ensuring proper soldering to the exposed pad.

Ground plane integrity dictates sensitivity and stability. Use a two-layer PCB with a continuous ground fill beneath the entire module, connecting to pin 5 (GND) via multiple vias (minimum 0.3mm diameter). Avoid routing high-speed signals near the antenna area; maintain a 3mm clearance from digital traces to minimize coupling. For outdoor applications, seal the assembly with conformal coating–silicone-based compounds offer superior moisture resistance without degrading RF performance.

Calibration hinges on two key components: the delay timer (pin 3, CD) and sensitivity adjuster (pin 1, VREF). Configure the delay by linking pin 3 to VCC through a 47kΩ resistor for 2-minute lockout; substitute 100kΩ for 5-second overrides. Adjust detection thresholds by tying pin 1 to a 10kΩ trimpot between VCC and GND, then fine-tune while monitoring false triggers across varying ambient conditions (temperature, humidity, RF noise).

Practical Breakdown of the RCWL Microwave Sensor Layout

Begin by identifying the power supply pins: VIN (3.3–5V) and GND. Connect VIN directly to a stable voltage source–avoid shared rails with noisy components like motors or buck converters. A 100µF decoupling capacitor between VIN and GND, placed within 5mm of the module, suppresses voltage spikes that falsely trigger detection from internal RF transients.

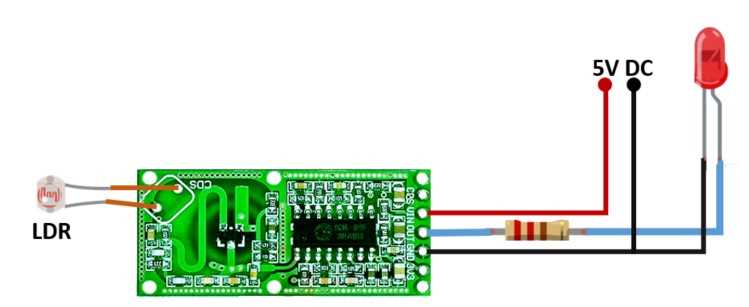

Locate the CDS pin next–its sensitivity adjusts via ambient light conditions. Leave it unconnected for standard operation indoors, or wire it through a 10kΩ resistor to ground to disable detection in bright environments. For narrow-trigger control, solder a 10kΩ trimpot between CDS and VIN; turning clockwise widens detection range, counter-clockwise narrows it to ~1.5m.

Examine the OUT pin–it pulses high (3.3V) for ~2 seconds upon motion. Route this signal through a 1kΩ resistor to prevent back-current from connected logic gates or relays. To stretch the output duration, add a 1µF capacitor between OUT and GND; timing follows τ=RC, extending hold time up to 5 seconds. Calibrate by testing motion at 3m intervals, adjusting the resistor value in 0.1kΩ steps until false triggers cease.

Critical Trace Routing for RF Stability

Keep the antenna trace unobstructed–its default copper pour radiates at 3.18GHz. If extending the antenna wire beyond the onboard 3mm stub, use a 50Ω coaxial cable stripped to an electrical length of 23.8mm (λ/4). Avoid routing adjacent digital traces within 8mm of the antenna; RF coupling induces phantom triggers, especially near high-speed clocks >1MHz.

For precision tuning, insert a 1pF–10pF trimmer capacitor between the antenna pad and ground. Start at 1pF–any lower exacerbates ambient noise; values above 3pF attenuate sensitivity below 5m. Ground the module via a dedicated star-ground tapped from the power supply’s negative terminal, never through a shared ground plane. Use a 1mm via stitching perimeter around the module to contain EMI, spaced no farther than 5mm apart.

Pin Configuration and Signal Flow in the Doppler Radar Module

Prioritize connecting Pin 3 (VIN) to a stable 4–6V DC supply–exceeding 6.5V risks permanent damage to the internal LDO regulator. Use a low-dropout 5V source with ≤50mV ripple to prevent false motion triggers. Bypass capacitors (10µF electrolytic + 0.1µF ceramic) placed

• Pin 1 (OUT): Open-drain output sinks ≤10mA; pull it up externally (10kΩ to VDD) for logic-high compatibility with MCUs. Rising edge indicates target detection; falling edge marks the 2-second timeout if no further motion occurs. Avoid sharing this pin with high-current loads (LEDs, relays)–isolate with a MOSFET or optocoupler if driving >20mA.
• Pin 2 (GND): Route directly to a solid ground plane; stitch vias every 10mm when PCB traces exceed 30mm. Keep 0Ω impedance (
• Pin 4 (CDS): Connect a photoresistor (
• Pin 5 (3V3): Derived from internal LDO, outputs 3.3V (±2%) for external sensors. Current limited to 50mA; exceeding this drop triggers thermal shutdown. Decouple with 1µF X5R/X7R ceramic within 2mm of this pin.

Critical Signal Flow Paths

Microwave signal emanates from the on-chip VCO (2.65GHz ±75MHz) via the U.FL antenna pin. Reflected doppler shifts return through the same path, mixed internally with the reference oscillator. The resultant 0–10Hz IF signal passes through a cascaded 3-stage amplifier (total gain: 60dB); filter parasitic noise >50Hz by placing a 22nF capacitor across the OUT pin and GND. Internal hysteresis (1.2V threshold) rejects sub-2Vpp noise–bypass this by setting a comparator if interfacing with 1.8V MCU logic.

Enable burst mode by grounding CDS for

Power Supply Requirements and Regulator Design

Use a minimum 7V input for stable operation with linear regulators to ensure sufficient headroom for dropout voltage. For switching regulators, a 5V–12V range balances efficiency and thermal dissipation, but verify ripple specs below 50mV peak-to-peak for sensitive analog components.

Select a low-dropout (LDO) regulator like the AP2112 or MIC29302 for applications drawing up to 1.5A. These maintain regulation with ≤0.3V dropout at full load, critical for battery-powered or automotive environments where voltage sags occur.

For currents exceeding 2A, switch to a buck converter (e.g., TPS5430) with ≥90% efficiency. Size the inductor for 30% ripple current relative to max load–larger values reduce core losses but increase footprint. Use ceramic caps (X5R/X7R) for input/output filtering; electrolytics degrade performance with age.

Ground the regulator’s thermal pad directly to the PCB’s ground plane via multiple vias, especially for packages like TO-220 or DDPAK. Copper pours under the device should span ≥2 cm² per watt dissipated to prevent thermal throttling. Thermal vias diameter: 0.3mm, spaced ≤1mm apart.

Add a Schottky diode (1N5822) in parallel with the input to protect against reverse polarity, even if the supply includes built-in protection. Diode’s forward voltage drop should be ≤0.3V to minimize power loss. For transient suppression, place a 10μF tantalum or 22μF ceramic cap within 2mm of the input pin.

Regulator output capacitance directly impacts stability: 10μF–100μF typically suffices, but verify the datasheet’s recommended ESR range (often 5mΩ–5Ω). Low-ESR caps risk oscillations; a small 0.1Ω–1Ω resistor in series can restore stability if needed. Avoid exceeding max capacitance limits, or the regulator may fail to start.

Linear regulators in dropout mode (input near output voltage) generate minimal noise, ideal for RF or audio applications. Switching regulators, while efficient, require shielding and proper layout–keep switching nodes (≤3mm) away from analog traces. Use 4-layer PCBs with a dedicated ground plane for sensitive circuits to reduce EMI.

Test under worst-case conditions: full load at minimum input voltage and maximum ambient temperature. Measure output voltage at the load, not the regulator pins, to account for trace resistance. Add a 100nF decoupling cap at the point of load for high-frequency noise isolation, especially if traces exceed 5cm.

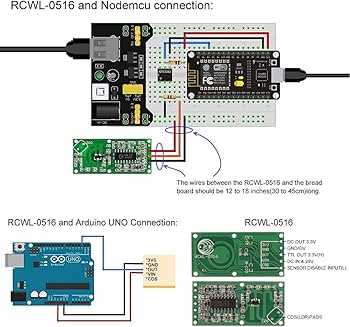

Connecting Doppler Radar Sensor to Microcontrollers (Arduino, ESP)

To interface the motion detection module with Arduino Uno, connect the sensor’s 3V3 pin to Arduino’s 3.3V, GND to GND, and OUT to any digital pin (e.g., D2). Use pull-down resistors (10kΩ) if false triggers occur. For ESP8266/ESP32, ensure stable power–fluctuations cause erratic behavior. The sensor operates at 3.3V logic; signal levels above 3.6V may damage GPIO pins.

Code initialization requires pinMode() for the chosen digital pin and digitalRead() in the loop. For ESP devices, enable interrupts via attachInterrupt(digitalPinToInterrupt(pin), ISR, RISING) to handle motion events efficiently. Avoid delays in the ISR–keep it under 20μs. For Arduino, polling suffices but add millis() for timing to prevent blocking.

For wireless applications (ESP), transmit sensor data via Wi-Fi using MQTT or HTTP. Use ESPNow for low-latency peer-to-peer communication. Power consumption spikes during motion detection (up to 3mA); optimize with deep sleep modes if battery-operated. Test detection range (typically 5–7m) by adjusting sensor position–metal objects or walls may reflect signals unpredictably.

Calibrate sensitivity by tweaking the onboard potentiometer (if available) or via software debounce (200–500ms). For precision, combine with PIR for multi-sensor validation. Output is active-high; invert logic if needed (!digitalRead()). For ESP32-CAM, connect OUT to a free GPIO and synchronize motion events with camera triggers to reduce false positives.
