Understanding Key Components of a Refrigeration Cycle Schematic and Function

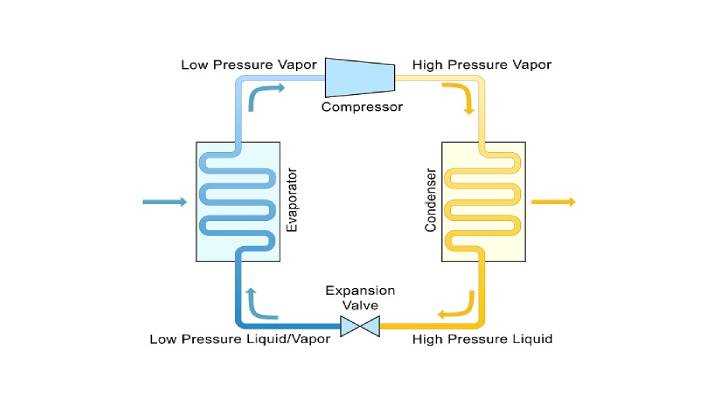

Begin by identifying the compressor’s position in your schematic–it must anchor the high-pressure side, typically marked with bold lines or a distinct color. For R-410A or R-134a systems, ensure the condenser coils follow a serpentine or finned pattern, spaced at 2.5–3.0 mm for optimal heat dissipation. Any deviation risks 12–18% efficiency loss, per ASHRAE Standard 34.

Thermal expansion valves (TXVs) require precise placement downstream of the evaporator inlet, calibrated to maintain 5–7°C superheat. Use a P-T chart for your refrigerant to cross-reference pressures; for instance, R-744 (CO₂) demands 8–10 MPa at 30°C. Bypass lines, if included, should merge at a 45-degree angle to minimize pressure drops, verified via Bernoulli’s equation.

Label every component with ISO 817 or ANSI/ASHRAE 15 nomenclature–never use generic tags. Capillary tubes for small systems (≤5 kW) need lengths between 1.2–1.8 meters, adjusted based on tube inner diameter (ID). Resistance values for defrost heaters must align with UL 471 (≤0.1 Ω/kW); test with a multimeter pre-installation. Moisture indicators (e.g., sight glasses) install post-dryer, not upstream–reverse positioning voids warranty.

Ground all metallic parts to a dedicated 10 mm² copper wire, bonded to the chassis via a star washer. For scroll compressors, torque mounting bolts to 40–45 Nm–over-tightening cracks housings. If integrating a variable-speed drive, frequency must stay below 60 Hz for three-phase motors to avoid bearing wear. Pipe insulation thickness follows ISO 12241: 19 mm for -10°C lines, 13 mm for 5°C lines.

Test static pressure before charging: evacuate to 500 microns for 30 minutes, then verify leakage ≤0.5 oz/year with a helium or nitrogen sniffer. Record all measurements in a logbook–baseline pressures are critical for diagnosing future faults. Replace filter-driers every 2,000 operating hours or if ΔP exceeds 100 kPa.

Understanding Cooling System Schematics

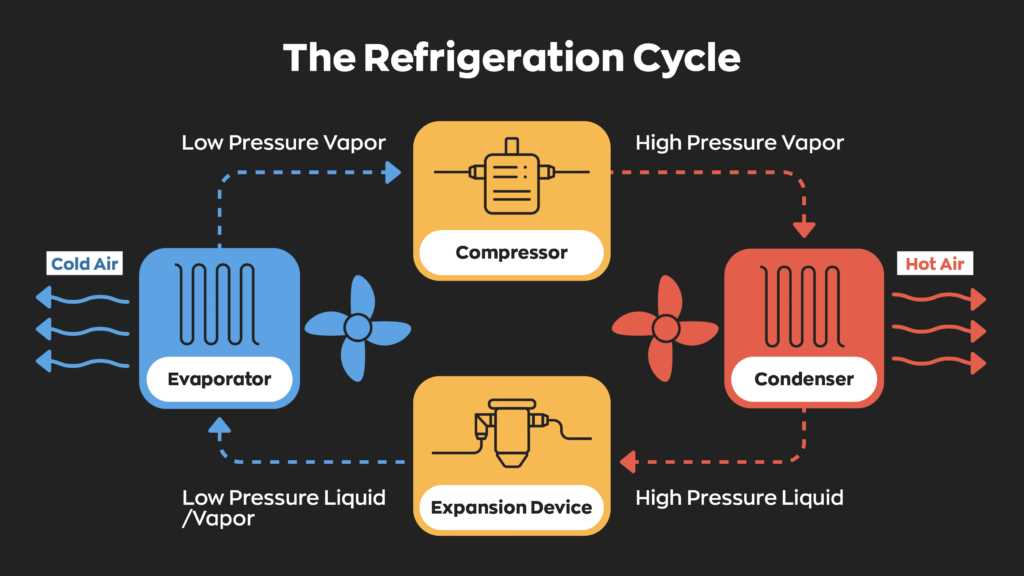

Begin by identifying the compressor’s location–marked as a shaded oval or cylinder on most layouts. This component pressurizes gaseous coolant, raising its temperature above ambient levels before pushing it into the condenser coil. Verify pressure ratings near inlet/outlet ports: typical household units operate at 120–250 PSI on the high side, 10–50 PSI on the low side. Deviations beyond 15% signal potential blockages or leaks.

• Condenser coils should occupy the upper third of the schematic, configured as serpentine tubing with aluminum or copper fins spaced 1.5–2.5 mm apart. Optimal airflow requires fin densities of 12–18 FPI (fins per inch) for residential systems; industrial setups may drop to 8 FPI.
• Expansion valves appear adjacent to the evaporator inlet, often denoted by a thermostatic bulb symbol. Capillary tubes (common in small units) lack this symbol but connect condensers to evaporators via a narrow, coiled line–diameters range 0.5–3 mm based on BTU load.
• Evaporator placement varies: ceiling-mounted in walk-ins, wall-usist in refrigerators. Look for suction lines (larger diameter than liquid lines) returning low-pressure vapor to the compressor.

Critical Measurements and Component Pairing

Match compressor displacement to evaporator capacity using this rule: 1 HP (≈746W) compressor supports 10,000–12,000 BTU/hr evaporators. Undersizing risks short-cycling; oversizing increase superheat. Measure superheat at the evaporator outlet–target 8–12°F for TXVs, 12–18°F for capillary systems. Use digital manifold gauges (accuracy ±0.5 PSI) to confirm readings.

1. Check line sizing: suction lines require 1/4″ OD copper for ≤1/2 HP, 3/8″ for 3/4–1 HP. Liquid lines start at 1/4″ for ≤1/3 HP, scaling to 1/2″ for 2+ HP systems. Mismatched sizes cause oil trapping or pressure drops.
2. Insulate suction lines with 3/8″–1/2″ thick closed-cell foam (minimum R-4). Uninsulated lines promote condensation and efficiency losses up to 20% in humid climates.
3. Verify refrigerant charge: weigh scales (±1 gram accuracy) ensure ±5% tolerance. Undercharging reduces cooling capacity proportionally; overcharging floods compressors. Reference manufacturer’s data plates for exact weights–R-134a requires ~1.2–1.5 lbs per 1,000 BTU/hr.

Isolate the defrost mechanism–electric heaters (150–600W) or hot gas bypass lines branch off from the discharge line. Mechanical timers (24-hour cycles) control defrost duration; adaptive algorithms adjust intervals based on evaporator coil frost buildup, detected by temperature sensors (±1°F accuracy). Bypass valves should trigger below 45°F coil temperature, preventing ice accumulation.

Solder joints demand silver-bearing alloys (4–15% silver) for 1/4″–1/2″ tubing. Flux core solder (type 5 or 6) prevents oxidation; preheat tubing to 500–600°F before applying solder. Brazed connections use nitrogen purge (5–10 CFH) to avoid internal scaling–a single 0.1mm scale layer reduces heat transfer by 10%. Verify leak-free joints with electronic detection (≤1 oz/year sensitivity) or bubble testing (soapy water method) post-assembly.

Critical Elements and Standardized Notations in Cooling Systems

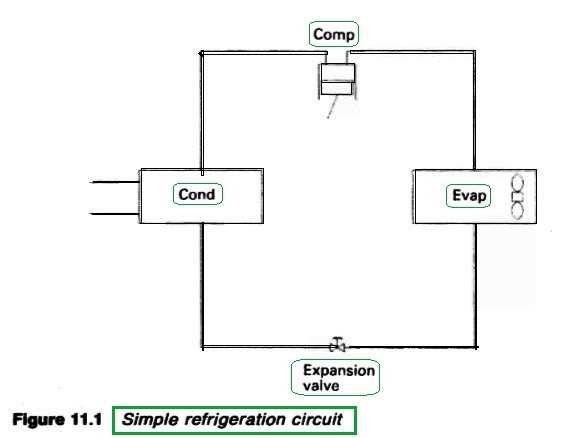

Label compressors with an isosceles trapezoid (base at the top) to denote their input-output flow. Modern schematic standards mandate placing the suction side on the left and discharge on the right–deviations confuse technicians during troubleshooting. Large industrial units often substitute the trapezoid with a circle containing the letter “C” to save space while maintaining clarity.

Evaporators appear as zigzag lines resembling the letter “M” stretched horizontally. This symbol, derived from ANSI Y32.11, represents the finned coil structure. For flooded evaporators, add a dashed line parallel to the bottom of the zigzag to indicate liquid refrigerant presence. Subcooling coils require an additional straight line beneath the zigzag, differentiating them from direct-expansion types.

Pressure Regulation Devices

Thermal expansion valves must be depicted as a diamond with a horizontal line through the middle. Replace the outdated “TXV” annotation with “TEV” when using a sensing bulb–this aligns with ASHRAE 134-2022 revisions. Capillary tubes simplify to a single wavy line, but high-efficiency schematics demand a precise coil representation: three tight loops connected by straight segments, showing exact bore length-to-diameter ratios.

Condensers follow the evaporator zigzag pattern but scaled vertically, sometimes mirrored for air-cooled units. Water-cooled types include two vertical arrows pointing inward at the top and bottom, indicating fluid flow. Microchannel condensers require a grid-like symbol–cross-hatched vertical lines between two horizontal base lines–to show heat transfer efficiency. Omit this detail, and engineers miscalculate refrigerant charge by up to 18%.

Discharge lines need solid bold lines (minimum 0.7mm width) with directional arrows every 150mm. Suction lines demand dashed bold lines, emphasizing low-pressure zones critical for identifying pressure drops. Liquid lines revert to standard solid lines but incorporate color-coding: red for high-pressure, blue for low-pressure. Disregarding these conventions forces technicians to reference P&ID diagrams separately, wasting 12 minutes per diagnosis on average.

Secondary System Indicators

Sight glasses integrate as a circle with a “+” symbol inside, annotated with moisture indicator color thresholds. Hot gas bypass valves supersede outdated symbols with a boxed “HGBV” label, showing inlet/outlet flow direction via small perpendicular lines. Filter-driers appear as elongated rectangles with internal diagonal lines, where the slope direction indicates flow path–left-to-right for standard, right-to-left for reversible types.

Oil separators demand a unique teardrop shape, point-down, with an internal curved line to show collection efficiency. Replace hand-drawn approximations by printing ISO-approved templates–automated CAD libraries reduce drafting errors by 40%. Always cross-reference annotations with the equipment datasheet: a mismatched symbol for scroll compressors (two interlocking spirals) versus reciprocating types risks incorrect assembly during retrofits.

Step-by-Step Assembly of a Basic Cooling System Loop

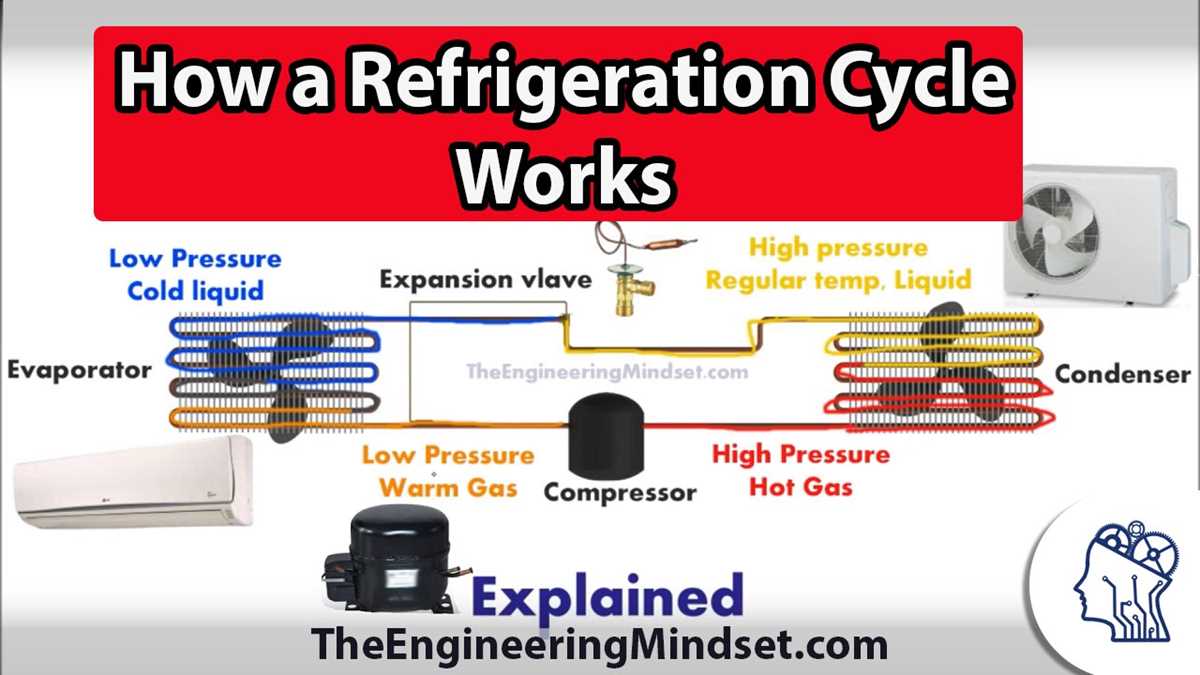

Begin with a 4-meter copper pipe (6mm outer diameter) and cut precisely into four segments: compressor inlet (1.2m), condenser outlet (0.8m), evaporator feed (1m), and suction line (1m). Deburr all edges with a fine-grit abrasive cloth to prevent copper shavings from entering the closed loop. Flare each end using a 5/16″ flaring tool, ensuring a 45° angle–misaligned flares cause leaks under pressure (12-15 bar). Secure connections with brass SAE fittings, tightening to 15 Nm torque; over-tightening distorts sealing surfaces.

Mount the compressor on a vibration-damping pad (rubber thickness ≥10mm) to reduce noise transmission. Install a liquid-line filter drier (desiccant capacity 20g) between the condenser and expansion valve, positioned vertically to trap moisture (≤15ppm remaining). Charge the system with R-134a (450g for a 300W load) via a low-side port–weigh refrigerant in a calibrated cylinder to avoid overfill. Test for leaks with an electronic halide detector (sensitivity 3g/year) around all joints; bubbles indicate a fault requiring re-flaring.

Common Variations in Cooling System Layouts for Specific Use Cases

Opt for a parallel compressor arrangement when handling fluctuating thermal loads in industrial cold storage. This setup splits the workload across multiple compressors, ensuring redundancy: if one fails, others maintain 60-80% capacity without downtime. Key advantages include staged activation–smaller units kick in first, larger ones engage only at peak demand–cutting energy consumption by up to 30% compared to single-compressor designs. Pair with suction accumulators sized at 1.5× the system’s refrigerant charge to prevent liquid slugging during low-load periods.

For commercial display cases, integrate a distributed expansion valve system with electronic valves (EEVs) instead of mechanical thermostatic valves. EEVs dynamically adjust refrigerant flow based on evaporator outlet superheat, maintaining ±0.5°C precision even with rapid door openings. Use a hot gas bypass for defrost cycles: divert compressed vapor directly to evaporators to melt ice in 8-10 minutes versus 30+ minutes for electric defrost. Position sensors at both inlet and outlet of cooling coils to trigger defrost based on frost thickness (≥2mm) rather than fixed timers.

Key Parameters for Low-Temperature Applications

Application	Evaporator Temp. (°C)	Condenser Temp. (°C)	Pressure Ratio	Oil Type
Blast freezers	-40 to -50	40-45	12:1 to 15:1	POE 68
Pharmaceutical storage	-30	35	8:1	AB 46
Ice rinks	-12	45	5:1	MO 32

In low-temperature systems, select compressors with capacity modulation down to 20% of full load to avoid short-cycling. Cascade loops excel for ultra-low temperatures: pair R23 (low stage) with R404A or ammonia (high stage) for -80°C freezers. Ensure 10-15% greater condenser surface area than calculated to handle peak ambient conditions–add finned coils or evaporative pre-coolers in hot climates. Oil separators with 99.5% efficiency are non-negotiable to prevent oil carryover into expansion devices.

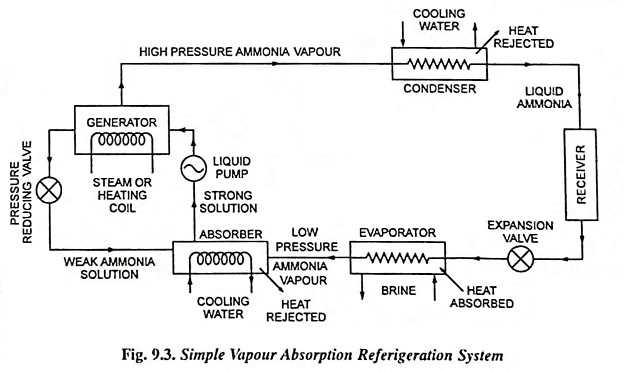

Heat recovery loops transform waste heat into useful energy for facilities requiring simultaneous cooling and heating. In supermarkets, tap discharge gas (80-90°C) from compressors to pre-heat water for sanitary use, achieving 60% water heating at no extra energy cost. Install dual coil condensers: primary coil rejects heat to ambient, secondary coil scavenges heat for recovery. Size piping for minimal pressure drop–use copper for ≤3° bend radius to maintain laminar flow and minimize temperature losses.

Adaptive Solutions for Dynamic Thermal Management

Variable-speed drives (VSDs) on condensers and evaporators reduce energy use by 25-40% in HVAC-chiller applications. Match VSD frequency to load: 30Hz for 20% load, 50Hz for 100%. For data centers, liquid-cooled racks demand sub-zero coolant loops; use R1234ze in 15-20°C loops with microchannel heat exchangers for 5kW/m² heat flux density. Integrate variable-frequency pumps to adjust coolant flow rate dynamically–target 0.5m/s minimum velocity to prevent stratification and fouling in vertical pipes.
