How to Design and Wire a Relay-Controlled Circuit Breaker System

Select a normally open (NO) auxiliary contact block rated for at least 125% of the inductive load’s peak current. For 240VAC coils, use 14 AWG copper wire with crimp-on spade terminals; avoid soldering near magnetic latching regions. Position the protective cut-off device upstream of both the control coil and auxiliary terminal–no more than 150mm from the coil to minimize electromagnetic interference during switching transitions.

Verify the short-circuit interrupt rating corresponds to the panel’s fault current calculations. IEEE 242-2001 recommends 10kA IC for 480V systems serving motor loads exceeding 30A. Size the thermal trip element at 110% of full-load current for continuous duty applications, adjusting to 125% where cyclic loading exceeds five starts per hour.

Arrange the wiring harness with twisted pairs for control signals (20 twists per meter) and segregate power conductors with a minimum 25mm air gap to prevent capacitive coupling. Ground the metallic enclosure directly to the main bonding bus using a dedicated #6 AWG copper conductor, ensuring zero impedance at 60Hz. Label each conductor at both termination points using heat-shrink tubing printed with machine-readable QR codes for maintenance logging.

Test the disconnect sequence under 1.2x nominal voltage to confirm mechanical trip within 10ms of simulated overload. Record trip curves with a high-speed oscilloscope (minimum 2MHz bandwidth) capturing both coil current and contact bounce duration. Replace any device exhibiting arcing time exceeding 1.5ms on initial closure–indicates oxide buildup or improper contact wipe.

Schematic for Automated Switching Protection in Electrical Networks

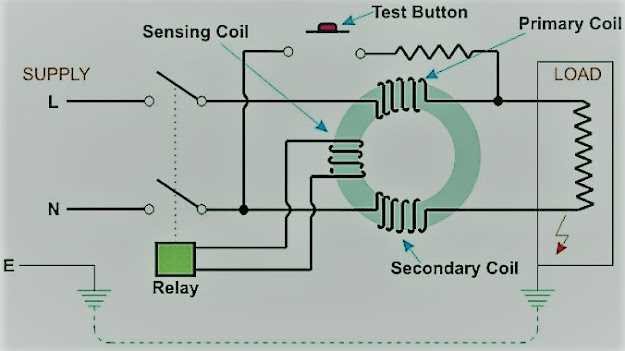

Begin by selecting a control module with a response threshold of 10-30 milliseconds for fault detection. Opt for a latching mechanism with contact ratings exceeding system peak current by 20% to prevent false trips during transient loads. Integrate a sensing coil positioned upstream of the main conductive path, ensuring it captures sudden voltage deviations ≥15% nominal values without interference from harmonic distortion.

Use a dual-layer PCB layout with isolated power planes for the actuator coil and auxiliary contacts. Separate analog signal traces from digital trigger lines by at least 2.5mm to avoid cross-talk; vias should have a minimum 0.3mm annular ring to handle inductive kickback during interruption. Ground reference star-point connections near the suppression diode cluster to localize noise.

Install snubber networks (100Ω resistor + 0.1µF capacitor) across switch contacts where inductive loads exceed 50W to suppress arcing. Choose auxiliary contacts with gold-plated surfaces rated for 10,000+ mechanical cycles when handling low-level control signals. Configure reset logic with a watchdog timer set to 1.5× the longest expected clearing time of the protected segment.

Test the schematic using transient injection pulses mimicking fault conditions–apply 2× nominal voltage for 500µs at the sensing coil input. Verify re-closure timing under varying ambient temperatures (–20°C to +70°C), ensuring actuation consistency within ±5ms. Document all component tolerances and derating curves for future maintenance reference.

Key Elements of an Automatic Switching Device Blueprint

Begin with a control coil – the core actuating mechanism. Specify its voltage rating (e.g., 12V, 24V, or 110V AC/DC) and current draw in milliamperes, as mismatches will cause failure or overheating. Use a fast-blow fuse rated at 125% of the coil’s peak inrush current to protect against surges during energization cycles.

Integrate contacts with clearly labeled poles – normally open (NO) and normally closed (NC). Silver alloy contacts handle 10A resistive loads reliably; exceeding this risks pitting. For inductive loads, derate by 50% and add a snubber network (0.1µF capacitor + 100Ω resistor) across contacts to suppress arcing.

Place the armature assembly between the coil and contacts. Ensure a gap of 0.5–1.5mm at rest; tighter tolerances increase wear, looser ones reduce pull-in force. Lubricate pivot points with molybdenum disulfide grease to prevent sticking under vibration.

Auxiliary switches signal status to monitoring systems. Use microswitches rated for 1kV isolation and 5mA minimum current to avoid false triggers. Route their wiring away from high-current paths to minimize EMI-induced errors.

Incorporate a manual override lever with a lockout position. Design it for 10Nm torque to resist accidental tripping while allowing intentional operation. Label positions with etched metal tags for durability in industrial environments.

Power input terminals should accept wire sizes from 14–2 AWG. Copper lugs with tin plating prevent oxidation; torque to 1.7Nm for secure connections. Separate low-voltage control terminals from main conductors by at least 20mm to meet IEC 60947-1 creepage standards.

Add a reset mechanism with a latching solenoid if required. For thermal protection, pair it with a bimetallic strip calibrated to trip at 80°C ±5% under 1.2× rated current. Test using a DC load bank to validate response times within 100ms for overload conditions.

Step-by-Step Wiring Guide for an Electromagnetic Switch Protection Setup

Begin by securing the control module to a stable surface near the power source. Ensure the mounting location is dry, free of dust, and accessible for future maintenance. Use M4 screws for standard enclosures–check torque specifications to avoid overtightening (typically 1.2 Nm for plastic housings).

Connect the input terminals of the switching unit to the primary power line. For 12V systems, use 18 AWG copper wire; for 24V or higher, 16 AWG is minimum. Strip insulation to 8 mm–excessive exposure increases short-circuit risks. Crimp terminals with a ratcheting tool for consistent pressure; soldering is optional but recommended for high-vibration environments.

Identify the load terminals based on the schematic overlay provided with the device. Label each wire before disconnecting any existing links to prevent miswiring. For inductive loads (motors, solenoids), add a flyback diode (1N4007) across the coil terminals, observing polarity: cathode to positive, anode to negative. Reverse polarity will fail to suppress voltage spikes.

Route the output wires to the protected device, avoiding sharp edges or heat sources. Maintain a minimum 5 cm separation from AC lines to reduce interference. Secure wiring with nylon ties every 15 cm–loose wires cause chafing and intermittent faults. Test continuity with a multimeter before energizing: resistance should read below 0.5 ohms for solid connections.

Attach the command signal wires–typically a low-voltage trigger (3-5V) from a microcontroller or sensor. Use twisted pair cables to minimize electromagnetic interference. For remote activation, extend wires through conduit; PVC is sufficient for indoor use, while metal conduit is required outdoors or in hazardous locations.

Configure overload settings on the protection unit. For a 10A nominal current, set the trip threshold to 12A. Adjust via the onboard potentiometer or digital interface if available–consult the manufacturer’s calibration procedure. Verify with a clamp meter during full-load testing to confirm accuracy within ±2%.

Install a fuse holder inline with the power feed. Select a fuse rating at 125% of the maximum operating current (e.g., 12.5A fuse for a 10A system). Use slow-blow fuses for motor loads to accommodate inrush currents. Mount the holder within 15 cm of the power source for optimal protection.

Power on the system in stages. First, energize the control signals to confirm the switching element engages. Then, apply load power–listen for unusual noises (buzzing, clicking) which indicate miswiring or inadequate contact pressure. Monitor voltage drop across the switching contacts; values above 0.3V suggest poor connections requiring retermination.

Common Errors in Protective Switch Schematic Illustrations and Prevention Techniques

Mislabeling component connections tops the list of frequent blunders. Confusing coil pins with contact terminals on control schematics causes miswiring, leading to erratic switching or device failure. Always verify pin assignments against the manufacturer’s datasheet–typically labeled A1/A2 for actuation coils and 13/14, 21/22, or 31/32 for contacts. Use distinct colors for coil and contact paths in drafts to prevent overlap errors during physical assembly.

• Crossing signal lines without jumper indications creates false dependencies. Separate power, control, and load paths on different layers of the schematic, using standard IEC symbols for clarity.
• Omitting flyback diodes on inductive loads invites voltage spikes, destroying switching elements. Place a reverse-biased diode across all coils rated for the applicable surge current.
• Underestimating load switching capacity causes premature contact erosion. Match the rated current of contacts to the expected load, adding derating factors (typically 30-50%) for inductive or capacitive loads.

Critical Oversights During Implementation

• Ignoring ambient temperature ratings reduces lifespan. Ensure components operate within their specified thermal range–utilize heat sinks or forced cooling if ambient exceeds 40°C.
• Incorrect fuse sizing either blows unnecessarily or fails to protect adequately. Select fuses with 125-150% of nominal current and ensure coordination with upstream protective devices.
• Skipping transient voltage suppression leaves sensitive control logic vulnerable. Integrate MOVs or TVS diodes across inputs susceptible to ESD or line transients.

Inconsistent grounding strategies create unpredictable interference patterns. Dedicate separate ground returns for high-current loads, low-level signals, and digital logic. Tie all grounds at a single star point near the power source to eliminate ground loops. Validate continuity during prototyping with a precision ohmmeter (
