Step-by-Step Guide to Designing a Robot Arm Electrical Circuit Layout

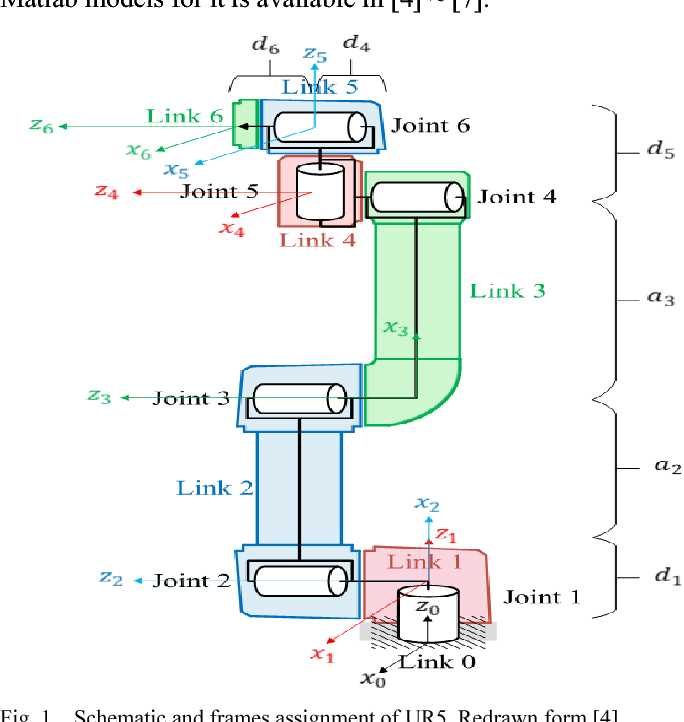

Begin with a detailed kinematic chain analysis. Identify each joint’s functional role–revolute, prismatic, or spherical–then map their sequence to ensure payload capacity and reach align with task requirements. Typical industrial manipulators use six joints: three for base positioning, two for pitch/yaw control, and one for end-effector rotation. Validate joint ranges early; a shoulder pitch joint operating between -180° and +180° avoids singularities.
Select power transmission components based on torque demands. High-precision gearboxes (e.g., harmonic drives) reduce backlash but require accurate alignment–misalignment by 0.5° cuts efficiency 15%. Direct-drive motors eliminate gearing but demand heavier current draw; plan power circuits accordingly, factoring 30% thermal margins for continuous load. Wire gauge must match peak inrush current–22 AWG suits 10A.
Draw power distribution first, separating logic (3.3V/5V) and motor circuits (12V/24V/48V). Use isolated grounds to prevent noise coupling; torque sensors degrade accuracy if sharing a ground plane. Position each motor driver close to its actuator–cable length >1m introduces inductive voltage drops, reducing motor torque by 7-10%. Label every wire with heat-shrink tubing: prefix “M” for motors, “S” for sensors, “P” for power.
Implement absolute encoders at critical joints. Incremental encoders lose position data after power cycles; absolute encoders (SSI, BiSS) retain position within 0.01° tolerance. Reserve one analog input per joint for torque feedback, sampling at 1kHz to detect external collisions–response time
Test motion paths in simulation before wiring. Define workspace boundaries in CAD, then export joint coordinates to motion planning software. Overlap joint limits by 5° to avoid edge collisions at high speeds. Embed collision geometry–static obstacles appear as extruded volumes, dynamic obstacles update via real-time sensor data. Validate emergency stop circuits; hardwired E-stop cuts power within 100ms, software E-stop may lag 200-300ms.
Automated Manipulator Electrical Blueprint Essentials
Begin by segmenting the control system into discrete functional blocks: power distribution, actuation drivers, and sensory feedback loops. Assign a dedicated 24V DC bus for high-torque servos, with voltage regulators cascading down to 12V and 5V rails for microcontrollers and encoders. Use LM2596-based buck converters for each rail to minimize ripple–ensure a minimum 1000µF input capacitor per regulator to handle transient loads from sudden joint movements. Label all traces with current ratings (e.g., “18A max”) and include test points at each regulator output for debugging.
Map joint kinematics directly onto the PCB layout by routing signal paths in mirrored pairs for symmetric limbs. Place Hall-effect sensors (e.g., Allegro A1335) adjacent to each motor’s rotor, with traces shielded by ground planes to reject PWM noise from adjacent drivers. For multi-axis systems, use a daisy-chain topology for encoder signals, terminating each chain with a 120Ω resistor to prevent reflections. Reserve a separate layer for high-current paths (12AWG equivalent) to avoid inductive coupling with logic signals.
Integrate safety interlocks at the schematic level: a hardware watchdog (e.g., TPS3823) monitoring MCU heartbeat, and a thermal shutdown circuit using a PT100 RTD on the heatsink with a comparator triggering at 85°C. Include a manual E-stop bypassing all power MOSFETs via a dedicated relay, with a red LED indicating tripped state. For battery-powered designs, add a Coulomb-counter IC (e.g., BQ34Z100) to log discharge cycles and prevent deep discharge.
For wireless telemetry, assign a dedicated 2.4GHz module (e.g., nRF24L01+) with error-correcting firmware–isolate its power supply with a ferrite bead and 10µF capacitor to suppress spikes from stepper drivers. Label all connectors with pinouts and mating component references (e.g., “J4 – Servo Waist (match CNC shield v3.1)”). Use color-coded wiring: red for power, black for ground, yellow for signals, and white for encoders. Include a legend in the schematic with wire gauge specifications.
Validation Checklist Before Prototyping
Verify all motor driver ICs (e.g., DRV8825) match the winding resistance of your actuators–calculate maximum current as Imax = Vmotor / Rwinding and confirm drivers exceed this by 30%. Test encoders at full speed by injecting a 10kHz square wave into the feedback path and checking for dropped pulses. Simulate joint loads by replacing motors with resistive loads matching their nominal current, then measure regenerator diode (e.g., SB560) heat dissipation under 5A load for 60 seconds.
Core Electrical Elements in Automated Manipulator Designs
Begin integration by selecting a high-torque servo motor for each joint, ensuring 12-24V DC supply with stall current under 5A to prevent voltage drops. Use 6-layer PCB traces (minimum 2oz copper) for motor power paths to handle peak currents without thermal throttling. Position TVS diodes (e.g., SMBJ12A) across motor terminals to clamp inductive spikes above 40V, avoiding driver IC damage.
Route feedback loops via incremental encoders (resolution ≥ 1024 PPR) or absolute magnetic sensors (e.g., AS5600)–connect differential pairs with twisted shielded cables (gauge 22AWG) to reject EMI from adjacent high-current paths. For closed-loop precision, embed STM32F4 or Teensy 4.1 MCUs with dedicated FPU for real-time PID execution (1kHz update rate), isolating analog feedback via op-amps (e.g., LT1056) with ±0.1% tolerance resistors.
Power Distribution Strategies
Design a star-ground topology, separating logic (5V/3.3V) from motor grounds with ferrite beads (e.g., BLM21PG221SN1L). Fuse each motor branch (fast-acting 6A) and include a main 10A breaker for battery disconnect. For longevity, use LiFePO4 cells (nominal 12.8V) or slave a 24V supply via synchronous buck converters (e.g., TPS54302, efficiency ≥ 92% at 3A load).
Interface end-effectors (grippers/sensors) via galvanically isolated CAN bus (ISO1050) or RS-485 transceivers (MAX485, 1Mbps) to prevent ground loops. Reserve 4-6 Dupont pins for custom I/O (e.g., limit switches debounced via RC networks (1kΩ + 0.1µF)). For safety, implement dual redundant kill switches–one hardware (NC emergency stop button), one firmware (watchdog timer, e.g., IWDG on STM32).
Validate thermal performance with K-type thermocouples on motor housings and drivers, capping operation under 70°C; exceed this threshold triggers pulse-skipping mode via PWM scaling. For wireless diagnostics, integrate ESP32-S3 with Bluetooth LE (Nordic nRF52840 for lower latency) to stream joint angles and currents at 50Hz without blocking main control loops.

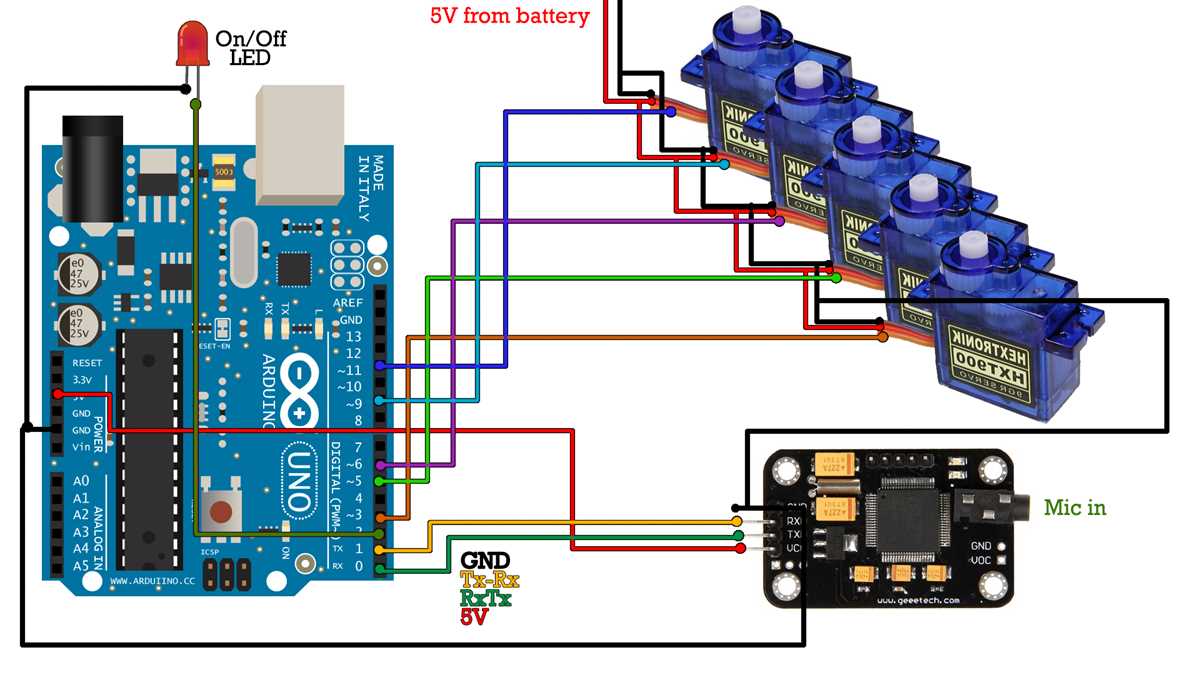

Wiring Connections for Servo Motors in Automated Manipulator Blueprints
Assign dedicated power rails for high-torque actuators, segregating VCC (4.8–6.0V) from logic voltage (3.3V or 5V) to prevent signal interference. Use twisted-pair cables for PWM lines, shielding each pair with grounded foil to suppress EMI; a 100nF bypass capacitor soldered directly to the servo’s power terminals reduces voltage spikes. Label every connection with heat-shrink tubing or a printed sleeve marking pinout: red (+), brown (GND), yellow/orange (PWM), ensuring polarity matches the datasheet–reversing GND and PWM risks frying the MCU.
Critical Terminal Pinouts
- Power Pin (VCC): Route through a 3A fuse to a 5V/6V UBEC or switching regulator, never directly from the microcontroller. Buck converters with ≥85% efficiency prevent thermal runaway in multi-joint setups.
- Ground Pin: Star-ground all servos and MCU grounds at a single point to avoid ground loops; splice 16–18 AWG stranded wire for ≤1A loads, 14 AWG for 2A+.
- Control Pin: Connect to a hardware PWM peripheral (e.g., ESP32 LEDC, STM32 TIM) via 220–470Ω current-limiting resistor to buffer the signal. Avoid shared traces: length >15cm mandates a parallel 1kΩ pull-down resistor to prevent floating inputs.
Test continuity with a multimeter before energizing; verify PWM frequency (50Hz standard, 300Hz for digital servos) aligns with the actuator’s tolerance (±5%). For fail-safes, embed a 20ms watchdog timer resetting the MCU if signal loss exceeds 200ms–prevents uncontrolled limb movement during brownouts.
Incorporating Feedback Modules and Tool Attachments into Electrical Blueprints
Place a dedicated 5-pin JST connector adjacent to each servo motor to allow direct interfacing with encoders or strain gauges. Use a 3.3V LDO regulator (e.g., AMS1117) for the feedback loop’s power rail to prevent noise from affecting accuracy readings. Route encoder signals through twist-pair cables shielded with aluminum foil, grounding the shield at a single point near the controller’s signal ground to minimize crosstalk errors.
Signal Isolation and Grounding Practices
Segment power domains for high-current actuators and low-voltage sensors using isolated DC-DC converters (e.g., TRACO TMR 3-1221). Implement optocouplers (e.g., PC817) for digital sensor outputs like limit switches or Hall effect probes to block ground loops. Maintain a star grounding topology by converging all grounds at a single terminal block near the power input, avoiding daisy-chained connections that introduce voltage differentials.
| Component Type | Recommended Circuit Protection | Wire Gauge (AWG) | Connector Type |
|---|---|---|---|
| Load cell (10 kg) | TVS diode (SMAJ5.0A) + 100nF ceramic cap | 24 | Molex Micro-Fit 3.0 |
| Optical encoder (1024 PPR) | Schottky diode (1N5819) + ferrite bead | 22 | JST PH |
| Solenoid gripper (24V) | Flyback diode (1N4007) + 10μF electrolytic | 18 | TE Connectivity Power Double Lock |
Label each feedback module with a unique pre-defined identifier (e.g., “ENC-1”, “FTS-2”) using alphanumeric silk-screening directly on the PCB. Reserve a serial bus (UART/I2C) for tool attachments, employing a multiplexer (e.g., PCA9548A) to manage up to eight devices simultaneously. Include a 1kΩ pull-up resistor for I2C lines and a 100Ω series resistor for UART to limit current during short circuits.
For pneumatic or hydraulic end tools, integrate a pressure sensor (e.g., Honeywell HSC series) before the control valve, sampling at 1 kHz via a 12-bit ADC (e.g., MCP3202). Add a 10kΩ precision potentiometer in parallel with the sensor output to allow manual calibration without firmware modifications. Store calibration constants in EEPROM (e.g., Microchip 25LC256) accessed through a dedicated SPI bus isolated from motor driver signals.
Failsafe Redundancy Measures
Implement dual redundant limit switches–normally closed mechanical contacts in series with normally open solid-state relays–wired to separate GPIO pins. Configure a hardware watchdog timer (e.g., MAX6374) to trigger a failsafe state (e.g., releasing all actuators) if the main controller fails to send a heartbeat signal within 50 ms. Use a MOSFET (e.g., IRLZ44N) to cut power to high-current tools when a fault is detected, avoiding reliance on software-based shutdown procedures.
