Step-by-Step Rockville Subwoofer Wiring Guide with Detailed Schematic
For optimal performance with a 4-ohm dual voice coil bass unit, use parallel connections to halve the impedance to 2 ohms. This ensures maximum power transfer from a mono amplifier channel rated at 2 ohms stable while minimizing distortion under heavy loads. Check the amplifier’s RMS output–most models deliver peak performance when the load doesn’t drop below manufacturer specifications.
Identify the terminals on the enclosure: each coil has a positive and negative post, typically color-coded red and black. Use 8-gauge oxygen-free copper wire to prevent signal loss over distances longer than 12 feet. Strip the ends carefully–exposed strands no thinner than 1/4 inch to maintain solid contact without overheating. Secure all connections with gold-plated connectors for corrosion resistance in high-vibration environments.
If integrating multiple enclosures, maintain consistent polarity across all connections to avoid phase cancellation. A multimeter set to ohms mode will confirm proper continuity. For impedance checks, disconnect the amplifier and measure across the positive posts of each coil–expect approximately 4 ohms per coil, dropping to 2 ohms in parallel. Verify no shorts exist between the positive and negative terminals.
For systems with built-in crossovers, set the low-pass filter between 80-120 Hz to blend smoothly with midrange drivers. Adjust gain levels independently–start at 50% and increase gradually while monitoring for clipping. Use a test tone generator at 50 Hz to fine-tune without damaging drivers. Label all wires at both ends to simplify future troubleshooting.
How to Connect Your Bass Speaker Correctly
Use 16-gauge oxygen-free copper cables for systems under 200W RMS or 12-gauge for setups rated 200–500W to prevent power loss across runs exceeding 12 feet. Measure impedance at the amplifier terminals with a digital multimeter: nominal 2Ω loads should read between 1.8–2.2Ω; readings outside this range indicate poor connections or faulty coils, requiring immediate re-soldering of terminals.

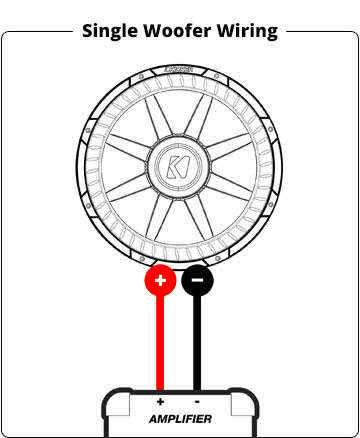

- Single-voice-coil models: connect the positive terminal on the amp to the speaker’s positive, negative to negative–no bridging.
- Dual-voice-coil models: wire coils in parallel for 2Ω final load (both positives together, both negatives together) or in series for 8Ω (positive of first coil to negative of second, remaining terminals to amp).
- Avoid daisy-chaining multiple units; each enclosure needs dedicated amplifier channels to maintain stable current delivery.
Install an inline fuse rated at 125% of the continuous power rating (e.g., 60A fuse for a 500W RMS system) within 18 inches of the battery. Secure all connections with crimp terminals and heat-shrink tubing; bare wire splices corrode within months, increasing resistance. Test audio signal integrity by playing a 50Hz sine wave at half volume: distortion or port chuffing signals incorrect impedance or weak ground.
For enclosures with built-in crossovers, set the low-pass filter on the amp to 80Hz for sealed boxes or 100Hz for vented designs, adjusting gain until transients remain clean under 5% total harmonic distortion. Label all cables and keep a wiring schematic stored in the vehicle’s glove box to simplify future diagnostics.
Understanding Terminal Connections for Bass Units
Start by identifying the input terminals on your low-frequency driver–most models feature spring-loaded clips or binding posts. Spring clips accommodate bare wire or pin connectors, while binding posts allow for banana plugs, spade terminals, or direct wire insertion. Check the manufacturer’s manual for the recommended wire gauge; typically, 12-16 AWG oxygen-free copper provides optimal current flow without signal loss.
For single-voice-coil configurations, connect the positive lead to the red terminal and the negative to the black. Dual-voice-coil units require careful bridging or parallel/series wiring to match amplifier impedance. Parallel wiring halves the load impedance (e.g., two 4-ohm coils become 2 ohms), whereas series wiring doubles it (e.g., two 4-ohm coils become 8 ohms). Ensure the amplifier can handle the resulting load to prevent thermal shutdown or damage.
High-level inputs (speaker-level) use raw signal from the receiver’s output, while low-level inputs (RCA) require preamp signals. If bridging an amplifier, connect the positive output to the enclosure’s positive terminal and the negative to the amplifier’s bridged negative–never ground both channels to the same point. Secure all connections with set screws or clamping mechanisms to avoid intermittent signal loss under vibration.
Oxidation on terminals reduces conductivity; clean them with a contact cleaner or fine-grit sandpaper before installation. Use dielectric grease on binding posts to prevent corrosion, especially in humid environments. Avoid looping excess wire around terminals, as this creates inductive noise–trim leads to the minimum required length.
Handling Common Terminal Configurations
Quad-terminal enclosures (typically for dual-voice-coil drivers) offer flexibility but demand precise matching to the amplifier’s channels. For mono operation, bridge the left and right amplifier outputs to the corresponding positive and negative terminals of the driver. Split-coil setups may require an impedance-matching device or specialized amplifier if the ohm load falls outside stable operating ranges.
Subsonic filters on amplifiers require proper grounding; connect the enclosure’s ground terminal to the amplifier’s chassis ground using 12 AWG wire or thicker. Floating grounds can introduce hum or distortion. If the enclosure lacks a dedicated ground terminal, bolt the wire directly to a non-anodized metal surface on the enclosure’s frame.
Test connections with a multimeter before powering on. A reading of near-zero ohms between the positive and negative terminals confirms proper wiring for a single coil. For dual-coil units, measure between each coil’s terminals to verify impedance matches specifications–discrepancies indicate faulty wiring or damaged components. Always disconnect power before adjusting terminals to prevent short circuits.
Step-by-Step Parallel Connection Guide for Dual Coil Low-Frequency Drivers
Use a multimeter to verify coil impedance before connecting. Dual 2-ohm coils wired in parallel will produce a 1-ohm load–ideal for high-current mono amplifiers rated for 1-ohm stability. For 4-ohm coils, parallel wiring yields a 2-ohm load; calculate amplifier compatibility beforehand to prevent thermal shutdown.
- Cut two equal-length speaker cables (12-16 AWG) to avoid signal degradation.
- Strip 0.5″ of insulation from each end; tin exposed copper with solder.
- Attach one positive lead from each coil to a single input terminal on the amplifier.
- Repeat for negative leads, ensuring no crossover between channels.
- Secure connections with insulated crimp connectors; heat-shrink for moisture resistance.
Test with a 50Hz sine wave at 25% amplifier power. Voltage across both coils should match within 0.1V; discrepancies indicate faulty connections. Seal terminal blocks with dielectric grease if installing in high-humidity environments.
Series vs. Parallel Connections: Impedance and Amplifier Load Calculations
Use parallel connections for dual 4-ohm drivers to halve impedance–resulting in 2 ohms total. This method maximizes power transfer when paired with amplifiers stable to 2-ohm loads, but verify your amplifier’s specs; some mono block models clip or overheat below 4 ohms. For 8-ohm units, parallel wiring drops impedance to 4 ohms, which most class-D amps handle effortlessly without derating.
Series connections add impedances–two 4-ohm units yield 8 ohms total, preserving amplifier longevity and damping factor; ideal for high-sensitivity drivers prone to distortion at low impedances. Match amplifier sag limits: an amp rated 300W @ 4 ohms outputs ~200W @ 8 ohms–calculate using P = V² / R; measure actual rail voltage under load for precise power figures.
Resolving Frequent Low-Frequency Audio Connection Issues
Verify impedance matching before finalizing connections. Most power amplifiers are stable at 4 ohms, but bridging requires at least 8 ohms to prevent overheating. Check the manual’s amplifier section for minimum impedance specifications–ignoring this leads to clipped signals and potential amplifier failure within hours.
Inspect RCA cables for continuity using a multimeter. Set to 200 ohms; a reading above 10 ohms indicates a broken internal wire. Replace damaged cables immediately–poor shielding introduces ground loops, causing hum at 50/60Hz that persists even at low volumes.
Secure ground connections directly to the chassis, not painted surfaces. Use an 8-gauge copper wire for grounding; smaller gauges increase resistance, creating voltage drops that manifest as popping sounds during bass hits. Ensure all ground points terminate at a single chassis location to avoid ground loops.
| Symptom | Likely Cause | Quick Fix |
|---|---|---|
| Intermittent signal loss | Loose spade connectors | Crimp connectors with hydraulic crimper |
| Distorted audio at high volumes | Incorrect gain staging | Adjust gain so line-level signal peaks at -3dB |
| No output from low-end driver | Blown fuse in amplifier | Replace with fuse of identical amperage (check manual) |
Temporarily bypass crossovers to isolate signal path issues. Disconnect all filters and run full-range signal–if distortion disappears, recalibrate crossover slopes. For sealed enclosures, set low-pass at 80Hz; for ported, 60Hz to prevent driver damage from subsonic frequencies.
Test speaker polarity with a 9V battery. Briefly touch terminals–positive movement confirms correct polarity. Reversed polarity causes cancellation in the 40-80Hz range, weakening perceived output by up to 6dB. Re-label wires if polarity inversion occurred during installation.
Measure amplifier voltage under load. Idle voltage should match the battery (12.6V); voltages below 12V indicate insufficient alternator output or undersized power wires. Upgrade to 4-gauge wiring if voltage drops exceed 0.5V at full power.
Store spare components (fuses, relays, terminal blocks) in a sealed container with silica gel. Corrosion on terminals increases resistance, degrading performance over time. Clean terminals monthly with contact cleaner, not abrasives, to maintain signal integrity.
