Complete RS485 Wiring Guide for Reliable Industrial Communication Setup
Use shielded twisted pair (STP) cables for distances over 50 meters to prevent signal degradation. AWG 24-18 works best, with impedance matching at 120 ohms (±10%) to avoid reflections. Terminate both ends of the bus with precision resistors–120Ω is standard, but verify with an oscilloscope for clean transitions.
Differential signals require strict polarity: connect A (non-inverting) to A, B (inverting) to B across all devices. Mismatched connections cause data corruption, especially at baud rates above 19.2 kbps. For multidrop networks, limit branch lengths to under 3 meters to maintain signal integrity.
Avoid star topologies. Daisy-chain devices linearly, ensuring each node connects directly to the main bus. Ground noise suppression demands a single common reference point–never mix grounds between power sources. Use isolated transceivers (e.g., MAX485E) when interfacing with high-voltage equipment.
For transient protection, place TVS diodes (e.g., P6KE6.8CA) at each node’s data lines. Calculate pull-up/down resistors (4.7kΩ typical) based on bus leakage current to ensure idle state stability. Test with a multimeter: differential voltage should measure ~2V when active, near 0V when idle.
Practical Guide to Serial Interface Circuit Layout
Begin by pairing devices with a twisted pair cable (CAT5 or higher) to ensure signal integrity and noise immunity. Use shielded cable for runs exceeding 50 meters or in electrically noisy environments–ground the shield at one end only to prevent ground loops. For point-to-point connections, terminate both ends with a 120-ohm resistor between the differential lines; multi-drop networks require termination only at the farthest nodes. Avoid daisy-chaining more than 32 unit loads (UL) per segment–reduce distance or add repeaters if device count or cable length violates this limit.

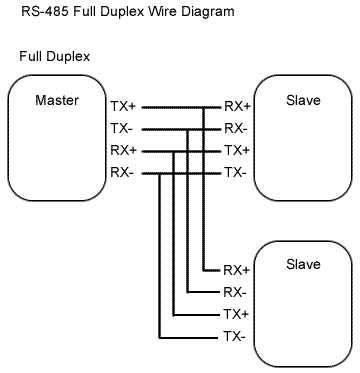

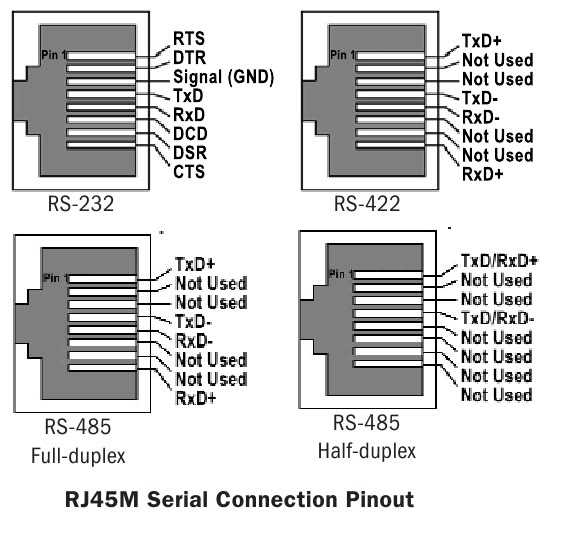

Connect the differential lines (A+ to A+, B- to B-) straight through without crossing, regardless of manufacturer labeling variations (D+/D-, TX+/TX-). Ground the signal common (GND) at each device, but only interconnect GND between devices if they share a power source to prevent voltage potential differences. Use isolated transceivers with built-in signal and power isolation for industrial setups–opt for modules with ≥2.5 kV RMS isolation rating to protect against surges and ground faults.
| Transceiver IC | Max Speed (kbps) | Max Nodes | Supply Voltage (V) | Isolation (kV RMS) |
|---|---|---|---|---|
| MAX485 | 2500 | 32 | 5 | None |
| SN75176 | 10000 | 32 | 5 | None |
| ADM2582E | 16000 | 256 | 3.3–5 | 2.5 |
| ISO3082 | 20000 | 64 | 3.3–5 | 2.5 |
For mixed-speed networks, set all nodes to the lowest common baud rate–verify with a protocol analyzer that frame timing and turnaround delays (typically 1–2 character times) comply with the slowest device. Power transceivers via a dedicated DC-DC converter to avoid noise coupling through shared power rails–use 100 nF decoupling capacitors near each IC’s VCC pin. Test continuity and impedance with a multimeter before connecting active devices: resistance between differential lines should equal the termination resistor value (120 Ω ±5%) when all nodes are disconnected.
Troubleshooting Checks
- No communication: Verify A/B polarity, termination, and GND continuity. Swap A/B wires at one device to rule out mislabeling.
- Erratic data: Check for AC voltage between local and remote GND–isolate or improve grounding.
- Low signal margin: Measure differential voltage with an oscilloscope: valid signals range 1.5–5 V (peak-to-peak). Below 1 V indicates overloaded network or missing termination.
Selecting the Right Cable for Differential Serial Networks
For industrial-grade differential signaling, use CAT5e or CAT6 twisted pair cables with 100–120 Ω characteristic impedance. Shielded variants (STP or FTP) reduce electromagnetic interference in noisy environments like factories or alongside power lines. Avoid unshielded UTP where possible–even in short runs, crosstalk from adjacent cables can degrade signal integrity. For distances under 100 meters, 24 AWG copper conductors suffice; beyond that, switch to 22 AWG or thicker to combat attenuation.
Critical Parameters to Validate Before Purchase
Check the cable’s loop resistance per meter–values exceeding 0.1 Ω/m indicate poor conductivity, risking voltage drops in long runs. Verify the twist rate: 12–24 twists per meter ensures proper noise cancellation. For outdoor or underground installations, opt for gel-filled or polyethylene-jacketed cables to prevent moisture ingress, which corrodes conductors over time. Copper-clad aluminum (CCA) alternatives may save cost but fail under high-current surges; stick to pure copper for reliability.
When layering multiple protocols on the same bus, prioritize cat5e with individually shielded pairs to isolate signals. For high-speed applications (above 10 Mbps), reduce pair-to-pair capacitance below 50 pF/m–excess capacitance slows edge transitions, causing data errors. Terminate cables with 330–680 Ω resistors at both ends to match impedance and eliminate reflections. In transient-prone areas, add gas discharge tubes or varistors to protect against voltage spikes, particularly when sharing conduits with AC lines.
Step-by-Step Daisy Chain Link Configuration
Start by verifying the communication protocol specifications of all connected devices. Most industrial modules support half-duplex transmission at 9600, 19200, or 38400 baud rates–confirm these settings match across the network. Use a termination resistor (typically 120 ohms) at both ends of the chain to prevent signal reflections. If devices are more than 1200 meters apart, reduce the baud rate or introduce repeaters every 500 meters to maintain signal integrity.
Cable Selection and Layout
Select shielded twisted-pair (STP) cable with at least 24 AWG gauge for distances under 400 meters; for longer runs, upgrade to 22 AWG. Route cables away from high-voltage lines, motors, or fluorescent lighting to minimize interference. Follow these steps:
- Strip 1.5 cm of insulation from each conductor at connection points.
- Twist the bare wires together (solid to stranded) before applying solder or crimp connectors.
- Secure the shield to the ground terminal at the master device only–avoid grounding at intermediate nodes.
- Label each segment at both ends for troubleshooting.
After physical connections are complete, test the network incrementally. Begin with two devices, sending ping commands or monitoring status LEDs to confirm data exchange. Gradually add nodes one by one, ensuring each new device syncs with the master within 2 seconds. If latency exceeds this threshold, inspect cable length, shield grounding, or baud rate mismatches. For networks with over 16 nodes, verify bias resistors (typically 560 ohms) are installed at the master to maintain differential voltage levels.
Termination Resistor Placement and Resistance Values
Terminate only the two extreme ends of the communication bus with resistors matching the characteristic impedance of the cable–typically 120 ohms for twisted pairs. Intermediate devices must never include termination, as reflections at unterminated junctions degrade signal integrity. For networks shorter than 10 meters, termination may be omitted if the bit rate remains below 100 kbps, though attenuation and crosstalk risks increase.
Resistance Calculations for Varied Cable Types
Use 100–120 ohms for standard AWG 22–24 unshielded twisted pairs, but adjust to 150 ohms for shielded variants or thinner gauge conductors. High-frequency applications beyond 5 MHz benefit from tighter tolerance resistors (±1%) to reduce impedance mismatches. Resistors exceeding 1 Watt dissipate negligible heat; ¼ Watt metal-film types suffice for most installations, though wirewound options handle transient surges better in industrial settings with frequent switching noise.
Bifilar termination–placing resistors at both ends of each twisted pair–confines current loops and minimizes radiated emissions. Avoid splitting a single resistor across both conductors; this compromises common-mode noise rejection. For daisy-chained topologies, ensure the resistor at the farthest device adheres to the cable’s impedance, while resistors near the master should match only if the segment exceeds 10 meters. Testing with an LCR meter verifies consistency before powering the network.
Differential voltage swings collapse without proper termination, particularly at baud rates above 1 Mbps. A 1 Vpp signal can drop below 200 mVpp across 400 meters of unterminated cable, causing bit errors. Replace resistors immediately if measurements show drift beyond ±5 ohms, or if thermal cycling has cracked solder joints. Stray capacitance from long stubs exacerbates ringing; keep stub lengths under 30 cm.
Alternative Termination Methods for Specific Environments
In environments with conductive dust or moisture, seal resistors inside IP67-rated enclosures or use conformal coating to prevent corrosion. For networks with redundant paths, terminate both branches independently, but disable one resistor if a branch remains offline to avoid signal reflection at the junction. Active termination with constant-current sources (e.g., 5 mA) stabilizes impedance in noisy environments, though it increases power consumption by 0.5 W per node.
Grounding Techniques to Prevent Signal Interference
Connect all communication nodes to a single, dedicated ground reference point. Isolate this ground from power supply grounds to eliminate ground loops. Use a star topology for grounding, where all device grounds meet at one central point, ideally co-located with the master controller. This minimizes potential differences between nodes and reduces common-mode noise.
Avoid daisy-chaining grounds or sharing them with high-current paths. High-power loads like motors or relays generate transient currents that distort the reference plane. Separate communication grounds with at least AWG 10 wire or thicker to handle return currents efficiently. Twisted shielded pair maintains signal integrity by rejecting electromagnetic interference.
Use galvanically isolated transceivers where feasible. Isolation barriers prevent ground potential differences across extended networks. Optocouplers or transformers provide this isolation, allowing up to 1 kV of common-mode voltage rejection. Ensure the isolated ground connects only at one point to avoid circulating currents.
Ground the shield of differential pairs at one end only–typically at the master controller. Terminating both ends creates a loop, inviting noise. The shield should never carry signal current; its sole purpose is to intercept interference. For long cables, consider capacitive grounding at the far end to bleed high-frequency noise without completing a DC loop.
In industrial environments, bond the communication ground to the facility’s safety earth via a low-impedance path. This protects against static buildup and fault currents. Avoid relying solely on earth ground for signal reference; it introduces variability due to soil resistance and nearby electrical systems. Use a dedicated ground bus for the network.
Grounding in Noisy Environments
When operating near variable-frequency drives, fluorescent lighting, or switching power supplies, add ferrite beads to cable shields. These suppress high-frequency transients without affecting low-frequency signals. Position the beads near the interface connector for maximum effectiveness. For extreme noise, use a differential bus with a center-tapped ground to balance impedance.
Measure ground potentials between nodes before deployment. A difference exceeding ±7 V indicates inadequate grounding. Use a digital multimeter with a low-frequency AC setting to detect noise sources. If potentials fluctuate, revisit grounding paths and verify shield integrity. Transient voltage suppressors across lines further protect against surges during faults.
