Key Differences Between Schematics and Wiring Diagrams Explained
Use circuit outlines for conceptual design–focus on functional blocks, signal flow, and component relationships. These abstract representations ignore physical placement, enabling rapid iteration during prototyping. Engineers should prioritize clarity over detail at this stage. A transistor amplifier’s circuit outline, for instance, shows a single symbol connecting input, biasing network, and output, hiding pad placement and trace routing. Tools like KiCad’s schematic editor enforce this simplicity, preventing premature optimization.
Switch to wiring arrangements only after validating the circuit outline. These layouts map components to their exact physical locations, including pads, vias, and trace widths–critical for manufacturability. A power supply’s wiring arrangement reveals why a single schematic resistor may require three separate footprints: input filter, feedback network, and current-sense shunt. Ignoring this distinction risks thermal mismatches, EMI from long traces, or mechanical interference during assembly.
Route high-current paths first (e.g., buck converter’s input/output caps, motor drivers). Then handle control signals, ensuring signal integrity with ground planes and impedance-matching techniques. Keep decoupling caps adjacent to IC power pins–no more than 2mm away–using 0402 packages for noise-sensitive designs. Double-check thermal relief connections for heat-dissipating components; inadequate pad-to-plane contact causes solder voids. Always generate Gerber files from the wiring arrangement, never the circuit outline, to avoid manufacturing errors.
Validate wiring arrangements with design rule checks (DRC) targeting your fabrication house’s capabilities. A 5-mil trace may pass generic rules but fail with a cheap PCB prototyping service. Export netlists from both blueprints and layouts to compare discrepancies–missing or mismatched connections often indicate human error during manual routing. Use differential pairs for USB/LVDS signals, maintaining 90Ω impedance within 10% tolerance. For flex PCBs, add teardrops to pad-to-trace junctions to prevent cracking under mechanical stress.
Update both blueprints and wiring arrangements simultaneously. A resistor value change in the circuit outline must reflect in the layout’s bill of materials (BOM) and silk-screen markings. Use version control like Git with PCB design files to track modifications. Before finalizing, generate a panelized assembly drawing with fiducial marks, breakaway tabs, and solder mask clearances–critical for automated pick-and-place machines.
Key Distinctions Between Electrical Blueprints and Connection Layouts
Opt for circuit illustrations when analyzing functional relationships in a system. These abstract depictions prioritize clarity of operation over physical placement, making them indispensable for troubleshooting logic errors or designing new configurations. Connection maps, by contrast, excel in installation scenarios where precise pathway tracing between components is critical. Always begin project planning by defining whether you need conceptual understanding or practical execution guidance–this decision dictates which format to prioritize.

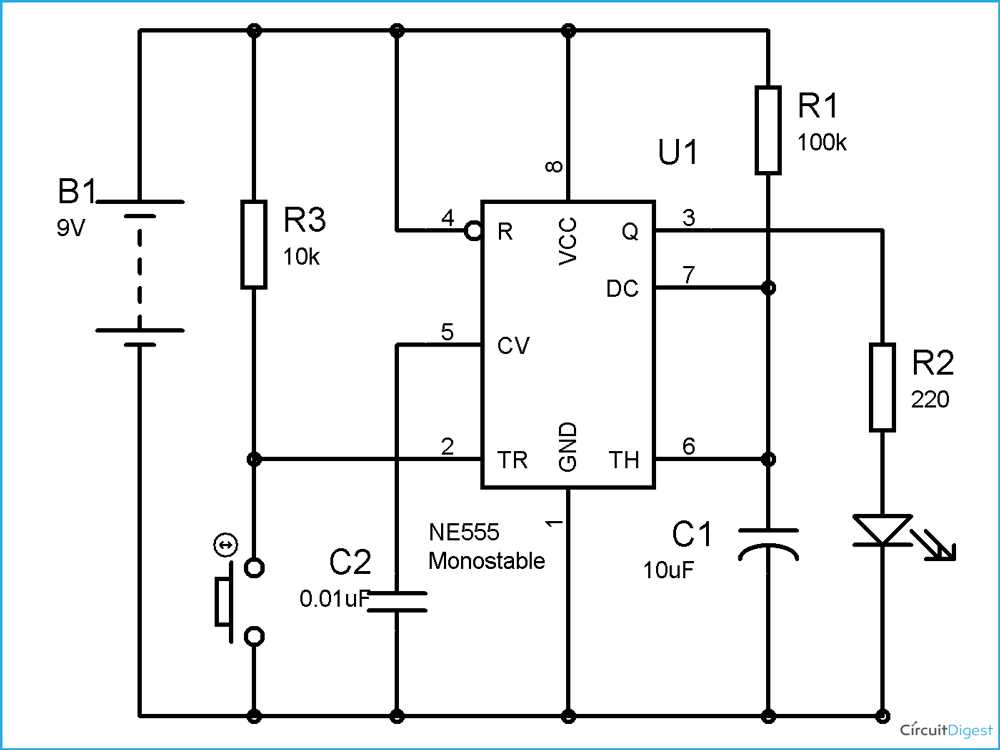

Circuit illustrations employ standardized symbols representing resistors, capacitors, or transistors without indicating their actual locations on a board. These symbols connect via lines that denote signal flow or power delivery, often organized hierarchically for readability. A 555 timer IC, for instance, appears as a rectangle with labeled pins, while its internal functionality remains hidden–ideal for grasping timing circuits but useless for soldering. Connection maps reverse this approach: each component appears in its exact physical orientation, with lines representing actual wires or traces between pads.
For repairs, connection maps save hours by eliminating guesswork in wire routing. A car’s headlight circuit might show a wire running from the fuse box to the switch, then to the bulb–critical if replacing damaged harnesses. Circuit illustrations, however, reveal why voltage drops occur by exposing parallel branches or load imbalances. Use both in tandem: reference the illustration to diagnose faults, then validate fixes against the connection map to ensure correct reassembly.
| Feature | Circuit Illustrations | Connection Maps |
|---|---|---|
| Primary Use Case | Conceptual analysis, design, troubleshooting logic | Physical installation, repairs, wire routing |
| Component Representation | Abstract symbols with no spatial accuracy | Scaled outlines or realistic depictions |
| Line Purpose | Logical connections (signals, power) | Actual wires/traces with pinpoint accuracy |
| Scale | Irrelevant | 1:1 or proportional to real-world layout |
Complex systems like industrial PLCs benefit from hybrid approaches. A motor control illustration simplifies logic gates and relays to a digestible flow, while its connection map details every terminal block and cable gland–preventing shorts or miswiring during panel upgrades. Always demand both from contractors for large-scale retrofits; circuit illustrations alone risk overlooking grounding loops or wire gauge mismatches that connection maps expose.
In PCB design, circuit illustrations define netlists–lists of components and their connections–which CAD tools then translate into connection maps (the actual copper traces). Labels like “R3” or “CONN4” appear on both but serve different purposes: on illustrations, they link to datasheets, while on maps, they pinpoint test points for oscilloscopes. Mismatches between the two often cause DFM (Design for Manufacturability) failures, such as traces routing under noise-sensitive analog sections–an error caught only by scrutinizing the connection map.
For hobbyists, breadboard prototypes start with circuit illustrations to validate functionality, but final projects require connection maps to replicate builds reliably. A breadboarded Arduino project’s illustration omits wire colors or lengths, while its connection map specifies “red to pin 5V, black to GND” and lists jumper lengths to avoid bridge shorts. Document both: illustrations for team collaboration, maps for reproducible assembly. Open-source projects like Arduino libraries typically include both–follow this practice to avoid ambiguity.
Automotive technicians use connection maps exclusively; a single illustration exists for the entire vehicle’s looms, while individual connection maps detail each subsystem. A fuel pump circuit’s connection map might reveal a hidden splice under the dash–critical for voltage drop testing–whereas its illustration only confirms the pump’s relay control path. For high-voltage EVs, illustrations ensure safety protocols (e.g., pre-charge circuits), while connection maps mandate physical separation of orange HV cables. Regulatory compliance often requires submitting both to certifying bodies.
Choosing Between Circuit Blueprints and Connection Charts in Design
Opt for a circuit blueprint when defining functional logic, component interactions, or high-level architecture. These layouts prioritize clarity in signal flow, allowing engineers to visualize how resistors, capacitors, or ICs communicate without physical constraints. Use them during conceptual phases to refine algorithms, validate designs, or debug complex behaviors before committing to physical placement. Blueprints excel where abstraction is necessary–such as illustrating power distribution in SMPS designs or logic paths in microcontroller circuits–because they omit extraneous details like wire lengths or terminal sizes.
Switch to connection charts when translating designs into physical builds. These documents map exact pin-to-pin relationships, specifying wire gauges, colors, or connector types required for assembly. Fabricators rely on them to route traces, crimp harnesses, or verify PCB layouts, as they link schematic symbols to real-world terminals. For example, a chart might label a 22AWG red wire between a relay’s coil and a fuse holder, ensuring repeatable builds. Without this precision, even a flawless blueprint fails during prototyping or production.
Integration phases demand both tools simultaneously. While blueprints help simulate circuit behavior during SPICE analysis, connection charts ensure compatibility with enclosure constraints or safety standards like IEC 60204. A motor controller design might use a blueprint to model back-EMF handling, then a chart to confirm that high-current paths (≥10A) use appropriately sized terminals. Discrepancies here risk overheating, voltage drops, or EMI issues–problems detectable only through paired documentation.
For troubleshooting, connection charts save time when tracing faults in assembled units. A blown fuse’s root cause–whether a shorted diode or incorrect wiring–becomes clearer when comparing actual wires (via chart) to expected behavior (via blueprint). Conversely, blueprints guide firmware development by showing how GPIOs or ADC channels connect to sensors, even if physical routing diverges due to space constraints. Without this dual reference, debugging escalates from minutes to hours.
Select connection charts exclusively for installation guides or repair manuals. Technicians need unambiguous instructions–e.g., “attach the yellow wire to terminal 3 of the hall-effect sensor”–which blueprints cannot provide. Blueprints, however, remain indispensable for patent filings or technical publications, where conveying functional intent outweighs physical implementation details. A patent for a novel amplifier circuit might include a blueprint to demonstrate signal modulation, while a repair guide for the same device would pair it with a chart showing solder joints and cable ties.
Prioritize blueprints for educational or collaborative work. Students learning Ohm’s law dissect current flow via abstracted diagrams, while teams collaborating across time zones align on design intent before regional variations in components (e.g., differing resistor tolerances) emerge. Connection charts, by contrast, suit tasks requiring immediate physical execution: repairing a drone’s ESC, assembling a robot’s motor arrays, or replicating a prototype identically. Misapplying either tool adds cost–blueprint errors spawn flawed simulations, chart mistakes yield bricked hardware.
