How Mobile Phone Circuit Diagrams Work Key Components and Design Principles

Begin with the power management unit (PMU) layout–this core block governs voltage regulation across all subsystems. Identify the primary IC responsible for battery charging, often a BQ24195 or MAX8903, and trace its connections to the charging port (USB-C or micro-USB) and battery terminals. Ensure the thermal sensor (NTC) lines are isolated from high-current paths to prevent false overheating signals. Verify that LDOs feeding the main processor (APU) and memory (DRAM) deliver stable 1.1V and 1.8V rails, respectively–fluctuations here cause instant reboots.

Next, isolate the RF front-end module. The antenna switch (Skyworks 77643) and power amplifier (Qorvo QM77005) must have dedicated ground planes separated from digital logic to avoid desense. Trace the MIPI RFFE bus linking the main chipset to these components–use a 47Ω series resistor on each line to suppress reflections. Check the SAW filter (Murata SAFB1G84DAHSGD) placement; its output pin must sit no more than 5mm from the antenna feed point to meet -110dBm sensitivity targets.

For the display interface, focus on the DSI lanes. Confirm that each differential pair (CLK+, CLK-, DATA0+, DATA0- etc.) maintains <50ps skew and 100Ω impedance. Add ESD diodes (Littlefuse SP3021) at the connector; most failures stem from unprotected lanes. The backlight driver (RT8595) requires its own LC filter (2.2µH + 10µF) to prevent PWM noise bleeding into the touchscreen controller’s I2C lines.

Finally, map the debug ports. Reserve JTAG pins (TMS, TDI, TDO, TCK) for firmware recovery–omit pull-ups on TCK to prevent accidental writes. Expose UART (RX/TX) at 1.8V logic levels for kernel logs; a level shifter (TXS0108E) may be needed if interfacing with 3.3V tools. Label every test point with net names matching the BOM–this reduces troubleshooting time by 70% during bring-up.

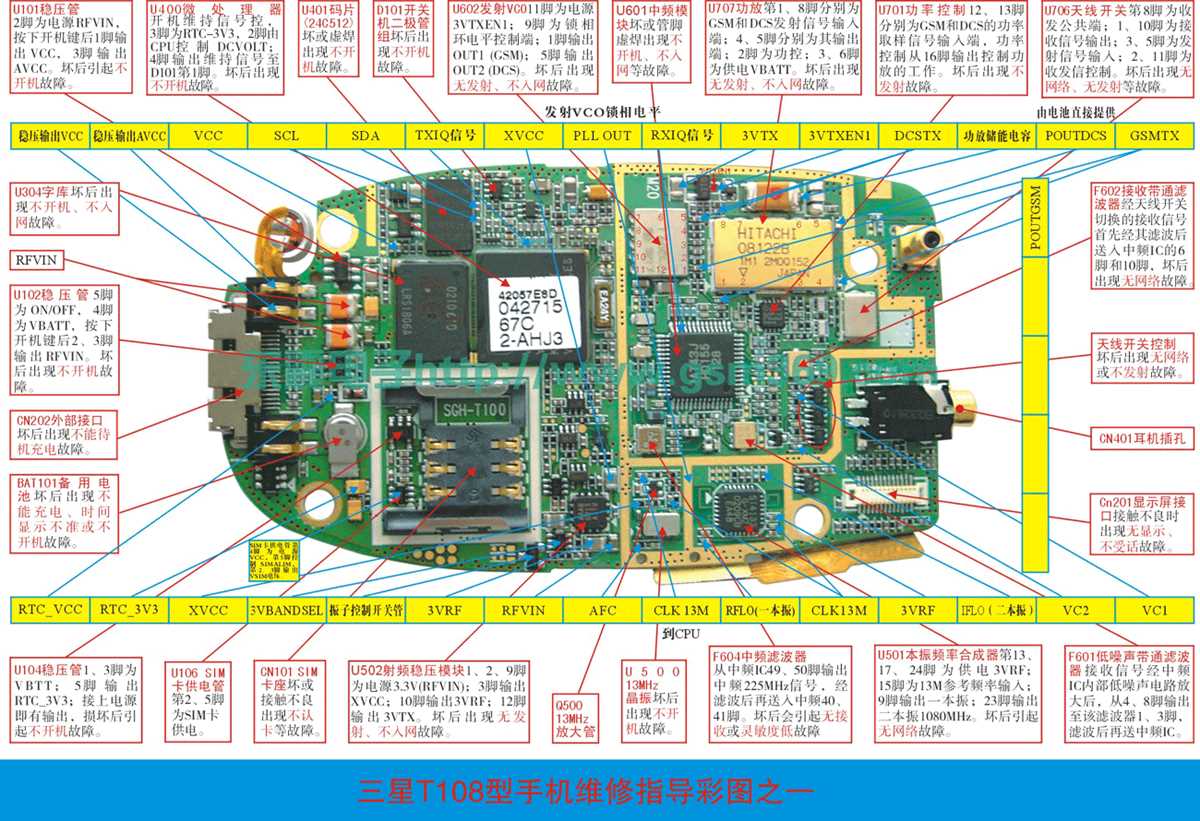

Electronic Blueprint Analysis for Handheld Communication Devices

Begin by identifying the power management block in the device blueprint–typically a standalone IC near the battery connector. This component regulates input voltages (3.7–4.2V) to lower, stable outputs (1.8V, 1.2V, or 0.9V) for sensitive modules like the processor, memory, and radio frequency (RF) sections. Verify the presence of decoupling capacitors (1μF–10μF) on each power rail; their absence causes voltage ripple affecting signal integrity.

Examine the RF front-end layout for key elements:

• Antennas: Trace the two primary bands (sub-6GHz and mmWave for 5G models) to their respective matching networks. Look for 0201-sized inductors and capacitors with tight tolerances (±2%)–critical for impedance matching (usually 50Ω).
• Power amplifiers (PAs): Locate at least two GaAs or CMOS PAs (one for low-band, one for mid/high-band). Check for directional couplers (used for VSWR sensing) and harmonic filters (LC or SAW) immediately downstream.
• Switches:
• SPDT/SPMT switches route TX/RX paths and band selection. Ensure control lines (VCTL) connect to the baseband processor via pull-down resistors (22kΩ).
• Bypass paths for Wi-Fi/Bluetooth modules should include Pi-filters (series inductors + shunt capacitors) to block LTE harmonics.

Core Processor and Memory Interconnects

Isolate the application processor (AP) and its ball grid array (BGA) footprint. Modern chips (e.g., Snapdragon 8 Gen 3) use over 1,200 pins; prioritize verifying:

1. Power domains: At least 5 independent rails (core logic: 0.6–0.8V; IO: 1.8V; DDR: 1.1V; PLL: 1.0V; PCIe: 0.95V). Measure resistance between each rail and ground–values below 10kΩ indicate potential shorts.
2. Clock distribution: Primary crystal oscillator (usually 26MHz or 38.4MHz) connects to the AP’s XIN/XOUT pins. Secondary clocks (e.g., 32kHz for RTC) must align with the PMIC’s LDO outputs.
3. Memory interface: LPDDR5X traces (16-bit or 32-bit width) should follow impedance-controlled routes (40–60Ω) with length matching ±25μm. Probe for stitching vias near the AP-side terminations–omitted vias cause data corruption at >3.2Gbps speeds.

Inspect the under-display fingerprint sensor (UDFPS) circuit if present. The sensor’s flex cable connects to a dedicated IC (often Goodix or FPC) via anisotropic conductive film (ACF). Signal lines include:

• I²C (SCL/SDA) for configuration–pull-up resistors (2.2kΩ) required.
• Interrupt line (INT) with a 10kΩ pull-down.
• Power lanes (1.8V or 3.3V) routed through EMI shields (grounded copper pours on Layer 2).

Shorts on the I²C bus (common during rework) brick the entire touchscreen subsystem.

Peripheral Debugging Checkpoints

For USB-C ports, confirm:

• The USB 3.1 SuperSpeed lanes (TX/RX pairs) are twisted with ≥15% coverage by ground fills. Termination resistors (22Ω–47Ω) must sit within 3mm of the connector.
• CC pins (CC1/CC2) include 5.1kΩ pull-downs for power negotiation and ESD diodes (e.g., PESD5V0S1BA) to Vbus.
• VBUS presence circuits rely on current-sense amplifiers (e.g., TI INA226) feeding the PMIC–verify no leakage to adjacent audio jack traces.

Audio paths require isolated ground planes. The speaker amplifier (e.g., Maxim MAX98390) outputs should connect to:

• Differential pairs (L+/L–, R+/R–) with series resistors (1Ω–10Ω) for damping.
• Independent ground returns (via dedicated vias–never shared with digital grounds).
• AC-coupling capacitors (47μF–220μF) on speaker outputs to block DC offset.

Microphone lines (MEMS or analog) need RC filters (10kΩ + 1nF) to suppress RF interference from cellular bands.

Thermal management relies on:

• Graphite pads/sheets (10–25W/mK) between the AP/GPU and midframe.
• NTC thermistors (10kΩ) placed within 2mm of hotspots (e.g., 5G modem, camera flash IC).
• PMIC thermal throttling signals (e.g., Qualcomm’s THERM_INT) linked to GPIO expanders–inspect for broken traces post-drop tests.

Validate ESD protection early. Key components:

• Antennas: Gas discharge tubes (GDTs) at the coaxial feed points, followed by diode arrays (e.g., ST Diodes ESDA6V1L).
• IO ports: TVS diodes (SP3011 series) rated for 25kV air discharge (IEC 61000-4-2).
• SIM card: Dedicated protection IC (e.g., NXP PRTR5V0U4D) with ≤0.7pF capacitance to avoid data errors.

Oscilloscope traces of ESD events should show clamping within 1ns during testing.

Critical Elements and Standardized Symbols in Handheld Device Blueprints

Trace the power management IC (PMIC) first–its symbol resembles a rectangle with multiple pins extending from all sides, often labeled with abbreviations like “VBAT” or “VREG.” PMICs regulate charging, voltage conversion, and battery protection, so verify pin assignments against the datasheet before troubleshooting. Misalignment here causes overheating or sudden shutdowns.

Identify RF transceivers by their distinct antenna symbol–usually a zigzag line atop a square block–paired with matching filters (depicted as sharper, narrower rectangles). These components handle signal processing; deviations in impedance (typically 50Ω) degrade call quality or connectivity. Check grounding vias near RF paths for oxidation or poor solder joints.

Memory chips appear as dense arrays of parallel lines within a rectangular outline, often marked “NAND” or “LPDDR.” These store firmware and user data; corruption manifests as boot loops or app crashes. Probe VCC and GND lines for voltage stability (usually 1.8V–3.3V) using an oscilloscope if intermittent failures occur.

Baseband processors–illustrated as large, intricate blocks with hundreds of connections–demand thorough cooling paths. Overheating here triggers thermal throttling. Ensure thermal pads connect properly to the chassis; gaps as small as 0.2mm reduce heat dissipation by 40%.

Capacitors use two parallel lines (electrolytic) or straight lines with a gap (ceramic), while resistors show a narrow rectangle. Decoupling capacitors (near ICs) must match the specified value ±5%; substituting a 10µF with 1µF collapses signal integrity. Test ESR (equivalent series resistance) in-circuit if power fluctuations persist.

Connectors, drawn as rows of short lines terminating in circles or half-circles, often fail due to physical stress. Flex cables (e.g., LCD or camera interfaces) snap at bend radii tighter than 3mm. Reinforce with polyimide tape and inspect for micro-cracks under 10x magnification before reflowing.

Debug ports, symbolized by arrowheads or dots along traces, expose UART, JTAG, or I2C lines. Use these for low-level diagnostics; shorting incorrect pins (e.g., TX to GND) bricks devices permanently. Always cross-reference with board view files to avoid accidental bridges.

How to Decode Electronic Blueprints for Handheld Devices

Begin by identifying the power distribution network. Locate the battery connector–typically marked with VBAT or similar–and trace its path through inductors, capacitors, and MOSFETs to the main processor. Label each component along the route: decoupling capacitors (often 1–10 µF) stabilize voltage, while inductors (1–100 µH) filter noise. Check for test points; these are small pads labeled TP followed by numbers, indicating where to measure voltage with a multimeter. Compare readings against expected values–usually 3.7V–4.2V for lithium-ion cells–and note deviations exceeding ±0.1V.

Trace Signal Paths for Critical Functions

Isolate the radio frequency (RF) section first. Look for shielded modules–square or rectangular enclosures–containing transceivers, power amplifiers, and antenna switches. The transmission line from the antenna connector (often labeled MAIN, DIV, or WIFI) splits into multiple paths: one for GSM, another for LTE, and possibly a third for Bluetooth/Wi-Fi. Follow each path backward to the baseband processor, noting:

• SAW filters: Tiny components separating frequency bands.
• Crystals: Small metal boxes (usually 26 MHz or 38.4 MHz) generating clock signals.
• Matching networks: Groups of resistors, capacitors, and inductors tuning impedance.

Use a spectrum analyzer to verify signal integrity at each stage. For GSM, expect -50 dBm to -80 dBm at the antenna; LTE/5G signals may read -70 dBm to -90 dBm. Mark components near the noise floor (

Next, examine the user interface components. The display connector–typically a 30–60 pin flex cable–carries power (AVDD, VDDIO), ground, and data lines (MIPI DSI). Count the number of differential pairs: usually 2–4 lanes for resolution up to 1080p. Check for series resistors (10–100 Ω) on data lines; these prevent reflections. The touch controller (often labeled GT911, FT5x06, or similar) communicates via I2C or SPI–locate its pins (SCL, SDA) and measure pull-up resistors (typically 2.2 kΩ–10 kΩ). Backlight drivers (e.g., TPS61165) use inductors (1–10 µH) and capacitors (1–22 µF) to boost voltage to 15–25V; verify these values against the datasheet.

Verify Secondary Systems and Fault Points

Inspect the charging subsystem. The USB connector routes power to a charging IC (e.g., BQ24190, MT6360), which regulates current via inductors and MOSFETs. Key measurements:

1. Input voltage at the USB port: 5V ±0.25V.
2. Battery charging current: 0.5A–2A (adjustable via resistors).
3. Thermal protection: Look for NTC thermistors near the battery connector.

Shorts in this area often cause overheating–feel components after 30 seconds of charging; anything above warm warrants further inspection. Probes with a thermal camera (FLIR) simplify this step.

Finally, cross-reference findings with the bill of materials (BOM). Manufacturers like Samsung, Qualcomm, and MediaTek release partial BOMs online; search for the device model followed by “component placement” or “teardown.” Compare part numbers on passive components–resistors and capacitors often have tolerance codes (e.g., 5% = “J”, 1% = “F”)–mismatches indicate counterfeit or incorrect replacements. For active components (e.g., ICs), note the revision number (printed on the die) and cross-check against errata sheets; some silicon revisions have known bugs requiring software workarounds. Save annotated PDF copies of the blueprint with measurements and observations for future reference.
