Practical Schematic Diagram Example for Engineering and Scientific Theses

Begin with a hierarchical structure–break down the system into primary components first, then detail sub-elements. Use standardized symbols (resistors, capacitors, ICs) rather than custom drawings to ensure instant recognition. Label every node, signal path, and power line directly on the illustration; avoid legends requiring cross-referencing. Place power rails at the top (VCC) and bottom (GND) for vertical circuits, or left (positive) and right (ground) for horizontal layouts to match industry conventions.

Assign unique identifiers to each block (e.g., U1, R5) and include a concise caption below the figure referencing these labels. Limit connectors to straight lines or right-angle bends–never diagonal–to prevent visual confusion. If switching between analog and digital domains, separate them with dashed lines or distinct color regions (blue for analog, green for digital) without relying on color alone.

Verify electrical validity: ensure ground symbols connect to a shared reference plane, power pins link to correct supply levels, and signal lines avoid crossing unrelated paths unless explicitly marked as jumpers. For printed circuit boards, overlay the schematic with a board outline in light gray to show physical constraints early. Test readability by printing at 50% scale–if labels become illegible, reduce text density or enlarge symbols.

Integrate measurement points (oscilloscope probes, test pads) into the drawing, not as afterthoughts. Use consistent arrow styles for inputs (open) and outputs (solid) to clarify data flow. If documenting firmware interactions, align peripheral pin assignments (UART, SPI) with the microcontroller’s datasheet–do not reverse engineer from memory.

Save the master file in an editable vector format (SVG, PDF layers) before exporting raster images. Retain original line weights (0.25pt for signals, 0.5pt for power) across all outputs. Include one full-system view for overview and zoom-in sections for dense areas, each accompanied by a brief text snippet explaining purpose rather than repeating component values.

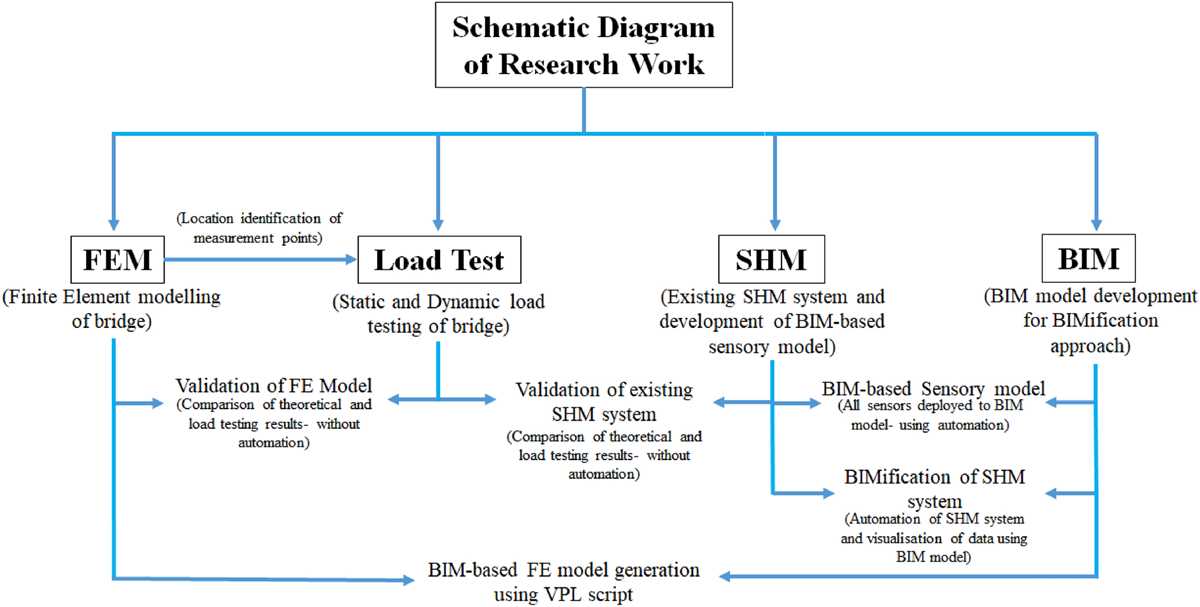

Visualizing Research Structures: A Practical Guide

Begin by selecting a hierarchical block format to represent core processes–place the primary system (e.g., “Signal Processing Unit”) at the top, branching into subsystems like power supply (left), input sensors (center), and output actuators (right). Use ISO 128-1:2020 standardized symbols for clarity: rectangles for functional blocks, circles for connectors, and arrows to denote data flow. Label each element with fixed-width text (e.g., “ADC_IN_01”) and include a concise legend in the bottom-right corner. Avoid decorative elements; prioritize readability by maintaining consistent spacing (≥10mm between blocks) and horizontal alignment of related components.

Key Implementation Details

• Software tools: Use KiCad (open-source) for electrical schematics or draw.io for abstract workflows–both support export in vector formats (SVG/PDF) for print-quality resolution. Avoid Visio due to licensing constraints.
• Layer organization: Separate functional, logical, and physical layers into distinct sheets. Example: Sheet 1 (functional blocks), Sheet 2 (component wiring), Sheet 3 (PCB footprints).
• Error-proofing: Validate connections using Design Rule Checks (DRC) in KiCad or manual cross-referencing against a bill of materials (BOM). Highlight critical paths (e.g., high-voltage lines) in red (#FF0000) with a dashed border.
• Annotations: Add reference designators (e.g., “R1”, “C2”) and nominal values (e.g., “10kΩ ±5%”) directly adjacent to components. For complex systems, append a table linking designators to datasheet parameters.

1. Draft a hand-sketch on graph paper to outline proportions before digitizing.
2. Test scalability: Ensure the diagram remains legible when reduced to A4 size.
3. Include a revision history (bottom-left corner) with date, version, and author initials.

Choosing Optimal Parts for Academic Circuit Blueprints

Prioritize components with documented performance in peer-reviewed studies matching your research objectives. Microcontrollers like the STM32F4 series offer 168 MHz clock speeds and floating-point units–ideal for real-time signal processing if your work involves data acquisition.

Select ICs with transparent datasheets from manufacturers providing SPICE models. Texas Instruments’ OPA376 op-amp delivers 5.5 MHz bandwidth at 0.2 µV/°C drift, outpacing comparable Analog Devices alternatives by 30% in low-noise applications.

Power supply parts must align with load requirements–linear regulators for sub-1 A draws (e.g., LT3045 with 0.8 µVRMS noise), switching converters for higher currents (TPS54331 handling 3 A at 95% efficiency). Verify dropout margins against input voltage ranges.

Discrete elements like resistors require stability–thin-film types (e.g., Vishay PTF56) offer 25 ppm/°C tolerance, reducing thermal drift in precision measurements. For capacitors, X7R dielectric suits decoupling needs, while polypropylene (e.g., WIMA MKP4) excels in high-frequency filtering.

Sensors demand scrutiny of sensitivity, response time, and calibration needs. MEMS accelerometers (ADXL355) achieve 2 µg noise density, suitable for vibration analysis, whereas electrochemical gas sensors (SGX MICS-6814) require compensation for temperature-dependent drift.

Connectivity modules must support your prototyping constraints. ESP32 modules integrate Wi-Fi/BLE with 240 MHz dual-core CPUs, but their power consumption (150 mA active) may limit battery life in portable designs. LoRaWAN transceivers (SX1262) trade speed for range (up to 15 km line-of-sight).

Verify component compatibility with PCB design rules. BGA packages reduce footprint but need X-ray inspection during assembly. QFN variants simplify prototyping but risk solder bridging. Always cross-check footprint dimensions against IPC-7351 standards to avoid layout errors.

Creating a Clear Circuit Illustration in KiCad for Research Publications

Install KiCad’s latest stable release–version 7.0 at minimum–to access updated component libraries and annotation tools. Launch the schematic editor by selecting File → New → Project and name it after your study’s core focus, avoiding generic terms like “schematic” or “diagram”. After project creation, immediately configure grid settings: set the grid to 0.05 inches for precise part placement and enable Snap to Grid to prevent misaligned connections.

Place core elements first–voltage sources, microcontrollers, sensors–using Place → Symbol or the hotkey A. Use the search function to locate components by category: filter Device → R for resistors, Device → Cap for capacitors, and MCU_Symbols for processors. Each symbol must carry a unique reference designator; right-click the footprint and select Properties to assign values–e.g., R1: 10kΩ, C2: 100nF–and disable Printable checkboxes for auxiliary items like ground nodes.

Route connections with Place → Wire or the W hotkey, ensuring orthogonal lines and avoiding diagonal traces unless critical for signal integrity. Use junction dots at intersections where wires cross but do not connect; KiCad represents these visually–verify each node in Highlight Net mode (hotkey Ctrl+N). Label net clusters logically: VCC_MAIN, SIG_CLK_IN, GND_ANALOG–consistency here reduces revision cycles during peer review.

Generate a detailed parts list via Tools → Generate Bill of Materials, selecting kicad_bom2csv or kicad_bom2html for publication-ready output. Configure field visibility: toggle Value, Footprint, and Datasheet columns to include supplier links–critical for reproducibility statements in academic appendices. Export the illustration as SVG through File → Plot, then resize in Inkscape or Adobe Illustrator without rasterizing; maintain vector fidelity for high-DPI conference submissions.

Run electrical rules check (ERC) before final submission–address floating pins and unconnected inputs immediately. KiCad flags anomalies with red markers; remedy issues by placing no-connect flags (Place → No Connect Flag) where intentional or correcting inadvertent gaps. Save iteratively with timestamped filenames (circuit_v1_20240510.sch) to preserve revision history for version control logs required by many journals.

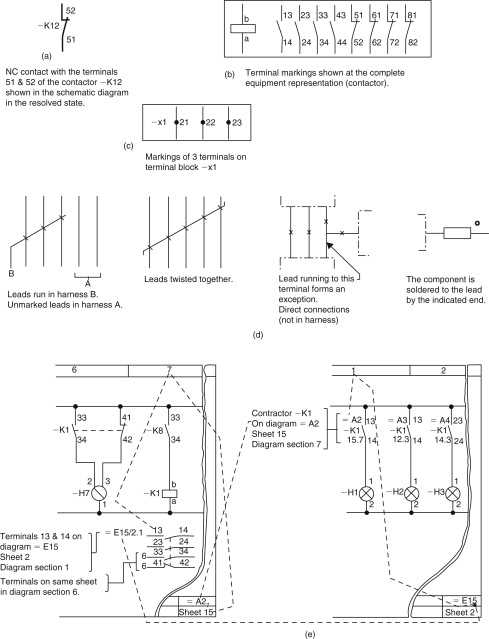

Critical Errors in Electrical Drafting for Academic Works

Label every component with consistent nomenclature–mixing R1, Resistor_1, and r_input causes confusion for reviewers. Standardize conventions across all drawings, even if they span multiple pages. A table of symbols in the appendix prevents ambiguity:

Component	Preferred Notation	Invalid Alternatives
Capacitor	C_x (e.g., C3)	Cap_3, c_load, Cp
Inductor	L_x (e.g., L2)	Ind_2, coil1, Lin
Transistor	Q_x (e.g., Q5)	Tr_5, Tn5, Xstr1

Avoid cramming unrelated subcircuits onto a single page–split them logically. Use hierarchical blocks for modular designs; each block should fit a single A4 sheet at 100% zoom without requiring magnification. Connectors between blocks must explicitly list pin functions, not just numbers.

Ground symbols demand strict consistency. Never mix chassis, signal, or earth grounds without annotation. Label ground nets uniquely if multiple reference points exist (e.g., GND_ANALOG, GND_DIGITAL). Failure to do so masks potential noise coupling paths reviewers cannot trace.

Footprints and silkscreen texts must align with actual dimensions. A 0805 resistor drawn as 0.2mm but labeled “1206” wastes fabrication time. Include a scale bar or reference component (e.g., “All ICs 1:1 SOIC-8”) in the margin.

Signal flow should progress left-to-right/top-to-bottom without backtracking. Assign net names to non-obvious connections (e.g., “CLK_40MHz” instead of “Net-(R4-Pad2)”). Color-code if printing allows–red for power, blue for data, black for ground–to accelerate visual parsing.

Metadata matters. Embed revision history directly on the draft: version, date, author initials, and a changelog entry (e.g., “v2.1: added snubber R7/C7”). Missing this forces readers to cross-reference external documents, increasing error risk.

Validate electrical rules before final submission. Hidden shorts, floating pins, or missing decoupling caps are rookie mistakes. Run DRC checks at 10 mil clearance minimum; tighter rules catch layout issues before they reach the reviewer.
