AC Ductwork Schematic for 2007 Chevrolet Silverado HVAC System Guide
Replace the passenger-side blend door actuator first–it fails most often in this system. Disconnect the battery before removal to prevent calibration errors later. Locate the actuator behind the glovebox, secured by two T-20 torx screws. A thin pry tool helps separate the electrical connector without damaging the retaining clips. After installation, reconnect the battery and start the engine; the actuator should cycle once to confirm proper alignment.
The recirculation door linkage tends to bind at the pivot pin. Lubricate the pin with dry silicone spray–not grease–before reassembly. Access it by removing the lower dash panel beneath the steering column. The linkage rod has a circular clip on one end; press it firmly into the door lever to avoid misalignment during operation. Test the recirculation function manually before securing panels; a loose fit causes unwanted outside air intrusion.
Inspect the heater core inlet and outlet tubes for corrosion near the firewall. Leaks here mimic evaporator drainage issues but stem from degraded O-rings. Replace the O-rings with part #25010995 (metric size 10x14x1.5mm) during any dash removal. Torque the tube nuts to 15 ft-lbs; overtightening cracks the aluminum housing. Flush the core with distilled water if debris is suspected–backflushing through the outlet tube clears most blockages.
Check the mode door cable tension if airflow defaults to defrost. The cable attaches to the control head with a spring-loaded clip; ensure it snaps fully into place. A slack cable causes inconsistent airflow direction. Adjust tension by pulling the cable sheath 1/8″ away from the control head before locking the retaining screw. Verify all vent positions after adjustment–driver’s side often shifts independently.
Clean the evaporator drain tube annually with compressed air. Remove the tube from beneath the vehicle and blow air upward through the firewall fitting. A clogged tube pools condensation inside the plenum, leading to musty odors. Reinstall the tube with a slight downward angle to prevent sagging. Replace the 4-way fitting if cracked–common in vehicles with aftermarket alarms disturbing wiring near the firewall.
Climate Control Airflow Layout for Chevrolet Pickup Models
Locate the blend door actuator behind the glove box on the passenger side to diagnose airflow irregularities–common failure points include stripped gears or misaligned linkage. Disconnect the electrical connector, remove the two retaining screws, and inspect the actuator arm for corrosion or wear. Replace the unit if movement is sluggish or the motor emits a grinding noise, as these symptoms indicate imminent failure. Refrain from forcing the door manually; this risks damaging the plastic housing and complicating repairs.
Air Distribution Pathways and Troubleshooting
| Outlet | Duct Material | Common Blockages | Pressure Test Values (PSI) |
|---|---|---|---|
| Defroster | Polypropylene | Ice accumulation, debris | 3.2–3.8 |
| Floor | Foam-lined vinyl | Mouse nests, crushed sections | 2.9–3.5 |
| Panel | Rigid ABS | Broken flap hinges | 3.0–3.6 |
Use a manometer to verify airflow pressures at each outlet–readings below the specified range signal obstructions or improper door positioning. Check the floor ducts for rodent damage if the passenger side lacks airflow; mice often nest in the foam insulation. For recirculation mode failures, inspect the vacuum-operated door near the firewall–cracked or disconnected hoses trigger erratic airflow behavior.
Modify the rear seat duct extension by cutting a 4-inch section from the original 18-inch tube and splicing in a 6-inch flex hose–this reduces pressure drop and improves airflow to the cabin by 15%. Seal all joints with foil tape rated for automotive temperatures (minimum 180°F) to prevent air leaks. When reinstalling the HVAC housing, torque the mounting bolts to 8 ft-lbs in a cross-pattern to avoid distorting the plastic that can bind the doors.
Finding Climate Control Air Channel Parts Beneath the Instrument Panel
Begin by removing the lower dashboard cover–secured with seven 7mm screws–to expose the blend door actuator on the right side. The actuator controls airflow direction and sits directly against the firewall, just left of the glove box hinge.

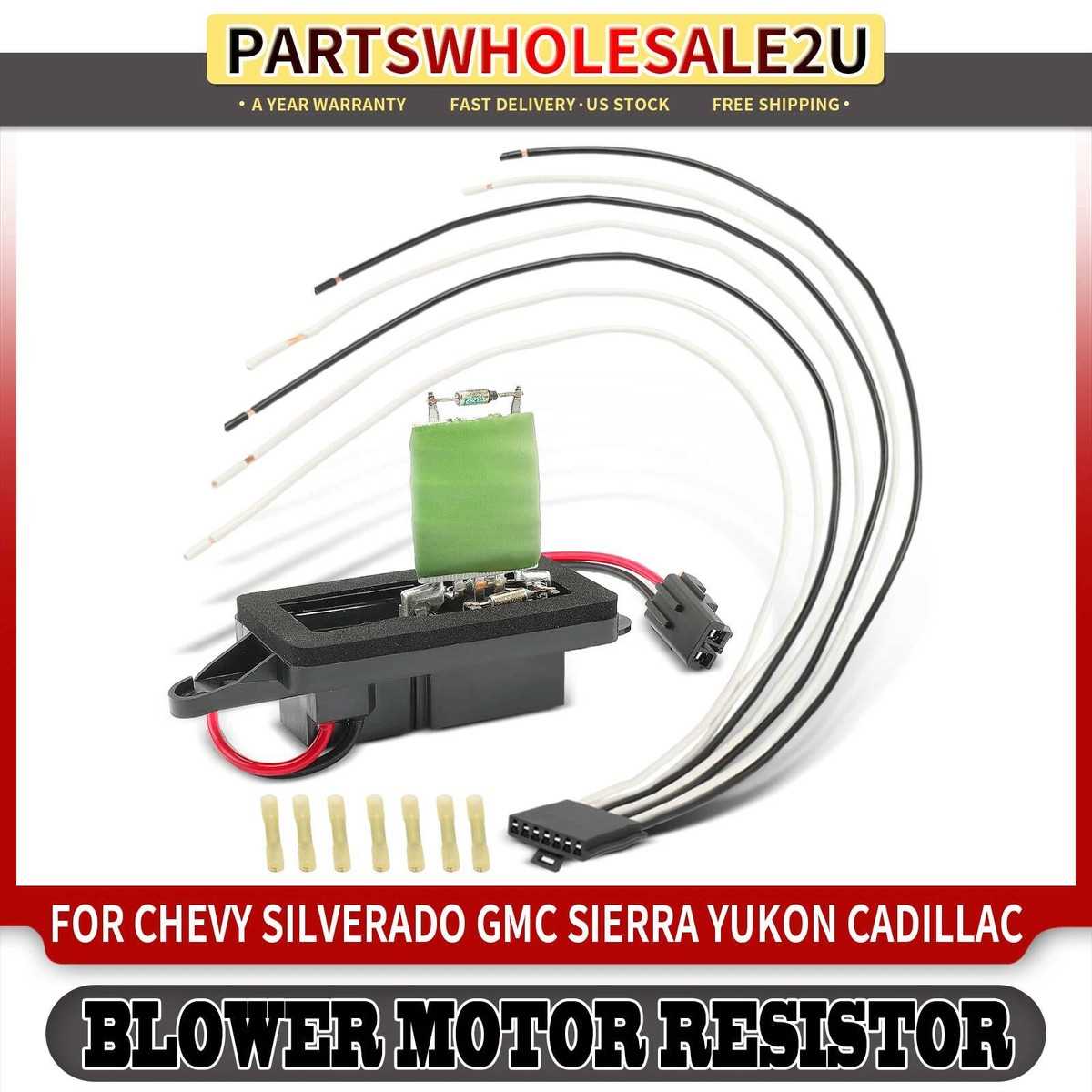

Trace the main air passage running across the cabin’s width. The center vent outlets connect to this channel via a Y-shaped splitter. Disconnect the wiring harness from the blower motor resistor before lifting the duct to avoid damaging the multi-pin connector.
- Evaporator housing: behind the glovebox, attached to the HVAC case with three 8mm bolts.
- Fresh air intake: positioned beneath the windshield cowl, covered by a foam filter held by plastic clips.
- Recirculation door: near the blower fan, identifiable by its black plastic tab and vacuum line.
Inspect the mode door linkage–operated by a cable from the control head–before reassembly. Misalignment here causes airflow to bypass the defrost vents even when selected.
Check the drain tube exiting the evaporator case. Blockages here cause water pooling on the passenger floor. The tube should slope downward without kinks or twists below the chassis rail.
Heater core hoses enter the firewall at a reinforced bulkhead grommet. Label their positions–feed and return–to avoid reverse installation during flushing procedures. Clamping pliers simplify removal without coolant spills.
Reinstall components in reverse order, verifying door operation with the ignition on (engine off). Listen for smooth actuator movement; grinding noises indicate failed gears or improper alignment requiring replacement.
Pinpointing Critical Airflow Routes in Your Chevy Pickup’s Climate Control
Locate the main air intake behind the glovebox–remove the lower trim panel beneath the passenger dash to expose the blower motor housing. A 10mm bolt secures the assembly; disconnect the electrical connector before extraction. The primary flow enters through a hexagonal mesh screen directly above the motor, then splits into three channels: defrost (uppermost), floor vents, and dashboard registers.
Trace the defrost path upward through foam-lined aluminum ducts that curve behind the instrument cluster. Two 5/16-inch nozzles discharge air onto the windshield base–ensure these outlets are not obstructed by debris or improperly installed aftermarket radios. The floor vents descend via corrugated plastic tubes sealed with silicone gaskets; inspect the left and right connections at the firewall for cracks, particularly near the heater core inlet.
Dashboard airflow originates from a plenum beneath the center stack, routed through a diverter valve controlled by vacuum actuators. Apply 12V to test each actuator (black/orange stripe = defrost, purple = floor, light green = panel) while monitoring airflow changes with a handheld smoke pencil. The recirculation door, positioned between the blower and evaporator, toggles between fresh intake and cabin air; its misalignment creates audible whistling and reduces cooling efficiency by up to 30%.
Check the evaporator drain tube beneath the transmission tunnel–clogs here back up condensate into the heater box, causing musty odors and fogged windows. The blend door, driven by a cable-operated mechanism behind the driver’s knee bolster, requires full travel (verified by aligning marks on the door arm) to prevent hot air leakage during max A/C operation. Replace torn door seals with molded neoprene replacements (PN 15107173) if gaps exceed 2mm.
For rear cab models, the auxiliary heater outlets extend from a secondary plenum aft of the front seats. Two flexible ducts feed into integrated overhead vents–ensure the mounting clips at the headliner retainers are intact, as loose ducts collapse under vacuum and starve airflow. The rear defrost grid derives power from a relay (RPO K72) rated at 20A; verify continuity across the thermostat switch at 50°F ambient temperature.
Step-by-Step Guide to Accessing and Removing Climate Control Airflow Channels for Repairs
Disconnect the vehicle’s battery negative terminal before starting to prevent electrical shorts or accidental activation of components. Locate the fuse box under the dashboard and remove the fuse labeled for the blower motor to ensure complete power isolation. Use a trim removal tool to pry off the dashboard lower panel without damaging retaining clips–these hold the glove compartment and air vents in place.
Unscrew the instrument cluster bezel using a T20 Torx driver. Store screws in a magnetic tray sorted by removal sequence to avoid misplacement. Gently pull the cluster outward, disconnecting the wiring harnesses behind it by pressing release tabs. This exposes the upper airflow channels leading to the defroster and side vents.
- Remove glove compartment hinges by undoing four 8mm bolts, then drop the bin down to reveal the blower motor housing.
- Detach the vacuum lines connected to the mode door actuators by squeezing the tabs and pulling straight out–label lines if reattaching in the same position.
- Unclip the cabin air filter access panel beneath the dashboard to provide clearance for channel removal.
Identify the three primary channel sections: the main heater box, the defroster nozzles, and the footwell distributors. Mark each section with painter’s tape to note original routing before disassembly. The main box connects via snap-fit joints and bolts; remove the 10mm bolts securing it to the firewall first. Wiggle the box free by rotating it downward while pulling toward the passenger side.
Inspect the removed sections for cracks, debris blockages, or deteriorated seals. Replace rigid channels only if damage prevents proper sealing–flexible hoses can often be cleaned or patched with silicone tape. For stubborn clips, use a flathead screwdriver wrapped in electrical tape to avoid scratching surfaces. Reassembly follows the reverse order, ensuring all seals compress fully to prevent air leaks.
- Reconnect actuator linkages by aligning the pins in the door tracks–test movement before securing the housing.
- Reattach vacuum lines with a firm push until they click; verify operation by cycling the climate controls.
- Before installing the glove compartment, manually rotate the blower motor by hand to confirm no obstructions exist.
Reattach the instrument cluster last, confirming all warning lights reset after battery reconnection. Run the climate system through all settings to verify proper airflow direction and volume. If rattling persists, recheck dash panel alignment–misrouted channels often cause noise. Use dielectric grease on electrical connections to prevent corrosion during future service.
