Complete Arduino Schematic Diagram Guide with Circuit Examples

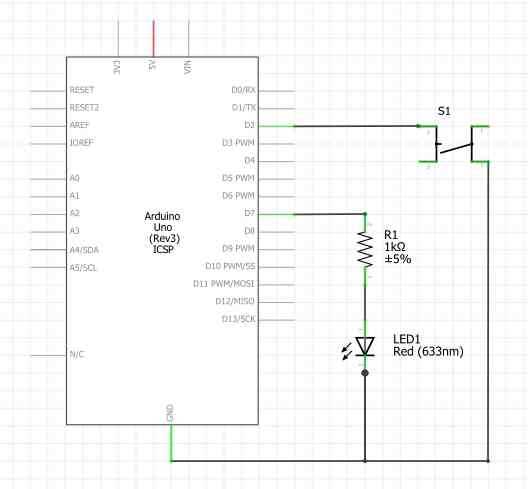

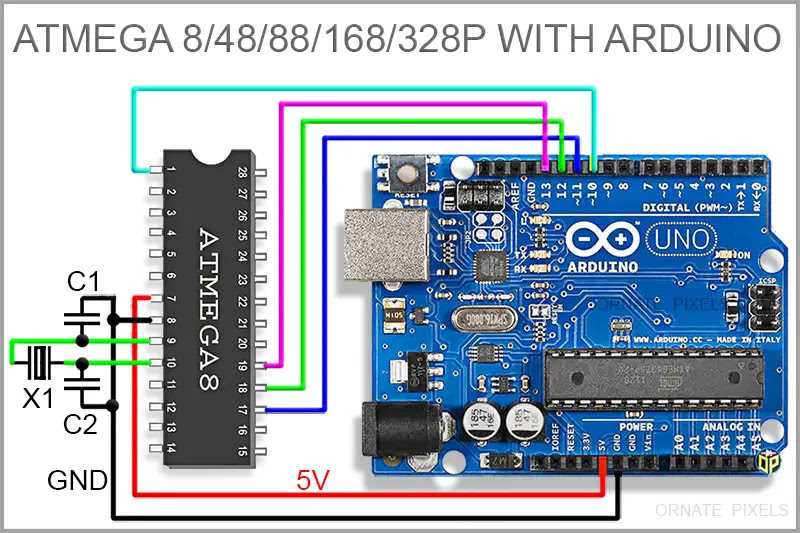

Begin with a clear purpose: define the input, output, and power requirements before drafting any connections. A minimal setup includes an ATmega328P-based board, a 16 MHz crystal with two 22 pF capacitors, and a 5V regulator if using raw power. Sketch component placement on paper–resistors, LEDs, and sensors should align logically to avoid cross-wiring. Use Fritzing or KiCad for digital layouts if precision matters, but hand-drawn prototypes suffice for testing basic functions.
Power delivery demands attention: decoupling capacitors (0.1 µF) near the microcontroller’s VCC pin stabilize voltage, preventing brownouts. For analog sensors, add a 10 µF electrolytic capacitor to smooth readings. A 10 kΩ pull-up resistor on reset pins ensures reliable startup, while serial communication (UART, SPI, I2C) requires matching baud rates–9600 for simplicity, 115200 for speed. Label every wire; misplaced ground connections cause silent failures.

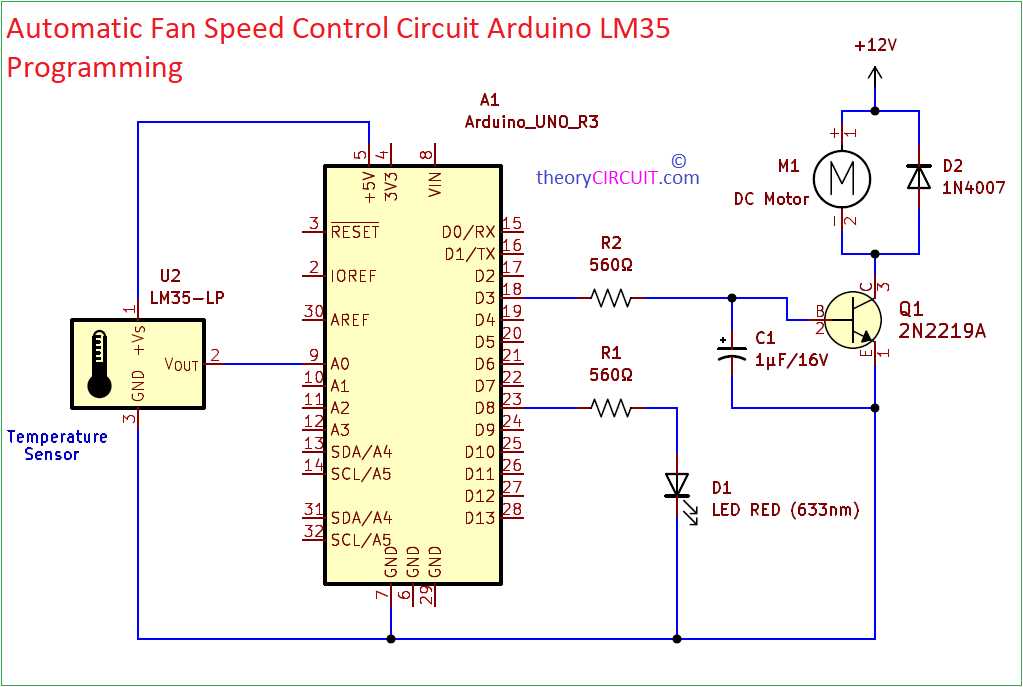

Component selection accelerates debugging: opt for modular sensors (e.g., DHT11 over bare thermistors) to reduce wiring complexity. Addressable LEDs (WS2812B) need a single data line but consume 60 mA each–calculate total current to avoid overloading the regulator. For motor control, an L298N H-bridge handles up to 2A, but add flyback diodes (1N4007) to suppress voltage spikes. Always cross-reference pin mappings with your board’s datasheet–Arduino Uno’s D13 is PB5 on the ATmega328P.
Testing procedes incrementally: upload bare-bones code (blink an LED) first, then isolate sub-circuits. Measure voltage between ground and each node with a multimeter; unexpected drops indicate shorts or undersized traces. If PWM behaves erratically, check the timer registers–Uno’s Timer1 uses 16-bit precision, while Timer2 is 8-bit. Use terminal commands (`Serial.print()`) liberally; analog readings can vary ±2 counts without calibration.
Designing Circuit Blueprints for Microcontroller Boards
Begin with a power delivery network that avoids noise-sensitive traces. Place decoupling capacitors (0.1µF ceramic) as close as physically possible to each IC’s VCC pin–no trace longer than 5mm. For ATmega328P layouts, isolate analog reference (AREF) with a dedicated 10µF tantalum capacitor, routed directly to ground without shared vias. Split power planes: digital and analog grounds should merge at a single point, typically the board’s central GND pad.
Signal integrity demands controlled impedance for high-speed lines. Clock traces (8MHz or above) require stripline geometry: calculated trace width (0.254mm for 50Ω on 1.6mm FR4) and consistent spacing (0.5mm clearance). Use differential pairs for USB data lines–keep pairs parallel with 0.127mm gap, nunca vias within 25mm of endpoints. Serial lines (UART, I2C, SPI) should have series resistors (22Ω–100Ω) at the driver to dampen reflections.
Component placement prioritizes thermal dispersion. Position linear regulators (7805) on the board’s edge with a thermal via array–0.5mm vias, 1mm pitch, solder-filled. MOSFET drivers (e.g., IRFZ44N) need heatsinks if switching loads >1A; mount them perpendicular to airflow. Avoid placing temperature-sensitive components (crystals, EEPROM) near hot zones–minimum 15mm clearance from regulators.
Grounding Strategies and Interference Mitigation
Star grounding reduces loop currents. Route all return paths to a central star point, ideally beneath the microcontroller’s ground pin. Shield analog signals with guard rings–trace width 0.2mm, spaced 0.3mm from sensitive lines, tied to analog ground. For PWM lines, add LC filters (100µH inductor + 1µF capacitor) at the load to suppress EMI without degrading rise time.
Crystal oscillator layouts demand geometry precision. Keep load capacitors (18pF–22pF) within 5mm of crystal pins; traces must mirror symmetry. Avoid right angles–use 45° miters for all RF paths. For wireless modules (NRF24L01, ESP8266), separate digital and RF grounds with a ferrite bead (600Ω@100MHz) to block high-frequency noise.
Test points simplify debugging. Add 1mm diameter pads at critical nodes (VCC, RESET, UART TX/RX) with 2mm spacing. Use silkscreen labels (e.g., “TP_VCC”) for clarity. For boards with >20 components, include a board-level netlist in the fabrication files–export as KiCad/Eagle CSV with pin mappings (e.g., “D3 → ATmega328P-PC2”).
Selecting Parts for Microcontroller Project Blueprints
Pick resistors with power ratings exceeding projected current flow by at least 50%. For LED circuits, 220–470Ω works for most 5V logic levels, but verify voltage drop across the emitter using Ohm’s law. Precision tasks like analog sensing demand 1% tolerance; through-hole metal film types minimize thermal drift.
- 5mm LEDs: 20mA max continuous, 30mA peak
- SMD LEDs: 150mW power dissipation for 0805 packages
- RGB variants: common anode/cathode configurations dictate driver choice
Capacitors should match decoupling needs by location. Place 0.1µF ceramics within 2cm of each IC power pin, pairing with 10µF electrolytics for bulk storage. Tantalum types excel for decoupling but cost 3× more than aluminum electrolytics. For timing applications, film capacitors offer stable values above 50ppm/°C.
Choose transistors based on switching speed and gain. Logic-level MOSFETs (e.g., IRLZ44N) handle 5V gate drives, sinking 47A at 5V drain-source. BJTs like 2N2222 suit low-power switching but require base resistor calculations (hFE × 10–20). Darlington pairs double gain at the expense of 0.7V drop.
Voltage regulators must handle worst-case input-output differentials. Linear LDOs (e.g., LM1117) drop 1.5V efficiently but waste heat; switch-mode buck converters (e.g., MP2307) achieve 95% efficiency with inductor selection critical to ripple. For 12V inputs to 5V outputs, 47µH inductors with 1.5A saturation prevent core loss.
Microcontroller pin current limits vary by family. ATmega328s source/sink 40mA per pin, 200mA total; ESP32s double this but require separate 3.3V regulators. Optoisolators (e.g., PC817) isolate high-power loads, with CTR ratings dictating base resistor values. Heavy loads (>500mA) demand relays or SSRs with flyback diodes.
Connector choices affect durability. 0.1″ headers suit breadboards but corrode; locking types (e.g., JST PH) handle 2A per pin. For I²C buses, 4.7kΩ pull-ups to VCC ensure rise times
Creating Circuit Blueprints with KiCad: A Practical Guide
Install KiCad 7.0 or newer–older versions lack critical libraries for microcontroller boards. Launch the application and select File → New Project. Name the project file atmega328p_breakout to match the core component. Place the folder in a dedicated workspace outside system directories to avoid permission conflicts during export.
Open the schematic editor (eeschema) and immediately enable grid visibility (View → Grid). Set grid spacing to 0.05 inches (1.27 mm) for pin alignment. Press Ctrl+E to open the library browser. Filter components by typing ATmega328P–select the official symbol from the MCU_Microchip library. Drag it onto the sheet near the top-left corner, leaving 2 inches of margin for signal labels.
Add supporting parts using exact part numbers to ensure BOM accuracy. Below the table, find reference values:
| Component | KiCad Library | Quantity | Key Property |
|---|---|---|---|
| Crystal | Device:C |
1 | 16 MHz |
| Capacitor | Device:C_Small |
2 | 22 pF |
| Resistor | Device:R |
1 | 10 kΩ |
| LED | Device:LED |
1 | Red, 20 mA |
| USB Connector | Connector:USB_B_Micro |
1 | 5V, Rubber Feet |
Wire the clock circuit first. Position the crystal horizontally below the chip, XTAL1 and XTAL2 pins aligned vertically with capacitors to GND. Use W to initiate wires, Esc to terminate segments. Label power rails immediately–+5V for VCC nets, GND for ground. Assign net classes (File → Schematic Setup → Net Classes) to differentiate power (50 mil width) from signals (6 mil).
Place decoupling capacitors within 0.3 inches of each VCC pin. For the ATmega328P, add a 0.1 μF ceramic capacitor between AVCC and GND, plus a bulk 10 μF electrolytic capacitor near the power entry point. Ensure polarity markings (+) face the voltage source. Use Place → Text to annotate critical values directly on the blueprint–avoid reliance on external documentation.
Generate a clean PDF output by configuring plot settings (File → Plot). Select Page Size: A3, Output Format: PDF, and enable Plot Frame with project title, date, and revision. Run the Electrical Rules Check (F8)–ignore false positives for unconnected no-connect pins on the microcontroller. Export final files to a version-controlled repository, including both the .kicad_sch source and generated PDF.
Critical Errors in Microcontroller Board Circuit Planning
Ignoring power supply stability leads to erratic behavior. Use decoupling capacitors (0.1µF) near each IC’s VCC pin and bulk capacitors (10µF–100µF) at entry points. Place them within 2cm of components–longer traces introduce inductance, causing voltage spikes. Linear regulators (LM7805) require heatsinks at loads above 200mA; thermal shutdown triggers unpredictable reboots.
Avoid connecting high-current loads (motors, solenoids) directly to GPIO. Instead, isolate them with N-channel MOSFETs (IRFZ44N) or relays. Flyback diodes (1N4007) across inductive loads prevent voltage spikes from destroying transistors. Shared ground paths for analog and digital signals create noise; route them separately to a single star point near the power supply.
- Wire gauge mismatches cause voltage drops. Use 22AWG for signals, 18AWG for 3A+ currents. Calculators like
wire-resistance-calculator.comverify drops below 0.1V. - Long parallel traces act as antennas. Keep digital lines below 10cm; route analog traces perpendicular to clocks to reduce crosstalk.
- Unterminated inputs float, picking up noise. Pull-ups (10kΩ) or pull-downs stabilize floating pins before sampling.
Skipping thermal calculations shortens component life. SMD resistors dissipate 0.25W max; exceed this, and resistance drifts or traces burn. Use oxidation-resistant connectors (gold-plated) for repeated disconnections to prevent contact degradation. Test continuity with a multimeter–oxidized crimps fail silently.
Overlooking PCB trace width invites failures. 1oz copper handles 1A/mm; double width for 2A. Online calculators (Saturn PCB Toolkit) account for temperature rise. Prototyping on breadboards hides resistance–real circuits expose undersized traces as bottlenecks. Solder bridges on ISP headers brick boards; verify with a magnifier.
- Neglecting firmware failsafes: Set watchdog timers (1–2s) to reset stalled loops. Enable brown-out detection (1.8V) to prevent EEPROM corruption during power loss.
- Mixed-voltage systems risk damage. Level shifters (TXB0104) convert 3.3V logic to 5V safely; direct connections fry lower-voltage pins.
- Unshielded cables pick up EMI. Twisted pairs for differential signals (I2C) reduce noise; shielded cables for SPI above 1MHz.
