Key Components of an Atomic Absorption Spectroscopy Schematic Diagram

To optimize your search in academic databases like Semantic Scholar, begin by isolating instrumentation layouts that highlight hollow cathode lamps, atomizers (flame or graphite furnace), and monochromators. Prioritize diagrams that annotate light path split ratios–critical for quantifying parts-per-billion sensitivity. Filter studies with labeled wavelength selectors (typically 180–900 nm) and detector alignments (PMT or CCD). These specifics reduce ambiguity in interpreting signal-to-noise ratios.

Focus on documents detailing background correction setups–deuterium arc or Zeeman effect–as these directly impact matrix interference suppression. For flame methods, seek layouts specifying nebulizer gas flow rates (typically 5–10 L/min for air-acetylene) and burner head slot dimensions (100 mm × 0.5 mm). Graphite furnace diagrams should include temperature ramp profiles (e.g., drying at 110°C, ashing at 1000°C, atomization at 2700°C) to validate thermal stability data.

Cross-reference diagrams with spectral bandwidth (usually 0.2–2 nm) and calibration curve linearity (R² > 0.995). For trace metal analysis (e.g., lead, cadmium), ensure layouts include chelation steps or hydride generation attachments. Downloadable PDFs with vector-based schematics (SVG or EPS) offer clearer magnification of optical bench arrangements compared to raster images.

Use database filters to exclude patents and prioritize peer-reviewed protocols from journals like Analytical Chemistry or Spectrochimica Acta Part B. Target figures annotated with detection limits (e.g., 0.01 µg/L for mercury) and precision metrics (RSD sequential or simultaneous array detectors to confirm compatibility with fast transient signals.

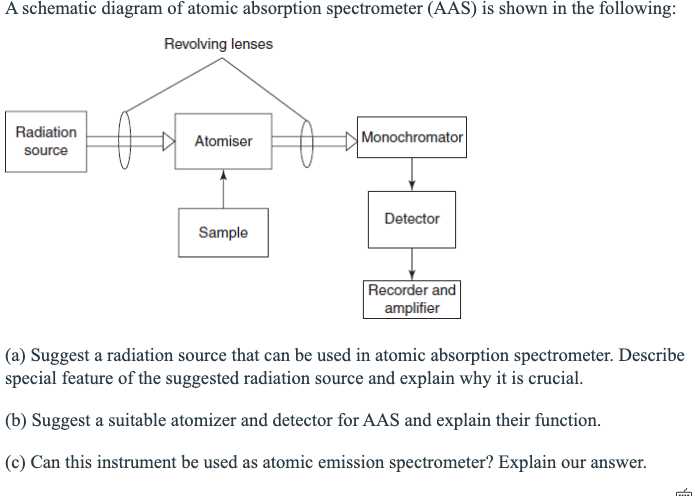

Key Components of an AAS Optical Pathway Layout

Position the hollow cathode lamp at a 5–10° angle relative to the flame or graphite furnace axis to minimize stray light interference while ensuring the beam aligns precisely with the sample inlet. A 25–35 mm focal-length quartz lens should precede the atomizer, focusing the emitted lines into a 2–3 mm diameter spot at the sample zone for optimal absorbance sensitivity.

Select a monochromator with a 0.1–0.5 nm spectral bandwidth; Czerny-Turner configurations outperform Littrow designs in resolving low-intensity resonance lines, particularly for elements like zinc (213.9 nm) and arsenic (193.7 nm). Gratings with 1200–1800 grooves/mm provide sufficient dispersion without sacrificing throughput, while blazed coatings at 250–300 nm enhance UV efficiency.

Integrate a beam splitter after the monochromator to divert 10–20% of the light to a reference photomultiplier tube (PMT), compensating for lamp drift and flame flicker. The primary PMT should operate at 600–900 V, with a current-to-voltage converter set to a gain range matching the element’s characteristic absorbance–typically 10^6 to 10^8 V/A for trace metals.

Flame atomizers require a 100 mm path length burner head for acetylene-air mixtures; nitrous oxide-acetylene demands a shorter 50 mm slot to prevent flashback. Graphite furnace systems must incorporate a transversely heated platform with pyrolytic coating, reducing memory effects for refractory elements like vanadium and molybdenum by 30–40% compared to wall atomization.

Insert a chopper between the lamp and atomizer at 400–600 Hz, ensuring the detector distinguishes modulated signal from DC background noise. For continuum-source background correction, align a deuterium arc lamp collinearly with the hollow cathode beam, using a magnesium fluoride window to maintain UV transparency below 200 nm.

Post-atomizer, employ a quartz condensing lens (f/1.5–f/2) to refocus transmitted light into a 1 mm diameter fiber optic cable, directing it to the PMT. Avoid acrylic or polycarbonate optics, as they absorb below 300 nm; fused silica preserves linearity across the 190–850 nm range critical for multielement analysis.

Finalize the layout with a high-speed analog-to-digital converter (16–20 bit resolution) sampling at ≥10 kHz to capture transient signals from graphite furnace atomization peaks, which typically last 1–3 seconds. Calibration curves should span 0.1–2.0 absorbance units, with correlation coefficients >0.995 for most transition metals; matrix modifiers like palladium nitrate or magnesium nitrate (10–20 µg/mL) extend linear ranges for volatile elements by 50–70%.

Critical Elements of a Flame-Based Elemental Analysis Setup

Select a hollow-cathode lamp matched to the target element–zinc requires 213.9 nm, copper 324.8 nm–ensuring peak emission aligns within ±0.2 nm of the analyte’s absorption line to maximize sensitivity.

Configure the nebulizer at 5–7 ml/min uptake rate for aqueous solutions; viscous samples demand a Babington or V-groove nebulizer with argon pressure set to 30–40 psi to sustain droplet diameters below 10 µm.

Optical Path and Detection Parameters

Component	Optimal Setting	Tolerance
Monochromator slit width	0.2–0.5 nm	±0.05 nm
Burner height	8–12 mm above slot	±1 mm
Fuel-oxidant ratio	Acetylene-air at 1:4	±0.2
Detector PMT voltage	500–700 V	±20 V

Position the burner so the light beam intersects the flame mid-height; misalignment by 2 mm reduces magnesium signal by 15–20%. Purge the optical bench with nitrogen if humidity exceeds 50% RH to prevent stray-light interference at wavelengths below 220 nm.

Use a deuterium background corrector for wavelengths under 350 nm, toggling it on 2 ms before analyte measurement to suppress molecular absorption from matrix components like calcium oxide. For graphite furnace models, ramp the drying stage to 110 °C over 30 seconds, pyrolysis at 800 °C for 20 seconds, and atomization at 2300 °C for 3 seconds with argon flow halted to retain atomic cloud density.

Matrix Modifiers and Calibration

Add 0.2% w/v palladium nitrate and 0.1% w/v magnesium nitrate to samples containing phosphorus or silicon to stabilize volatile elements during thermal pretreatment; this extends linear range for arsenic up to 100 µg/l.

Calibrate using matrix-matched standards–prepare iron in 2% nitric acid, sodium in deionized water–avoiding chloride salts above 0.5% w/v to prevent chemical interferences. Replace standard solutions monthly if stored at 4 °C; discard if precipitate forms. Install a magnetic stirrer under the autosampler probe to prevent settling of particulate standards between injections.

Validate baseline stability by aspirating deionized water for 30 seconds before each analytical run; absorbance drift should not exceed 0.002 A. If noise exceeds 0.001 A RMS, inspect the burner head for salt deposits or realign the lamp.

For automated systems, program the software to flag samples deviating >10% from calibration curve linearity–use a second-order polynomial for chromium, straight-line fit for lead–and implement duplicate injections if RSD surpasses 3%.

Step-by-Step Assembly of the Radiation Emitter in Analytical Flame Analysis

Position the hollow cathode lamp (HCL) in the dedicated mount, ensuring the anode and cathode terminals align with the power supply contacts. Tighten the securing screws no more than 0.2 Nm to avoid damaging the glass envelope–excess torque distorts the seal and shortens lamp lifespan. Verify polarity: the cathode (typically marked with a “-” symbol) must connect to the negative terminal. Apply a low-current test (3–5 mA) before full operation to confirm stable glow discharge; erratic flickering indicates air leakage or electrode contamination.

Select the appropriate lamp for the target element based on emission wavelength compatibility. For example, a magnesium-specific HCL emits at 285.2 nm with a spectral bandwidth of 0.1–0.5 nm, while copper requires 324.7 nm. Align the optical path by adjusting the lamp’s axial position until the emitted beam maximizes throughput at the monochromator entrance slit–use a UV-sensitive card to visualize the focal point. Maintain a distance of 5–10 cm between the lamp and the flame atomizer to prevent thermal damage to the quartz window.

Adjust the power supply to the recommended operating current (usually 5–15 mA). Higher currents increase signal intensity but reduce lamp durability; record voltage drops exceeding 20% of the nominal value, as they signal impending failure. Stabilize the output by running the lamp for 10–15 minutes prior to measurement–unsteady emission during warm-up skews calibration curves. For elements with multiple resonance lines (e.g., nickel at 232.0 nm and 341.5 nm), select the line with the highest sensitivity unless spectral interference is present, in which case opt for the secondary line.

Install a lens between the emitter and atomization chamber to collimate the beam; use a fused silica lens with a focal length of 50–100 mm and an antireflection coating optimized for the working wavelength. Clean the lens surfaces with methanol-dampened lint-free wipes–fingerprints or dust scatter light, increasing noise by up to 40%. Secure the lens holder at a fixed distance to maintain consistent beam diameter; deviations above 0.5 mm degrade absorbance linearity. Regularly replace aged lamps when emission drops below 70% of initial intensity or when waveform distortion appears on the detector readout.

Optimal Placement and Functional Importance of the Vaporization Unit in Analytical Setup

The atomizer must be installed downstream of the optical path’s focal point to ensure maximal light-matter interaction. Position the graphite furnace or flame slot at a height where the beam’s cross-section is narrowest–typically 8–12 mm above the burner head for acetylene-air mixtures. This placement minimizes scatter and maximizes analyte signal intensity, achieving detection limits as low as 0.1 ppb for elements like cadmium and lead. Avoid mounting the unit near turbulent airflow zones, as even slight perturbations distort baseline stability.

Key positioning parameters vary by gas composition:

• Fuel-oxygen flames (e.g., acetylene-nitrous oxide) require alignment 5 mm lower than air-based systems due to higher combustion velocities.
• Electrothermal vaporizers need a ceramic-insulated mount to prevent thermal drift; misalignment by >0.5 mm degrades reproducibility below 1%.
• Cold vapor mercury setups demand a perpendicular orientation to the beam to eliminate condensation artifacts on quartz windows.

Integration with background correction dictates spatial constraints. Smith-Hieftje systems, for instance, necessitate a 2° offset between the atomizer’s axial plane and the hollow cathode lamp to prevent spectral interference. In Zeeman-corrected instruments, the magnet coils must encase the vaporization chamber without obstructing the detector’s line of sight–achievable via a precise 15 mm clearance radius.

Routine maintenance protocols must address common misalignment sources:

1. Verify horizontal alignment monthly using a laser benchmark tool; drift exceeding 0.2 mm reduces sensitivity by up to 30%.
2. Purge residual salts weekly with 0.1 M HNO₃ for flame systems, or 600°C ash cycles for graphite tubes, to prevent memory effects.
3. Recalibrate the nebulizer’s uptake rate every 50 runs–deviations >5% distort aerosol droplet size distribution, invalidating calibration curves.

For multi-element analyses, prioritize modular designs. Swappable atomizer heads (flame vs. graphite) reduce cross-contamination risks by
