Step-by-Step Guide to Designing an Optimal Drainage Schematic

Begin with a flow rate calculation based on local rainfall intensity data–use the rational method for areas under 200 hectares: Q = C × I × A, where Q is the peak discharge (L/s), C is the runoff coefficient (0.3–0.9 depending on surface type), I is rainfall intensity (mm/h), and A is the catchment area (hectares). Overlook this step, and you risk undersizing pipes or stormwater inlets, leading to localized flooding.

Grade all underground conduits at a minimum slope of 0.5% for mains and 1% for laterals to ensure self-cleansing velocity (≥0.6 m/s). Use vitrified clay or high-density polyethylene pipes for subsurface routes–avoid corrugated metal in acidic soil zones where corrosion accelerates within 8–12 years. Mark transition points between open ditches and closed conduits with reinforced concrete collars to prevent root intrusion and silting.

Locate inspection chambers at every 90-degree bend, junction, or gradient shift–not exceeding 100-meter intervals–regardless of pipe diameter. Size each chamber’s benching to handle the design flow without turbulence; a poorly sloped invert causes sediment accumulation, reducing capacity by 30% within the first two years of operation.

Integrate overflow relief structures where land contours create natural depressions. A side weir with an adjustable crest height (150–200 mm above pipe soffit) diverts excess flow into a secondary detention basin or watercourse without surcharging the primary network. Omit this, and a 1-in-25-year storm event can inundate low-lying properties.

Specify backwater valves on all laterals connecting to upper-floor fixtures in buildings situated below the crown of the nearest public sewer. A 50-mm internal swing check prevents backflow during heavy rainstorms, which occur on average every 4 years in temperate climates. Seal all joints with rubber-ring gaskets or epoxy-resin compounds–cement mortar fails within 5–7 years under cyclic loading.

Label every pipe run with color-coded bands at 10-meter intervals: blue for stormwater, green for greywater, black for combined flow. Embed RFID tags beneath asphalt at manholes for asset tracking–conventional painted markings fade after 18 months of UV exposure. Document coordinates in a geographic information system to streamline maintenance without trial-and-error excavation.

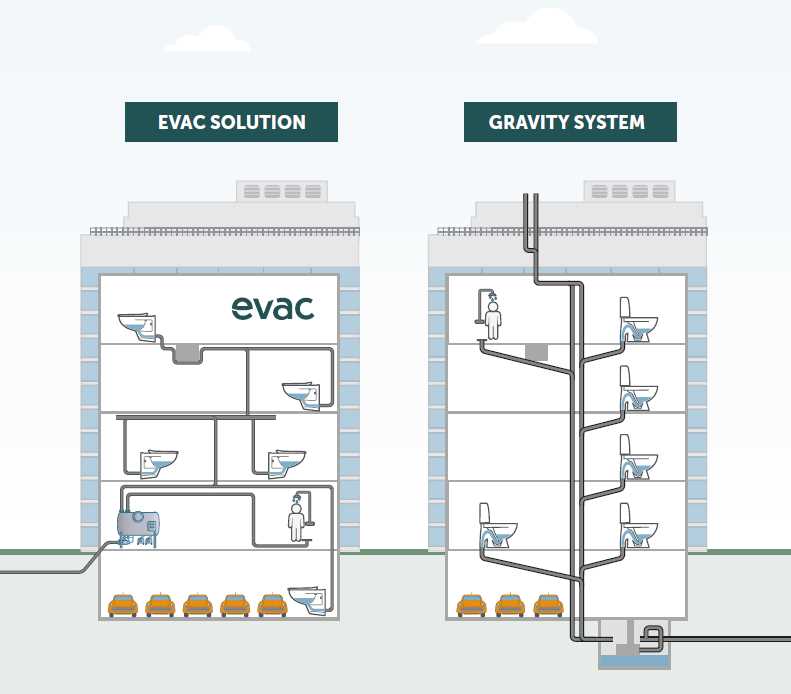

Visual Blueprint of Wastewater Management

Start by segmenting the layout into primary zones: collection points, conveyance pipes, treatment facilities, and discharge outlets. Use standardized symbols for manholes (⊙), inspection chambers (□), and traps (⌢) to ensure clarity. Label pipe diameters in millimeters–DN100 for residential laterals, DN200 for main sewers–directly on the drawing to eliminate ambiguity. Indicate flow direction with arrows, keeping slopes between 1-2% to prevent solids deposition; steeper grades risk scouring, flatter ones cause blockages.

Incorporate depth markers at 50cm intervals for excavation planning, noting groundwater levels if they intersect with buried infrastructure. Separate foul and surface water networks, marking crossover points with non-return valves to prevent backflow during heavy rainfall. For combined setups, designate overflow routes leading to retention basins sized at 25m³ per hectare of impermeable area. Include access points every 50 meters on straight runs and at all bends or junctions for maintenance.

Key Components to Highlight

Ensure the following elements are distinctly rendered: grease separators (minimum 1.5m³ for commercial kitchens), sediment traps (place upstream of treatment), and permeable paving connections (with underdrain pipes DN50). Specify material types–PVC-U Class SN8 for buried mains, HDPE for pressure lines–alongside joint types (push-fit, solvent-weld) and sealing methods. Mark vent pipes rising above roofline to disperse odors, terminating in bird guards.

Validate the layout with hydraulic calculations using Manning’s equation for flow velocity (target 0.6–0.7m/s). Cross-reference municipal codes for minimum pipe clearances from foundations (typically 3m) and potable water lines (5m). Include a scale bar (1:100 or 1:200) and north arrow for orientation. Add a legend decoding all symbols, abbreviations (e.g., IC for inspection chamber), and color codes–blue for rainwater, red for foul–to streamline interpretation for contractors.

Critical Elements for an Effective Water Removal Blueprints

Begin by mapping all primary conduits with precise diameters–common residential layouts require 100–150mm pipes for main effluent lines, while industrial setups often demand 200mm+ for high-volume flow. Label each segment with material specifications: PVC for cost efficiency in low-pressure zones, HDPE for underground resilience, or cast iron where noise suppression is critical. Include slope indicators (minimum 1–2% for gravity-fed networks) to prevent sediment buildup, ensuring self-cleansing velocity.

Integrate all inspection chambers at junctions, direction changes, and intervals no greater than 30 meters. Specify chamber types: rodding eyes for blocked access, silt traps at roofs or paved areas to capture debris before it enters the network, and manhole covers graded for load-bearing (Class A for pedestrian zones, Class D for highways). Mark cover materials–cast iron for durability, composite for corrosion resistance in coastal zones.

Ventilation and Flow Regulation Devices

Position air admittance valves at terminal pipe ends to balance pressure and prevent trap seal loss, but avoid placing them within 200mm of horizontal bends to minimize turbulence. For submersible pumps in basements or low-lying areas, detail pump capacity (liters per second), head pressure (meters), and backup power requirements–typically 1.5x primary flow rate for redundancy. Include non-return valves (spring-loaded or swing type) immediately downstream of pumps to prevent backflow during power failures.

Separate stormwater and sewer networks entirely, unless linking via approved interceptor tanks with overflow alarms. For surface runoff, plot catch basins (grated or curb inlets) with sump depths of 300–500mm to trap grit. Define outlet pipe sizes based on rainfall intensity: 75mm for residential driveways, 225mm for commercial parking lots in regions with 50mm/hr precipitation. Add oil-water separators for vehicle maintenance areas, specifying retention time (minimum 15 minutes) and coalescing plate spacing (typically 50mm).

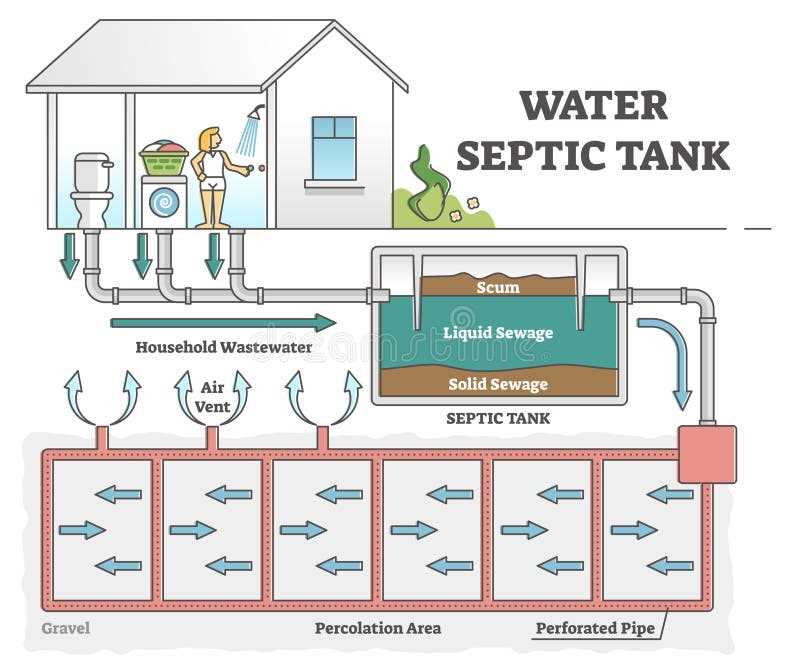

Tag all subsoil perforated pipes with perforation sizes (8–12mm) and aggregate backfill gradation (20–50mm crushed stone) to optimize infiltration. For green roofs or bio-retention basins, include perforated underdrains at the base, wrapped in geotextile fabric to prevent clogging by fines. Specify fabric type: non-woven polypropylene for high filtration, woven for strength in load-bearing applications. Mark overflow pathways for extreme storm events, ensuring they bypass treatment facilities to avoid hydraulic overload.

Document all connections to municipal trunk lines with precise invert levels (elevation at pipe bottom) and coordinate these with local utility records to prevent clashes during excavation. Include redundancy pathways for critical infrastructure–hospitals, server farms–with dual feeders and valved cross-connections. For maintenance access, stagger manholes along straight runs (every 50–70 meters) and add rodding points within 6 meters of fixtures like sinks or floor drains. Detail all fixtures with trap types (P, S, bottle), depths (minimum 50mm), and venting requirements (wet venting allowed only for groups of no more than 2 fixtures).

Creating a Plumbing Layout Blueprint: A Practical Guide

Begin with a scaled floor plan of the property, marking all plumbing fixtures–sinks, toilets, showers, and floor drains–using standardized symbols from ISO 346 or ANSI Y32.4. Assign each fixture a unique identifier (e.g., S1 for sink #1) to track wastewater flow later. Use graph paper for manual sketches, ensuring 1:50 or 1:100 scale for accuracy. Digital tools like AutoCAD or QGIS allow layer separation: place fixtures on one layer, pipes on another, and labels on a third for clarity.

Define Flow Paths and Pipe Specifications

Sketch primary waste lines from fixtures to main sewer or septic outlets, observing local codes for minimum slope (typically 1-2% for 3-4″ pipes). Vertical drops should connect to horizontal runs via 45° or 90° bends, avoiding sharp angles to prevent blockages. Label pipe diameters: 1.25″ for lavatories, 3″ for toilets, and 4″ for main sewer lines. Indicate cleanouts at changes in direction (every 75-100 feet) and before connections to municipal systems. Use dashed lines for underground piping; solid for above-ground.

Add vent stacks adjacent to drainage lines, extending through the roof. Position vents within 5 feet of each trap to maintain water seals and prevent siphoning. For shared stacks, calculate cumulative fixture units–2 for sinks, 4 for toilets–and size vents accordingly (e.g., 2″ for ≤8 units, 3″ for >8). Include a manifold if multiple branches converge, ensuring equal distribution of airflow. Cross-reference with NFPA 99 or IPC Chapter 9 for hospital or industrial layouts requiring special venting.

Finalize with material callouts: PVC for waste lines (ASTM D2665), cast iron for high-temperature areas (CISPI 301), or copper for medical gas systems. Annotate installation depth (minimum 18″ cover for frost protection in cold climates) and burial requirements. Add a legend for symbols, a north arrow, and scale bar. Export to PDF with layers preserved for contractor reference, or print at 11×17″ for field use. Validate the design with a hydraulic load test sim using software like Pipe Flow Expert to check velocity (2-10 ft/s) and avoid sediment buildup.
