Designing a Microwave Generator Schematic Circuit Step-by-Step Guide

Start with a magnetron-based oscillator if your application requires continuous wave output above 1 kW. Select a cavity magnetron with a specified frequency tolerance of ±0.5% to ensure stability under varying thermal loads. For lower-power designs, a Gunn diode oscillator paired with a varactor-tuned resonator delivers precise frequency adjustment in the 10 GHz band. Use copper-clad PTFE substrates for PCB traces to minimize impedance mismatches and insertion loss at GHz ranges.

Critical components: A step-recovery diode (SRD) generates pulse trains with rise times under 200 ps, essential for ultrawideband radar. Pair it with a high-Q helical resonator made from oxygen-free copper to filter harmonics effectively. For solid-state alternatives, employ GaN HEMTs in class-E configuration–these handle 50 V drain-source voltages while maintaining 70% efficiency at 3 GHz. Always include a directional coupler with at least 20 dB directivity to monitor reflected power.

Thermal management dictates lifespan. Mount power transistors on 3 mm aluminum nitride carriers, ensuring a thermal resistance below 0.5 °C/W. For magnetrons, design a forced-air cooling system capable of dissipating 1.2 kW per cubic meter of enclosure volume. In pulsed applications, limit duty cycles to 10% to prevent cathode poisoning–exceeding this threshold reduces output by 15% after 1,000 hours.

Test stability with a spectrum analyzer set to 1 kHz RBW. Look for a single dominant peak within 3 dB of the intended frequency; spurious emissions should remain below -60 dBc. For calibration, use a frequency counter with least count of 1 Hz–oscillators operating near quantum noise levels (

Designing a High-Frequency Signal Source: Key Circuit Elements

Begin with a magnetron-based oscillator configured at 2.45 GHz, matching the resonant cavity to achieve a loaded Q-factor above 200. Use a WR-340 waveguide segment with precise flange alignment–tolerance ±0.05 mm–to minimize VSWR spikes. A half-wave coaxial transformer transitions the signal to a 50 Ω transmission line; employ silver-plated copper conductors and PTFE insulation (ε_r = 2.08) to reduce insertion loss below 0.15 dB per meter.

Integrate a ferrite circulator (non-reciprocal isolation >20 dB) between the magnetron and antenna port to suppress backward reflections; this prevents frequency pulling and cathode overheating. For power regulation, couple the DC supply (4 kV, 300 mA) through a high-voltage pulse transformer with a turns ratio of 1:25, ensuring rise times

Calibrate the standing wave ratio using a directional coupler (directivity >30 dB) and a diode detector (Schottky, 0.2 V reverse breakdown). Route the sampled signal to a feedback loop controlling a PIN diode attenuator; this maintains output stability within ±0.5 dB despite load impedance variations between 40 Ω and 60 Ω. Ground the chassis via a star topology, bonding all enclosures to a central copper busbar (cross-section ≥25 mm²) to eliminate common-mode noise currents above 1 MHz.

Core Elements for High-Frequency Signal Synthesis

Select a magnetron with a power output between 800–1200 W for robust performance in industrial heating or radar applications. Verify its frequency stability (±0.5% tolerance) and cathode emission efficiency (minimum 95%) to minimize signal drift over time. Brands like Toshiba E3327 or Samsung OM75S offer tested reliability under continuous operation at 2.45 GHz.

Integrate a voltage-controlled oscillator (VCO) with a tuning range of at least 2–6 GHz for applications requiring adjustable waveforms. Prioritize phase noise below -120 dBc/Hz at 10 kHz offset to avoid interference in communication systems. Linear Technology’s LTC6946-3 or Analog Devices’ HMC507LP5E provide sub-50 ps locking times for rapid frequency shifts.

Use a high-isolation circulator (minimum 20 dB isolation) between the source and load to prevent reflected power from damaging active components. Ferrite-based models like Skyworks’ D3C2208PC operate effectively from 1–4 GHz with insertion loss under 0.5 dB. Ensure proper thermal management–circulators degrade at temperatures above 85°C without heatsinks.

Choose transmission lines with a characteristic impedance of 50 Ω to match standard RF connectors (SMA, N-type). Low-loss coaxial cables (e.g., RG-402) or microstrip traces with PTFE substrates (εᵣ = 2.2) reduce attenuation to 3× cable diameter) to prevent impedance discontinuities.

Opt for Schottky diodes (e.g., Avago HSMS-286x series) for signal detection due to their fast recovery times (

Incorporate a directional coupler (e.g., Mini-Circuits ZEDC-15-2B) with a coupling factor of 10–20 dB to sample output signals without disrupting the main path. Ensure directivity exceeds 20 dB to reject backward reflections. For high-power applications (>100 W), use waveguide couplers (WR-90) with copper construction to handle thermal loads.

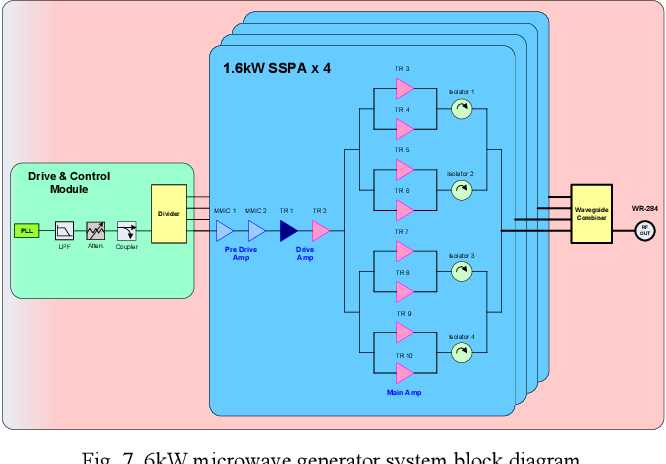

Implement a solid-state amplifier (SSPA) like Qorvo’s QPA0090 or MACOM’s MAAP-011246 for RF power amplification. These modules deliver >40 dB gain with P1dB points above 30 dBm while maintaining linearity. For narrowband signals, GaN-based designs reduce power consumption by 30% compared to LDMOS alternatives.

Step-by-Step Assembly of a Magnetron-Based Power Unit

Begin by securing the high-voltage transformer (HVT) to a grounded metal chassis with M6 bolts, ensuring the primary coil terminals align with the AC input leads. Use a 30A fuse in series with the primary side to prevent current surges–standard HVTs for this application tolerate 2.5–3.2 kV RMS on the secondary winding. Verify insulation resistance between windings and the core with a 1000V megohmmeter; values below 10MΩ indicate compromised dielectric strength.

Mount the magnetron tube vertically on the chassis, fastening it with the supplied bracket and a thermal pad to dissipate 15–20W of waste heat. Connect the filament terminals to the transformer’s secondary using 12AWG silicone-insulated wire, twisting the leads tightly to minimize RF interference. The filament voltage must stabilize at 3.3V AC within ±0.2V to avoid cathode poisoning; measure this at the tube’s pins before proceeding.

Critical Connections and Safety Measures

Wire the HV capacitor (typically 1.0–1.5 µF, 4 kV DC rating) in parallel with the magnetron’s anode and transformer secondary. Solder the joints with 60/40 lead-tin alloy, applying heat for

• Polarity: The anode must connect to the transformer’s positive secondary terminal; reversing this destroys the tube.
• Cooling: Install a 40mm 12V DC fan targeting the magnetron’s radiator fins–airflow below 0.5 m³/min reduces output by 30%.
• Shielding: Enclose the entire assembly in a perforated steel housing (

For the control circuit, use a solid-state relay (SSR) rated for 10A at 250V AC to switch the primary side. Trigger the SSR with a 5V TTL signal from a microcontroller or timer IC, isolating the logic ground from the HV ground via an optocoupler (e.g., PC817). Add a 10kΩ pull-down resistor on the SSR’s gate to prevent floating inputs during power transitions. Test the relay’s response time–latency above 50ms risks overloading the transformer.

Final validation requires a dummy load: a 50Ω water-cooled resistor in a borosilicate beaker, monitored with a thermal probe. Apply power in 5-second pulses, confirming the resistor’s temperature rise matches the magnetron’s rated 800–1200W output (ΔT = 7–10°C per pulse). If the load absorbs

Calculating Power Supply Parameters for Uninterrupted Signal Source Performance

Begin by defining the peak current draw of the RF emission unit under maximum output, then add a 30% safety margin to prevent thermal runaway in the voltage regulation stage. For a typical 12 VDC input, this translates to:

Output Stage	Nominal Current (A)	Safety-Adjusted Current (A)	Required Converter Efficiency (%)
Primary oscillator	1.8	2.34	88
Power amplifier	4.2	5.46	92
Cooling fan array	0.5	0.65	85
Control logic	0.3	0.39	90

Select a switching regulator with a minimum continuous current rating that exceeds the safety-adjusted figures; for a 12 V source, a 6 A unit will cover all stages simultaneously. Use low-ESR capacitors (≤15 mΩ) at the regulator output to suppress voltage spikes during load transients–typical values are 220 μF tantalum for each 1 A of current. Implement reverse polarity protection via a Schottky diode rated at twice the total current draw to prevent catastrophic failure during accidental miswiring.

Isolate the RF stages from digital controls using separate linear regulators; this prevents ground loops that induce phase noise. A common topology pairs a 7812 for analog circuits and an LM2596 for digital components, each fed from independent transformer secondary windings. Measure AC input impedance across the expected frequency range (50 Hz–1 MHz)–impedance below 0.1 Ω at 100 kHz ensures stable regulation without resonant oscillations. Add a pi-filter (100 μH choke flanked by 1000 μF capacitors) if input lines exceed 30 cm, as longer traces amplify ripple.

Thermal design dictates power supply reliability. Mount regulators on heatsinks sized for 10 °C/W maximum temperature rise at full load; for a 12 V, 5 A regulator, this requires a 40 mm² aluminium plate with 2 mm thickness. Apply thermal interface material with

Verify regulation under dynamic conditions using a dual-channel oscilloscope: channel 1 probes the input ripple, channel 2 the output ripple. Target
