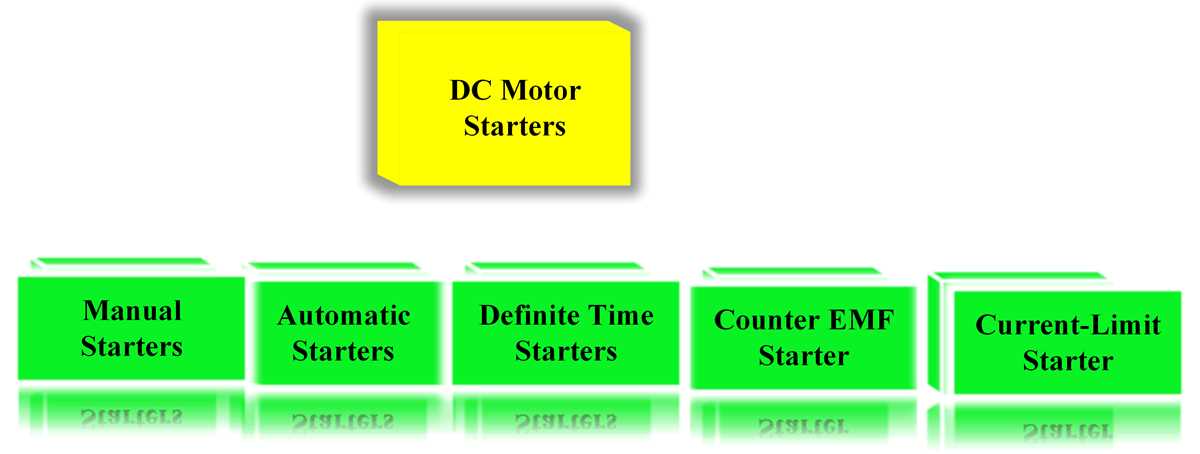

Step-by-Step Schematic Guide for DC Shunt Motor 3 Point Starter

To ensure reliable starting of a DC parallel-wound machine, integrate a three-terminal control circuit with precise resistance grading. Begin by positioning the starting resistor in three distinct steps, calibrated to limit inrush current to 1.5–2.0 times the motor’s rated load. The first stage should reduce voltage drop across the armature to 30–40% of nominal, while subsequent stages must be timed to avoid transient spikes exceeding 220% of steady-state values.

Connect the no-voltage release coil in parallel with the field winding to detect under-voltage conditions. Its contact must interrupt the holding path when input drops below 85% of rated voltage, preventing uncontrolled acceleration. Use a spring-loaded mechanical latch to engage the moving arm at the zero-current position, ensuring fail-safe operation even during abrupt power loss.

Select resistance elements for the starter bank with a temperature coefficient under 0.004 Ω/°C to maintain consistent performance across thermal cycles. Aluminium-nickel alloys (e.g., Kanthal A1) offer optimal balance between durability and cost, withstanding 10⁵ full-load start cycles before degradation. Size conductors for the main circuit at 2.5 A/mm² minimum to prevent overheating during prolonged start sequences.

Incorporate a thermal overload relay set to trip at 120% of rated current, with a reset delay of 2–3 minutes to avoid nuisance trips during momentary surges. Test the completed assembly under locked-rotor conditions, confirming that voltage collapse across the holding coil remains above 18 V DC to guarantee reliable disengagement.

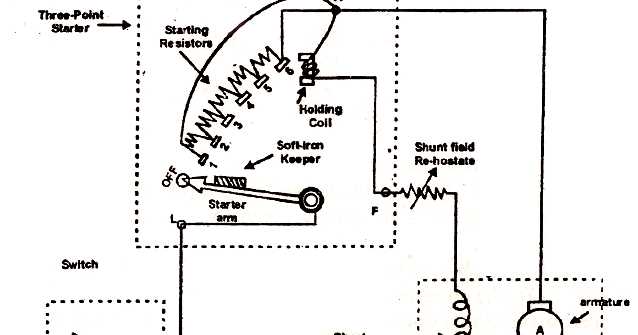

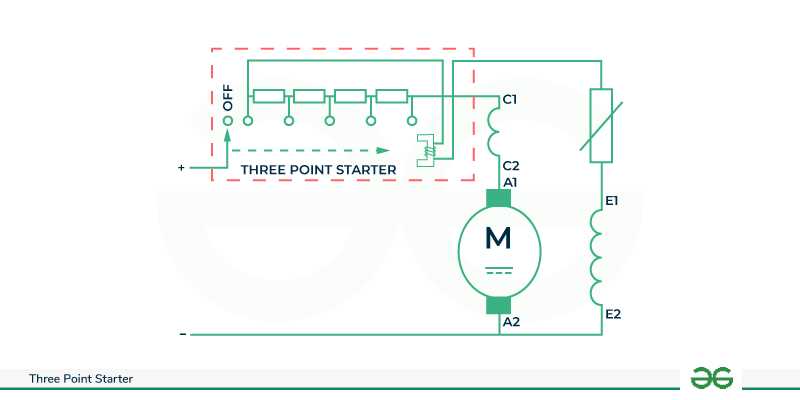

Electrical Layout of a Three-Terminal Starting Device for Parallel-Wound Direct Current Machines

Connect the armature terminal to the first brass contact stud via a series resistance segment, progressively reducing resistance as the speed builds. The field winding must link directly to the supply line through the no-load release coil–this prevents runaway conditions if excitation fails. Position the holding magnet between the last resistance tap and the field circuit to ensure dropout when voltage dips below 80% nominal.

Wire the starting resistance in three discrete banks: 5 Ω for the initial step, 2.5 Ω for the intermediate, and 1 Ω for near-full conduction. Each bank should be bypassed sequentially by the moving lever arm, which rides on copper studs coated with silver alloy to minimise arcing. Avoid soldered connections; use crimped lugs tightened to 12 Nm torque to prevent hotspots.

Critical Component Ratings

• No-load release coil: 1.2 A continuous, 24 V DC pickup.
• Starting resistors: Nichrome wire, 3.5 mm² cross-section, rated 40 A transient.
• Brass studs: 8 mm diameter, spaced 12 mm centre-to-centre.
• Holding magnet core: Silicon steel laminations, 0.5 mm thick.

Mount the unit vertically with the lever arm pivot at the top; gravity assists smooth engagement and prevents accidental hold-in. Use a 2 mm air gap between the magnet face and armature plate to guarantee positive dropout. Ground the enclosure through a 10 Ω resistor if the machine frame is insulated; this limits fault currents to 25 A while allowing sufficient sensing for overload protection.

For 220 V machines, calculate field current as If = V / (Rf + Ra), where Rf is field resistance (typically 110 Ω) and Ra is added field rheostat (0–50 Ω). The no-load current through the release coil must exceed If by 15% to ensure reliable hold. Verify coil temperature rise; maximum 65 °C over ambient is permissible.

1. Power the main supply through a double-pole 20 A circuit breaker with magnetic trip at 30 A.
2. Solder the field connection last, ensuring the holding magnet wire exits the coil axially to avoid interference.
3. Test the dropout sequence: simulate undervoltage by reducing supply to 175 V; the lever must fall within 1.5 s.
4. Check stud alignment: the lever should make clean contact on each stud without bridging adjacent studs.

Apply dielectric grease to all contact surfaces every 100 operations to suppress corrosion. Replace resistor banks if resistance drifts more than 5% from nominal; drift indicates overheating. For motors above 5 kW, use a four-terminal variant with an auxiliary contact to interrupt field current simultaneously with armature disconnection.

Key Components in a 3-Terminal DC Activation System

Begin by securing a robust no-load release coil (NVC) rated for the motor’s full excitation current. This electromagnet must hold the starting resistance arm firmly until the field windings reach nominal flux levels. A weak NVC risks premature release, stalling acceleration or triggering uncontrolled current surges. Calculate pull-in voltage at 80-85% of nominal excitation; undersized coils fail under transient loads.

• Overload cutoff: Specify a bimetallic strip calibrated to trip at 130% of rated armature current. Delay tolerance must not exceed 2 seconds to prevent winding insulation degradation.
• Starting resistor stack: Divide resistance into 5-7 graded segments, each sized to limit initial current to 150-200% of full-load value. Resistors must dissipate transient heat without warping; use nichrome wire wound on porcelain cores.
• Arm holding mechanism: Design the lever pivot with a low-friction brass bush to ensure smooth engagement; misalignment causes arcing at contact points.

Contact Material Selection

Use silver-cadmium oxide contacts for the resistor taps. This alloy withstands 10^4 break cycles under 500V DC arcs without pitting. Copper contacts oxidize rapidly, increasing contact resistance by 30% after 500 cycles, leading to overheated junctions. Spring tension must exert 2.5N/mm² on contact faces to prevent bounce during sudden load changes.

The field regulator must incorporate a shunt field diverter around the first two resistor segments. Without this bypass, excitation current drops below 70% at startup, causing flux starvation and torque collapse. Size the diverter to carry 20% of total excitation current at 0.5s after engagement. Position it adjacent to the NVC to ensure voltage consistency during acceleration.

Wiring and Termination Practices

Terminate all connections with compression lugs crimped to 95% of wire cross-section. Loose terminals introduce micro-arcs, generating local hotspots exceeding 200°C. Route excitation leads separately from power cables; induced voltages from 1mm proximity can corrupt flux stability. Ground the frame through a 50mm² braided strap to limit potential rise above 50V during fault conditions.

1. Test all components with a 500V megohmmeter before initial energization. Insulation resistance below 2MΩ indicates moisture ingress or cracked resistor bobbins.
2. Calibrate the NVC by adjusting the air gap between armature and coil face to 1.2mm for 24V systems, 2.0mm for 230V configurations. Misalignment increases pull-in time, risking commutator flashovers.
3. Install a snubber (0.1μF/100Ω) across each resistor segment to suppress transient overvoltages exceeding 3kV. Ignoring this step accelerates contact erosion by 40%.

Step-by-Step Wiring Connections for Safe DC Drive Activation

Begin by securing the main power source to the L and F terminals–ensure polarity aligns with the armature and field windings. Use a 4 mm² copper cable for currents up to 20 A to prevent voltage drops under load; for higher currents, scale wire gauge per NEC Table 310.16. Connect the hold-on coil in series with the field winding, routing it through the first protective contact (NVC) to maintain excitation during startup. Verify the coil’s resistance (typically 50–150 Ω) matches the motor’s specifications to avoid premature dropout.

Overload Protection Integration

Install a thermal overload relay on the armature circuit, calibrating it to 1.1–1.25× the motor’s full-load current. Place the relay’s bimetallic strip in close thermal contact with the winding to ensure rapid tripping–0.5 s at 6× rated current–while avoiding false trips from ambient heat. Wire the relay’s normally closed contacts into the control circuit so a fault interrupts power to both the armature and field simultaneously. Use a 10 A auxiliary contactor for the control circuit to isolate high-voltage arcs from delicate components.

Link the accelerating contacts sequentially: start with the lowest resistance (0.5 Ω) connected to the first stud, then increment by 0.3 Ω per step to limit inrush current to 150–200% of rated value. Each contact should engage at 0.3 s intervals, measured with an oscilloscope to confirm timing precision. Route the final stud’s connection through the hold-on coil’s normally open contact to ensure the motor cannot restart without manual reset after shutdown or overload trip.

Test the installation with a 50% load before full operation. Monitor armature voltage–it should rise smoothly from 0 to 90% of supply voltage within 3–5 s without oscillations (>5% voltage swing). If voltage surges exceed 20%, reduce the individual resistance steps by 15% and retest. Ground the frame via a 4 AWG conductor, torqueing all connections to 25 Nm to prevent high-resistance faults. Label each terminal per IEEE Std 141 for maintenance clarity.

No-Volt Coil and Overload Relay: Critical Safety Mechanisms in Direct Current Control

Install a no-volt coil in series with the supply lines to prevent re-energization after a power loss. This electromagnetic component holds the starter lever in the “run” position when voltage is present but releases it instantly if the supply drops below 80% of rated value. For 220V systems, select a coil with a dropout voltage of 176V or lower. Failure to implement this risks uncontrolled motor restart, which can damage couplings or injure operators.

Overload Relay Configuration Parameters

Set the overload relay to trip at 115-125% of full-load current (FLC) for continuous duty applications. For example, a 10A FLC requires a trip setting between 11.5A and 12.5A. Use Class 10 relays for general industrial loads with a trip time of 6-10 seconds at 600% overload. Cold-state characteristics matter–specify relays that trip within 2 minutes when exposed to a 200% overload from ambient conditions. Avoid thermal-memory relays in environments with frequent starts as they may false-trip.

The no-volt coil’s magnetic circuit must maintain sufficient force to overcome the starter’s spring tension at minimum holding voltage. A 12V drop on a 230V system should retain 90% of nominal pull-in force. Test this by connecting a variac to the coil circuit and measuring the release voltage. Replace coils showing release above 85% of nominal voltage. For long cable runs, use 2.5mm² conductors to prevent voltage drop adding to dropout variations.

Combine the overload relay with a thermal overload sensor for motors driving high-inertia loads. The relay trips at sustained overloads while the thermal sensor provides backup for locked-rotor conditions. Ensure both devices share the same current scaling–mixing a 10A relay with a 15A sensor creates a dangerous blind spot. For three-phase applications, use a three-pole relay to detect phase loss, which can reduce motor torque by 30-50% while maintaining near-full current draw.

Coordination with Circuit Protection

Size fuses or circuit breakers to permit the overload relay’s trip curve without nuisance opening. For a 10A motor, select a 16A fuse with a melting time exceeding 2 seconds at 12.5A. The overload relay should trip before the fuse clears in all conditions except short circuits. Verify coordination with a time-current curve overlay–fuse characteristics must lie above the relay’s trip curve by at least 20% at all points. Use fast-acting fuses only for motors without regenerative braking, as their quick operation may conflict with acceleration currents.

Regularly test both protective devices. For no-volt coils, simulate power failure by opening the main switch and observe the starter lever’s release–it should snap back in under 200ms. For overload relays, inject current using a test set to verify trip time at 300%, 400%, and 600% FLC. Record results and compare against manufacturer curves. Deviations exceeding 15% indicate worn contacts or contaminated thermal elements requiring replacement.
