Understanding Nuclear Power Plant Blueprint and Main Components

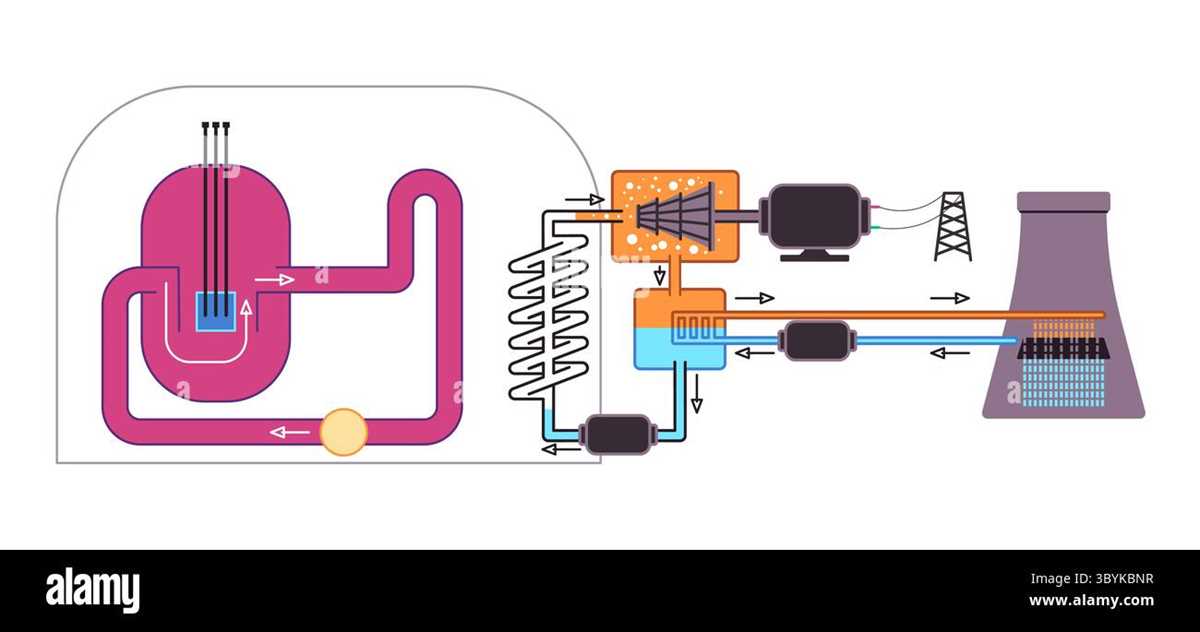

To analyze a thermal generation plant’s operational flow, begin by identifying the reactor vessel–where sustained fission splits uranium-235 isotopes under controlled pressure (typically 155 bar in pressurized water designs). Trace the primary coolant loop: the heated fluid (often borated water) exits at ~325°C, transferring thermal energy via steam generators to the secondary circuit while preventing radioactive exposure to downstream systems. Verify the steam line’s isolation valves and pressure regulators (setpoints near 7 MPa) to avoid cascading failures during load fluctuations.
Examine the turbine-generator assembly next. High-pressure steam (600°C in advanced gas-cooled variants) drives blades at 3,000 RPM (50 Hz grid synchrony), expanding through multiple stages to maximize enthalpy extraction. Confirm condenser cooling water sources–either once-through river flow (minimum 40 m³/s for 1 GW output) or closed-loop cooling towers–to prevent thermal pollution exceeding ΔT > 10°C in discharge zones. Note auxiliary systems: hydrogen gas seals for rotor insulation, stator winding temperature monitors (
Review the emergency core cooling system (ECCS) architecture last. Passive accumulator tanks (injecting ~10,000 L/min at 1.7 MPa) and active high-pressure pumps (dual 100% redundancy) must engage within 30 seconds of coolant depletion. Verify containment structures–pre-stressed concrete walls (1.2 m thick) with steel liners (6 mm), designed to withstand 0.3 MPa overpressure from vapor explosions. Cross-reference fail-safe logic gates: reactor trip signals (neutron flux deviations >10%) trigger simultaneous boron injection and control rod drop (
Key Components of an Atomic Energy Facility Blueprint
Begin with the reactor vessel at the core of the layout–ensure it occupies a structurally reinforced zone with a minimum 1.2-meter-thick biological shield of high-density concrete or lead. Mark cooling loops entering and exiting at 60° angles to optimize thermal transfer while minimizing turbulence. Specify primary coolant as pressurized water (PWR) at 15.5 MPa or liquid sodium (LMFBR) at 550°C depending on the thermal cycle.
Position steam generators no further than 30 meters from the reactor to reduce pressure losses; use U-tube designs for PWRs to handle 345°C steam at 7 MPa. Indicate safety valves on each generator set to release excess pressure at 8.2 MPa. Label secondary circuits clearly, differentiating feedwater flow (45°C at 0.5 MPa) from superheated steam (285°C at 6 MPa) to avoid misrouting during maintenance.
Integrate emergency core cooling systems (ECCS) with at least two independent loops–one passive (high-pressure injection) and one active (low-pressure recirculation). Route ECCS piping within containment but outside the primary shield to prevent radiation exposure during standby. Include accumulator tanks sized for 110% of the core’s water volume, charged with nitrogen at 4.1 MPa to ensure rapid deployment.
Place containment structures around all radioactive components, using double-walled steel liners (1.2 cm thick) backed by 90 cm of reinforced concrete. Ventilation ducts must incorporate HEPA filters rated for 0.3-micron particles and charcoal adsorbers for gaseous iodine capture. Mark electrical penetrations with redundant Class 1E seismic-rated connectors to isolate critical systems during earthquakes above 0.2g acceleration.
Design turbine halls with a minimum clearance of 25 meters between the high-pressure and low-pressure sections to accommodate blade lengths up to 1.8 meters. Use impulse-reaction hybrid blades for 3,000 RPM units, specifying a blade tip velocity under 520 m/s to prevent stress corrosion. Locate condensers directly beneath turbines, ensuring a vacuum of 7 kPa (absolute) via steam jet air ejectors or mechanical pumps.
Include generator-transformer blocks adjacent to the turbine hall, utilizing step-up transformers with a 24/34.5 kV Δ-Y configuration to match grid voltage. Ground each transformer via a dedicated copper plate (1.5 m²) buried 3 meters deep to dissipate fault currents. Segment auxiliary power systems into Class 1E (emergency) and non-Class 1E circuits, isolating them with fire-resistant barriers (2-hour rating).
Route fuel handling systems within a separate, shielded annex connected to the reactor via a transfer canal. Equip spent fuel pools with boronated water (2,000 ppm boron) maintained at 35°C to ensure subcriticality. Use robotic cranes for fuel assembly transfers, rated for a 1.5x dynamic load factor during seismic events. Label storage racks with moderator gaps (1.6 cm for PWR assemblies) to prevent inadvertent criticality.
Document instrumentation and control pathways using redundant fiber-optic loops (single-mode, 1310 nm wavelength) to eliminate EMI from high-voltage lines. Position neutron flux detectors radially around the core at 120° intervals, calibrated for ranges between 10⁰ and 10⁵ n/cm²·s. Ensure all control rods generate drop times under 2.5 seconds when de-energized, using magnetic jack drives for fine positioning (±1 mm accuracy).
Critical Elements Depicted in an Atomic Energy Facility Blueprint

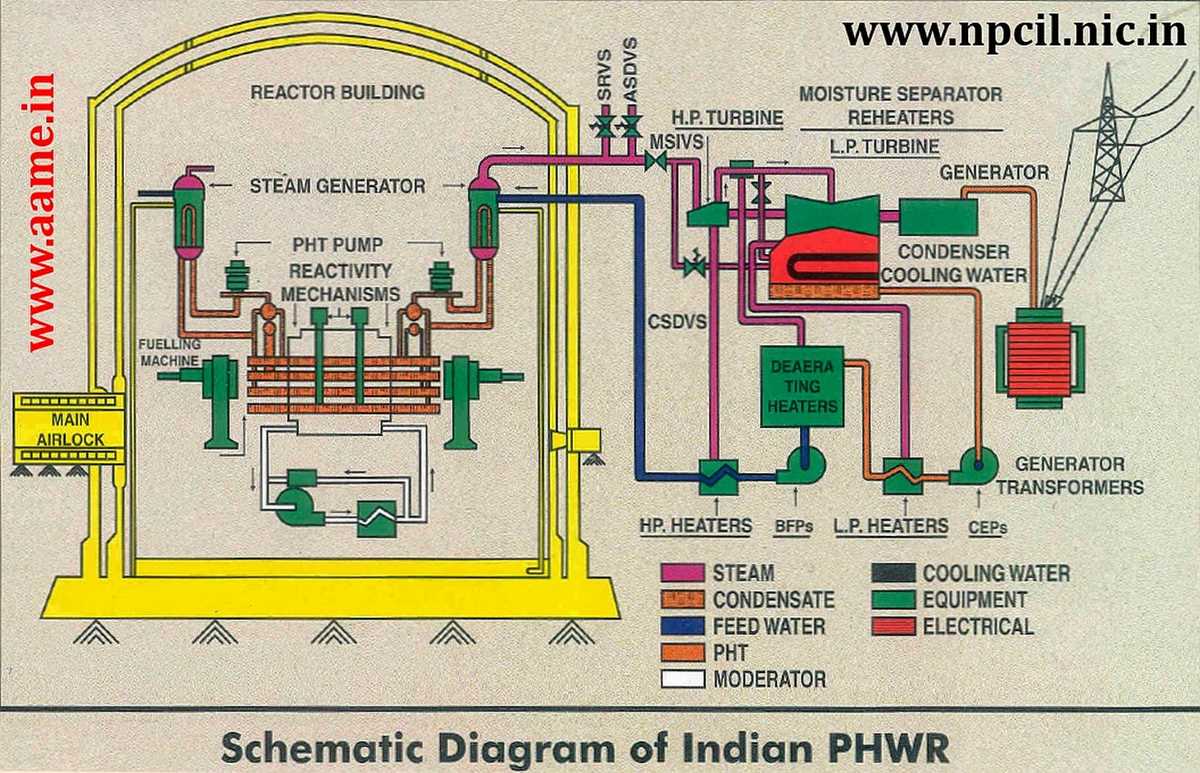

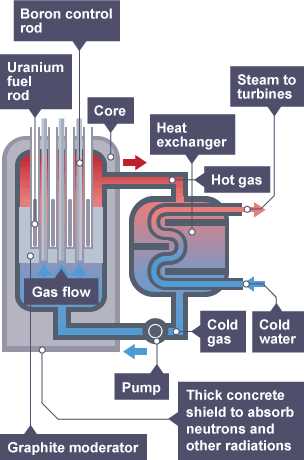

Begin by identifying the reactor vessel at the core of the setup–this pressurized chamber houses uranium or plutonium fuel rods, where controlled fission releases thermal energy. Ensure the schematic highlights its containment structure, typically reinforced concrete or steel, designed to withstand extreme pressures and radiation leaks. Verify that pressure boundaries, such as the primary coolant piping, are clearly marked, as these pathways circulate heated fluid to prevent meltdown risks.
Heat Transfer and Conversion Mechanisms
Locate the steam generators–heat exchangers that transfer thermal energy from the primary loop to a secondary circuit, converting water into high-pressure vapor. The blueprint should distinguish between the two loops: the primary (radioactive) and secondary (non-radioactive) systems to prevent cross-contamination. Check for turbines aligned downstream of the steam generators, where expanding vapor drives blades connected to electrical generators. Confirm that condenser units are illustrated beneath the turbines, where exhaust steam is cooled back into liquid using external water sources or cooling towers.
- Fuel assemblies: Clustered rods, often 12 feet tall, with cladding (zircaloy) to contain fission products.
- Control rods: Boron or cadmium shafts inserted between fuel rods to absorb neutrons and regulate the reaction rate.
- Pressurizer: A surge tank maintaining system pressure, preventing coolant from boiling in the primary loop.
Examine the cooling tower representation–either natural draft or mechanical draft–where residual heat is dissipated into the atmosphere. For facilities using river or sea water, the schematic must show intake and outfall pipes, but include filtration systems to protect aquatic life from thermal shock. If dry cooling is used, note the absence of water pathways and reliance on air-cooled condensers, though these reduce efficiency by 5–10%.

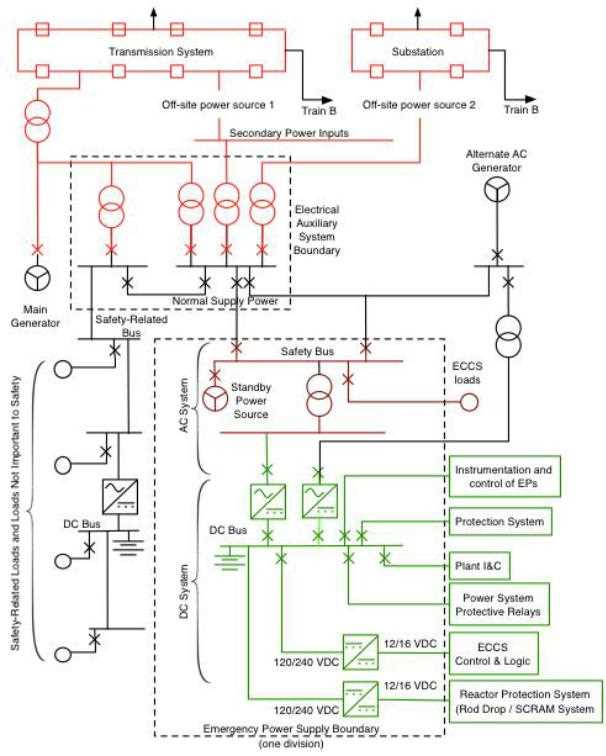

Trace the electrical output path from the generators to the main transformer, where voltage is stepped up for transmission. The blueprint should include emergency power sources–diesel generators or batteries–sized to sustain critical functions during grid failures. Verify isolation valves near the reactor that can seal off coolant flow within seconds if sensors detect leaks or pressure drops.
- Reactor coolant pumps must operate at 2,000–3,000 rpm to circulate coolant at 40,000–50,000 gallons per minute.
- Containment spray systems rely on borated water to quench hydrogen in accident scenarios.
- Spent fuel pools require consistent water coverage to prevent fuel rod exposure and radioactive release.
Safety and Monitoring Systems
Look for redundancy in critical components: dual reactor protection systems (RPS) that trigger automatic shutdowns if temperatures exceed 650°F. The schematic should depict radiation shielding–lead, concrete, or water–surrounding the core and spent fuel storage. Confirm the presence of auxiliary feedwater pumps that provide backup cooling if the main steam line fails. Dedicated instrumentation lines must be shown for neutron flux, pressure, and temperature sensors, with data routed to control rooms in real time.
Step-by-Step Process Flow in the Reactor Core Circuit
Initiate coolant flow at a baseline pressure of 15.5 MPa to maintain structural integrity of fuel assemblies during nominal operation. For pressurized water reactors, the primary loop inlet temperature must not exceed 290°C; deviations above 310°C trigger passive safety systems to mitigate thermal stress on zirconium cladding. Verify pump discharge rates between 4,500–5,200 kg/s per loop to sustain uniform heat transfer across the core’s 193–264 fuel assemblies, though exact quantities depend on reactor design variants.
Monitor neutron flux distribution using ex-core detectors calibrated to a precision of ±2.5%. Reactivity coefficients for moderator temperature and void fraction should align with the following thresholds:
| Parameter | Operational Range | Safety Limit |
|---|---|---|
| Moderator Temperature Coefficient (p/K) | -1.5 × 10-4 to -5.0 × 10-5 | -2.0 × 10-4 |
| Void Coefficient (Δk/k/% void) | -8.0 × 10-5 to -3.0 × 10-5 | -1.5 × 10-4 |
Exceeding these values necessitates immediate insertion of control rods made of Ag-In-Cd alloy (80-15-5 wt%), which absorb thermal neutrons with an effective cross-section of 70–90 barns.
Regulate boron concentration in the coolant to 1,200–1,500 ppm during full-power operation. Dissolved boron acts as a chemical shim to compensate for fuel burnup; at 100% power, a ±50 ppm deviation alters reactivity by ~5 mk. Employ ion-exchange resins with a minimum efficiency of 98% to remove lithium hydroxide (maintained at 0.5–2.2 ppm), preventing accelerated corrosion of Inconel 690 steam generator tubes. Failure to control lithium levels above 3.0 ppm increases stress corrosion cracking rates by 40%.
Calculate heat removal efficiency using the equation Q = ṁ × cp × ΔT, where ṁ is the mass flow rate (kg/s), cp is the specific heat capacity of the coolant (4.18 kJ/kg·K for H2O), and ΔT is the temperature rise across the core (typically 30–35°C). At 100% load, total heat output ranges between 3,200–3,800 MWth, with ~97.4% transferred to the secondary loop via the steam generator. The remaining 2.6% is lost to parasitic heat sinks, including pump work, radiation, and auxiliary systems.
During startup, maintain a linear heat generation rate below 10 kW/m to prevent pellet-cladding interaction. Fuel rods with UO2 pellets (enriched to 3.5–5.0% 235U) undergo thermal expansion coefficients of 10.1 × 10-6/°C; exceeding 20 kW/m induces micro-cracking. For reactors utilizing MOX fuel (Pu-U oxide), adjust power density limits downward by 7% due to higher fission gas release rates.
Pressure vessel internals must withstand a fluence of 1 × 1022 n/cm2 (E > 1 MeV) over a 60-year service life. Material surveillance capsules containing representative steel samples (e.g., SA-508 Gr.3) are periodically extracted to measure embrittlement via Charpy impact tests. A shift in ductile-brittle transition temperature beyond +25°C indicates mandatory annealing or vessel replacement. Steam generators require eddy current testing every 30,000 hours to detect tube wall thinning below 1.1 mm, which compromises pressure boundaries per ASME Code Section XI.
Scram sequences in response to reactor trip signals must achieve 90% insertion of control rods within 2.5 seconds. Verify hydraulic dampers on drive mechanisms to limit mechanical shock loads to eff. Verify injection line patency monthly by flushing with deoxygenated water to remove boric acid crystallization risks.
Post-shutdown, stabilize decay heat removal using residual heat removal pumps operating at 1,200–1,500 m³/h flow rates. Natural circulation establishes within 2–4 hours if primary pumps are unavailable; ensure hot leg temperatures remain below 180°C to prevent steam binding. For long-term cooling, employ air-cooled heat exchangers with a minimum heat rejection capacity of 2 MWth to handle fission product decay, which follows the empirical relation:
P(t) = 6.8 × P0 × [t-0.2 – (tmission + t)-0.2]
where P(t) is decay power in MW, P0 is initial power, t is time in days, and tmission is the operational duration in days.
