Understanding the Structural Blueprint of an Amino Acid Molecule

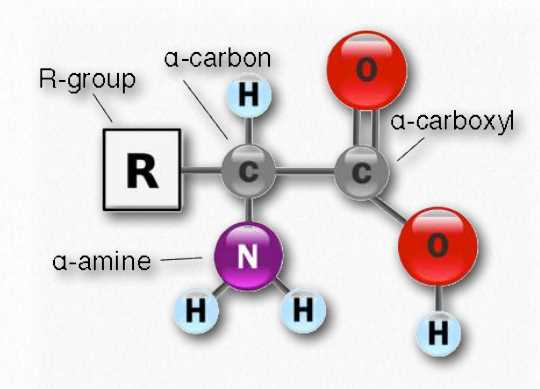

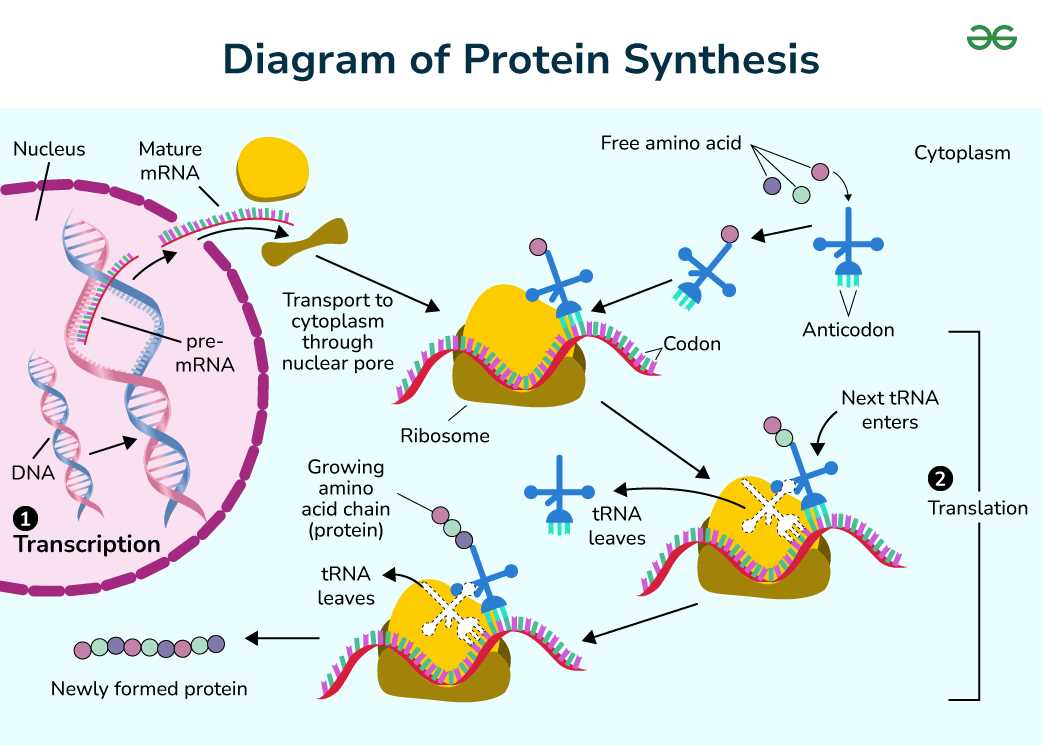

Start by mapping the core structure of a basic organic compound used in protein synthesis. Identify the central carbon atom–often called the alpha carbon–and label its four key attachments: a hydrogen atom, a carboxyl group, an amino group, and a variable side chain (denoted as R). This arrangement is universal across all standard monomer units found in peptides.
For accurate representation, position the carboxyl group (–COOH) on the right and the amine group (–NH₂) on the left of the alpha carbon. This convention simplifies comparisons between different residues and ensures consistency when interpreting biochemical pathways. Include the side chain immediately below or above the alpha carbon to highlight its functional role.
Use distinct line styles to differentiate bonds: solid lines for covalent bonds, dashed lines for hydrogen bonds, and wavy lines for flexible or variable regions. Color-code functional groups–red for carboxyl, blue for amino, and green for the side chain–to improve clarity. Avoid cluttering the sketch with unnecessary details; focus on the spatial relationships critical for enzymatic recognition and folding.
For heterogenic chains, group residues by polarity: nonpolar (e.g., valine, leucine), polar uncharged (e.g., serine, threonine), acidic (e.g., aspartate, glutamate), and basic (e.g., lysine, arginine). Arrange them in clusters to reflect their biochemical behavior, such as hydrophobic interactions or hydrogen bonding tendencies.
Incorporate pKa values adjacent to ionizable groups to predict protonation states at physiological pH. For example, the carboxyl group typically has a pKa around 2, making it deprotonated at neutral pH, while the amine group’s pKa (~9) ensures it remains protonated. These details are critical for understanding charge distribution in active sites and transport mechanisms.
Verify structural accuracy by cross-referencing with the Fisher projection or stereochemical models. L-isomers–dominant in biological systems–should always have the amino group on the left when drawn horizontally. Misalignment here leads to incorrect interpretations of chirality and downstream biochemical interactions.
Visual Representation of Protein Building Blocks
Start by identifying the three core components: an α-carbon (central carbon), a carboxyl group, and an amine group. Draw the α-carbon as a single circle at the center of your sketch. Connect it to a hydrogen atom (H), the carboxyl group (–COOH) on the right, and the amine group (–NH₂) on the left. Ensure the bonds extend symmetrically for clarity.
Label the side chain (R-group) branching upward from the α-carbon. Different substituents determine functional behavior:
- Nonpolar: Glycine (–H), Alanine (–CH₃)
- Polar Uncharged: Serine (–CH₂OH), Glutamine (–CH₂CONH₂)
- Acidic: Aspartate (–CH₂COOH)
- Basic: Lysine (–(CH₂)₄NH₃⁺)
Use distinct colors for each category to simplify identification.
Structural Comparison Table
| Substituent Type | Example | Solubility | Electrical Charge |
|---|---|---|---|
| Aliphatic | Valine | Hydrophobic | Neutral |
| Aromatic | Tryptophan | Mixed | Neutral |
| Sulfur-containing | Cysteine | Hydrophilic | Neutral |
| Ionizable | Histidine | Hydrophilic | pH-dependent |
Sketch stereochemistry by positioning the hydrogen atom downward if depicting an L-isomer, the biologically active form. Use dashed lines for bonds directed away from the viewer and solid wedges for forward-projecting bonds. Maintain consistent angles (109.5° for tetrahedral geometry) for accuracy.
Highlight hydrogen bonds between backbone groups by marking carbonyl oxygens as δ⁻ and amide hydrogens as δ⁺. Use dotted lines to indicate potential bonding sites. This visualization explains secondary structures like α-helices (3.6 residues per turn) and β-sheets (extended chains with 0.35 nm between adjacent residues).
For charged substituents (e.g., aspartate, lysine), use distinct symbols: circles for negatively charged groups, squares for positively charged ones. Annotate pKa values adjacent to ionizable side chains to depict protonation states under physiological pH (7.4):
- Aspartate (pKa ≈ 3.9)
- Glutamate (pKa ≈ 4.1)
- Lysine (pKa ≈ 10.5)
Add a small legend to the corner of the representation, listing color codes and symbols. Include scale references such as bond lengths (C–N ≈ 0.132 nm, C=O ≈ 0.123 nm) and angles (φ/ψ torsions) for precise spatial arrangement. Use this legend to cross-reference data when comparing structures.
Critical Interaction Points
Mark substrate-binding residues with asterisks (*). For enzymes, note catalytic triads (Ser–His–Asp) or metalloprotein coordination sites (e.g., Zn²⁺ in carbonic anhydrase). Illustrate disulfide bridges between cysteine residues as paired brackets ([ ]), emphasising their role in structural stability and redox regulation.
Validate dimensional accuracy using molecular modelling software output. Overlay your hand-drawn representation with a digital rendering derived from PDB files, adjusting bond angles and lengths to match experimentally determined data. Limit discrepancies to
Core Molecular Building Blocks in Monomer Visualizations
Focus first on the central carbon atom in any monomer representation–this key hub, often labeled α-carbon, anchors four distinct groups critical for biological function. Prioritize illustrating the amino group (–NH₂), carboxyl group (–COOH), hydrogen atom (–H), and side chain (–R) with precise spatial orientation. Misalignment of these components, even by a few degrees, can obscure stereochemical relationships essential for protein folding and enzyme specificity.
Label the side chain (–R) with its exact chemical composition, as variations define the monomer’s unique properties. For instance, glycine’s simplest –H side chain versus lysine’s protonated –(CH₂)₄NH₃⁺ group demands clear differentiation. Use color-coding or stark contrast to highlight polar, nonpolar, acidic, or basic moieties, ensuring immediate visual identification. Omnitting this step risks conflating monomers with similar backbones but divergent biochemical roles.
Depict bond angles and lengths with reference to empirical data: the α-carbon’s tetrahedral geometry (109.5°) and peptide bond planarity (120°) are non-negotiable. Tools like ChemDraw or PyMOL can auto-calibrate these measurements, but manual verification prevents errors–especially in charts intended for kinetic or structural studies. Include concise annotations for bond types (single, double, or partial, e.g., resonance in the carboxyl group).
Add pKa values adjacent to ionizable groups (–NH₃⁺/–NH₂: ~9.5; –COOH/–COO⁻: ~2.2) alongside a small pH scale if the visualization targets titration curves or isoelectric points. Without this, interpretations of charge states at physiological pH or during catalysis become speculative. For advanced diagrams, overlay conformational ensembles (e.g., rotamers of –R groups) to illustrate steric constraints influencing polymer assembly.
Test readability by reducing the visualization to monochrome–if functional groups and interactions remain unambiguous, the design succeeds. Avoid overloading with decorative elements; every line, arrow, or label must serve a biochemical rationale. Validate against PDB or PubChem entries to confirm accuracy, particularly for monomers with rare post-translational modifications or synthetic analogs.
How to Illustrate a Basic Protein Building Block
Sketch the central carbon atom first, positioning it as the core of your structure. Label it “Cα” to denote its role as the alpha-carbon, the backbone of every standard monomer in polypeptides.
Attach a hydrogen atom directly above the central carbon using a short straight line. Keep the bond length consistent–approximately 1.0 Å–to maintain scale with biological precision.
- Draw the carboxyl group (–COOH) to the right of the central carbon at a 20-degree downward slope.
- Start with a carbon atom bonded to two oxygen atoms: one double-bonded (C=O) and one single-bonded with an –OH group.
- Ensure the C=O bond measures ~1.2 Å, while the C–O bond stretches ~1.4 Å for accuracy.
Place the amino group (–NH₂) on the left side of the central carbon, angled slightly upward. Use a nitrogen atom attached to two hydrogen atoms via single bonds, each ~1.0 Å in length.
Add the variable side chain beneath the central carbon, selecting from 20 canonical types. For alanine, replace the bottom hydrogen with a methyl group (–CH₃). For lysine, extend a linear chain of four carbons ending in a protonated amino group (–NH₃⁺). Refer to the IUPAC-IUBMB table for exact geometries and pKa values.
Verify bond angles using the tetrahedral configuration: all substituents around the central carbon should approximate 109.5° angles. Adjust lines to reflect hybridization (sp³) for stereochemical fidelity.
- Check chirality by tracing substituents in order of priority: amino group → carboxyl group → side chain → hydrogen.
- Clockwise rotation with hydrogen at the back confirms an L-configuration, the biologically active form.
- Label all atoms with elemental symbols, and include partial charges (+ on protonated groups, − on deprotonated) at physiological pH (7.4).
Key Differences in Side Chain Structures and Standard Notation
Represent nonpolar side chains with carbon chains (e.g., leucine’s isobutyl group) using branched notation: a central carbon (Cβ) bonded to two methyl groups (Cγ) for clarity. Glycine’s single hydrogen requires no additional notation–label it directly on backbone α-carbon. For proline’s cyclic structure, draw a closed loop connecting Cδ to the amino nitrogen (N), marking bond angles at 109.5° for accuracy.
Polar uncharged variants like serine and threonine demand explicit hydroxyl (–OH) positioning. Place –OH on serine’s Cβ; for threonine, attach it to Cγ alongside a methyl group. Asparagine and glutamine need terminal amide (–CONH₂) depiction–align the carbonyl (C=O) adjacent to the α-carbon, with nitrogen bonded flat to avoid spatial ambiguity. Histidine’s imidazole ring requires numbering: label Nδ (protonated) and Nε (tautomeric) distinctly.
Acidic side chains (aspartate, glutamate) use carboxylate (–COO⁻) notation. Extend aspartate’s carboxylate one bond (Cγ) from Cβ; glutamate’s spans two bonds (Cγ to Cδ). For basic variants, arginine’s guanidinium group (–C(=NH₂⁺)NH₂) should show resonance: draw three nitrogens around a central carbon, with double-bond lines alternating. Lysine’s linear chain terminates at ε-amino (–NH₃⁺); ensure all four methylene (CH₂) groups are visible.
Cysteine’s thiol (–SH) and methionine’s thioether (–S–CH₃) differ critically in notation. Mark sulfur’s lone pairs in cysteine’s –SH; for methionine, depict the sulfur midline in the chain, bonded to a methyl group without additional substituents. Aromatic rings (phenylalanine, tyrosine, tryptophan) simplify to hexagonal (or bicyclic for tryptophan) skeletons–omit carbon labels within rings, but preserve substituent locations (–OH for tyrosine, indole nitrogen for tryptophan).
Selenocysteine integrates selenium (Se) in place of sulfur–annotate it as –SeH, differentiating it from standard thiols. Pyrrolysine’s pyrroline ring requires a five-membered structure with nitrogen (N) replacing one carbon. For nonstandard derivatives, align notation with the Swiss-Prot convention: modify only the side chain while preserving backbone consistency.
