Cathode Ray Oscilloscope Block Diagram Components and Working Principles

To comprehend how an electron beam display instrument functions, begin by tracing the signal path from the input terminals. The vertical and horizontal deflection plates require synchronized voltage ramps–typically generated via sawtooth waveform generators–applied at a 90-degree phase offset. For precise measurements, ensure the time-base circuit operates within the 0.1 Hz to 10 MHz range, allowing capture of transient events as brief as 10 nanoseconds.

Focus on the electron gun assembly: the cathode heater should maintain a stable 6.3V AC or DC supply to avoid filament burnout, while the control grid demands -20V to +3V bias for proper beam modulation. The accelerating anode, typically held at 1 to 2 kV, must be shielded to prevent arcing; failure here distorts signal fidelity. Post-deflection plates, the beam passes through a phosphor-coated screen with a decay time under 100 microseconds for CRT variants–longer persistence causes blurring in dynamic signals.

Check the power supply isolation: high-voltage sections must use 10MΩ resistors in series with the deflection drivers to limit current surges. The vertical amplifier should provide ≥30 V/div sensitivity with a bandwidth exceeding 10 MHz–use feedback-compensated op-amps (e.g., AD8055) to avoid phase shifts. Calibrate the probe compensation trimmer (10pF–20pF range) against the internal 1 kHz square wave reference; incorrect adjustment introduces amplitude errors up to ±5%.

For triggering, set the threshold level at 50% of signal amplitude and employ edge-triggering for periodic waveforms. Advanced models incorporate dual-timebase operation; the delayed sweep must sync within 1% of the main sweep rate to avoid jitter. When troubleshooting, measure the Z-axis input impedance–it should exceed 50 kΩ to prevent loading effects. Replace aging components like the focus potentiometer (carbon-track types degrade after ~5,000 cycles) with conductive plastic variants for longevity.

Key Components of an Electron Beam Display Block Diagram

Position the electron gun assembly at the rear of the vacuum tube–ensure the heater, control grid, and accelerating electrodes align axially within ±0.1 mm tolerance. Misalignment causes beam distortion detectable as non-linear sweep traces. Use a 6.3 V AC filament heater for rapid startup and 2 kV accelerating voltage for sharp trace definition at 1 MHz bandwidth.

Mount the vertical and horizontal deflection plates at 90° angles; vertical plates handle input signal amplification (up to 5 V/div), while horizontal plates synchronize with the timebase generator. Shield leads with copper foil to prevent capacitive coupling, which introduces 50–60 Hz noise. Apply 100 V/m timing ramp to horizontal plates for sweep rates from 1 µs/div to 5 s/div, adjustable via precision potentiometers.

Trace Formation Mechanics

Focus the electron stream using a cylindrical anode with a 0.5 mm aperture; voltage gradients between concentric electrodes compress the beam to a 0.1 mm spot at the phosphor-coated screen. Z-axis modulation (brightness control) requires a 0–50 V signal–exceeding 40 V saturates P31 phosphor, reducing trace visibility. Adjust astigmatism with auxiliary deflection plates to correct elliptical distortion, especially at high sweep speeds.

Ground the phosphor screen via a conductive coating–indium tin oxide provides 90% light transmission and dissipates static charge faster than carbon-based alternatives. For dual-trace operation, alternate beam switching at 1 MHz or use chopped mode (100 kHz) to avoid phosphor burn-in. Rotate the tube 45° during assembly to minimize geometric errors from Earth’s magnetic field affecting low-frequency traces.

Calibrate the timebase using a 1 kHz reference square wave: adjust sweep linearity until rise/fall edges appear vertical on-screen (±2% tolerance). Replace aging capacitors (electrolytic types drift >5% annually) with polypropylene units for stable time constants. For X-Y mode measurements, ensure phase matching between channels–mismatches >1° at 10 kHz degrade Lissajous patterns.

Secure transformers and inductors with mu-metal shielding to block stray 50–60 Hz magnetic interference, particularly when measuring signals 10 MΩ), include a 20 pF compensation trimmer to equalize frequency response across 10 Hz–20 MHz.

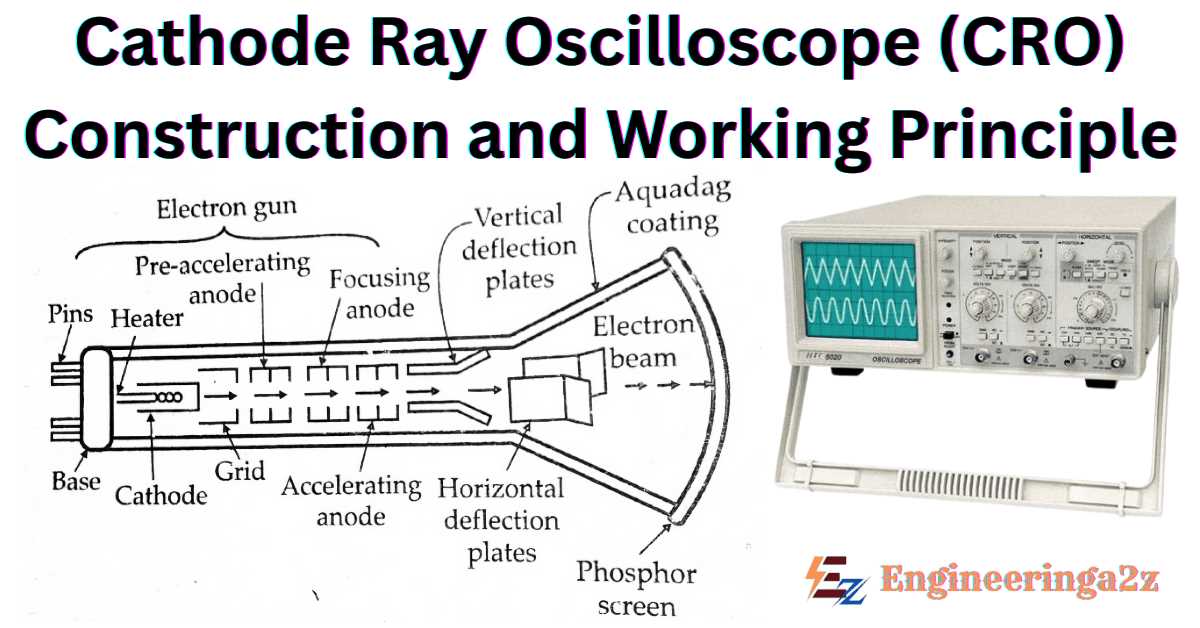

Core Components of an Electron Beam Display Device Block Layout

Begin by identifying the electron gun assembly as the central element–its design directly impacts signal clarity and measurement precision. Modern variants integrate heated filaments with control grids and accelerating anodes, where voltage gradients between -50V (grid) and +15kV (final anode) shape beam intensity. Adjust grid voltage in 10mV increments for optimal focus, while exceeding +2kV on the anode risks stray emission artifacts. Choose guns with barium oxide cathodes for extended lifespan (avg. 8,000 operational hours) over thoriated tungsten alternatives.

Signal Path and Amplification Matrix

Route input channels through a dual-stage amplification network, combining a low-noise preamp (bandwidth ≥50MHz, noise floor

Component	Key Specifications	Failure Impact
Beam Deflection Coils	Sensitivity: 0.5–2V/cm Inductance: 1–3mH	Misalignment: >1% distortion Parasitic capacitance: Ghosting
Phosphor Screen	P1 (green): 50μs decay P31 (yellow-green): 38ms decay	Burn-in after 200hrs @ 100% duty cycle Sensitivity loss: 12% annually
Power Supply	HV: +15kV, 1mA LV: ±12V, 5A	Ripple >50mV causes beam jitter Load regulation <0.5%

Auxiliary Subsystems for Measurement Integrity

Integrate a dedicated Z-axis modulator to blank the beam during retrace–apply a 5–30V pulse to minimize trace interference. For dual-channel models, multiplex input signals with a solid-state switch (isolation >60dB at 10MHz) to prevent crosstalk. Calibration involves injecting a 0.5Vpp reference signal at 1kHz; deviations exceeding ±3% indicate amplifier drift or power supply instability. Replace vacuum tubes every 4,000 hours if using tube-based designs, or recalibrate semiconductor-based units biannually using accredited test loads.

Position the focus and astigmatism controls to compensate for environmental variations–temperature shifts of 5°C alter beam spot size by up to 15%. Use mu-metal shielding around the deflection system to reduce magnetic interference from external sources (

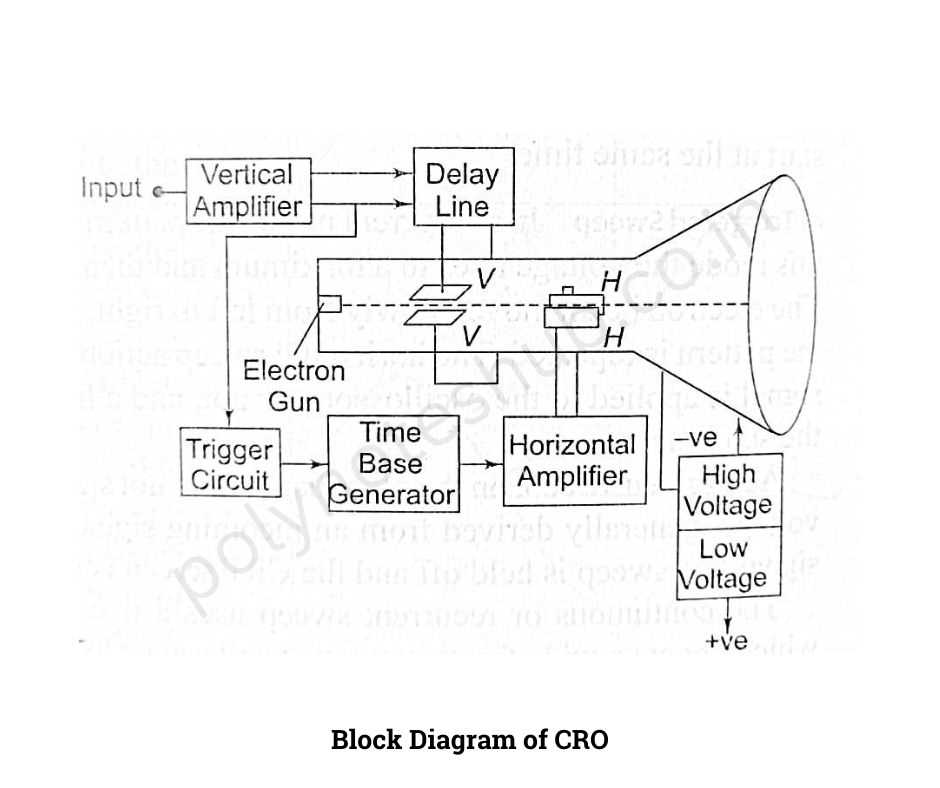

Step-by-Step Signal Flow in a Measurement Instrument Block Layout

Begin by isolating the input coupling stage. Set the AC/GND/DC selector to DC for direct current measurement–this bypasses capacitors that filter low-frequency components. For AC signals, switch to AC coupling to block DC offset and preserve waveform shape. Ground the input via GND position to establish a zero-volt reference before adjusting vertical sensitivity.

Trace the signal through the vertical amplifier next. Select a volts/div setting matching the expected amplitude: too high will compress the waveform vertically; too low clips the tops. Attenuators split the signal path–high-frequency components continue directly to the vertical plates, while slower edges route through delay lines. This ensures simultaneous display of fast transients and baseline shifts without phase distortion. Verify probe attenuation (1X/10X) here; a 10X probe reduces loading but demands 10x amplification compensation in the vertical stage.

• Engage the trigger circuit only after stabilizing the vertical signal. Choose edge triggering for general use, selecting rising or falling slope based on the event of interest. For complex waveforms, switch to pulse width or runt triggering.
• Adjust the trigger level until the waveform locks–too low misses events, too high causes false triggers. Set the trigger source to the channel displaying the most consistent edges.
• For repeating signals

Route the stabilized signal to the horizontal deflection system. Adjust time/div to match the event duration–shorter time bases resolve fine details but compress longer activity. The horizontal amplifier multiplies the sweep generator’s ramp voltage, creating linear time progression across the display. Activate delay sweep for pre-trigger viewing: set the main sweep to capture post-trigger events, then enable the delayed sweep with a finer time/div to magnify the region of interest. Calibrate the graticule markings by injecting a known square wave–rise time should align precisely with vertical divisions, confirming probe compensation and amplifier bandwidth accuracy.

Voltage Divider and Attenuator Networks in Measurement Instrumentation

Use resistive voltage dividers with precision resistors (e.g., 1% tolerance or better) to scale input signals down to safe levels before they reach sensitive amplification stages. A 10:1 attenuator built with 9 MΩ and 1 MΩ resistors reduces a 100 V input to 10 V at the output, preserving signal integrity while preventing overload. Ensure impedance matching between stages–target 1 MΩ input impedance for most probes to avoid loading effects.

For high-frequency applications, replace purely resistive networks with compensated attenuators. Combine resistors with small-value capacitors (e.g., 5–50 pF) across higher-value resistors to flatten frequency response. A 10:1 probe typically pairs 9 MΩ with 12 pF (series) and 1 MΩ with 120 pF (shunt), maintaining flatness up to 100 MHz. Match capacitor ratios precisely to resistor ratios to prevent phase distortion.

Critical Design Parameters

• Thermal stability: Select resistors with TCR <50 ppm/°C (e.g., thin-film or wirewound types) to minimize drift under temperature variations.
• Voltage rating: Use resistors rated for at least twice the maximum expected voltage to avoid breakdown (e.g., 250 V resistors for 100 V inputs).
• Settling time: For pulsed signals, prioritize low-inductance resistors (e.g., metal oxide) to reduce ringing artifacts.
• ESD protection: Add back-to-back diodes (e.g., 1N4148) across input terminals to clamp transients to ±0.7 V, protecting downstream components.

Optimize attenuator placement within the front-end topology. Position the divider immediately after the input connector and before any active components to minimize noise pickup and parasitic capacitance effects. For multi-range instruments, use a rotary switch or relay network to select between dividers (e.g., 1x, 10x, 100x) without disrupting signal path continuity. Avoid switch contact resistance variability by using gold-plated contacts rated for >100,000 cycles.

Calibrate attenuators at two frequencies (e.g., 1 kHz and 1 MHz) to confirm frequency-independent scaling. Store calibration data in non-volatile memory to compensate for manufacturing tolerances. For critical measurements, implement software correction factors derived from this data, enhancing accuracy to ±0.5% across the bandwidth. Replace passive calibration with active trimming (e.g., digitally controlled potentiometers) in high-end systems to achieve <0.1% deviation.
