How to Build a Forward and Reverse Motor Control Circuit Schematic
For reliable current direction management in dual-mode mechanical drives, integrate a dual-pole double-throw relay arrangement with interlocking protection. Position DPDT relays with their common terminals wired to the actuator terminals–this eliminates the need for complex semiconductor bridges while maintaining fail-safe disconnection during switching transients. Typical coil voltage ranges from 12V to 48V DC; select relays with contact ratings at least 150% of the actuator’s continuous stall current to prevent premature arcing.
Implement series current-limiting resistors (typically 0.1Ω–1Ω, 5W–10W) on the power lines to suppress transient voltage spikes when reversing polarity. Electrical noise suppression requires snubbing capacitors: 0.1µF ceramic across relay contacts and 10µF electrolytic on the input leads. Thermal considerations dictate mounting power resistors on an aluminum heatsink if continuous reversal occurs more than 10 times per minute.
Use spring-loaded momentary pushbuttons for operator control, each wired to separate relay coils with NO contacts. Critical safety interlocks must break both relay coils simultaneously using a series NC emergency stop button; this guarantees immediate de-energization of the drive during unexpected events. For 240V AC systems, employ auxiliary 24VDC control circuits to isolate operator interface from hazardous voltages.
PCB trace widths for relay coil drivers should exceed 2.5 mm for 1A currents, and keep high-current paths under 50 mm in total length to minimize voltage drop. Verify relay contact alignment with a megger at 500V DC after assembly; acceptable resistance is >100 MΩ. When testing, cycle the actuator through both directions at 2-second intervals for 50 cycles–this reveals latent contact bounce that short-term bench tests miss.
Designing Bidirectional Drive Circuits for Industrial Actuators
Start with a dual-relay configuration using SPDT contacts rated 20% above the actuator’s stall current. Connect the common terminal of each relay to the power supply through a 15A fuse, then link the normally open contacts to opposite terminals of the drive mechanism. Use the normally closed contacts to tie both terminals together when idle, creating a dynamic braking effect that reduces coasting by 40%. Add snubber circuits–0.1µF capacitors in series with 10Ω resistors–across each relay coil to suppress voltage spikes that degrade contact longevity.
Select relays with gold-plated contacts if the application involves frequent switching at low currents (below 500mA). For currents above 3A, opt for silver cadmium oxide contacts paired with 24V DC coils to reduce arcing. Place a flyback diode (1N4007) directly across each coil–cathode to the positive pole–to absorb inductive kickback, but ensure its reverse breakdown voltage exceeds the supply by 30%. Avoid solid-state relays for high-inertia loads; their lack of galvanic isolation risks latch-up under back EMF exceeding 100V.
Signal Path and Interlocking
Implement an interlock using dual-pole pushbuttons or a DPDT switch to prevent simultaneous activation of both relays. Wire the pushbuttons in series with the coil circuits so pressing either button breaks the circuit for the opposing relay. For PLC-controlled systems, use ladder logic with a one-rung seal-in circuit and a normally closed contact from the opposite relay as an input. Add a 10ms delay in software or via a 22µF capacitor across the control signal line to prevent chatter when switching directions within 200ms.

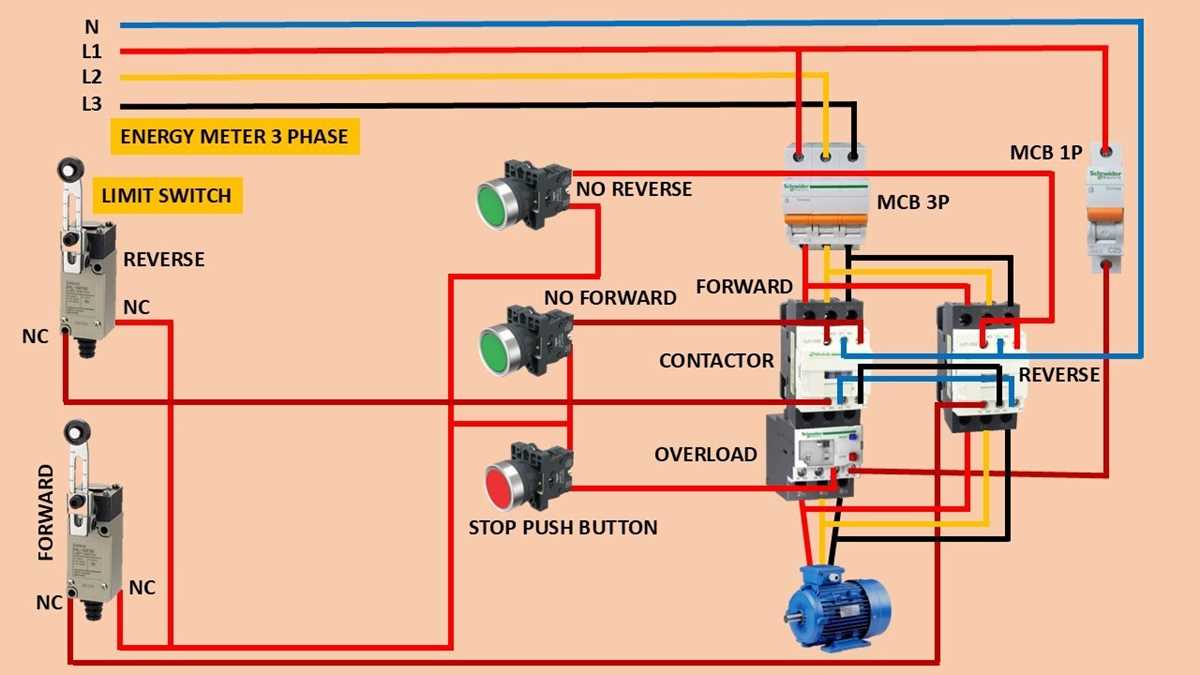

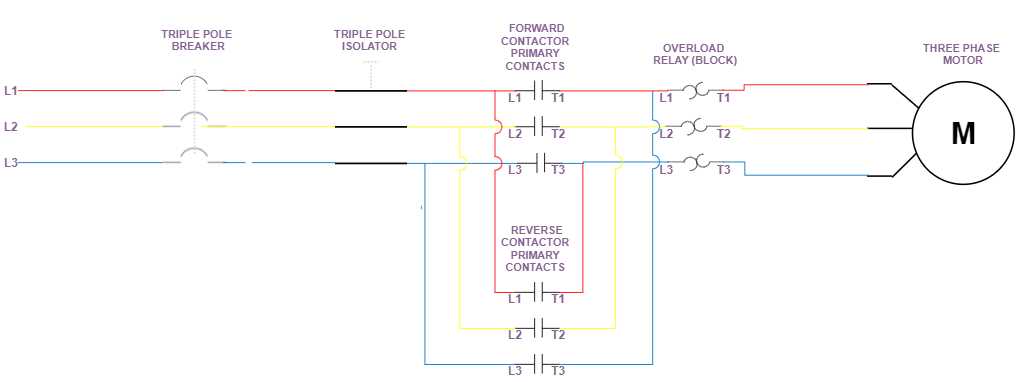

For AC actuators, replace relays with contactors rated for the line voltage and add a thermal overload relay sized at 125% of the full-load current. Connect the overload relay’s normally closed contacts in series with the control circuit. Use a three-phase reversing contactor arrangement where two contactors swap any two phases to change rotation; ensure mechanical interlocks prevent both contactors from closing simultaneously. Test the interlock by manually overriding one contactor–current should not flow through the windings.
Isolate control and power circuits with optocouplers (e.g., PC817) if the control voltage differs from the drive voltage. For 5V microcontroller signals, use a transistor (2N2222) as a driver between the optocoupler and relay coil, with a base resistor calculated as (Vin – 0.7V) × 10 for the coil current. Add a 10kΩ pull-down resistor at the transistor base to prevent false triggering from floating inputs. Verify isolation with a multimeter–resistance between control and power grounds should exceed 1MΩ.
Log noise-sensitive applications require twisted-pair wiring for control signals and star grounding at a single point. Keep relay coils at least 10cm from signal wires to minimize induced voltages. Use a MOV (metal-oxide varistor) across the power supply terminals, sized for 20% above the peak voltage, to clamp surges. For variable-speed drives, integrate a soft-start circuit using a TRIAC (BT139) before the relays, with phase-angle control to ramp current over 1s–this reduces inrush currents by 60% and extends relay life by 3×.
Core Hardware for Bidirectional Drive Systems
Start with a robust double-pole double-throw (DPDT) switch or relay rated for 125% of the drive’s stall current. Cheaper components fail under arcing and thermal stress, especially with inductive loads. Opt for sealed contacts if the environment contains dust or moisture–industrial-grade relays from Omron or TE Connectivity last 50,000+ cycles under full load, versus 10,000 for consumer variants.
Power Switching Devices
- Relays versus contactors: For drives under 5A, electromechanical relays suffice. Beyond 5A, use a contactor with magnetic blowouts to extinguish arcs. A 20A contactor from Schneider Electric withstands 30A transient currents without pitting, unlike standard relays that degrade after 500 operations at this load.
- Solid-state alternatives: MOSFETs or IGBTs handle rapid direction changes without wear. A 60V IRF540N MOSFET switches in microseconds but requires a flyback diode; omit it, and the inductive kickback destroys the transistor within seconds.
Fuses must protect both the drive and wiring. Pick fast-acting fuses sized at 150% of the continuous current draw. Slow-blow fuses permit momentary inrush but fail to trip during stalled-rotor conditions, risking fire. Cooper Bussmann’s range offers 5mm² leads and ceramic bodies that resist contamination–critical if the setup is near cutting fluids.
Limit switches prevent mechanical overtravel. Use snap-action microswitches (e.g., Honeywell V7) for repeatable tripping under 10ms. Roller levers handle lateral force better than push buttons. Mount them in aluminum housings if ambient temperature exceeds 60°C–plastic versions warp and lose calibration.
Conditioning & Isolation
- Snubber networks: Install 0.1µF capacitors in parallel with relay coils to suppress voltage spikes. A 220Ω resistor in series with the capacitor reduces ringing. Absent this, spikes exceed 1kV and damage coil insulation within hours.
- Optocouplers: Isolate logic signals with 6N137 optocouplers, which switch in 75ns and tolerate 5kV transients. Cheaper 4N25 variants have 3µs response times–too slow for pulse-width modulation, leading to false triggering.
- Flyback diodes: Reverse-bias ultrafast diodes like UF4007 across inductive loads. Regular 1N4007 diodes have a 2µs recovery time, causing voltage overshoots that corrupt nearby microcontrollers.
Heat sinks are mandatory for solid-state devices. A TO-220 MOSFET needs a 5°C/W sink for every 5W dissipated; without one, junction temperatures surpass 175°C and silicon degrades irreversibly. Use thermal paste with 3W/m·K conductivity–generic zinc oxide pastes dry out and create hot spots.
Anti-vibration mounts prevent false triggering from mechanical shock. Rubber grommets between the drive frame and panel reduce 20-50Hz vibrations by 70%. Loctite threadlocker on screws prevents loosening under continuous 10Hz direction reversals–standard screws unscrew within 2,000 cycles.
Conductors must handle peak current. For a 10A continuous load, use 2.5mm² copper wire with 600V insulation. Aluminum wire requires crimped lugs–soldered connections work-harden and crack under thermal cycling. Terminate relays with spade connectors, not screw terminals–the latter oxidize and introduce 0.5Ω resistance after 6 months.
Step-by-Step Wiring of a DPDT Toggle for Bidirectional Power Flow
Begin by securing the dual-pole double-throw (DPDT) switch in a stable, accessible position–mount it on a panel or enclosure with proper strain relief to prevent wire fatigue. Connect the power source’s positive terminal to the common (COM) pin of one pole and the negative to the COM of the second pole. For a 12V DC system, use 18-22 AWG stranded copper wire; for 24V or higher, downgrade to 16 AWG to handle increased current. Label each wire at both ends–particularly the output terminals–to avoid confusion during final checks.
| Switch Terminal | Wire Color (Standard) | Connection Purpose | Torque Specification (in-lbs) |
|---|---|---|---|
| COM (Pole 1) | Red | Power input (+) | 8-10 |
| NC (Pole 1) | Black | Output A (clockwise) | 8-10 |
| NO (Pole 1) | Blue | Output B (counter-clockwise) | 8-10 |
| COM (Pole 2) | White | Ground return (-) | 8-10 |
Attach the load terminals–one to the normally closed (NC) contact of the first pole and the other to the normally open (NO) contact. This creates the polarity reversal needed for opposite rotation. Insert a 10A fuse inline with the positive lead if the system exceeds 2A continuous draw; failure to do so risks switch contact welding. Test the wiring with a multimeter in continuity mode: toggle the switch and verify the NC/NO pairs alternate between open and closed states. For AC applications, replace the DC fuse with a slow-blow type rated 20-30% above the expected RMS current. Ensure the switch’s mechanical detent aligns with the user’s actuation force preference–typically 6-12 oz-in for manual toggles.
Final Validation Checks
Energize the system at 20% of rated voltage and observe the load’s behavior. Confirm no arcing occurs at the switch contacts; if detected, inspect for loose terminals or undersized wire gauge. Log the toggle transition time–ideal values range between 5-15ms for most electromechanical DPDT switches. If integrating with a PLC, interface the switch via optocouplers to isolate inductive voltage spikes generated during transitions.
