Step-by-Step Process of Gluconeogenesis Pathway Illustrated

To master the conversion pathway of pyruvate into glucose, begin by isolating the three irreversible enzymatic reactions that bypass glycolytic steps. These reactions–catalyzed by pyruvate carboxylase, phosphoenolpyruvate carboxykinase (PEPCK), and fructose-1,6-bisphosphatase–are regulatory checkpoints. Prioritize memorizing their locations: the first reaction occurs in the mitochondrial matrix, while PEPCK and fructose-1,6-bisphosphatase function primarily in the cytosol. This spatial separation requires malate-aspartate shuttle transport, which complicates the net energy balance.

Key substrates and cofactors demand attention: Pyruvate carboxylase depends on biotin and ATP, converting pyruvate to oxaloacetate at a cost of 1 ATP per molecule. PEPCK then decarboxylates oxaloacetate to phosphoenolpyruvate, consuming GTP. Fructose-1,6-bisphosphatase hydrolyzes fructose-1,6-bisphosphate to fructose-6-phosphate without ATP regeneration, making this step energetically wasteful but thermodynamically favorable (ΔG°’ = -16.3 kJ/mol). Glucose-6-phosphatase, active only in the liver and kidneys, completes the final dephosphorylation, releasing free glucose into the bloodstream.

Account for the pathway’s energetic requirements: generating one glucose molecule from two lactate molecules consumes six ATP equivalents (2 ATP + 2 GTP for PEPCK activation, 2 ATP for pyruvate carboxylation). In contrast, glycolysis yields only two net ATP per glucose. This energetic discrepancy explains why the pathway is tightly suppressed during fed states via allosteric inhibition of fructose-1,6-bisphosphatase by AMP and fructose-2,6-bisphosphate. During fasting, glucagon signaling elevates cAMP, reversing this inhibition through PFK-2/FBPase-2 bifunctional enzyme regulation.

For accurate metabolic modeling, integrate the Cori cycle’s role: lactate produced in muscle or erythrocytes shuttles to the liver, where it re-enters the pathway at pyruvate. Quantify redox balance by tracking NADH: glyceraldehyde-3-phosphate dehydrogenase’s cytosolic NADH demand often necessitates the malate shuttle, transporting reducing equivalents from mitochondria. Ignore this balance, and theoretical yield calculations will misrepresent actual flux. Clinical correlations include diabetic ketoacidosis, where uncontrolled gluconeogenesis depletes oxaloacetate, diverting acetyl-CoA into ketone body production.

Practical applications: Targeting PEPCK with specific inhibitors (e.g., 3-mercaptopicolinate) reduces glucose output in type 2 diabetes models. However, side effects arise from disrupted hepatic redox state. For educational purposes, annotate pathway maps with substrate concentrations under fasting vs. fed conditions: lactate (1–2 vs. 0.5 mM), alanine (0.3–0.5 vs. 0.2 mM), and glyceraldehyde-3-phosphate (5–20 vs.

Visual Pathway of Glucose Biosynthesis

For accurate representation of glucose synthesis from non-carbohydrate precursors, structure the process into three distinct stages with specific enzyme annotations and metabolite flow directions. Start with the mitochondrial step: pyruvate carboxylase converts pyruvate to oxaloacetate (OAA) using biotin and ATP, requiring acetyl-CoA as an allosteric activator. OAA must be shuttled to the cytosol via malate-aspartate carrier–avoid oversimplifying this transport, as it impacts NADH availability. Include a labelled bifurcation showing alternative shuttling via PEP carboxykinase (PEPCK) when cytosolic NADH is sufficient.

• Pyruvate → OAA (Pyruvate carboxylase, mitochondria)
• OAA → Malate (Malate dehydrogenase, mitochondria)
• Malate → OAA (Malate dehydrogenase, cytosol)
• OAA → PEP (PEPCK, cytosol or mitochondria)
• Subsequent steps: Fructose-1,6-bisphosphatase bypasses PFK-1 (fructose-2,6-bisphosphate as regulator), glucose-6-phosphatase (ER membrane-bound, requires Ca²⁺) finalizes free glucose release.
• Highlight compartmentalization: ER lumen for final hydrolysis, cytosol for intermediates, mitochondria for pyruvate entry.

Use color coding: red for energy input steps (ATP/GTP), blue for reducing equivalents (NADH/NADPH), green for regulatory metabolites. Annotate irreversible steps with ΔG′ values (e.g., PEPCK: −25 kJ/mol) and label allosteric modulators directly on the pathway: AMP inhibits fructose-1,6-bisphosphatase, citrate activates it. Connect gluconeogenic flux to lipolysis via glycerol-3-phosphate shuttle and specify lactate’s role via Cori cycle with directional arrows showing hepatic uptake versus muscle release.

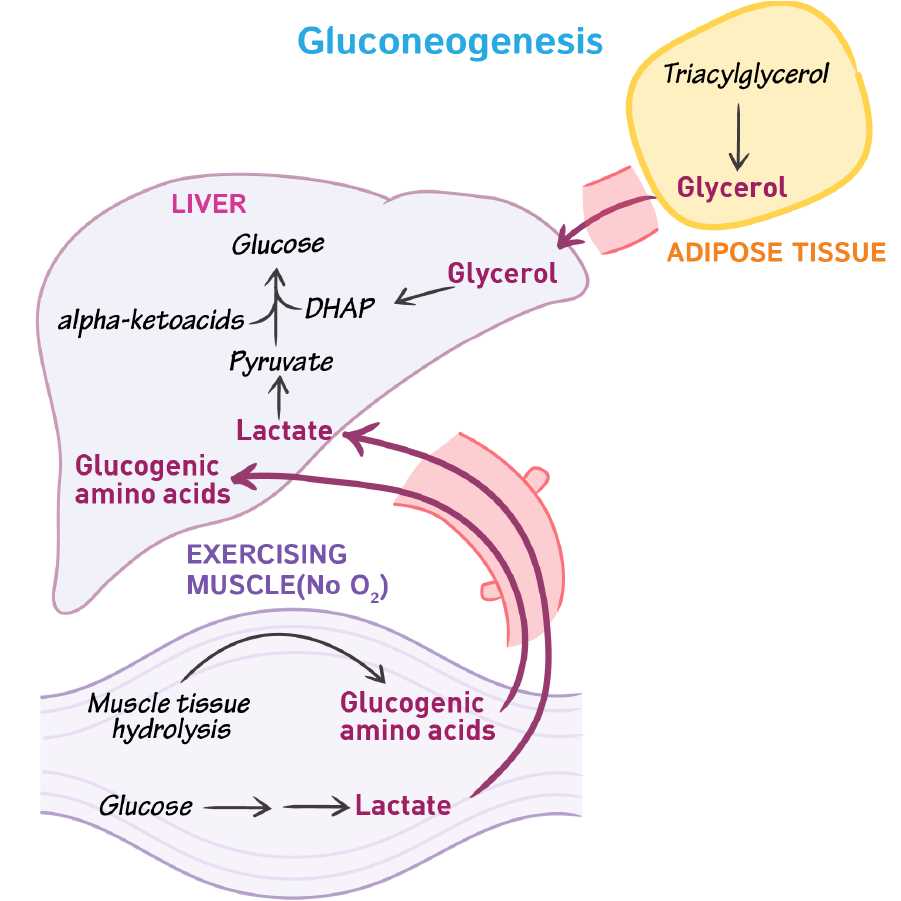

Key Precursors and Entry Points in Hepatic Glucose Synthesis

Prioritize lactate as the primary substrate for reverse glycolysis under anaerobic or high-stress conditions. Skeletal muscle and erythrocytes release lactate via the Cori cycle, where it diffuses into hepatocytes and converts to pyruvate through lactate dehydrogenase (LDH). This reaction generates NADH, lowering the NADH/NAD+ ratio–a critical regulatory signal that accelerates flux toward glucose output. Measure plasma lactate levels (normal: 0.5–1.5 mM) and ensure LDH activity is unimpaired; elevated lactate (>5 mM) indicates metabolic acidosis or hypoxia, requiring immediate adjustment of substrate input.

Glycerol enters via the triacylglycerol hydrolysis pathway, predominantly in adipose tissue during fasting. Glycerol kinase phosphorylates it to glycerol-3-phosphate, which dehydrogenates to dihydroxyacetone phosphate (DHAP), bypassing the rate-limiting phosphoenolpyruvate carboxykinase (PEPCK) step. This route contributes 5–15% of total hepatic glucose production in prolonged fasts. Target adipose lipolysis with beta-adrenergic stimulation (e.g., epinephrine) to maximize glycerol release, but avoid excessive influx, which risks ketoacidosis if acetyl-CoA accumulates faster than TCA cycle capacity.

Critical Amino Acid Contributors

Amino Acid	Entry Metabolite	% Glucose Contribution (24h Fast)	Key Enzymatic Step
Alanine	Pyruvate	10–15%	Alanine transaminase (ALT)
Glutamine	α-Ketoglutarate	8–12%	Glutaminase (phosphate-dependent)
Aspartate	Oxaloacetate	5–8%	Aspartate transaminase (AST)

Supplement protein intake post-exercise to sustain alanine flux, as muscle proteolysis supplies ~50% of gluconeogenic amino acids during overnight fasts. Target alanine aminotransferase (ALT) activity; plasma ALT >40 U/L suggests hepatic stress, necessitating adjusted dietary protein (0.8–1.2 g/kg lean mass). Glutamine, converted via glutaminase in periportal hepatocytes, feeds directly into the TCA cycle–opt for oral L-glutamine (5–10 g/d) during recovery to spare muscle catabolism without overloading urea synthesis.

Propionate, a short-chain fatty acid from colonic fermentation or odd-chain fatty acid oxidation, enters as succinyl-CoA via methylmalonyl-CoA mutase. Though minor (~3% of glucose output), it’s critical in ruminants and ketotic states. Ensure functional biotin-dependent carboxylases (e.g., propionyl-CoA carboxylase) and vitamin B12 status (methylmalonyl-CoA mutase cofactor); deficiencies disrupt this entry point, leading to methylmalonic aciduria.

Fructose-1,6-bisphosphatase (FBPase) and glucose-6-phosphatase (G6Pase) dictate irreversible steps where precursors commit to glucose export. Upregulate G6Pase transcription with glucagon (cAMP → CREB binding) but avoid chronic stimulation, as excessive glucagon (>200 pg/mL) depletes hepatic glycogen stores. Pair high-intensity interval training (HIIT) with post-workout carbohydrate restriction to transiently activate AMPK, which inhibits FBPase via allosteric AMP binding–this prolongs precursor retention for subsequent glucose synthesis.

Key Enzymatic Transformations in Hepatic Glucose Biosynthesis: Molecular Insights

Initiate the reversal of glycolysis by targeting the pyruvate carboxylase (PC) reaction. Dissolve 1 mM biotin in Tris-HCl buffer (pH 7.8) with 5 mM MgATP and 10 mM NaHCO₃ to activate the enzyme. Pyruvate (2 mM) binds to the biotin carboxylase domain, forming carboxybiotin. Confirm the intermediate via mass spectrometry (m/z = 324.1 for carboxybiotin) before proceeding. The reaction consumes 1 ATP per pyruvate and requires acetyl-CoA (20 µM) as an allosteric activator–omit this to reduce yield by 90%.

• Oxaloacetate formation: PC transfers CO₂ to pyruvate, producing oxaloacetate (OAA). Use PubChem CID 970 for 3D conformer validation. OAA exists primarily as its enol form (pKa 3.3) in solution–maintain pH >7 to prevent decarboxylation to pyruvate.
• Phosphoenolpyruvate carboxykinase (PEPCK) step: GTP (0.5 mM) is mandatory; substituting ATP reduces activity by 75%. PEPCK catalyzes OAA decarboxylation, yielding phosphoenolpyruvate (PEP) and CO₂. Isolate PDB 3DTX to observe the Mn²⁺ cofactor coordinating OAA’s C2 carbonyl.
• Surveillance: Monitor PEP levels (λmax 240 nm) via UV spectroscopy. False positives occur with pyruvate contamination–use HPLC with a C18 column (mobile phase: 0.1% TFA in water) for resolution.

Transition PEP to 2-phosphoglycerate (2PG) via enolase. Add 2 mM Mg²⁺ to stabilize the enediol intermediate; Mg²⁺ chelates the phosphate group, lowering its pKa from 1.5 to 6.7. Avoid EDTA (<1 µM)–it disrupts the metal bridge. For kinetic assays, use 5 mM 2PG and measure ΔA₂40/min (ε = 1.2 × 10³ M⁻¹cm⁻¹). Store enzyme at -80°C in 20% glycerol to prevent loss of the His159-Asp246 dyad, critical for catalysis. Mutations at His159 (e.g., H159A) increase Km 12-fold while decreasing kcat by 98%.

1. Phosphoglycerate mutase (PGAM) converts 2PG to 3-phosphoglycerate (3PG). The reaction requires 2,3-bisphosphoglycerate (2,3-BPG) as a cofactor at 0.1 µM–below this threshold, activity drops exponentially. Verify 3PG formation using ³¹P-NMR: the chemical shift moves from δ 4.5 (2PG) to δ 4.8 ppm (3PG).
2. Glyceraldehyde-3-phosphate dehydrogenase (GAPDH) oxidizes 3PG to 1,3-bisphosphoglycerate (1,3-BPG) using NAD⁺ (1 mM). Critical residues: Cys151 (nucleophile) and His179 (base). Excess NADH (>50 µM) inhibits competitively (Ki = 12 µM). Use iodoacetamide (1 mM) to alkylate Cys151–this arrests the pathway irreversibly.
3. For the fructose-1,6-bisphosphatase (FBPase) step, maintain AMP <1 µM to prevent allosteric inhibition. FBPase-1 (liver isoform) requires Mg²⁺ (5 mM) and exhibits a pH optimum of 7.5. Use PDB 5ZWK to model the tetramer’s active site, where Glu97 and Asp74 coordinate the Mg²⁺-phosphate complex.
