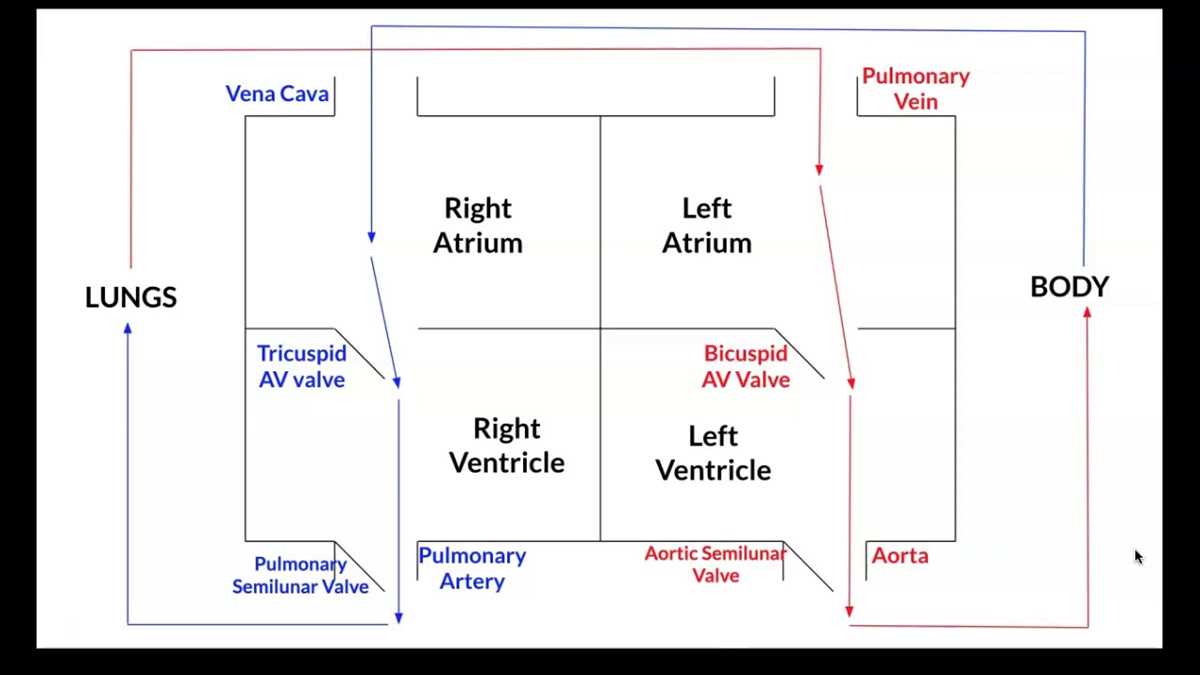

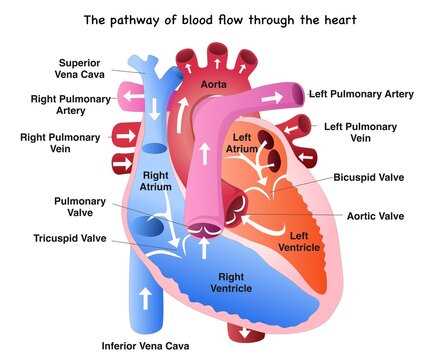

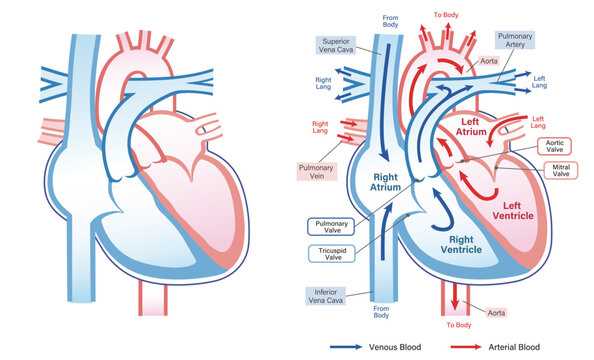

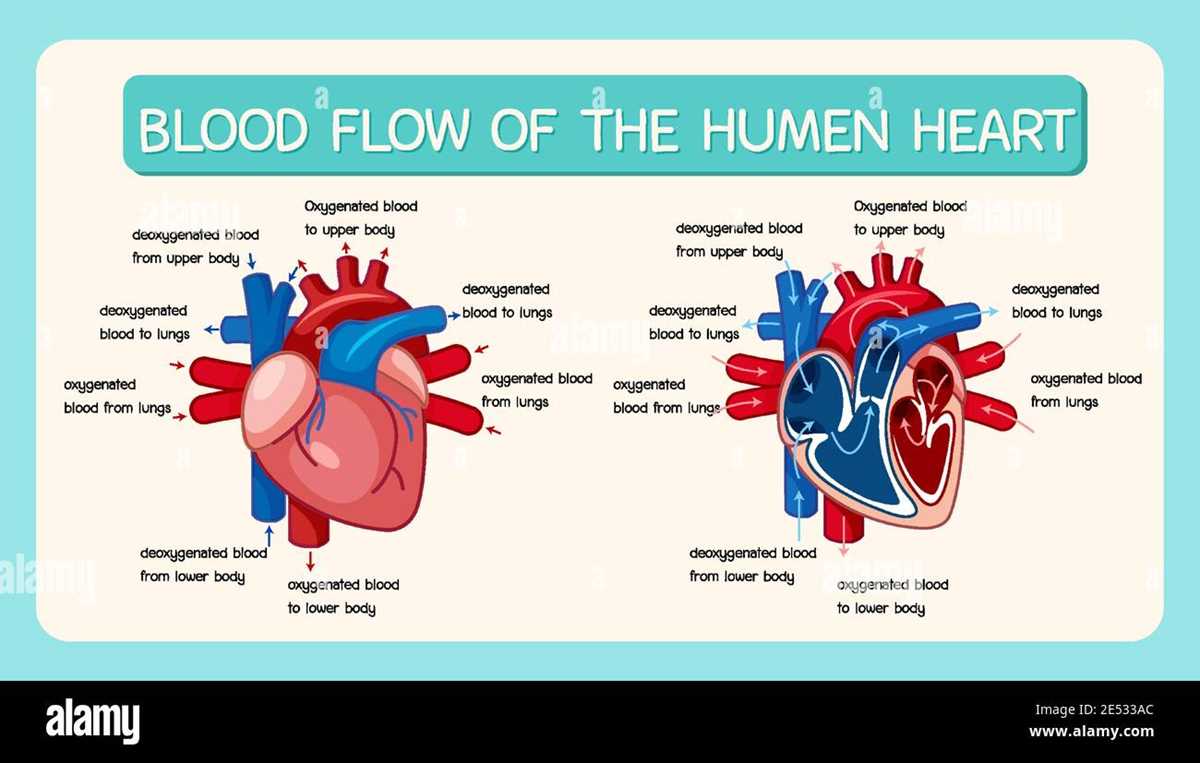

Detailed Schematic of Human Heart Blood Circulation Pathways

Begin by tracing oxygen-poor venous return through the superior and inferior venae cavae into the right atrial chamber. Pressure differentials here typically range between 0–4 mmHg during diastole, ensuring passive filling before atrial contraction. Use arrows no thinner than 2.5pt to indicate directionality–solid lines for vessel pathways, dashed for valve action.

Mark the pulmonary trunk bifurcation at a 75° angle from the ventricular outflow tract, noting its 25 mm diameter in adults. Capillary networks in alveolar sacs span ~140 m², where oxygen uptake occurs within 0.25 seconds under normal ventilatory conditions. Depict gas exchange zones in a contrasting color (e.g., #FF6B6B for deoxygenated, #4ECDC4 for oxygen-rich) to highlight functional separation.

Left ventricular ejection fraction averages 55–65%–represent this as a thicker (3.5pt) ascending aortic arch with a 20–23 mm inner diameter. Include the aortic sinus bulges in your illustration, as they house coronary ostia critical for myocardial perfusion. Indicate hydrostatic pressures: 120/80 mmHg in the systemic circuit, 25/10 mmHg in pulmonary circulation, with exact values adjacent to each segment.

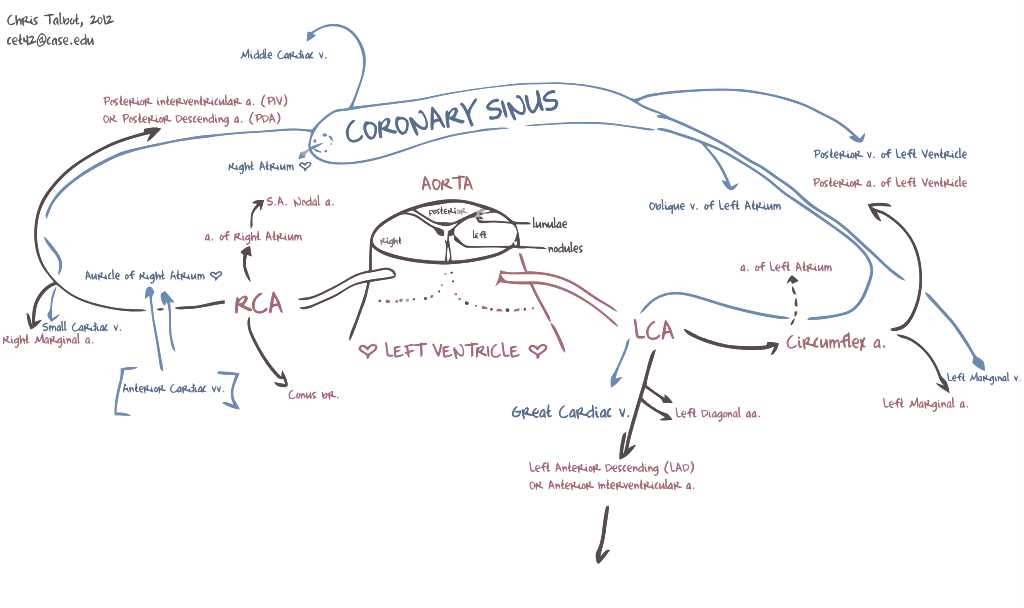

Label coronary arteries separately: the left anterior descending branch perfuses 45% of the left ventricle’s mass, while the right coronary supplies the sinoatrial node in 60% of cases. Add transverse lines at 10 mmHg intervals along the vertical axis for pressure gradients. For valve mechanics, use pivot annotations showing leaflet excursion: tricuspid valve spans 4–6 cm² when open, mitral orifice ~4–6 cm².

Visualizing Circulatory Pathways: Key Stages and Optimal Representations

Begin by segmenting the vascular route into distinct phases: deoxygenated return via the venae cavae into the right atrium, passage through the tricuspid valve into the right ventricle, pulmonary artery transit to lung capillaries for gas exchange, oxygen-rich return via pulmonary veins into the left atrium, mitral valve passage into the left ventricle, and systemic distribution through the aortic arch. Label each stage with concise annotations, using arrows (→) to indicate directionality. For clarity, color-code segments: blue for oxygen-poor phases, red for oxygen-rich, and purple gradients for transitional zones. Ensure proportional sizing–left ventricular outflow should visually dominate (4–5× larger area than right ventricular output) to reflect systemic workload disparity.

Critical Anatomical Markers for Accurate Depictions

Structure	Functional Role	Visual Cue	Potential Missteps
Tricuspid Valve	Prevents backflow into right atrium	Three leaflets; place downstream of atrial outlet	Incorrect number of leaflets or reversed orientation
Pulmonary Arteries	Delivers mixed fluid to alveolar networks	Bifurcate immediately from ventricular outlet; use thinner vessel walls than systemic counterparts	Symmetrical bifurcation angles (should split at 60°–70°)
Aortic Arch	Distributes high-pressure fluid to coronaries/peripheral regions	Prominent curved trajectory; include branching vessels (brachiocephalic, left carotid/subclavian)	Omitting coronary artery origins (arise from sinus of Valsalva)

Add dashed boundaries around atria to signify lower-pressure chambers, while ventricular regions require bold, uninterrupted borders. Annotate pressure gradients:

Critical Elements in Circulatory Pathway Illustrations

Begin by labeling the superior and inferior vena cavae–these conduits channel depleted hemoglobin from systemic circulation into the right atrium, ensuring no backpressure disrupts venous return mechanics. Without precise annotation, their functional distinction from pulmonary veins blurs, leading to misinterpretation of oxygenation states.

Highlight the tricuspid valve between the right atrium and ventricle; its three leaflets must be drawn asymmetrically to reflect anatomical reality–misproportionate scaling risks overlooking regurgitative pathologies. Pair this with chordae tendineae illustrations anchored to papillary muscles, emphasizing their role in preventing prolapse during ventricular systole.

The pulmonary trunk demands bifurcation clarity: right and left branches diverge at a 90-degree angle, requiring distinct shading to differentiate from aortic arch curvature. Incorrect angulation distorts pulmonary circulation pathways, obscuring diagnostic evaluation of shunts or stenosis in medial diagrams.

Oxygen-rich return via pulmonary veins necessitates individual vessel depiction–avoid merging tributaries into a single conduit. Each vein should terminate distinctly at the left atrium’s posterior wall, with labels specifying drainage from upper or lower lobes to prevent conflation with bronchial arteries.

Prioritize mitral valve visualization: two unequal leaflets must showcase zones of coaptation, as incomplete closure lines risk misrepresenting valvular incompetence. Adjacent structures like the aortic valve’s semilunar cusps should contrast sharply, using hatch patterns to denote fibrous continuity with the anterior mitral leaflet.

Systemic ejection pathways require the ascending aorta’s three sinuses of Valsalva to be annotated–failure to do so obscures coronary ostia locations, compromising interpretations of ischemic territories. Descending segments should taper progressively, with visceral branches (celiac, renal, mesenteric) sized proportionally to reflect hemodynamic hierarchy.

Include the coronary sinus adjacent to the inferior vena cava’s orifice, distinguishing its myocardial drainage from systemic venous return. Omit this detail, and collateral circulation nuances in diagrams for ischemic models become indecipherable. Use dashed lines for lymphatic tributaries, ensuring they remain subordinate to vascular structures to avoid visual clutter.

Step-by-Step Journey of Venous Return in Cardiac Circulation

Initiate tracing the venous pathway at the superior and inferior vena cavae, where systemic return converges. These major conduits deliver spent fluid from the upper and lower body into the right atrium, ensuring minimal resistance through their wide diameters–averaging 20–24 mm for the superior and 30–32 mm for the inferior vessel. Verify valve competence at the juncture; tricuspid insufficiency here can reduce efficiency by 15–20% due to reflux.

Advance to the tricuspid valve, where pressure gradients dictate opening. The right atrial contraction elevates internal pressure to 0–4 mmHg, surpassing right ventricular pressures (-2 to +2 mmHg in diastole). This 2–6 mmHg differential ensures unidirectional movement–monitor for valve stenosis, which may create a gradient exceeding 5 mmHg, signalling obstruction.

Observe the right ventricle during filling, where compliance dictates volume accommodation. End-diastolic volumes typically range 100–160 mL, with stroke volumes of 70–90 mL. Isovolumetric contraction follows, raising intraventricular pressures to 20–30 mmHg before the pulmonary valve opens–delays here suggest ventricular dysfunction or elevated pulmonary resistance.

Enter the pulmonary trunk, bifurcating into left and right pulmonary arteries. Pressures here drop to 8–20 mmHg (systolic) and 4–12 mmHg (diastolic), reflecting pulmonary vascular resistance. Confirm smooth progression; arterial hypertension (>25 mmHg systolic) often indicates chronic lung pathology or left-sided congestion compromising return.

Complete the cycle at the pulmonary capillaries and alveoli, where gas exchange occurs. Precise capillary pressures (7–10 mmHg) prevent fluid extravasation–the Starling forces must balance to avoid pulmonary edema. Oxygenated fluid then collects in pulmonary venules, initiating the arterial circuit.

How Oxygen-Rich Fluid Travels from Pulmonary Tissue to Systemic Circulation

Initiate assessment by tracking the fluid’s path from alveolar capillaries: once hemoglobin binds molecular oxygen in lung vessels, pressure gradients drive it through pulmonary venules into the left atrium. Ensure monitoring of left atrial contraction–its squeezing force (typically 5–10 mmHg) propels fluid into the left ventricle, where systolic pressure surges to 120 mmHg. Obstructive pathologies (e.g., mitral stenosis) reduce volume here by up to 30%; confirm clearance via Doppler echocardiography for flow rates above 4.0 L/min. Avoid delays: aortic valve stenosis can diminish output by 40%, increasing afterload. Post-valve transit, the fluid divides sequentially–first through coronaries (4–5% of cardiac output), then to cerebral arteries (15–20%), renal arteries (20%), and peripheral tissues. Prioritize thermodilution measurements if mixed venous oxygen saturation drops below 65%, signaling maldistribution.

• Left ventricular ejection fraction (LVEF) should exceed 55%; values below 40% indicate systolic dysfunction, requiring ACE inhibitors or beta-blockers.
• Aortic compliance decreases with age; calcium scoring via CT predicts stiffening risks (≥10% rise in pulse-wave velocity per decade).
• Cerebral autoregulation maintains perfusion at mean arterial pressures (MAP) 60–150 mmHg; outside this range, embolic strokes triple in incidence.
• Verify renal artery stenosis via duplex ultrasound if glomerular filtration rate declines >20% acutely; angioplasty restores flow in 85% of cases.
• Peripheral oxygen delivery: tissue Po₂ must remain above 40 mmHg; below 30 mmHg, anaerobic metabolism triggers lactate accumulation.
