Human Heart Structure Detailed Schematic Diagram with Chambers Valves and Vessels
Identify the central components first: the left and right atria sit above the ventricles, forming the upper chambers. Note the thickness of each wall–the left ventricle’s muscle layer is substantially thicker, typically 8–12 mm, to withstand systemic circulation pressures (120 mmHg systolic). The right ventricle, by comparison, operates at pulmonary pressures of 25 mmHg and measures 3–5 mm in thickness.
The atrioventricular valves–tricuspid on the right, mitral on the left–prevent backflow during ventricular contraction. Examine their chordae tendineae, fibrous strands tethered to papillary muscles within the ventricles. A rupture in these structures can lead to valve prolapse, detectable via echocardiogram with a sensitivity of 85–90%.
Trace the aortic and pulmonary arteries: the aorta’s ascending portion has a diameter of 3–4 cm, tapering to 2–2.5 cm as it descends. The pulmonary trunk splits into left and right branches at the level of the T4 vertebra, each measuring 2 cm in diameter under normal conditions. Anomalies here, such as coarctation, can elevate pressures by 30–50%.
Locate the coronary arteries: the left main artery bifurcates into the left anterior descending (supplies 45–55% of left ventricular blood) and circumflex branches within 1–2 cm of origin. The right coronary artery covers the inferior wall and posterior descending artery in 70% of cases (right-dominant circulation). Occlusion in these vessels correlates with 60% of acute myocardial infarctions.
Highlight the conduction system: the sinoatrial node (6–20 mm in length) initiates impulses at 60–100 bpm, transmitted through the atrioventricular node (a 0.1-second delay) and Bundle of His (4–5 mm width) into the ventricular myocardium via Purkinje fibers. A block in this pathway can drop ejection fraction to below 40%, detectable via 12-lead ECG with QRS prolongation >120 ms.

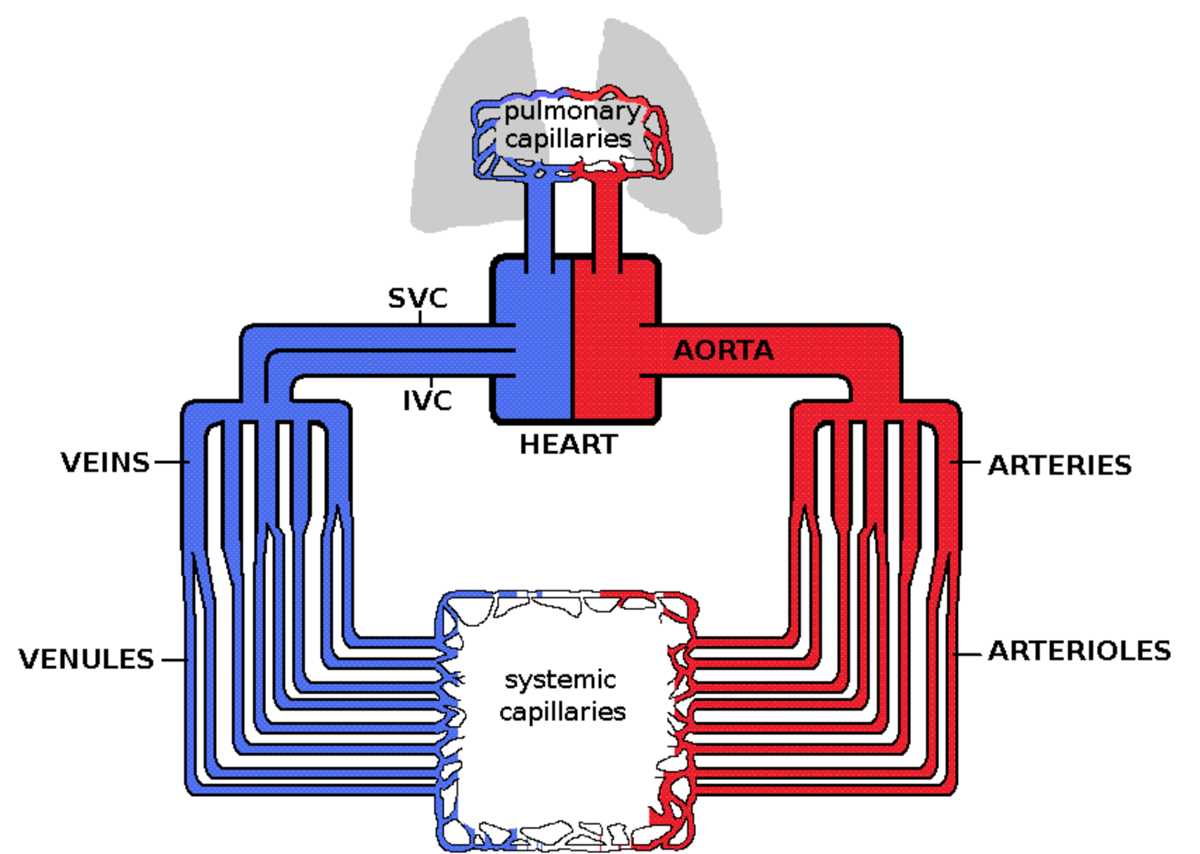

Use a color-coded reference: red for oxygen-rich blood (arteries, left chambers), blue for deoxygenated (veins, right chambers). Label pressures in mmHg–left ventricle (120/10), right ventricle (25/5), pulmonary artery (25/10)–to reinforce hemodynamic relationships. Cross-reference dimensions with clinical norms to spot hypertrophy (left ventricle wall >12 mm in diastole) or dilation (ventricular volume >150 mL/m²).
Visual Blueprint of a Vital Organ
Begin with labeling the four primary chambers: atria at the base, ventricles forming the bulk. Use distinct colors for oxygen-rich (scarlet) and oxygen-poor (deep blue) circulatory pathways to immediately clarify flow dynamics. Mark the septum separating left and right sides–its thickness varies, reaching 8–12 mm on the left, half that on the right, reflecting functional demands.
Critical Pathway Annotations
Trace the coronary arteries branching from the aorta’s root: the left main splits into the circumflex (wrapping the left side, supplying 45% of myocardial blood) and the left anterior descending (LAD, perfusing the front wall and septum). The right coronary artery (RCA) dominates the back, often extending to supply the posterior descending artery (PDA). Note: in 70% of cases, the RCA feeds the PDA; in 10%, the circumflex takes over–label these variants to preempt diagnostic errors.
| Valve | Leaflets/Cusps | Pressure Gradient (mmHg) | Common Disorders |
|---|---|---|---|
| Tricuspid | 3 | Stenosis, regurgitation (post-rheumatic) | |
| Pulmonary | 3 | 5–10 | Congenital malformations (tetralogy) |
| Mitral | 2 | 3–5 | Prolapse (myxomatous), stenosis (calcific) |
| Aortic | 3 | 10–20 | Bicuspid valve (1–2% population), sclerosis |
Highlight the conduction system’s nodes: the sinoatrial (SA) node fires 60–100 impulses/min, embedded 1 mm below the epicardium at the right atrium’s superior vena cava junction. The atrioventricular (AV) node, near the tricuspid’s septal leaflet, delays signals by 0.12–0.20 seconds–illustrate this delay with a dashed line along the bundle of His. Omit the SA node in pediatric diagrams until age 5, as it matures later.
For clinical relevance, overlay the 17-segment myocardial model (American Heart Association): slice the left ventricle into basal, mid-cavity, and apical rings, then divide into anterior, septal, inferior, and lateral walls. Assign a numerical score (1–4) to each segment to standardize ischemia assessments–normalize right ventricle segments separately, as their thinner walls (2–5 mm) respond differently to stress.
Error-Prone Details
Avoid truncating the aortic arch–show all three branches (brachiocephalic, left carotid, left subclavian) even in simplified sketches, as their origins dictate stroke risk stratification. The pulmonary veins typically number four (two per lung), but 3–5% of subjects have an extra right middle lobe vein–depict this in surgical pre-op diagrams. Label the oblique pericardial sinus behind the left atrium; its 2 cm depth traps fluid in pericardial effusions, altering echocardiographic windows.
Critical Anatomical Elements in Cardiovascular Illustrations

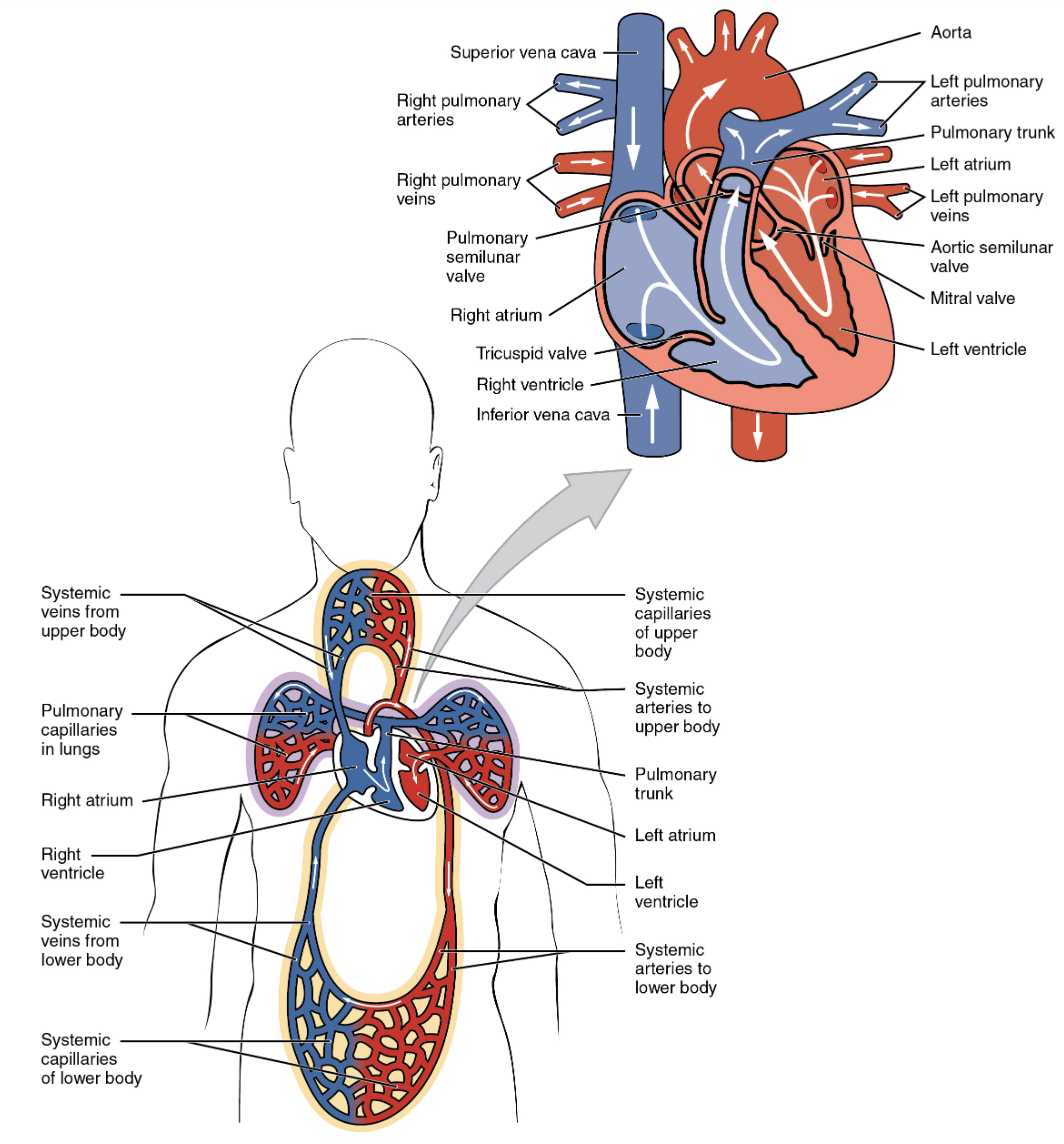

Begin by marking the four chambers clearly: the right and left atria sit atop, while the ventricles occupy the lower positions. Use distinct colors–red for oxygen-rich pathways and blue for deoxygenated blood–to avoid misinterpretation. The interventricular septum must be labeled precisely, separating the two ventricles vertically. Check that the wall thickness differs visibly: ventricular walls should appear 3–4 times thicker than atrial walls to reflect actual anatomy.
Vascular Pathways and Valves
- Superior and inferior vena cava: Indicate entry points converging into the right atrium, ensuring arrows point inward.
- Pulmonary arteries: Branch from the right ventricle, splitting into left and right vessels; label the bifurcation immediately after the pulmonary trunk.
- Pulmonary veins: Show four vessels (two per lung) returning oxygenated blood to the left atrium–avoid common errors where fewer veins are depicted.
- Aorta: Originate from the left ventricle, ascending before arching; denote the three major branches (brachiocephalic, left carotid, left subclavian) if space permits.
Valves require exact placement: tricuspid between right atrium and ventricle, pulmonary at the artery base, mitral connecting left atrium and ventricle, and aortic guarding the aorta’s entrance. Use small flaps with directional arrows to show one-way flow.
Include the sinoatrial node near the superior vena cava’s junction with the right atrium, marked as the primary pacemaker. Extend with dashed lines to the atrioventricular node, bundle of His, and Purkinje fibers, illustrating the conduction pathway. Ensure all labels align horizontally to prevent overlap, using a sans-serif font (e.g., Arial) sized 8–10 pt for readability. Verify that coronary arteries–left anterior descending, circumflex, and right coronary–are drawn looping around the organ’s surface.
Common Pitfalls in Cardiovascular Depictions
- Avoid reversing oxygenated/deoxygenated blood colors–always use red for left-side circulation, blue for right.
- Do not merge pulmonary veins or arteries; depict all four pulmonary veins distinctly.
- Label the coronary sinus posteriorly, draining into the right atrium–omissions here lead to inaccurate circulation representation.
- Ensure the ligamentum arteriosum (remnant of the ductus arteriosus) connects the aortic arch to the pulmonary trunk–critical for identifying fetal circulation remnants.
Cross-reference your illustration with anatomical atlases, prioritizing Netter’s or Gray’s labeled plates for validation. Note that chordae tendineae should tether mitral and tricuspid valves to papillary muscles–simplifications often omit these, reducing accuracy.
Creating a Detailed Anatomy Sketch: A Practical Approach
Begin with a light pencil outline of an inverted teardrop shape–wider at the upper left, tapering sharply to a point at the bottom right. This forms the base structure of the organ’s primary chamber layout.
Divide the top third horizontally into two unequal sections: the left 60%, right 40%. Draw a shallow curve upward from the midpoint of the left section to create the aortic arch, ensuring the curve peaks 5mm above the outline’s edge.
From the aortic arch’s right endpoint, sketch a descending line 2cm downward, then branch into two smaller vessels–one curving back toward the top right at a 30° angle, the other continuing straight before splitting into capillary-like tributaries.
Outline the four chambers by adding three vertical curves inside the base shape: the first 1.5cm from the left edge, the second 3cm inward, and the third 1cm further. The leftmost space represents the atrium; the next, the ventricle; the smallest right section houses the two pulmonary compartments.
Add leaflet valves between chambers as overlapping crescents–two on the left, three on the right. Position them 2mm from chamber walls, angled toward the organ’s center to imply flow direction. Use short, broken lines to suggest chordae tendineae anchoring the leaflets.
Draw coronary pathways as thin, branching lines originating near the aortic base. The left main branch should curve under the atrium, splitting into an anterior descending path and a circumflex route; the right pathway follows the organ’s lower edge toward the posterior side.
Indicate nodal regions with small circles: one 3mm below the right atrium’s center (sinoatrial node), another 5mm above the ventricle’s midpoint (atrioventricular node). Connect them with a dashed line traveling along the chamber wall.
Finalize with selective shading–darker tones under chambers for depth, lighter cross-hatching on vessel walls to imply thickness. Erase construction lines, leaving only the anatomy’s definitive contours and functional elements visible.
