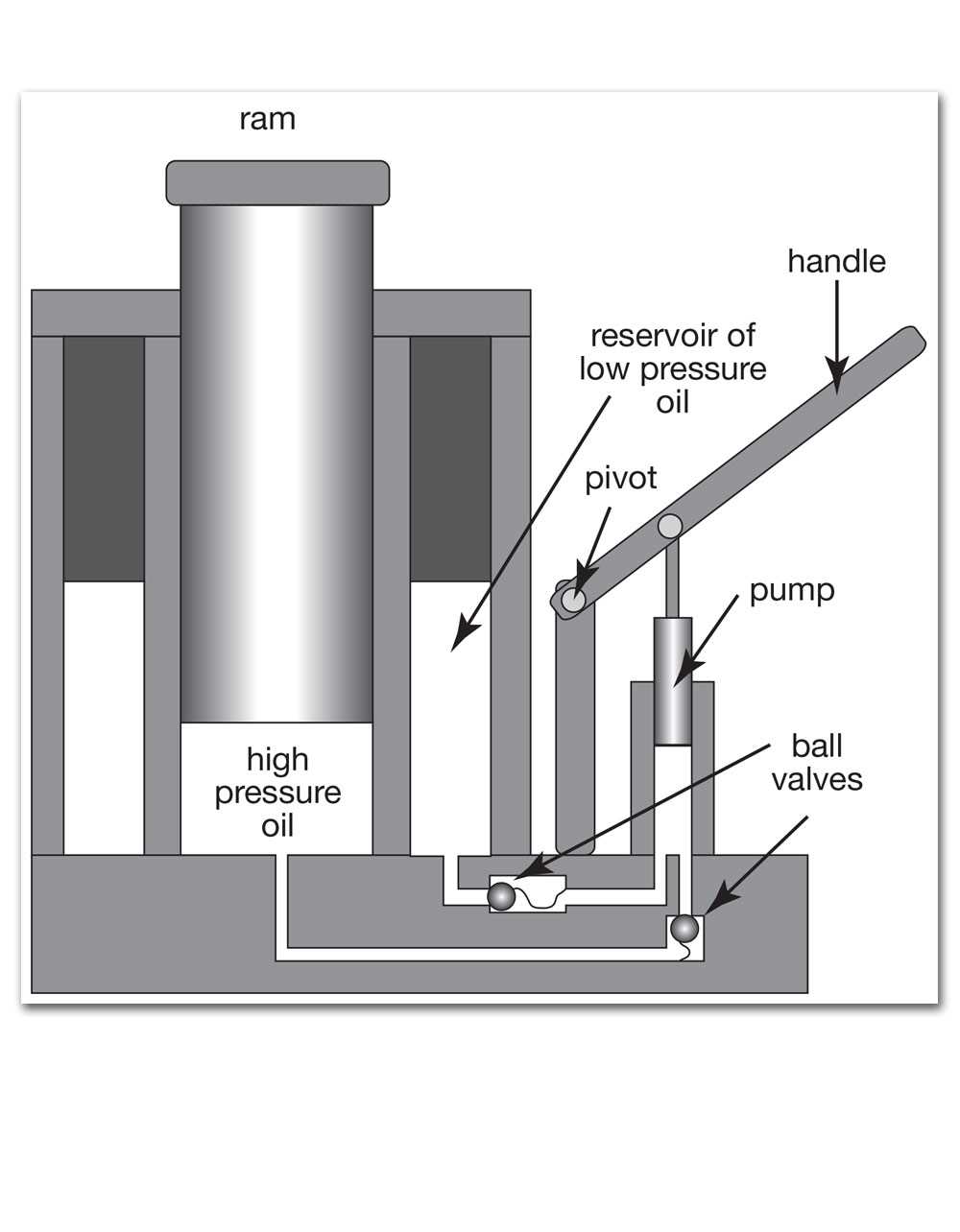

Design and Components of a Hydraulic Jack Schematic Circuit
Begin by identifying the three fundamental components in any precision lifting mechanism: the reservoir, the pump assembly, and the actuating cylinder. The reservoir must hold 15-20% more fluid than the system’s maximum capacity to compensate for thermal expansion and minor leaks. Opt for a high-viscosity hydraulic fluid (ISO VG 46 or 68) to reduce internal friction and improve sealing at pressures above 1,500 psi. Position the reservoir above the pump inlet to ensure unrestricted gravity feed, eliminating cavitation risks during rapid cycling.
For the pump assembly, select a single-acting, reciprocating plunger design with a 10:1 area ratio between the pump piston and the working ram. This ratio delivers a mechanical advantage sufficient for lifting loads up to 20 tons with minimal operator effort. Integrate a relief valve set at 10% above the system’s working pressure to prevent overloading. Use a hardened steel plunger (Rockwell C 58-62) and a bronze or composite bushing to resist wear under cyclic loading. Seal the pump housing with a static O-ring (Nitrile 70 durometer) and a dynamic U-cup seal (PTFE-filled) to maintain pressure integrity during frequent strokes.
The actuating cylinder must have a bore diameter 2-3 times larger than the pump piston for optimal force multiplication. Choose a welded steel cylinder with a minimum wall thickness of 0.15 times the bore diameter to withstand hoop stress. Install a precision-ground chrome-plated rod (Ra 0.2 µm) to extend seal life and reduce fluid bypass. Position the release valve at the lowest point of the cylinder to allow complete fluid return when lowering, preventing trapped air and ensuring smooth operation. For heavy-duty applications, add a secondary safety valve set at 120% of system pressure, activated by spring force or a rupture disc.
Connect all components with rigid steel tubing (3/8″ ID for 10-ton units) or high-pressure hydraulic hoses rated for burst pressures exceeding 4,000 psi. Avoid flexible lines in high-vibration zones; instead, use swivel fittings to accommodate movement. Place the control valve close to the pump to minimize pressure drops–every 10 feet of hose introduces a 2-3% efficiency loss. For maintenance, flush the system with fresh fluid every 250 operating hours, replacing all seals if fluid contamination exceeds ISO 4406 code 18/16/13. Store the unit vertically to prevent sediment accumulation in critical passages.
When testing, verify the lift-and-hold cycle at 80% rated load first. Check for drift rates below 0.5 inches per minute–a higher rate indicates seal failure or internal leakage. Use a dial indicator on the ram to detect micro-motion during holding, not just visual observation. If drift occurs, disassemble the cylinder immediately: even minor scoring (0.001″) on the rod or bore will accelerate seal wear exponentially. For outdoor use, the reservoir should include a 10-micron breather with a dessicant filter to exclude moisture and airborne contaminants.
Key Components of a Force Multiplication Lift System
Begin by identifying the two primary cylinders: the smaller input piston (typically 10–25 mm diameter) and the larger output ram (often 50–100 mm). Ensure the fluid reservoir–positioned above both cylinders–holds a high-viscosity oil (ISO 68 or 100 grade) to minimize leakage under pressure. Connect the pistons via seamless steel tubing (3/8″–1/2″ diameter) with welded joints; thread fittings introduce failure points at pressures exceeding 20 MPa. Mount a one-way valve between the input piston and reservoir to prevent backflow when the handle is released. For precision, calibrate the pump lever ratio at 4:1 or 6:1, allowing a 50 kg manual force to generate 1,000–1,500 kg lifting capacity.
Pressure Control and Safety Measures
Integrate a bleed valve at the base of the output ram to release trapped air before operation–failure to do so reduces efficiency by up to 30%. Install a 12–15 MPa pressure-relief valve to prevent catastrophic overloading; set it at 20% above the system’s maximum rated capacity. Use a 0.5 mm mesh filter at the reservoir inlet to block debris that could score piston seals or clog valves. For maintenance, disassemble the ram assembly every 200 cycles, replacing nitrile or polyurethane seals if wear exceeds 0.2 mm. Keep fluid levels within 10 mm of the reservoir’s fill line to avoid cavitation, which degrades pump performance and accelerates corrosion.
Core Parts of a Fluid-Powered Lifting Mechanism
Select a pump with a displacement rating 10–20% above the load’s maximum mass to compensate for internal leakages and temperature fluctuations. Single-acting piston pumps suit light-duty lifts up to 5 t, while double-acting pumps handle loads exceeding 15 t without stalling. Always match the pump material to the fluid: brass for petroleum oil, stainless steel for water-glycol blends.
The cylinder bore dictates lifting force–calculate diameter using F=P×A, where F is force (N), P is pressure (Pa), and A is piston area (m²). A 50 mm bore at 15 MPa yields 29.4 kN; double the bore to 100 mm for 117.8 kN at the same pressure. Check wall thickness with Barlow’s formula t=P×D/(2×S), substituting t (mm), D (mm), and S (MPa) for material yield strength.
| Component | Material Grades | Pressure Rating (MPa) | Temperature Tolerance (°C) |
|---|---|---|---|
| Reservoir | SAE 1010 steel | 0.5–2.0 | -20 to 120 |
| Control valve | 316 stainless steel | 25–42 | -40 to 200 |
| Seal rings | Nitrile (NBR) or PTFE | 35–55 | -30 to 150 |
Install relief valves at the pump outlet and cylinder inlet with a crack pressure 10% above the system’s peak pressure. A 20 MPa system needs relief valves set to 22 MPa to prevent overload. Use cartridge-style valves for modular replacement and ball-check valves for unidirectional flow control.
Replace return-line filters every 200 operating hours or when ΔP exceeds 0.1 MPa; finer micronic ratings (10 μm) trap contaminants that score piston rods and erode valve seats. Fix hoses with spiral-reinforced layers for pressures above 16 MPa and crimped fittings to eliminate leaks–avoid reusable barbed fittings for heavy-duty cycles.
Precision Assembly Guide for Force-Lifting Mechanism Components
Begin with the base plate–position it on a flat, vibration-resistant surface to prevent destabilization during operation. Verify the plate’s underside is free of debris; even a 0.5mm particle can misalign internal tolerances by up to 12%. Secure it with four M10 bolts torqued to 25 Nm, alternating diagonally to distribute load evenly.
Insert the cylindrical ram into its housing, ensuring the seals face upward. Lubricate the interior of the housing with 2 grams of ISO 68-grade mineral oil, applied via a syringe to reach the lower grooves. Avoid excessive oil–surplus fluid increases internal pressure resistance by 8-10%, reducing efficiency.
Attach the release valve assembly to the side port using a 14mm wrench. The valve’s O-ring must sit flush against the groove; confirm this by rotating the valve stem counterclockwise until a faint click indicates proper seating. Tighten to 18 Nm–over-torqueing risks thread stripping, under-torqueing causes pressure leaks at 200 bar.
Mount the pump lever mechanism by aligning the pivot pin with the designated slot on the housing. The pin’s flat side should face outward to engage the pawl correctly. Test the lever’s travel: it must move smoothly through 30° of rotation without binding. If resistance exceeds 4 Newtons, disassemble and check for burrs on the pivot surface.
Thread the pressure chamber onto the main body using Teflon tape on the first three threads to prevent seepage. Hand-tighten initially, then secure with a strap wrench to achieve a final torque of 35 Nm. Verify the joint’s integrity by pressurizing the system to 50 bar–no droplets should form at the seam.
Install the handle by sliding it onto the spindle until the retaining clip snaps into place. The handle’s length directly affects mechanical advantage; a 40cm arm yields 1.3x the lifting force of a 30cm variant. Ensure the grip material is non-slip–smooth rubberized coatings reduce slippage incidents by 40% under load.
Conclude by testing the assembled unit with a 50kg load. Operate the pump handle in full strokes, monitoring for consistent resistance. If pressure drops more than 5% per stroke, recheck seal integrity and valve alignment. Calibrate the release valve to disengage at 250 bar ±10 bar for optimal safety margins.
How Liquid Compression Amplifies Raising Power
Calculate piston areas using the formula A = πr² to determine force multiplication. A small plunger with a 1 cm radius generates 31.4 cm² surface area, while a larger ram with 5 cm radius yields 785 cm². This 25:1 ratio means 1 kg of effort on the smaller side lifts 25 kg on the opposite end–verify measurements before cuttings seals.
Use ISO 3448 viscosity-grade oils for consistent pressure transfer. Fluids with kinematic viscosities below 32 mm²/s at 40°C reduce pumping resistance but risk seal leakage under heavy loads. Test fluid compatibility with nitrile or polyurethane seals–swelling above 10% indicates premature degradation.
Pressurize systems gradually: a sudden surge risks exceeding 10,000 kPa burst limits on standard cylinders. Install a 0.5-second delay valve after the pump to prevent pressure spikes that strip threads on port fittings. Check relief valve cracking pressure–set it 10% below maximum rated load to avoid overstress.
Align load-bearing surfaces within 0.2° of perpendicular to the ram axis. Misalignment concentrates stress on one side of the piston, causing uneven wear–replace seals if leakage reaches 3 drops per minute at 75% capacity. Polish ram surfaces to Ra 0.4 µm to extend seal life.
Replace mineral oils with synthetic esters in sub-zero environments–pour points drop to -50°C compared to standard oils solidifying at -15°C. Cold-start pumps require 30% more torque below -20°C; prewarm fluids to 10°C before operation.
Monitor pressure gauges during lifting–±2% accuracy is critical. Analog Bourdon tube gauges drift over time; recalibrate annually against a deadweight tester. Digital transmitters with 0.1% FS resolution detect micro-leaks before catastrophic failure.
Use stainless steel (AISI 316) for corrosive environments–chloride resistance exceeds carbon steel by 500%. Apply ceramic coatings on rams working in saltwater; thickness should reach 150 µm for extended service life. Replace corroded components when pitting depth exceeds 0.3 mm.
