Ion-selective electrode circuit design principles and key components

Begin by isolating the primary components of the sensor setup: the reference half-cell, the indicator membrane, and the internal filling solution. Position the reference element externally to maintain equilibrium, while ensuring the membrane faces the analyte directly. Verify the filling solution’s composition matches the target ion’s activity–misalignment here introduces systematic errors. Use a high-impedance meter to measure potential differences, as low-impedance devices distort readings.

The membrane’s selectivity coefficient dictates reliability. For chloride detection, silver chloride membranes outperform polymer-based alternatives by 3-5 orders of magnitude in interference resistance. When assembling, seal the membrane hermetically to prevent leakage; even micro-breaches skew calibration slopes by 10-15%. Test membrane integrity post-assembly by submerging in a control solution–stable potentials within ±2 mV confirm proper functionality.

Calibration demands two-point standardization. Prepare solutions at concentrations bracketing the expected range: 0.1 M and 0.001 M for monovalent ions, adjusting for divalent species. Stabilize readings for 30-60 seconds each–premature recording introduces hysteresis. For field deployments, account for temperature fluctuations; a 1°C shift alters output by ~0.2 mV. Compensate using built-in thermistors or pre-programmed temperature coefficients.

Electrode longevity hinges on storage conditions. After use, rinse with deionized water, then store in a dilute solution of the target ion (e.g., 0.01 M for nitrate sensors). Dry storage degrades membranes within 48 hours; avoid ethanol or detergents–they irreparably alter surface chemistry. Replace membranes if slope deviates beyond 52-58 mV/decade for monovalent ions, or 26-30 mV/decade for divalent, as this signals irreversible fouling.

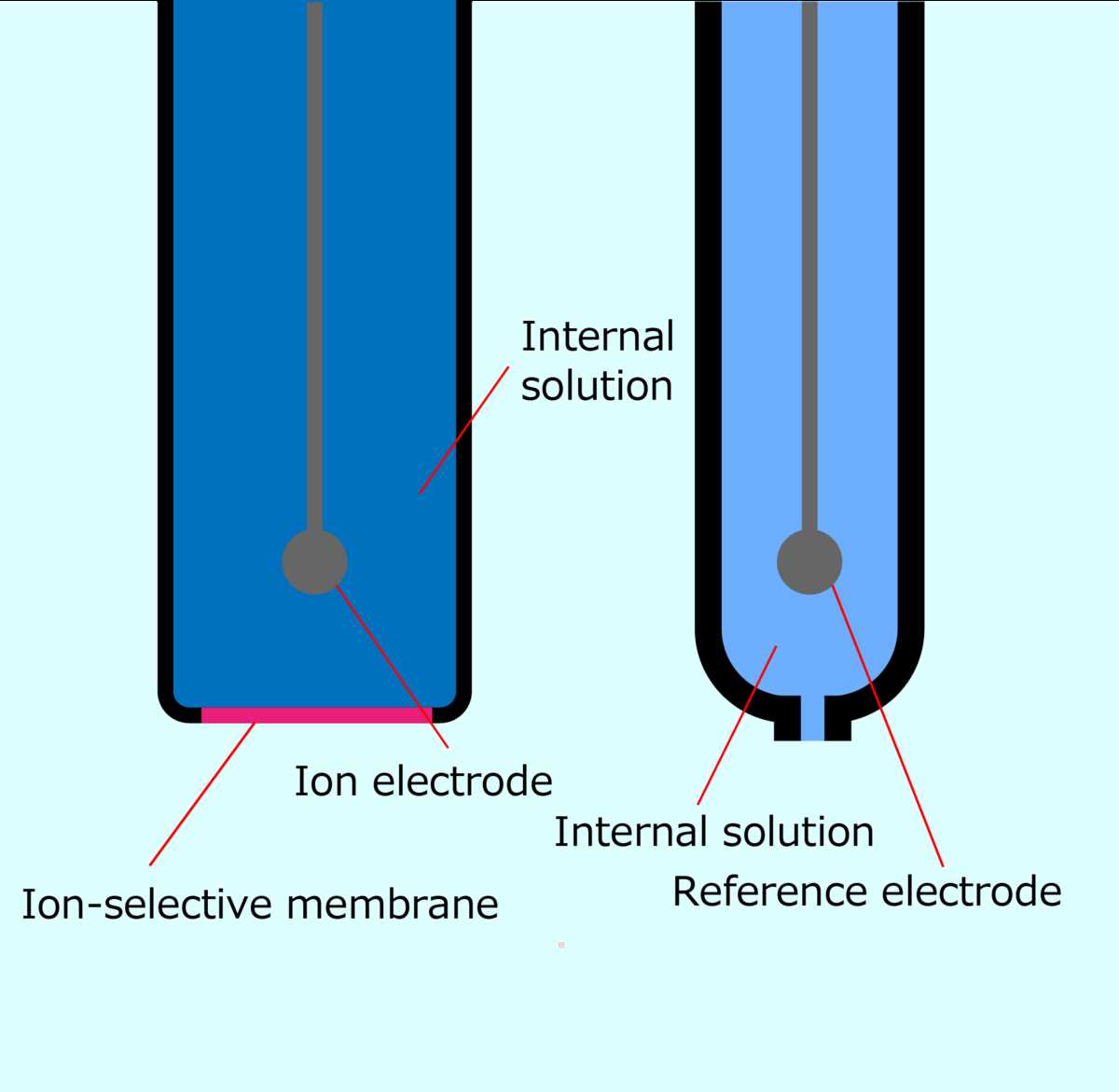

Visual Representation of Potentiometric Sensor Components

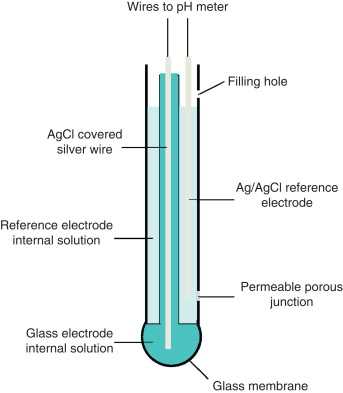

For accurate assembly, position the reference junction adjacent to the membrane interface, ensuring a fixed internal electrolyte (typically 0.1 M KCl) bridges the internal Ag/AgCl wire and the selective barrier. Below is a structural breakdown of critical parts and their functional roles:

Component	Material	Function	Critical Parameter
Internal reference	Ag/AgCl wire	Maintains stable potential	Surface area >0.5 cm²
Selective barrier	PVC matrix (25–30% wt) + ionophore (1–5% wt)	Discriminates target species	Ionophore loading ±0.5% wt precision
Outer housing	Epoxy/glass (chemical-resistant)	Seals internal solution	Wall thickness <2 mm

When diagramming, annotate the potentiometric cell with exact dimensions: the selective barrier thickness must not exceed 150 µm to minimize diffusion lag, while the internal solution volume should remain below 0.5 mL for rapid equilibrium. Use color coding (e.g., blue for internal electrolyte, red for target ion flux) to differentiate ionic pathways. Validate accuracy by cross-referencing the spatial arrangement with Nernstian slope calculations–deviations above ±2 mV/decade indicate misalignment or contamination during fabrication.

Core Elements of a Potentiometric Sensor Setup

Select a high-purity reference system with stability better than 0.1 mV/day to minimize drift in long-term measurements–Ag/AgCl in 3M KCl remains the gold standard for most applications due to its low temperature coefficient (≈0.2 mV/°C) and negligible liquid-junction potential. Avoid saturated or quasi-reference solutions unless compensating for osmotic pressure gradients, as they introduce unpredictable offset voltages.

Membrane composition dictates selectivity: polyvinyl chloride (PVC) matrices doped with ionophores like valinomycin for potassium achieve selectivity coefficients (K_K,Na) below 10⁻⁵, while glass formulations, though mechanically fragile, offer superior chemical resistance for hydrogen detection. Tailor plasticizer type (dioctyl sebacate vs. nitrophenyl ethers) to balance response time (typically 5–30 s) and membrane longevity–excessive plasticizer accelerates leaching, degrading performance after 2–4 weeks of continuous use.

Shield the sensor’s inner compartment from ambient noise by grounding the assembly through a low-impedance path (≤1 kΩ) to the measuring instrument’s reference input. For solid-state variants, employ conductive epoxy (e.g., silver-loaded) to attach the membrane, ensuring Ohmic contact with resistance

Calibrate against at least three standards spanning the expected sample range, using ionic strength adjusters (ISA) like 5 M NaNO₃ to maintain constant activity coefficients; omit ISA only if matrix effects are fully characterized. For field deployments, integrate a temperature probe co-located with the sensing tip–temperature gradients >2°C between calibration and sample induce errors surpassing 4% per decade change in analyte activity.

Step-by-Step Guide for Illustrating an ISE Functional Layout

Begin with a clear 15×20 cm working area on graph paper or vector-based software, ensuring 1 mm grid precision. Sketch a 3 mm diameter sensing membrane at the tip using a 0.3 mm black fine-liner, labeling its active layer thickness (e.g., 0.1–0.5 mm) adjacent in 8 pt Arial. Draw a concentric 0.5 mm inner reference chamber 5 mm behind the membrane, connecting both via a 1 mm electrolyte-filled channel. Use distinct dashed lines (0.2 mm stroke, 1 mm gaps) for the internal reference solution boundary, noting its composition ( KCl 0.1 M) in a right-aligned 7 pt text box.

Extend a 0.8 mm wire from the reference compartment to the measuring terminal, marking polarity (+/–) in 6 pt sans-serif. Add a 4 mm protective sheath overlapping the membrane’s outer edge by 2 mm, rendered in 40% gray fill. Confirm scale consistency by verifying the total length (80±2 mm) and label each component with tolerances (±0.05 mm) in brackets. Export as SVG or 600 DPI PNG with LZW compression to preserve line sharpness.

Common Mistakes in Labeling Potentiometric Sensor Illustrations

Label the reference junction with its exact composition, not just “reference.” Specify whether it’s Ag/AgCl, saturated KCl, or another type–omitting this detail misleads interpretation of potential shifts up to ±15 mV due to different liquid junction potentials.

Avoid overlapping text near high-impedance components like membranes. Even minor label proximity causes confusion; place annotations at least 5 mm away from conductive pathways to prevent misreading during troubleshooting.

• Use consistent unit formatting. Mixing mol/L, M, or ppm in the same figure forces users to convert values manually–stick to one notation for all concentration ranges.
• Clarify whether values represent bulk solution concentrations or interfacial levels. Failure to distinguish can skew calibration curves by 20% or more in dynamic samples.

Indicate the direction of ion flux with unambiguous arrows. Reversing arrowheads mistakenly implies counter-ion movement, leading to incorrect Nernst slope calculations–always verify against standard tables for the target ion.

Critical Oversights in Component Identification

Mark the sensor’s active area, not just the membrane exterior. Many sketches circle the whole probe while the functional zone is a 2–3 mm region–forcing analysts to measure blindly, risking false selectivity readings from inert zones.

Label internal filling solutions by exact ionic strength, not just “buffer.” Example: a “1M KCl” notation ignores activity coefficients, while “0.997 mol/kg KCl solution” accounts for Debye-Hückel effects, preventing 5% errors in slope factors.

1. Define external vs. internal reference grounding. Sketches often omit this, causing grounding loops that introduce AC noise, obscuring mV signals in sub-μM measurements.
2. Differentiate conduction pathways from shielding layers. Mislabeling conductive polymers as insulators results in misinterpreted resistance values off by orders of magnitude.

Precision in Voltage and Signal Annotations

State explicit voltage ranges, not just “+/− 1V.” Ambiguous ranges misguide amplifier settings–specify “−400 to +600 mV vs. Ag/AgCl” for the specific probe type to prevent signal clipping in 1 mM Ca²⁺ samples.

Indicate grounding reference nodes. Omitting them in multi-probe setups yields ghost potentials of 30–50 mV from static charges–always mark the common ground leg with a triangular symbol and label “COM.”

Essential Components and Instruments for Drafting a Precise Potentiometric Sensor Illustration

Start with high-grade technical drawing paper, such as 100 gsm acid-free vellum or polyester film, to prevent yellowing and ensure durability. Graph paper with 1 mm or 2 mm grids simplifies alignment of functional layers, though plain paper can suffice if paired with precision measuring tools like a digital caliper (±0.01 mm accuracy) or a steel ruler marked in 0.5 mm increments.

Use specialized drafting instruments to maintain consistency in line weights and clarity. A 0.3 mm and 0.5 mm technical pen (e.g., Rotring Rapidograph) delivers sharp, uniform lines for conductive pathways and membrane interfaces, while a 0.7 mm pen outlines outer casings. For shading or differentiation, employ soft graphite pencils (2H for construction lines, 2B for emphasis) or fine-tip markers in non-smudge ink (e.g., Staedtler pigment liner). Avoid ballpoint pens–ink bleed compromises precision in close-tolerance zones.

• Template tools: Acrylic stencils for circles (3–15 mm diameters) and squares (5–20 mm) expedite electrode housing and internal cavities. Custom-cut mylar templates ensure repeatable shapes for reference junctions or modular components.
• Erasers: Vinyl erasers remove graphite without damaging paper; kneaded erasers lift ink stray marks. Electric erasers with precision tips correct errors in microscopic areas (e.g., microelectrode tip radii).
• Measuring aids: A protractor with 0.5° increments angles sensor membranes precisely; a French curve smooths irregular boundary lines (e.g., fluid reservoirs).

Color-coding enhances interpretability in multi-layered illustrations. Assign distinct hues to each functional zone: cobalt blue (#0047AB) for ionic membranes, scarlet (#FF2400) for internal electrolytes, and charcoal (#36454F) for conductive substrates. Use transparent overlays (e.g., acetate sheets) to separate fluid paths from structural elements without redrawing baseline geometry. For digital reproduction, scan at ≥600 DPI in grayscale first, then apply color gradients in vector software (e.g., CorelDRAW) to avoid pixelation in printed outputs.

Finalize with verification tools: a 10x magnifying loupe inspects microns-scale details (e.g., porous frit dimensions), while an LED lightbox checks alignment when tracing layered components. Store originals in archival sleeves (polypropylene, pH-neutral) to prevent ink oxidation or paper warping. For collaborative review, annotate with removable adhesive notes–never pen directly on the master draft.
