Understanding Keratometer Schematic Design and Optical Principles
For precise corneal topography analysis, calibrate your instrument using a steel ball of known radius–typically 7.94 mm with a tolerance of ±0.01 mm. This reference standard ensures the reflection pattern aligns with the target mires, eliminating errors from ambient light distortion. Position the ball at the exact focal distance of the device’s optics, usually 70-90 mm, to verify the alignment of the doubled Purkinje images.
Adjust the doubling prisms to maintain a fixed separation of 2-3 mm between the reflected mire pairs, as this dictates measurement accuracy for corneal astigmatism. A deviation beyond ±0.1 mm in prism position introduces errors exceeding 0.25 diopters in curvature readings. Ensure the illumination source–preferably a halogen bulb at 3000K–delivers uniform intensity across the mire pattern to prevent false interpretations of corneal irregularities.
For toric corneas, rotate the measurement axis in 30-degree increments, recording values at each orientation. The resulting data should form an ellipse when plotted on polar coordinates; deviations from this shape indicate lens distortion or misalignment of the doubling system. Cross-reference findings with Placido disc projections to confirm consistency, as discrepancies greater than 0.05 mm between methods suggest optical contamination from tear film instability.
During verification, stabilize the patient’s head using a chin rest with a height adjustment range of 80-120 mm. Even minor tilt (>2 degrees) falsely exaggerates corneal toricity. Use a fixation target–such as a green LED at a 3-meter distance–to prevent accommodation-driven corneal flattening, which artificiously reduces measured astigmatism by up to 0.3 diopters.
Post-measurement, recalibrate if atmospheric conditions shift; humidity above 60% increases tear film thickness, skewing reflections. For spherical corneas, ensure the mires overlap symmetrically–misalignment here signals either poor instrument precision or irregular astigmatism not captured by the doubling system’s limited angular resolution.
Optical Measurement Blueprint for Corneal Curvature Analysis

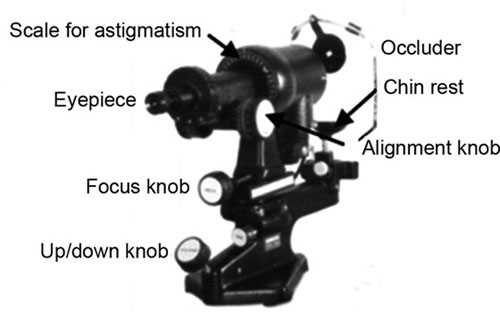

Position the patient’s chin firmly on the adjustable rest, ensuring the forehead aligns with the upper support bar–this stabilizes the head and prevents parallax errors during measurements. Adjust the instrument’s eyepiece to match the examiner’s interpupillary distance, then fine-tune the focusing knob until the reflected mires appear sharp against the corneal surface. Misalignment here introduces up to 0.2D of artificial astigmatism, skewing results.
For accurate readings, direct the patient’s gaze at the central fixation target while toggling the light sources to illuminate both horizontal and vertical meridians sequentially. The instrument’s doubling prisms split the reflected image into two distinct yet measurable patterns; their separation correlates directly with corneal curvature. Record values to the nearest 0.01mm, as neglecting decimal precision risks misclassifying irregular astigmatism as regular.
Verify calibration before each session using the manufacturer-supplied steel ball of known radius (typically 7.8mm). Place the ball in the measurement path and confirm the displayed reading matches the reference value within ±0.02mm. Deviations beyond this threshold indicate misaligned optics or worn prisms, requiring recalibration or part replacement. Ignoring this step compounds errors across patient datasets.
When interpreting the scaled output, note that steeper curvatures (higher diopters) produce wider-separated mire pairs. Cross-reference these values with corneal topography maps if available, as discrepancies exceeding 0.3D may signal keratoconus or post-surgical changes undetectable by manual instruments alone. Document the axis of astigmatism immediately, noting ambient lighting can subtly shift mire visibility and perceived orientation.
Clean the front-surface mirrors and doubling prisms weekly with anhydrous alcohol on lint-free swabs–residue from tears or fluorescein dye distorts reflections, introducing systematic bias. Avoid touching the surfaces directly; oils from skin accelerate tarnishing of the reflective coatings. Replace the bulb annually, even if still functional, as filament degradation alters light wavelength consistency critical for precise measurements.
For pediatric or uncooperative patients, use the instrument’s built-in fixation target combined with an external auditory cue (e.g., metronome at 60 BPM) to standardize gaze stability. Shorten measurement cycles by pre-selecting meridians based on clinical history; prioritize 90° and 180° axes for post-LASIK eyes, where flattening patterns diverge predictably. Capture triplicate readings per meridian and average them to mitigate transient blink artifacts.
Store the device in an environment below 60% humidity to prevent fungal growth on optical surfaces, particularly in tropical climates. Cover the instrument with a breathable, static-resistant dust cloth between uses–plastic bags trap moisture, promoting condensation on prisms during temperature swings. Regularly inspect the alignment screws; loosening from vibration (e.g., door slams) shifts the optical path by fractions of a degree, skewing readings without visible misalignment cues.
Key Optical Elements in Corneal Curvature Measurement Devices
Begin with the doubled mire target system, a pair of illuminated concentric rings or circles, positioned at a fixed distance from the patient’s eye. Use precision-machined convex lenses (focal length: 50–150 mm) to collimate light from the mires, ensuring parallel rays strike the cornea. A beam splitter (typically 50:50 dielectric-coated) divides reflected corneal rays–direct 50% to the observation path for clinician alignment, while the remaining 50% enters the measurement path. Fit the measurement arm with a pair of rotating Scheiner’s prisms or a split-field analyzer to detect minute meridional deviations; accuracy drops below 0.25 D if prism alignment exceeds ±0.1°. Position a high-resolution CMOS sensor (pixel pitch ≤3.45 µm) at the focal plane of the analysis lens, capturing reflected ring patterns for curvature calculation. Calibrate the entire optical train against reference spheres (radius: 7.0 mm, 7.8 mm, 8.2 mm) quarterly–variations above 0.05 mm invalidate axial length calculations.
| Component | Specification | Tolerance |
|---|---|---|
| Objective Lens | Achromatic doublet, 60 mm focal length | ±0.5 µm spherical aberration |
| Beam Splitter | Polarizing, extinction ratio 100:1 | ±1% reflectance uniformity |
| Scheiner’s Prism | BK7 glass, 2° wedge angle | ±0.02° deviation |
| Sensor | 8 MP global shutter, 2.4 µm pixels | ±1% linearity at 90% saturation |
Step-by-Step Light Path Mapping for Corneal Curvature Measurement
Position the patient’s chin on the rest and align the corneal apex with the optical axis of the device using a fixation target to ensure repeatable measurements. Adjust the working distance to 75–90 mm–standard for most instruments–to maintain consistent image magnification and prevent parallax errors.
Alignment and Light Projection
- Activate the internal light source (typically a low-power LED or halogen bulb at 550–650 nm) to project two or more mires onto the corneal surface.
- Space the mires 1.5–2.0 mm apart horizontally; wider separation increases sensitivity but risks exceeding the corneal diameter (11–12 mm).
- Ensure the projection angle is 35–45° relative to the optical axis–steeper angles reduce glare but may obscure peripheral curvature data.

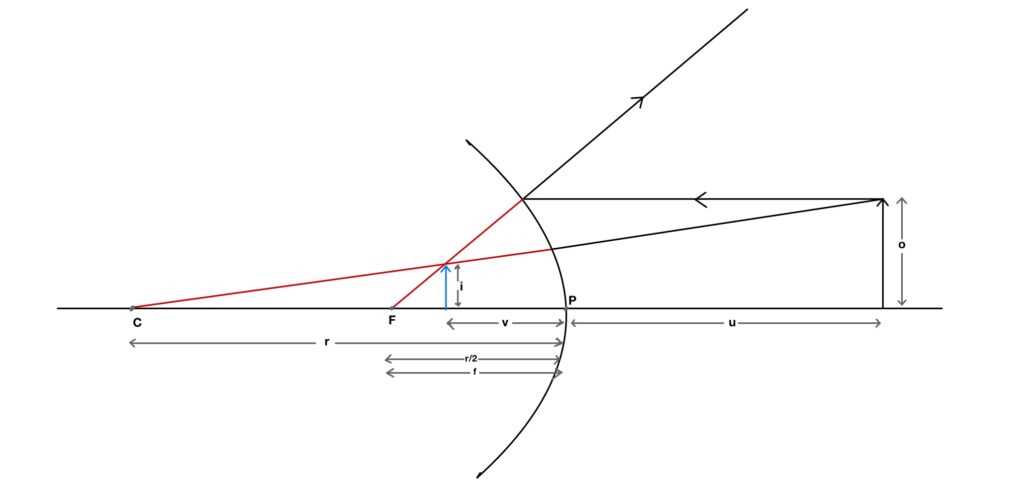

Observe the reflected mire images through the observation telescope or digital sensor. The cornea’s convex surface acts as a convex mirror, forming virtual, upright, and magnified images. Calculate image separation using the formula:
d = 2f × θ
where d is the image separation (mm), f is the focal length of the corneal mirror (≈337.5/D for a 44.00 D cornea), and θ is the angular separation of the mires (0.02–0.04 rad).
Image Analysis and Curvature Calculation
- Capture the mire images via CCD sensor or direct visual inspection, noting any elliptical distortion indicating astigmatism.
- Measure the separation between the first Purkinje images (≈3.0–4.0 mm for a 7.8 mm radius cornea) using calipers or automated edge-detection software.
- Apply the catoptric formula to derive corneal radius:
R = (2D × d) / (D + d)
where D is the distance from the mire to the cornea (mm), d is the image separation (mm), and R is the corneal radius (mm). Convert radius to diopters using K = 337.5/R.
For toric surfaces, rotate the instrument 90° and repeat measurements. The difference between principal meridians yields the astigmatic power. Store data in increments of 0.01 D for clinical precision.
Calibrate the instrument weekly using a precision spherical test ball (radius 7.5–8.0 mm, ±0.01 mm tolerance). Verify software algorithms against this reference to correct for thermal drift or mechanical misalignment (≤0.05 D error). Replace mire bulbs if output drops below 90% of initial luminance.
Use a slit-lamp adapter for keratoconic corneas, project finer mires (1.0 mm spacing), and average three readings per meridian to reduce variability from irregular surfaces. For post-LASIK eyes, disable automatic corneal diameter assumptions, as altered topography may invalidate default settings.
Export raw data to EMR systems via HL7 or DICOM with timestamps, technician ID, and pupil dilation status. Validate against Scheimpflug tomography for discrepancies >0.10 D, flagging outliers for repeat assessment.
