How to Read and Understand Refrigerator Electrical Wiring Diagrams
To dissect how a standard cooling appliance operates, begin by tracing the sealed piping system. The compressor–typically a hermetically sealed motor–condenses low-pressure refrigerant vapor into high-pressure gas, generating heat in the process. Locate this component at the base or rear; its discharge line feeds directly into the condenser coils, where excess thermal energy dissipates into ambient air. Verify coil cleanliness–dust accumulation reduces efficiency by up to 30%, forcing the motor to cycle longer.
Follow the capillary tube or expansion valve adjacent to the evaporator. This narrow passage meters high-pressure liquid refrigerant into the evaporator coils, where it rapidly expands, dropping temperature to -23°C (-10°F) under ideal conditions. Check for frost buildup here; excessive ice signals low refrigerant or a malfunctioning defrost timer, risking compressor burnout if unaddressed. The accumulator–positioned between the evaporator and compressor–captures liquid refrigerant that didn’t vaporize, preventing slugging damage.
Proper voltage across the start relay and overload protector should read 115–230V AC, depending on regional standards. Test continuity with a multimeter; resistance values for the compressor windings should align with manufacturer specs–typically 3–50 ohms for run windings and 5–20 ohms for start windings. Deviations indicate internal shorts. Ensure the thermostat’s capillary bulb maintains firm contact with the evaporator for accurate temperature control; loose placement causes erratic cycling and elevated energy consumption.
The defrost heater–often a resistive element wrapped around the evaporator–activates during defrost cycles to melt accumulated ice. If this component fails, frost chokes airflow, reducing cooling efficiency and overworking the compressor. Inspect the heater’s resistance; infinite ohms confirm a break, requiring immediate replacement. The door switch, a microswitch triggered by the seal, cuts power to interior lights and fans when the door opens–verify its operation by measuring continuity in the closed position.
For troubleshooting, map the power flow: mains supply → thermostat → compressor → condenser → filter-dryer → capillary tube → evaporator → return to compressor. Any interruption here–clogged filter, leaking seals, or faulty relay–disrupts the refrigeration cycle. Use a manifold gauge set to measure suction and discharge pressures; low-side pressure below 1–2 psi suggests refrigerant leakage, while high-side spikes above 300 psi indicate obstruction or overcharging.
Key Components of a Cooling System Blueprint
Begin by locating the compressor–typically at the base or rear of the unit. Its role is to pressurize refrigerant gas, raising its temperature before it moves to the condenser coils. Ensure the area around it remains unobstructed; airflow blockages reduce efficiency by up to 30%. Clean the coils every six months using a soft brush or vacuum to prevent dust buildup, which forces the compressor to overwork.
The condenser coils, usually positioned along the back or bottom, release heat absorbed from inside the cabinet. Check for bent fins–straighten them with a fin comb to maintain optimal heat dissipation. Failure to do so can increase energy consumption by 15-20%. Place the unit at least 2 inches from walls to allow proper ventilation.
Refrigerant flows from the condenser to the capillary tube or expansion valve, where it undergoes rapid cooling. This component is critical: clogs or ice formation here disrupt the entire cycle. If the system struggles to maintain temperature, inspect for leaks using a UV dye kit or electronic detector. Refrigerant leaks often require professional repair, as DIY recharges risk overfilling or contamination.
The evaporator coils inside the cabinet absorb heat, turning the refrigerant back into gas. Frost accumulation signals a defrost system failure. Manually defrost if ice exceeds ¼ inch thickness–excess ice reduces cooling capacity by 40%. Test the defrost heater and thermostat with a multimeter; replace faulty parts immediately to prevent compressor damage.
The thermostat regulates temperature by cycling the compressor on and off. Calibrate it annually: place a separate thermometer inside and adjust the dial until readings match. A misaligned thermostat can waste 10-12% more energy. For digital models, check batteries and replace them every 2 years to avoid erratic performance.
Door seals (gaskets) prevent warm air infiltration. Test them monthly by closing a dollar bill in the door–if it slides out easily, replace the seal. Loose seals increase runtime by 25%. Clean gaskets weekly with mild soap and water; avoid petroleum-based products, which degrade rubber. Lubricate seals with silicone spray to extend lifespan and maintain airtight closure.
Fan motors circulate air through the evaporator and condenser coils. Listen for unusual noises–grinding or squealing indicates bearing wear. Replace fans showing resistance when spun by hand. Lubricate sleeve bearings annually with lightweight machine oil; sealed bearings require complete motor replacement. Proper airflow reduces compressor strain and extends component life by 5-7 years.
Electrical connections demand regular inspection. Loose wires cause intermittent operation or complete failure. Tighten terminals with a screwdriver, but avoid overtightening, which strips threads. Check start relays and capacitors with a multimeter; replace if readings deviate from manufacturer specs. Always disconnect power before servicing to prevent electrical hazards.
Key Components in a Cooling System Layout
Begin by identifying the compressor as the primary driver in the thermal regulation loop–opt for models with a displacement range of 4–12 cm³ for domestic units to balance efficiency and noise levels below 45 dB. Low-side pressure should stabilize at 0.5–2 bar, while high-side readings must not exceed 12–20 bar to prevent premature wear.
Select a condenser coil with copper tubing and aluminum fins for optimal heat dissipation–ensure fin spacing between 2.5–4 mm to prevent dust buildup while maintaining airflow. Plate-fin designs outperform wire-on-tube variants by 15–20% in heat transfer efficiency. Install a fan with brushless DC motors (BLDC) to reduce power draw by 30% compared to AC alternatives, especially in variable-speed systems.
The evaporator demands precise refrigerant distribution–opt for a multi-circuit serpentine layout rather than a single-pass coil to eliminate hot spots. Microchannel evaporators reduce refrigerant charge by 25–35% while improving response time during defrost cycles. Use a thermostatic expansion valve (TXV) with a capillary tube diameter of 0.6–1.2 mm for consistent superheat control between 5–8°C.
Refrigerant choice directly impacts performance–R-600a offers 12% better efficiency than R-134a but requires hermetic compressors due to flammability. For R-410A systems, maintain a subcooling range of 3–6°C to prevent liquid slugging. Always purge air pockets before charging, as even 1% non-condensable gases reduce capacity by 5–8%.
Critical Pressure-Temperature Relationships
| Refrigerant | Low-side Pressure (bar) | High-side Pressure (bar) | Evaporator Temp (°C) | Condensing Temp (°C) |
|---|---|---|---|---|
| R-134a | 1.0–1.5 | 8–12 | -10 to -5 | 45–55 |
| R-600a | 0.3–0.8 | 5–9 | -20 to -15 | 40–50 |
| R-410A | 2.5–3.5 | 15–20 | -8 to -3 | 50–60 |
Desiccant filters prevent moisture-induced acid formation–choose molecular sieve type 3A with a mesh size of 10–12 for R-134a systems to trap particles down to 5 microns. Replace filters every 2,000 operating hours or if pressure drops exceed 1 bar across the component. Oil separators should utilize cyclone designs for compressor protection, removing 98% of entrained lubricant before it enters the condenser.
Insulate suction lines with closed-cell elastomeric foam (thermal conductivity ≤ 0.035 W/m·K) to minimize energy loss–avoid gaps wider than 1 mm, as condensation forms rapidly on uninsulated sections, reducing efficiency by 3–5% per °C of temperature rise. Defrost controls must use adaptive algorithms rather than fixed timers; demand defrost with evaporator exit temperatures triggering at -2°C reduces ice buildup by 40% compared to time-based cycles.
Performance Optimization Checklist
Prioritize these adjustments to maximize thermal transfer efficiency:
- Verify superheat consistency (±1°C) across all evaporator circuits–adjust TXV or capillary tubes if readings deviate.
- Monitor condenser exit subcooling–target 2–5°C for optimal charge, recalibrate if exceeding 7°C.
- Clean condenser fins every 1,000 hours–0.5 mm dust layer increases energy consumption by 10%.
- Check oil return rates–compressor sump levels should remain stable within ±5% during operation.
- Test non-condensable gas presence using a micron gauge–pressure rise above 0.5 bar indicates contamination.
Sealant choice for threaded joints impacts long-term reliability–anaerobic compounds (e.g., Loctite 577) outperform Teflon tape, withstanding 30 bar cyclic pressure without leaks. For copper brazing, use phosphorus-copper alloys (3% P) instead of silver-bearing filler–reduces joint failure rates by 70% while cutting material costs by 40%. Always pressure-test the system at 1.5× design pressure for 24 hours before charging.

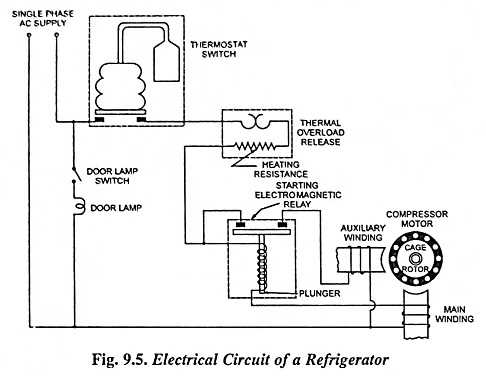

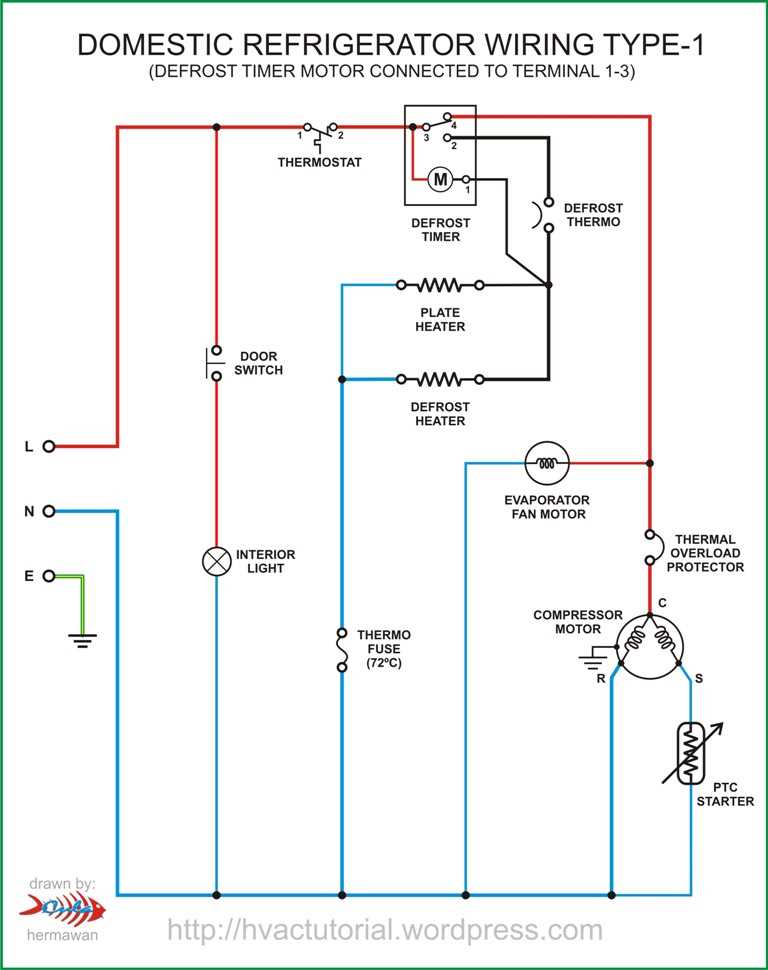

Step-by-Step Wiring Connections for Compressor and Thermostat
Begin by disconnecting the power supply to prevent electric shock. Identify the run, start, and common terminals on the cooling unit’s motor–typically marked as C (common), S (start), and R (run). Connect the thermostat’s red wire to the C terminal, ensuring a secure attachment with a crimp connector or screw terminal. The white wire from the temperature control sensor should link directly to the R terminal, while the yellow or black wire (if present) attaches to the S terminal to engage the start relay. Verify polarity if the motor uses a capacitor–reverse wiring may damage components.
For models with overload protection, integrate a bimetallic switch or PTC relay between the S terminal and the start capacitor. Use 14-gauge wire for high-current paths to handle inrush amperage (typically 5-10A for household units). If the system includes a defrost timer, route the thermostat’s blue or orange wire to its input, bypassing the main circuit during defrost cycles. Ground the motor chassis with a green or bare wire to a dedicated grounding point–failure risks intermittent operation or shorts.
Test continuity with a multimeter before powering the system. Set the meter to ohms (Ω) and probe between the C and R terminals–expect 2-20Ω resistance. Cross-check the start winding (C to S) for slightly higher resistance, indicating proper relay function. Energize the unit and monitor voltage at the motor terminals: C-R should read 115-125VAC in standard configurations. If voltage drops below 90V, inspect the supply line or replace the start capacitor. Document the wiring layout with a labeled sketch for future servicing.
