Schematic representation and key components of scanning electron microscope SEM
To grasp how modern high-magnification instruments function, examine their primary components and their precise arrangement. The emitter–a field-emission cathode or thermionic filament–serves as the particle source, typically positioned at the top of the column. This component must operate under ultra-high vacuum conditions (below 10-4 Pa) to prevent oxidation and contamination, ensuring a stable beam.
Directly beneath the emitter sits the electromagnetic lens system, consisting of condenser and objective lenses. The condenser lenses (usually 2–3 stages) shape and focus the particle stream, while the objective lens refines it into a fine probe, critical for sub-nanometer resolution. Apertures (diameters from 20 to 300 μm) are strategically placed between lenses to eliminate stray particles and enhance beam coherence.
Coupled with the lens system is the scanning coil assembly, deflecting the probe in a raster pattern across the sample surface. These coils require precise current control (±0.1% stability) to maintain linearity and avoid image distortion. Secondary detectors–either Everhart-Thornley or solid-state types–capture backscattered or emitted particles, converting them into electrical signals for digital reconstruction.
For optimal performance, align the column components with tolerances tighter than ±50 μm. Sample preparation demands conductive coatings (gold, carbon, or osmium, 5–20 nm thickness) for insulating specimens to prevent charging artifacts. Operate the system at accelerating voltages between 1–30 kV, balancing penetration depth and surface detail.
Calibrate the stage reproducibility to ≤2 μm and ensure the vacuum system reaches stable conditions within 10–15 minutes after pump-down. Use a Faraday cup to measure beam current (target: 10–100 pA) and adjust the probe size accordingly–smaller probes (1–5 nm) for high-resolution work, larger probes (10–50 nm) for analytical tasks like energy-dispersive X-ray spectroscopy.

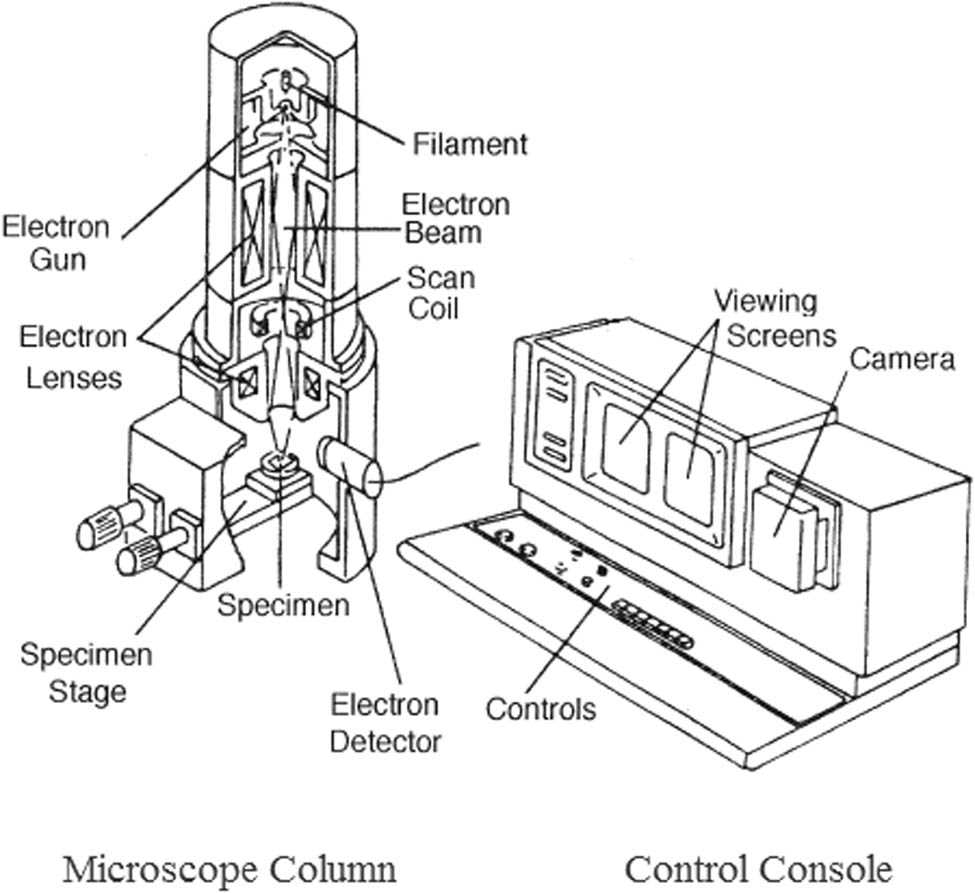

Visual Representation of an SEM Instrument
Ensure the primary electron source–typically a tungsten filament, lanthanum hexaboride cathode, or field emission gun–is positioned at the top of the column. Optimal alignment prevents off-axis beam aberrations, reducing spot size degradation by up to 40%. Verify that the filament operates within manufacturer-specified voltage ranges (e.g., 0.5–30 kV) to avoid premature failure.
Anode placement directly below the emitter must maintain precise spacing (usually 5–15 mm) to accelerate electrons efficiently. Misalignment here introduces chromatic aberrations, distorting contrast in secondary images. Use a calibrated micrometer during assembly to set this distance within ±0.1 mm tolerance.
- Condenser lenses (one or two electromagnetic coils) focus the beam into a fine probe. Adjust lens currents incrementally: excessive current causes oversaturation, while insufficient current reduces resolution.
- Objective lens (final focusing stage) requires cooling to mitigate thermal drift. Liquid nitrogen or Peltier systems are standard; target temperatures below -30°C stabilize magnetic fields.
- Scanning coils deflect the beam in a raster pattern. Ensure DC offset is corrected–miscalibrated coils skew the scan field, creating “barrel” or “pincushion” distortions in images.

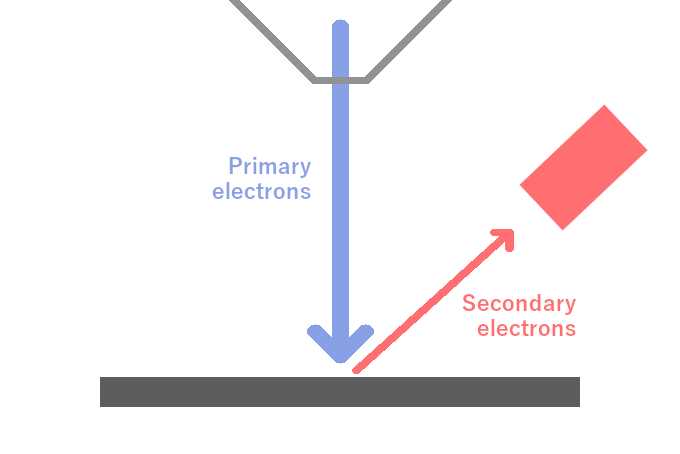

Detectors must be strategically placed to capture signals without obstructing the beam path. Secondary electron detectors (Everhart-Thornley type) should face the sample at a 30–45° angle for optimal collection efficiency. Backscattered electron detectors–often annular or multi-segment–require alignment with the optical axis to avoid shadow artifacts.
Sample stage mechanics warrant attention: a eucentric design allows rotation and tilt without defocusing. Piezo-driven stages offer sub-nanometer precision but demand stable currents; abrupt power fluctuations cause “drift,” visible as blurring in time-series captures. Use vibration isolation pads–natural frequencies below 10 Hz–if operating in uncontrolled environments.
Vacuum system integrity is non-negotiable. Turbomolecular pumps achieve pressures below 1×10-5 Pa, but leaks degrade image quality within minutes. Regularly replace o-rings and test seals with helium leak detectors. Cold traps prevent contamination; organic residues from sample handling reduce chamber life by 20–30%.
For high-resolution work, select a field emission source over thermionic emitters: the former delivers 1–3 nm probe diameters versus 5–10 nm. However, ultrahigh vacuum (-8 Pa) is mandatory to prevent gas adsorption on the tip. When imaging non-conductive samples, apply a 2–10 nm carbon or gold coating; uncoated materials charge, creating bright artifacts or “halo” effects.
Critical Elements of a High-Resolution Imaging System Blueprint
Begin by identifying the electron source at the apex of the column–typically a thermionic filament, lanthanum hexaboride (LaB₆) emitter, or field emission gun (FEG). FEGs deliver superior brightness (~10⁸ A/cm²·sr) and finer probe diameters (1–10 nm) compared to thermionic sources, making them ideal for nanoscale analysis. Ensure the cathode-to-anode distance aligns with manufacturer specifications; deviations beyond ±0.2 mm degrade beam coherence.
The electromagnetic lens assembly directly beneath the source shapes the beam. Condenser lenses reduce electron spread, while the objective lens focuses the probe onto the sample. Use pole pieces with minimal hysteresis–mu-metal alloys outperform iron-cobalt variants in stray-field suppression. Verify lens coil resistance (±2 Ω tolerance) during maintenance; overheating (>60°C) induces astigmatism, visible as asymmetric distortion at magnifications above 50,000×.
Stigmators–dual sets of perpendicular quadrupole coils–correct elliptical aberrations. Adjustments require iterative fine-tuning: first, rotate the stigmator controls while observing the live image at 10,000×; second, alternate between X and Y axes until circular features (e.g., gold nanoparticles) appear uniform. Below is a calibration reference for common materials:
| Material | Optimal Probe Current (pA) | Stigmator Setting Range |
|---|---|---|
| Gold on carbon | 50–200 | 0.3–1.2 V |
| Aluminum oxide | 10–50 | 0.5–1.5 V |
| Biological cryo-section | 1–10 | 0.1–0.8 V |

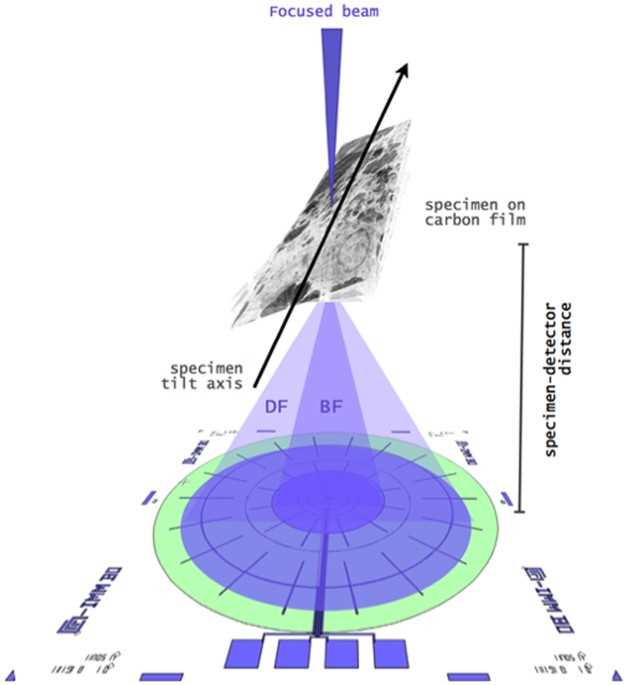

Detectors capture signal generation mechanisms: Everhart-Thornley units excel at secondary-electron imaging (SEI), while backscattered electron detectors (BSE) reveal atomic-number contrast. Position BSE detectors annularly around the pole piece to maximize collection angles (up to 60°). For low-vacuum modes, use a gaseous secondary detector; operating pressures between 10–300 Pa necessitate elevated bias voltages (200–400 V) to prevent charge accumulation on insulating samples.
A high-precision stage integrates sample navigation and tilt control. Prioritize stages with piezoelectric actuators for sub-10 nm step accuracy. During sample mounting, apply carbon tape sparingly–excessive adhesive alters surface conductivity, skewing SE yields. For powders, embed particles in indium foil to minimize charging artifacts below 5 kV accelerating voltage.
Vacuum infrastructure must sustain pressures below 10⁻⁴ Pa in the column and 10⁻³ Pa in the chamber. Use turbo-molecular pumps for rapid evacuation (30–60 minutes startup), augmented by ion getter pumps for long-term stability. Monitor foreline pressures daily; spikes above 0.1 Pa indicate contaminated diffusion pumps or failing seals, necessitating regeneration cycles at 150°C for 12 hours.
The control console interfaces hardware via analog-to-digital converters (ADCs) with ≥16-bit resolution. Configure imaging parameters in software prior to acquisition: dwell times below 10 µs introduce noise, while exceeding 100 µs risks beam-induced damage to organic specimens. Store raw data in 16-bit TIFF format instead of JPEG to preserve dynamic range; post-processing should apply median filtering (kernel size 3×3) rather than Gaussian blurring, which attenuates fine edges in Z-contrast images.
High-Resolution Probe: Core Emission Mechanism and Trajectory
Select a thermionic tungsten filament for stable emission in budget-limited setups, but prioritize field-emission cathodes (e.g., ZrO/W Schottky emitters) for superior brightness (108 A/cm²/sr) and sub-nanometer probe coherence. Heat the filament to 2,500–2,800 K for optimal current density, while monitoring vacuum levels below 1×10-9 Torr to prevent cathode oxidation. Align the extraction anode precisely 2–5 mm from the tip to avoid divergent beam aberrations; verify alignment via Faraday cup measurements at 10 kV.
Accelerate the particle stream through a Wehnelt cylinder biased 50–500 V negative relative to the cathode, then focus via a dual-lens condenser system: the first lens demagnifies the source by 50–100×, while the second refines probe diameter to 1–10 nm at the sample plane. Employ stigmator coils to correct astigmatism in real-time, adjusting current until ellipticity ratios fall below 5% (measured via FFT of gold-on-carbon resolution standards). For low-kV operation (1–5 kV), engage a retarding-field aperture to minimize chromatic spread.
Routine beam diagnostics demand weekly checks of emission stability–fluctuations exceeding ±2% per hour indicate cathode degradation or contamination. Replace ZrO/W emitters every 1,500–3,000 hours of continuous use, or when tip radius exceeds 100 nm (confirmed via TEM shadowgraph). For ultra-high-resolution work (>500 k×), switch to cold field emitters (e.g., <310> W single-crystal needles), ensuring vibration isolation and thermal drift compensation via active feedback loops on the final lens.
