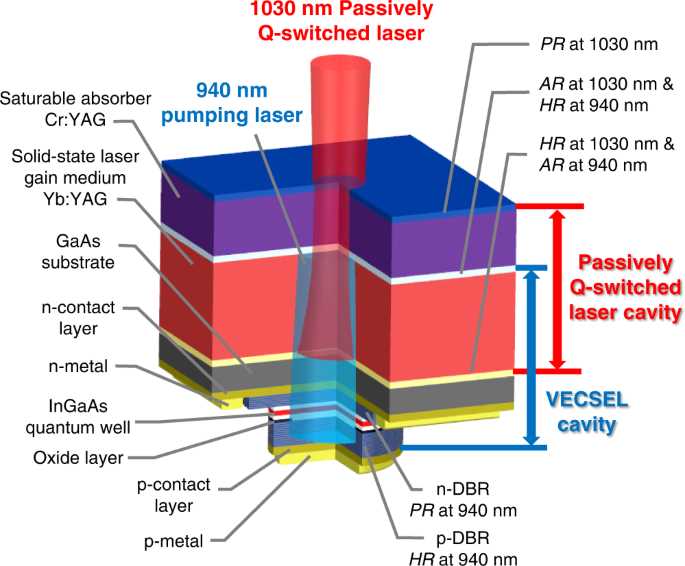

Structural Layout of a Semiconductor Laser with Key Components Illustrated

Start with a precise heterostructure: an active region sandwiched between n-type and p-type cladding layers. The cladding must have a lower refractive index than the core to ensure total internal reflection, while its bandgap should exceed that of the emission zone to prevent carrier leakage. GaAs-based systems typically use AlxGa_1−xAs for cladding, where x ranges between 0.3 and 0.5–any lower risks insufficient optical confinement, any higher reduces thermal conductivity.

Optimize the waveguide thickness at 1.5 to 3 micrometers. Thinner layers elevate optical loss through mode leakage; thicker ones invite higher-order lateral modes, degrading beam quality. For InP-based designs targeting 1.3–1.55 µm wavelengths, InGaAsP quaternary alloys must be lattice-matched to avoid dislocations, using compositions with bandgaps tuned 10–20% below the emission line to suppress absorption.

Incorporate a ridge or buried heterostructure to define the current path. Ridge widths of 2–5 µm maximize single-mode operation; narrower ridges increase thermal resistance, while wider ones risk multimode lasing. Cleaved facets act as mirrors, but coating both surfaces with dielectric stacks–alternating SiO₂ and TiO₂ layers–boosts reflectivity to 70–90%, slashing threshold current by 30–40%.

Mount the chip p-side down on a submount with a thermal conductivity above 100 W/m·K–copper tungsten or AlN composites work best. Temperature rise at the junction must stay below 25 °C above ambient to prevent wavelength drift and efficiency roll-off. A thermoelectric cooler integrated beneath the submount stabilizes output within ±0.1 nm for dense wavelength-division multiplexing applications.

Drive the device with a constant-current source that includes a 10–20% current overshoot at turn-on to minimize transient heating. Slope efficiencies should exceed 0.8 W/A; falling below 0.6 indicates internal loss from scattering or non-radiative recombination. Monitor the rear facet with a photodiode, maintaining feedback control within ±2% to counteract aging effects in the active layer.

Key Components of an Optical Gain Device Blueprint

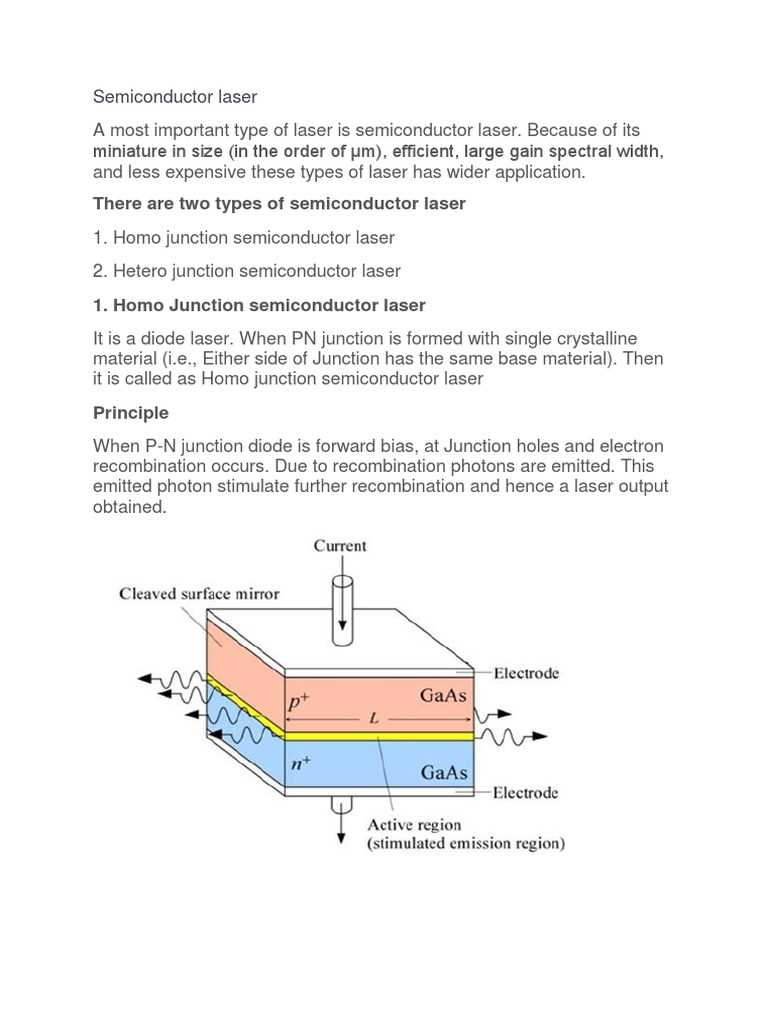

Begin by illustrating the active region at the core of the structure, where electrical current injects charge carriers into a thin layer of direct-bandgap material like gallium arsenide (GaAs) or indium phosphide (InP). Ensure the layer thickness is precisely between 100–300 nm for optimal carrier confinement and photon emission efficiency. Flank this region with cladding layers–typically n-doped and p-doped aluminum gallium arsenide (AlGaAs)–to form a double heterojunction, which restricts carriers and enhances light amplification.

Position the waveguide immediately adjacent to the gain medium, ensuring its dimensions–width (~2–5 μm) and height (~1–3 μm)–match the emission wavelength to achieve single-mode operation. Use ridge-waveguide designs for lateral confinement, etching a shallower trench to define the guiding path. Verify the refractive index contrast between core and cladding exceeds 5% to prevent leakage; calculate it using n_core = 3.5 and n_cladding = 3.2 for GaAs-based systems.

Integrate highly reflective facet coatings on both cleaved ends: a dielectric stack (e.g., Si/SiO₂) on the rear facet (R > 95%) and an anti-reflective layer (R n the coating’s refractive index. Label these layers clearly to distinguish their functional roles.

Depict the current injection path with a metallized contact pad atop the p-doped cladding and a backside contact beneath the n-doped substrate. Use Au/Ge/Ni for the n-side and Ti/Pt/Au for the p-side to ensure ohmic behavior and minimize contact resistance (target −6 Ω·cm²). Include a 10–20 μm insulating dielectric ring around the contact pad to prevent short circuits and define the current aperture.

Denote thermal dissipation elements: a heatsink (copper or diamond) bonded to the substrate’s base to maintain junction temperature below 85°C during operation. Indicate thermal vias through the substrate if flip-chip mounting is employed, and label the thermal impedance (Z_th) path to differentiate front-side and back-side cooling performance. For high-power devices, add microchannel coolers beneath the gain region to remove >100 W/cm² heat flux.

Mark the optical cavity length between facets–typically 300–1000 μm–to ensure coherence and stability. Calculate the longitudinal mode spacing using Δλ = λ²/(2n_gL), where n_g is the group index (≈4.0 for GaAs) and L the cavity length. Highlight any phase-shifted or distributed feedback gratings if single-frequency operation is required, specifying their pitch (Λ = λ/(2n_eff)) and depth (~50 nm).

Core Elements of a Photon-Generating Solid-State Device

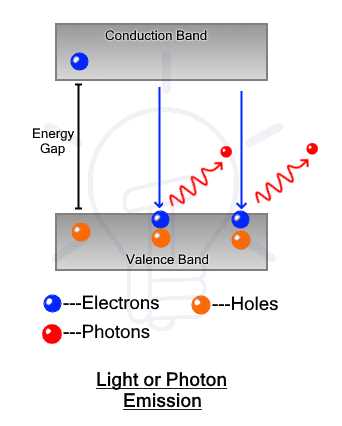

Prioritize the active region design–its quantum well structure dictates emission wavelength and efficiency. Use strained-layer quantum wells for GaAs-based emitters to reduce threshold current by 20-30%; InP platforms benefit from compressive strain for 1.3-1.55 μm operation. For high-power applications, incorporate multiple wells (3-5) with barrier widths of 8-12 nm to balance carrier confinement and thermal stability.

Integrate a distributed Bragg reflector (DBR) with ≥99.5% reflectivity on the rear facet while leaving the front facet at 5-10% reflectivity. For edge-emitting structures, use Al_xGa_1-xAs/GaAs pairs with x=0.9-0.95 in the DBR; select layer thicknesses as λ/4n where λ is the target wavelength and n is refractive index. Ensure lattice matching to avoid dislocations–critical for long-term reliability in devices operating above 50 mW.

Optimal Waveguide Configuration

Adopt a ridge waveguide with 2-4 μm width for single-mode operation; narrower ridges increase resistance while wider ones risk multimode output. Etch depth should terminate 100-200 nm above the active layer to minimize scattering losses. Use SiO₂ or Si₃N₄ for electrical isolation, applying a thickness of 200-300 nm to prevent current leakage paths.

Parameter	GaAs-Based Device	InP-Based Device	Tolerance
Active Region Thickness (nm)	8-15	6-12	±1 nm
Cladding Doping (cm-3)	5×1017 (n-type)	2×1018 (p-type)	±10%
Ridge Etch Depth (μm)	1.5-1.8	1.2-1.5	±0.1

Select contact metals based on work function alignment: Ti/Pt/Au (10/20/200 nm) for p-side on GaAs; Au/Ge/Ni (80/10/100 nm) for n-side. Anneal at 380-420°C for 30-60 seconds to form ohmic contacts with ≤10^-5 Ω·cm² specific contact resistance. For InP, use Au-Zn/Au (30/200 nm) on the p-side and Au-Ge/Au (50/150 nm) on the n-side.

Incorporate a heat spreader–CVD diamond or SiC–bonded directly to the p-side for high-power devices (>100 mW). Mount the chip epi-side down on a submount with thermal conductivity ≥150 W/m·K. Apply Au-Sn solder (80/20) for die attach; limit eutectic thickness to ≤5 μm to prevent thermal resistance buildup. For hermetically sealed packages, specify Ar or N₂ purge to suppress facet oxidation, extending operational lifetime by 3-5×.

Critical Alignment for Efficient Coupling

Position the output facet 10-20 μm from the waveguide end for direct coupling into single-mode fiber; adjust numerical aperture (NA) to 0.12-0.15 to minimize Fresnel losses. For lensed coupling, use an aspheric lens with focal length 2-3 mm and AR coating centered at the emission wavelength (±10 nm). Calibrate lateral alignment to ≤0.5 μm tolerance using automated active alignment–misalignment beyond this threshold reduces coupled power by ≥1.5 dB per micron.

Step-by-Step Assembly of the Optoelectronic Device Core

Begin by selecting a high-purity substrate, preferably gallium arsenide or indium phosphide, with a thickness between 350–500 µm and a surface roughness below 0.5 nm. Ensure the wafer undergoes rigorous cleaning using a sequential solvent rinse: acetone, isopropyl alcohol, and deionized water, followed by drying under nitrogen flow to eliminate organic contaminants. Any residual particles larger than 0.2 µm will compromise epitaxial layer adhesion.

Deposition of the lower cladding layer requires metalorganic chemical vapor deposition (MOCVD) with precise parameter control. For an AlGaAs cladding, set the reactor temperature to 720°C, trimethylgallium flow at 15 sccm, and arsenic overpressure maintained via arsine at 200 sccm. The growth rate should stabilize at 1.2 µm/hr; deviations exceeding ±0.1 µm/hr lead to lattice mismatches, causing defects in the active region.

Construct the active zone using multiple quantum wells (MQWs) with alternating 10 nm InGaAsP wells and 20 nm InGaP barriers. The MQW stack must not exceed 150 nm total thickness to prevent strain buildup. Introduce dopants during this phase: silicon for n-type layers at 2×10¹⁸ cm^-3, and zinc for p-type at 1×10¹⁸ cm^-3. Maintain a V/III ratio of 120 for optimal crystal quality.

• Etch ridge waveguides using reactive ion etching (RIE) with chlorine-based chemistry; target a ridge width of 2.5 µm and depth penetration to within 0.2 µm of the active zone.
• Apply a silicon nitride passivation layer via plasma-enhanced chemical vapor deposition (PECVD) at 300°C, ensuring full coverage without pinholes.
• Open vias via photolithography, using a mask aligner with 1 µm resolution to expose contact regions.
• Deposit p-side metallization (Ti/Pt/Au 20/30/200 nm) using electron-beam evaporation, followed by lift-off in acetone to define electrode patterns.
• Thin the substrate to 100 µm via backside grinding, then apply n-side metallization (Ni/AuGe/Au 5/100/200 nm) through sputtering.

Anneal the contacts at 400°C for 30 seconds in forming gas to achieve ohmic behavior; contact resistivity should fall below 1×10^-6 Ω·cm². Cleave the wafer into individual chips using a diamond scribe, targeting cavity lengths between 300–500 µm. Facets must exhibit mirror-like smoothness; any chipping larger than 0.5 µm increases scattering losses.

Mount the chip onto a copper heatsink using indium solder, applying 250°C for 5 seconds under 1 kg load to ensure uniform thermal conductivity. Wire-bond aluminum wires (25 µm diameter) to the p-contact, then encapsulate in a hermetic TO-can package to isolate the device from humidity and oxygen, which degrade long-term performance.
