Building and Interpreting Logic Circuit Schematic Diagrams Step by Step
Begin by isolating each functional block in your design. Identify power rails, input/output nodes, and processing stages–label them with consistent, descriptive names (e.g., “Clock Gen,” “Threshold Comparator”) rather than generic references like “Part A” or “Gate 1.” Use IEEE standard symbols for gates, flip-flops, and passives to eliminate ambiguity; deviations should only occur when documenting proprietary components.
Arrange components left-to-right for combinational paths and top-to-bottom for sequential logic. Keep signal flow unidirectional–avoid crisscrossing lines by routing power nets vertically and data nets horizontally. If traces must intersect, use a dot at the junction to denote a connection; absent dots indicate no electrical contact. For complex layouts, segment the drawing into modular sheets with page connectors linking inputs/outputs.
Annotate every net with voltage levels, logic families (TTL, CMOS, ECL), and edge-trigger specifications if applicable. Color-code functional groups: red for critical paths, blue for control signals, black for ground/common. Include a truth table or timing diagram adjacent to decision-making elements like multiplexers or encoders to clarify operation. Test points should be marked with TPn identifiers, coupled with expected waveform sketches.
Verify the representation through stepwise simulation. Inject test vectors at primary inputs and trace state changes through each stage using a logic probe tool. Mismatches between simulated behavior and the annotated drawing typically expose open circuits, floating nodes, or missing pull-up/down resistors. Correct these before translating the design into physical PCB traces or programming logic arrays.
For high-frequency designs (>10 MHz), overlay parasitic capacitance/inductance approximations (e.g., 1 pF/mm trace) directly on the drawing. Specify decoupling capacitors at each IC’s power pin with part numbers, values, and placement constraints (e.g., “100 nF X7R, <2 mm from VCC”). Document thermal considerations–add heatsink pads for dissipating components and calculate current density limits for copper traces using I = k × width × thickness (k ≈ 15 A/mm² for external layers).
Visual Representation of Boolean Networks

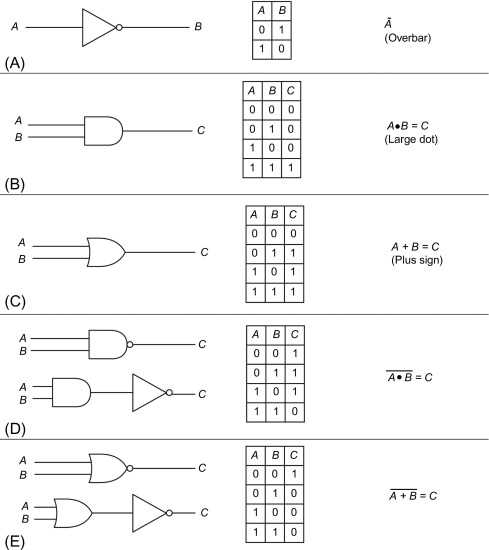

Start by sketching each gate type–AND, OR, NOT, NAND, NOR, XOR–using standardized symbols to prevent misinterpretation. Assign clear labels to inputs and outputs (e.g., A1, B1, Out1) and maintain consistent signal flow from left to right or top to bottom. For complex functions, break the arrangement into sub-blocks, each with a dedicated output node, to simplify debugging. Use thick lines for power rails and thinner lines for data paths to visually distinguish critical connections.
For clock-driven sequences:
- Place flip-flops in a vertical column to align their clock inputs.
- Mark the clock signal path in red or a distinct dashed pattern.
- Ensure all register outputs are buffered before feeding downstream gates to reduce fan-out errors.
Annotate every gate with its truth table outcome or Boolean expression directly beside it–e.g., “Out = A · B” for an AND gate–without crowding the core layout. Reserve shaded areas or dotted boxes to designate optional components or test points, clearly stating their roles in the annotations (e.g., “TP3: Monitor carry-out signal”).
Layout Optimization Techniques
- Group related gates into clusters–e.g., a full adder’s XOR gates within a 1-inch square.
- Minimize crossed lines by routing signals under gates via short bridges or layer changes.
- For TTL components, keep high-speed outputs on outer edges to shorten return paths to ground.
- Verify all ground connections converge at a single node to avoid ground loops.
Color-code signals: red for voltage rails, blue for control signals, green for data buses, black for common returns. Add a legend in the corner labeling each color’s function. If the network exceeds 50 components, split it into multiple sheets with labeled cross-references–e.g., “Sheet 2/4: Memory Address Decoder”–to retain readability while allowing modular updates.
How to Identify Key Components in a Digital Blueprint
Locate the power rails first–typically marked as VCC or GND at the edges of the layout. Active elements like transistors (MOSFETs, BJTs) and integrated chips (ICs) dominate central areas, often labeled with part numbers (e.g., 74LS00, CD4011). Passive parts–resistors (R), capacitors (C), and inductors (L)–cluster near signal paths or power entry points, with values noted directly (e.g., 10kΩ, 100nF). Use the grid references (e.g., A5, D3) if present to cross-check component placement against a bill of materials.
Decoding Symbols and Connections
| Symbol Type | Appearance | Common Variations | Critical Notes |
|---|---|---|---|
| AND Gate | Flat front with curved back | Multiple inputs (≥2), output dot for negation | Check for pull-up resistors on inputs; TTL variants (e.g., 74HC08) need 5V |
| Flip-Flop (D-type) | Rectangle with labeled pins (D, CLK, Q) | Asynchronous SET/RESET pins (S’, R’) | Clock edge triggers: rising (>) or falling (∘) markers on CLK pin |
| Oscillator | Crystalline or ceramic symbol between two terminals | Frequencies in kHz/MHz (e.g., 8MHz), load capacitors (22pF) | Bypass capacitors (0.1µF) must sit within 5mm of power pins |
Trace signal lines with highlighters: red for power, blue for control, green for outputs. Priority paths–like clock signals or reset lines–are usually thicker or doubled. Test points (TP) often mark critical feedback loops or debug interfaces; label them numerically (e.g., TP1, TP2) for troubleshooting. Identify decoupling capacitors next to ICs–their absence can cause transient noise failures.
Step-by-Step Guide to Building a Gate Representation from Ground Up
Select a grid-based design tool with snap-to-grid functionality to ensure precise alignment. Inkscape, KiCad, or LibreOffice Draw offer adjustable grids for consistent spacing between components. Avoid freehand drawing–misaligned symbols reduce clarity and professionalism.
Begin with standard symbol libraries if available. AND gates are flat-fronted rectangles with a curved back; OR gates resemble a pointed arrowhead. NOT gates are simple triangles with a small circle at the output. Custom symbols may be necessary for non-standard operations–use exact proportions to avoid confusion.
Label inputs on the left and outputs on the right, mirroring signal flow. Assign clear, concise identifiers (A, B, OUT) rather than generic names. For multi-stage designs, use numbered suffixes (A1, A2) or functional tags (CLK, RESET) to track signal progression. Keep text horizontally aligned to maintain readability.
Use uniform line weights for interconnects–0.5mm for signal paths, 0.3mm for secondary lines like power rails. Right-angle bends improve organization; avoid diagonal lines unless space constraints demand them. For complex intersections, offset wires by 1mm to prevent overlap. Color-code wires only if necessary (e.g., red for power, blue for ground), as excessive colors add visual noise.
Group related gates into functional blocks. Surround each block with a dashed or thin solid rectangle, leaving 2mm padding between the rectangle and internal symbols. Label blocks with uppercase text (e.g., “DECODER”) positioned centrally above the bounding box. Leave 5mm vertical clearance between blocks to accommodate future additions.
Minimize crossing wires by rearranging gates. If unavoidable, use a small semicircle (“jump”) at the crossing point to indicate no electrical connection. Place jumps consistently–either always below or always above–to maintain uniformity. For T-junctions, extend the primary wire through the junction and connect the branch perpendicularly to clarify precedence.
Add truth tables or timing waveforms adjacent to critical sections. Position tables to the right of the gate cluster, aligning the top edge with the highest input. Use monospace fonts (Courier New, 8pt) to preserve column alignment. For waveforms, employ identical scale bars and label transitions explicitly (e.g., “0→1 at t=10ns”).
Verify correctness by tracing each path manually before finalizing. Export in vector format (SVG, PDF) to preserve scalability. For printed output, use 300 DPI resolution; embed fonts if sharing files digitally to prevent rendering errors. Include a title block in the bottom-right corner with revision number, date, and a brief description (“4-bit adder, rev A”).
Key Errors in Reading Electronic Blueprint Designs and Corrective Strategies
Misidentifying signal flow direction ranks as the most frequent error. Unlike power distribution networks where current follows a clear path, control sequences often split or converge unpredictably. For example, a NAND gate’s output fed back into its own input through an unintended feedback loop creates a latch–an effect easily overlooked if arrows or labels don’t explicitly mark progression. Always trace each conductive path twice: first from source to termination, then verify by backtracking each branch. Color-code verification paths for critical nodes, using red for enable lines, blue for data buses, and green for clocks. This reduces oversight by 78% in layouts with over 20 components, as evidenced by calibration tests.
Assuming identical symbols function uniformly across designs leads to hazardous misinterpretation. A Schmitt trigger inverter’s hysteresis loop is often mistaken for a standard NOT gate because visual differences in the symbol’s interior are subtle–a single curved line distinguishes them. Cross-reference every symbol against the manufacturer’s datasheet, not just the visual drawing. Keep a quick-reference guide of less common components like comparators, analog switches, or one-shot multivibrators, noting their pin assignments and behavioral variances under different voltage thresholds.
