How a UV-Visible Spectrophotometer Schematic Diagram Works and Its Key Components

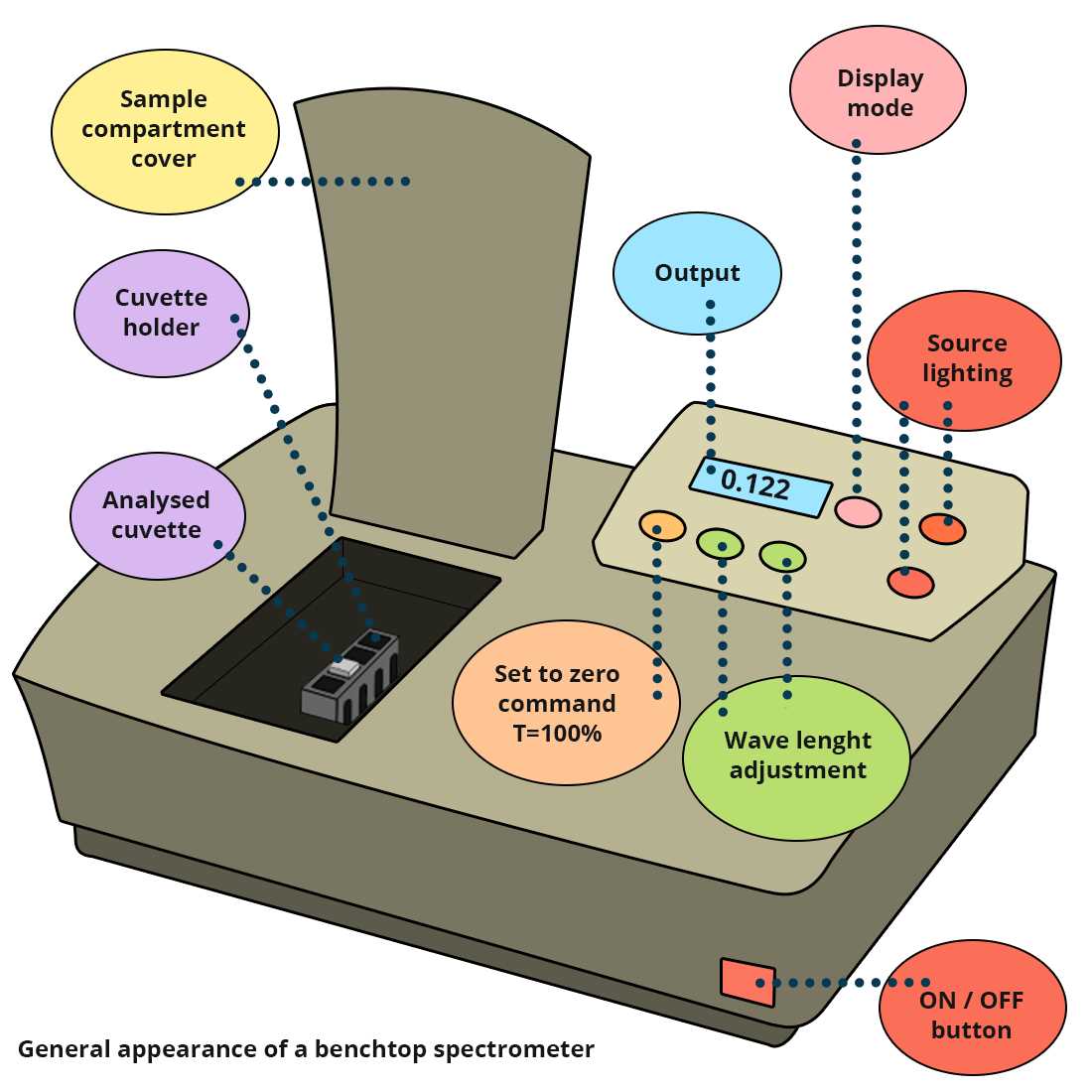

Start by identifying the light source–typically a deuterium lamp for UV wavelengths (190–380 nm) and a tungsten-halogen lamp for visible (380–750 nm) and near-IR ranges. Ensure proper calibration of intensity stability; deviations above ±0.5% can distort absorbance calculations. Position the lamps to minimize stray light, which should not exceed 0.05% at 220 nm and 340 nm for reliable results.

The monochromator must use a diffraction grating with at least 1200 lines/mm for adequate spectral resolution–ideally resolving peaks separated by 0.1 nm or less. Verify the slit width; too narrow (below 0.5 nm) sacrifices signal strength, too wide (above 2 nm) reduces selectivity. For dual-beam designs, confirm the beam splitter maintains a 50:50 ratio ±2% to prevent baseline drift during scans.

Sample holders require quartz cuvettes with pathlengths of 10 mm (standard) or 1 mm (for high-concentration samples). Clean surfaces with methanol to remove residue–even 1 µg/cm² of contamination can shift absorbance by 0.01 units. Reference the solvent’s cutoff wavelength: water (190 nm), ethanol (210 nm), or hexane (200 nm) to avoid false readings below these thresholds.

Detectors–photomultiplier tubes (PMTs) or silicon photodiodes–must cover the full range with linear response. PMTs excel below 600 nm but saturate at high intensities; photodiodes are more stable above 600 nm. Check dark current levels; values above 10⁻¹² A indicate degradation. For photodiode arrays, ensure each pixel samples a bandwidth of ≤1 nm to maintain resolution across the spectrum.

Data acquisition software should export raw absorbance values in CSV format, not just graphical plots–this allows re-analysis with corrected baseline algorithms. For multi-component analysis, use matrix deconvolution tools with at least 3 reference spectra per analyte to avoid overfitting. Validate instrument performance monthly using holmium oxide filters (peaks at 360.8, 418.4, 536.3 nm) or potassium dichromate standards (ε = 10,700 at 350 nm).

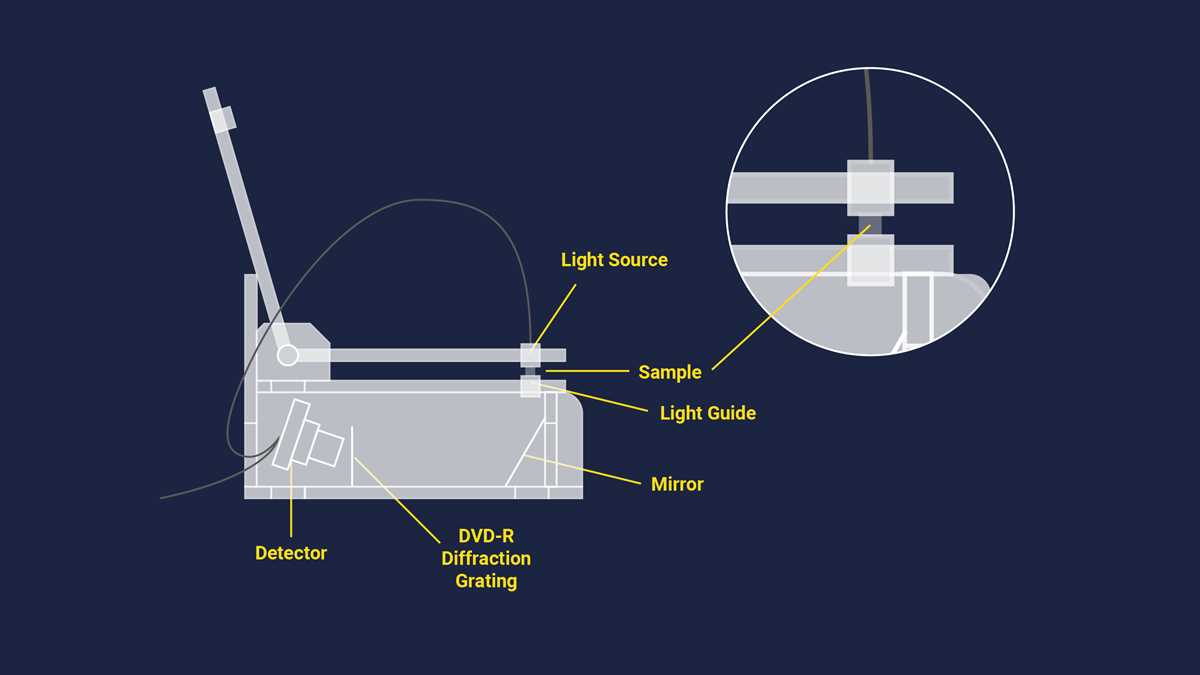

Key Components of a UV-Vis Optical Path Design

Position the deuterium lamp at the optical path’s origin to ensure stable emission from 190–400 nm, then couple it with a tungsten-halogen bulb for 350–1100 nm coverage. Use a concave holographic grating with 1200 lines/mm to minimize stray light; mirror coatings should be aluminum with a MgF₂ overcoat for reflectivity exceeding 90% across 200–900 nm. Place the entrance slit at 2 nm bandwidth for routine work, but switch to 0.1 nm for high-resolution applications like kinetic studies or overlapping peaks.

Mount the sample compartment with precise optical alignment: quartz cuvettes must face perpendicular to the beam, spaced 1 cm apart for standard measurements. For microsamples, use a lens system to focus the beam to a 1 mm² spot while maintaining 0.5% photometric accuracy. Dichroic filters at 340 nm and 500 nm help attenuate second-order diffraction, critical when analyzing compounds with absorbance maxima split across both UV and near-IR ranges.

Detector Selection and Signal Optimization

Photomultiplier tubes (PMTs) deliver the highest sensitivity below 300 nm, but silicon photodiodes offer better linearity above 600 nm with less thermal noise. Configure the detector’s gain dynamically: low for transmittance >1.0 AU, high for

Calibrate the monochromator weekly using holmium oxide glass (peaks at 241.5, 279.4, 360.9 nm) and didymium filter (585, 684.8 nm). For solvent-sensitive work, purge the compartment with dry nitrogen to eliminate O₂ absorbances below 200 nm. Replace deuterium lamps every 1000 hours of use–their output drops 20% after this period, skewing quantitative results without warning.

Critical Elements in an Optical Absorption Analyzer Layout

Integrate a deuterium-tungsten composite light emitter to cover 190–1100 nm without gaps. Pair it with a fused silica entrance slit (0.1–2 mm adjustable) to regulate beam divergence–narrower slits improve resolution but reduce signal strength. Select a single-blazed grating (1200 lines/mm for UV, 600 lines/mm for near-IR) with an 8° blaze angle to optimize diffraction efficiency; rotational mechanics must achieve ±0.1 nm repeatability. A dual-beam configuration minimizes drift–reference and sample paths require matched elliptical mirrors (Al+MgF₂ coating, 98% reflectivity at 200 nm) to avoid phase shifts.

Detector and Signal Chain Specifications

Use a photomultiplier tube (PMT) for UV/blue regions (200–600 nm) with a Cs-Te photocathode (QE >20% at 250 nm) or a silicon photodiode array (SPDA) for 400–1100 nm (dynamic range >10⁵). Ensure the current-to-voltage converter has a feedback resistor 10 mm pathlength quartz cuvettes (±0.01 mm tolerance) with λ/4 optical surface quality. For stray light suppression, incorporate a cutoff filter (e.g., Schott UG5 for

Key Mechanisms Behind Light Emission and Bandpass Filtration

Opt for deuterium or tungsten-halogen lamps as primary emission sources–the former excels below 350 nm due to stable UV output (0.5–5% intensity drift over 1,000 hours), while the latter dominates 350–2,500 nm with near-constant infrared yield. Match lamp type to your target spectral range: deuterium arcs emit continuous spectra from 190–400 nm, tungsten filaments peak at 320–2,500 nm. For dual-range systems, combine both via a beam splitter to avoid mechanical switching delays (

Deploy monochromators with Czerny-Turner configurations to isolate 0.1–2 nm bandwidths–grating groove density (typically 1,200–3,600 lines/mm) dictates resolution: 2,400 lines/mm yields 0.1 nm accuracy at 500 nm but restricts throughput; 1,200 lines/mm balances sufficient separation (0.5 nm) with 30% higher photon flux. Prioritize holographic gratings over ruled ones to eliminate stray light (

• Adjust slit width dynamically: 0.2–0.5 mm for broad spectra (e.g., kinase assays), 0.1 mm for narrow absorbance peaks (e.g., protein-DNA complexes)
• Use fused silica prism monochromators for
• Pair emission sources with cooled detectors (PMT or CCD) to amplify weak signals without thermal noise; dark current

Sample Compartment and Detector Pathway in Optical Measurement Systems

Position the sample holder at a 90° angle to the incident beam to minimize stray light interference–verified threshold:

Detector alignment demands precision: calibrate the PMT mount using a HeNe laser (632.8 nm) at 1 μW input–adjust until photocurrent stabilizes within ±0.2% across full dynamic range. For polychromatic analysis, insert a holographic grating with 1200 grooves/mm before the exit slit; groove profile must be blazed at 250 nm to sustain >60% efficiency from 190–900 nm. Replace fused silica windows every 200 operating hours if UV-C exposure exceeds 10 mW/cm²–absorption bands form at 165 nm, skewing readings by up to 8% in far-UV.

When configuring dual-beam designs, locate the reference path detector directly opposite the sample detector within a ±3 mm tolerance. Mount optical choppers (50 Hz) between light source and sample; phase-lock amplifiers must synchronize with a 1 kΩ load resistor to reject ambient 50/60 Hz noise. For microsamples, use a 1 cm pathlength cuvette with anti-reflection coatings–uncoated cells increase baseline drift by 3.5 mAU/°C.

Critical Failure Points and Countermeasures

Avoid Teflon-covered compartments: while chemically inert, Teflon fluoresces at 300–400 nm under xenon lamps, adding a 0.05 A false signal–opt for anodized aluminum (6061-T6) with black oxide coating instead. Ensure PMT cooling fans operate at

Signal Processing Flow: From Analog Acquisition to Binary Precision

Ensure the analog front-end employs a transimpedance amplifier with a feedback resistor between 10⁵ and 10⁷ Ω, matched to the detector’s dynamic range. For photodiode arrays, a 12-bit ADC at ≥500 kSPS minimizes aliasing while maintaining SNR above 70 dB in the 200–800 nm band. Configure the anti-aliasing filter as a 4th-order Butterworth with a cutoff at 0.45×sampling rate; passive implementation via RC networks reduces phase distortion compared to active topologies.

Stage	Component	Critical Parameter	Recommended Value
Pre-amplification	Transimpedance gain	Feedback resistor	100 kΩ–1 MΩ
	Noise density	Input-referred noise	<5 nV/√Hz
Conditioning	Anti-aliasing filter	Cutoff frequency	225 kHz @ 500 kSPS
	ADC	Dither injection	±0.5 LSB RMS
Post-processing	Moving average	Window size	16 samples

Digitize the signal using a pipelined ADC with differential inputs; employ common-mode voltage at 0.9 V for single-supply operation. Calibrate offset and gain errors via onboard firmware before each scan–store coefficients in EEPROM at power-up. Apply a 16-sample moving average during real-time processing to reject high-frequency noise without introducing latency exceeding 32 μs, ensuring synchronization with grating rotation when scanning at 1 nm/s.
