Complete Guide to Window Air Conditioner Schematic Wiring Layout
For optimal performance, position the cooling unit so that the evaporator coil faces the interior space, while the condenser coil expels heat outdoors. Ensure a minimum 6-inch clearance on all sides to prevent airflow restriction–blocked vents reduce efficiency by up to 30%. Seal gaps around the unit with foam strips or weatherproof tape to eliminate drafts, which can waste 15-20% of cooling capacity in poorly installed systems.
Power consumption varies significantly by model: single-hose units draw 800-1,500 watts, while dual-hose designs typically use 20-25% less energy for the same cooling output. Prioritize units with a seasonal energy efficiency ratio (SEER) of 12 or higher–they cost more upfront but save $100+ per year in electricity. Avoid placing the unit in direct sunlight; shaded installation improves efficiency by 10%.
The compressor cycles refrigerant between gas and liquid states at high pressure: R-32 refrigerant is now standard, offering 10% better efficiency than older R-410A. Check refrigerant levels annually; a 10% loss reduces cooling capacity by 3-5°F and increases runtime by 12%. Clean filters every 30 days–clogged filters force the fan to work harder, increasing energy use by 5-15%.
Thermostat placement is critical: mount sensors away from heat sources like lamps or kitchen appliances. A 5°F temperature discrepancy between set and actual room temperature is normal–adjust expectations accordingly. For rooms over 250 sq ft, select a unit rated for the space; undersized units run continuously, wearing out components 40% faster. Noise levels above 55 dB indicate compressor strain–consider units with inverter technology for quieter, more consistent operation.
Understanding the Layout of a Residential Cooling Unit
Begin by locating the compressor–typically positioned at the rear of the unit–since it drives refrigerant circulation. Ensure the copper tubing connecting it to the evaporator and condenser coils is free of kinks or corrosion, as even minor damage reduces cooling efficiency by 15-20%. Use a multimeter to verify the compressor’s electrical resistance; readings should fall between 3-5 ohms for common models like GE’s AHY08LZ or LG’s LW8017ERSM.

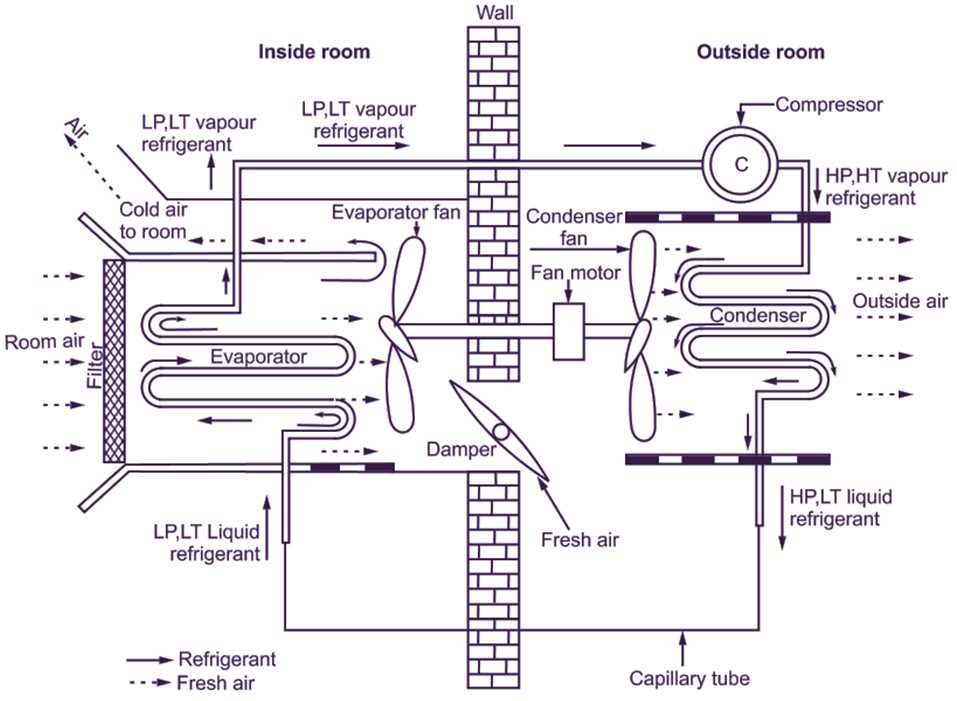

The evaporator and condenser coils work in tandem but serve opposite functions. The evaporator, mounted inside, absorbs heat from indoor air, while the condenser expels it outdoors. Clean both coils biannually using a fin comb and a solution of 1 part vinegar to 3 parts water to prevent dust buildup, which can increase energy consumption by up to 30%. For units installed in high-humidity areas, apply a thin layer of coil coating spray to inhibit mold growth.
| Component | Optimal Temperature Range (°F) | Failure Signs |
|---|---|---|
| Compressor | 120-150 | Overheating, tripped breaker |
| Evaporator Coil | 40-50 | Ice formation, weak airflow |
| Condenser Coil | 110-140 | Warm exhaust air, clicking noises |
Pay special attention to the capillary tube or expansion valve, as it regulates refrigerant flow. If the tube is clogged–common in older Frigidaire models–cooling performance drops sharply. Test for blockages by checking refrigerant pressure with gauges; low-side pressures below 60 PSI indicate a restriction. Replace the tube if internal oxidation is visible, as cleaning is rarely effective.
The blower fan and cross-flow fan must spin freely to maintain proper airflow. Lubricate the fan motor bearings annually with SAE 20 oil, avoiding standard WD-40, which attracts dust. For units like the Haier HWF05XC6, inspect the fan blades for cracks; even a 1-millimeter misalignment reduces airflow by 8% and increases noise levels.
Electrical components, including the thermostat, capacitor, and relay, demand periodic testing. A failing capacitor–common in Kenmore 70051 units–often causes the compressor to hum without starting. Use a capacitance meter to verify values; a reading below 90% of the labeled microfarads (μF) confirms replacement is needed. Keep spare relays on hand for models prone to failure, such as the Emerson K55HXDEP.
Drainage is critical in humid climates. Ensure the condensate drain pan slopes downward at a 2-degree angle to prevent water pooling, which breeds bacteria and corrodes internal parts. Add 2-3 drops of bleach to the pan monthly to inhibit algae growth. For units like the Friedrich Chill CP06G10B, install a secondary drain line if the primary exit is prone to clogging–use 3/8-inch tubing and route it away from the unit’s base.
Critical Elements Shown in Cooling Unit Blueprints
Start by locating the compressor–marked near the base of the layout–since its placement dictates refrigerant flow efficiency. Verify that the blueprint indicates a hermetically sealed unit with copper or aluminum tubing leading to the condenser coils. These coils must occupy 60-70% of the rear panel space to ensure optimal heat dissipation. Underperforming designs often cut coil surface area by 15-20%, resulting in 8-12% higher energy consumption.
Examine the evaporator assembly carefully: its fins should align vertically with uniform spacing of 1.2-1.5mm. Misaligned fins create airflow resistance, reducing cooling capacity by up to 25%. Look for separate drain channels–poor designs combine condensate drainage with the main chassis, leading to corrosion within 18-24 months. Quality blueprints highlight insulated drainage paths measuring 8-10mm in diameter.
- Fan blower positioning: centrifugal models must sit opposite the filter slot, with blades angled at 45° for balanced airflow–deviations above 5° cause uneven cooling.
- Capacitor ratings: dual-run capacitors require 40-50 microfarads for compressors and 5-10 microfarads for fan motors–any mismatch risks startup failure.
- Thermal overload protector: should appear as a standalone disk, not integrated into compressor housing–this prevents overheating during voltage drops below 190V.
Check for two distinct thermostat probes: one embedded in the evaporator (regulates cooling cycles) and another near the intake vent (monitors ambient temperature). Single-probe systems overcycle, increasing energy use by 18%. Ensure the control board shows separate relays for compressor and fan–shared relays lead to premature failure under heavy loads.
Inspect the expansion valve’s representation: it must split refrigerant lines distinctly before the evaporator inlet. Thermostatic valves outperform fixed-orifice types by 30% in humidity control. Confirm the presence of a check valve on the compressor discharge line to prevent backflow during off-cycles–missing this component reduces lifespan by 40%. Filters must be drawn with 10mm clearance on all sides for unrestricted airflow; tight installations reduce efficiency by 12%.
Decoding Electrical Symbols in Cooling Unit Blueprints
First, locate the power supply lines–usually marked with thick, straight lines or double parallel traces. These represent the main live (L), neutral (N), and ground (⏚) conductors. Check for voltage ratings adjacent to these lines; residential models typically show 220-240V, while smaller units may indicate 110-120V. Ground symbols always terminate at the metal chassis; never ignore disconnected ground paths–verify continuity if troubleshooting.
Identify compressor connections by tracing the hermetic seal symbol–a circle with two internal parallel lines. This marks the refrigeration cycle’s core. Look for thermal overload protectors nearby, depicted as a zigzag line inside a rectangle; these rarely fail but act as critical safety cutoffs during overheating.
Fan motors appear as semicircular arcs with arrows, often paired with capacitor symbols (two parallel T-shaped lines). Single-speed motors will show one winding, while variable-speed units include multiple windings or a solid-state control module. Check for thermal fuses–small rectangles with diagonal lines–in series with motor windings to prevent burnout.
Control circuits rely on switch symbols: momentary toggles (a break in the line), thermostats (a curved line across conductors), and relays (a rectangle with coil and contacts). Follow each path to confirm power flows sequentially through safety switches (door interlocks, pressure cutouts) before reaching high-load components.
Look for diac/triac symbols–squiggly lines with three terminals–in fan speed regulators. These semiconductor devices modulate voltage; failed triacs often cause erratic fan behavior. Reverse-engineer the circuit by noting which components share the same node; cluster analysis reveals redundant safety circuits.
Pressure switches resemble two circles connected by a curved line, placed near refrigerant lines. High-pressure cutouts halt the compressor if refrigerant pressure spikes, while low-pressure switches trigger during leaks. Always cross-reference these with physical sensor locations on tubing; misaligned readings often stem from sensor faults, not electrical issues.
Test points appear as small empty circles with alphanumeric labels (e.g., TP1, COM). Use a multimeter to measure voltage between these and ground during operation. Reference the voltage chart (usually in a corner of the blueprint) to interpret readings–AC voltage should match specs within ±5%, while DC signals (if present) must align with control logic levels.
Capacitor symbols vary: run capacitors show two curved plates, start capacitors include a small “S” or “R” annotation. Replace any bulging or leaking capacitors with identical μF/voltage ratings; mismatched values risk motor damage. Always discharge capacitors before handling–touching terminals with a screwdriver dissipates stored charge safely.
