Understanding X Ray Diffraction Through Schematic Diagrams and Principles

Begin by selecting a high-precision goniometer with angular resolution below 0.01° to resolve subtle variations in crystalline samples. Position the incident beam at a fixed wavelength–copper K-α (1.5406 Å) or molybdenum K-α (0.7107 Å)–to ensure consistent interference patterns. Align the detector and sample rotation axes with micrometer accuracy to prevent peak broadening, which distorts lattice spacing calculations.

Use a primary beam collimator with a divergence slit of 0.5° or narrower to minimize background noise. For powdered samples, apply a spinning stage to average crystal orientations and reduce preferred orientation artifacts. If working with single crystals, mount the specimen on a three-axis goniometer head and verify centering under low magnification before exposure.

Correct for air scatter by subtracting a baseline measurement taken with the sample removed. Apply a Lorentz-polarization correction to raw data, then convert 2θ angles to d-spacings using Bragg’s equation: d = λ / (2 sin θ). For phase identification, overlay experimental peaks with reference patterns from databases like COD or ICDD, ensuring a minimum of three matched reflections for reliable indexing.

When analyzing thin films, adjust the incidence angle to 0.5–5° to enhance surface sensitivity while avoiding total external reflection. For nanoparticle characterization, use grazing incidence with a parallel beam geometry to suppress substrate signals. Validate instrument performance monthly using a corundum standard (NIST SRM 1976) to track calibration drift.

Filter fluorescence artifacts by selecting an energy-discriminating detector or adjusting the monochromator to exclude unwanted wavelengths. For samples with heavy elements, reduce accelerating voltage to 20–30 keV to suppress Compton scattering. If diffraction rings appear elliptical, recalibrate the detector’s tilt and separation distance before proceeding.

Export processed data in ASCII format with columns for 2θ, intensity, and d-spacing to facilitate compatibility with analysis software like FullProf or TOPAS. For Rietveld refinement, start with a known crystal structure model, then iteratively adjust lattice parameters, atomic positions, and thermal factors until the weighted profile R-factor (R_wp) drops below 10%.

Visual Representation of X-Ray Scattering Analysis

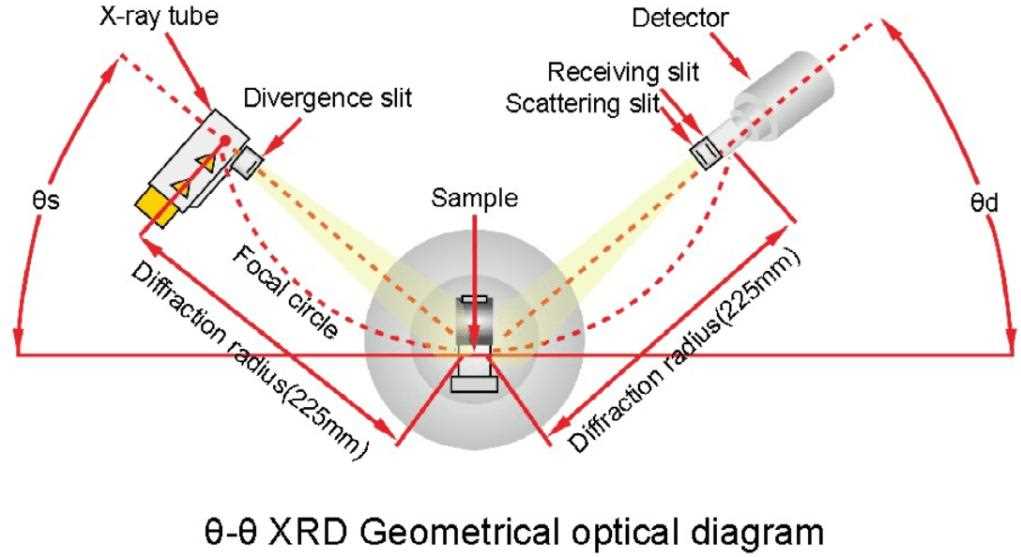

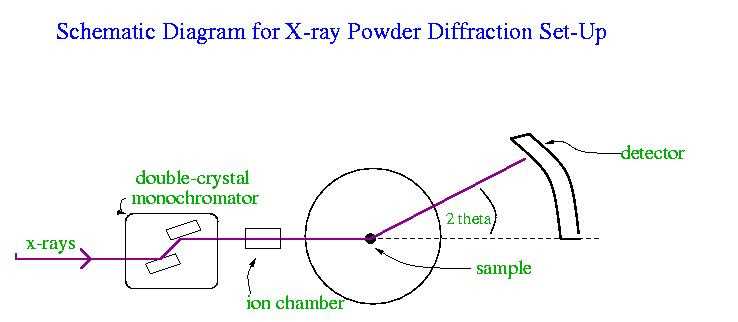

To accurately depict the interaction of high-energy photons with crystalline structures, begin by positioning a monochromatic beam at a fixed angle (θ) relative to the sample surface. Use precision instruments such as a goniometer to maintain consistent angular measurements–typically between 5° and 90° 2θ–while rotating both the source and detector synchronously. Ensure the sample holder is level to avoid artifacts; misalignment of even 0.1° can distort peak positions by up to 10% in nanomaterial studies. Label the incident and reflected beams with arrows indicating direction, and mark key components: the tube anode (often copper or molybdenum), collimator slits, and scintillation counter.

Critical Annotations for Clarity

Annotate the Bragg planes within the crystal lattice using Miller indices (hkl), specifying interplanar distances (d-spacings) calculated via the Bragg equation: nλ = 2d sinθ. For example, a silicon (111) plane with d=3.14 Å will produce a peak at ~28.4° 2θ for Cu Kα radiation (λ=1.54 Å). Highlight the relationship between the wavelength, angle, and phase shift by illustrating constructive interference as overlapping wavefronts. Include a legend distinguishing detector signals for cubic, hexagonal, and orthorhombic systems–peak broadening in the latter often signifies microstrain, quantifiable via Williamson-Hall plots.

Incorporate a secondary y-axis showing intensity (counts per second) and a tertiary axis for temperature-dependent scans if applicable–phase transitions in perovskites, for instance, manifest as abrupt intensity drops at ~500°C. For nanomaterials, add a Debye-Scherrer grain size approximation (L = Kλ / (β cosθ), where β is FWHM in radians) adjacent to relevant peaks. Use dashed lines to connect Bragg reflections to their corresponding lattice vectors, and avoid color gradients in favor of distinct solid/dotted line styles to ensure readability in grayscale reproductions.

Key Components of an X-Ray Scattering System

A high-stability generator forms the backbone of any scattering experiment. Select models with

Monochromators drastically improve signal-to-noise ratios. Choose germanium or lithium fluoride crystals cut for specific wavelengths, such as Ge(111) for copper Kα (1.54 Å). Double-crystal monochromators reduce divergence to

Detector selection dictates data quality. CCD arrays like the Andor iKon-XL offer 90% quantum efficiency but suffer from readout delays. Silicon drift detectors (SDDs) provide real-time counts up to 1 Mcps but require

Sample holders must minimize parasitic scattering. Zero-background plates (e.g., silicon(510)) cut extraneous peaks; borosilicate capillaries (

Beam Path Optimization

Slit systems shape the photon stream. Primary slits reduce beam divergence to

Software integration streamlines measurements. Top-tier suites (e.g., Bruker DIFFRAC.SUITE, PANalytical HighScore) perform Rietveld refinement but require GPU acceleration for large datasets. Scriptable environments (Python libraries like `xrayutilities`) enable automation; pre-process raw data by stripping Kα₂ (Δλ = 0.0003 Å) and correcting Lorentz-polarization factors. Calibrate against NIST SRM 640e (silicon powder) quarterly to maintain

Safety interlocks prevent accidental exposure. Lead-lined enclosures must attenuate scatter to

Building an X-Ray Scattering Visualization: A Practical Guide

Start by sketching the incident beam path as a single bold arrow at a 10–15° angle to the sample surface, using a consistent thickness of 0.8–1.2 mm to maintain clarity. Position the detector arc 120–180 mm from the sample center, marking key 2θ angles (e.g., 20°, 30°, 40°) with radial ticks spaced every 5° for precision. Ensure the sample target is drawn as a 3–5 mm horizontal line, centered vertically, with endpoints aligning to the beam’s origin point to avoid misalignment errors.

Outline interference patterns as concentric arcs or discontinuous arcs for polycrystalline samples, spacing them at 0.3–0.5 mm intervals and labeling crystallographic planes (e.g., (111), (200)) in 6–8 pt sans-serif font adjacent to each arc. Add a legend in the lower right corner listing parameters: wavelength (Å), sample thickness (μm), and detector distance (mm). Use dotted lines for secondary reflections and solid for primary beams, reserving dotted circles for Bragg peaks with radii scaled to match intensity (e.g., 1.5× radius for stronger signals).

Standard Symbols and Notations in X-Ray Analysis Charts

Begin by marking the Bragg angle (2θ) on the horizontal axis, using a thin vertical line with a numeric label. Units must match instrument settings–typically degrees, though milliradians appear in high-resolution studies. Label peaks sequentially from left to right, assigning each a lowercase Greek letter (α, β, γ) for quick reference in later discussion. Avoid numeric labels unless correlating to a known crystal database entry.

• I_max – Peak intensity value above baseline, noted in counts per second (cps) or arbitrary units (a.u.). Record this directly above each peak in bold, 10% font size smaller than axis labels.
• d_hkl – Interplanar spacing, derived via Bragg’s equation: d = λ/(2 sin θ), where λ is the wavelength in angstroms. Display beneath each peak in italics, rounded to four decimal places for Cu Kα radiation (λ=1.5406 Å).
• FWHM – Full width at half maximum, measured in degrees 2θ. Place in parentheses next to intensity, e.g., (0.23°). Wider values signal smaller crystallite size or microstrain.

Annotating Phase-Specific Patterns

Color-code phase contributions if multiple compounds overlay. Use red for the primary phase, blue for secondary, green for tertiary–limit to three colors to prevent visual clutter. Add a legend in the bottom-right corner, listing chemical formulas with corresponding colors. For cubic materials, append lattice parameter a in angstroms next to the formula.

1. For each peak, append Miller indices (hkl) in subscript after intensity, e.g., I_max111. Italicize indices to distinguish from numerical labels.
2. Include a dashed vertical line at the calculated theoretical peak position when validating against a structural model. Offset dashed lines horizontally by 0.3° 2θ from solid peak markers to avoid overlap.
3. Indicate amorphous regions with a shaded gray band spanning 10–30° 2θ, labeled “amorphous hump” in light gray text within the band.

Convert raw data to relative intensity percentage before final presentation. Divide each I_max by the tallest peak’s value, then multiply by 100. Label this as “I_rel” next to the absolute intensity. Ensure the tallest peak reaches 100%, adjusting all others proportionally.

• λ – Always specify radiation wavelength in the top-left corner inside a rounded rectangle. Include any monochromator details if used, e.g., “Cu Kα₁ (λ=1.5406 Å), Ni filter”.
• Δ2θ – Step size in degrees, placed beneath the wavelength notation. Common values: 0.02° for routine scans, 0.005° for precision work.
• T – Temperature in kelvin when non-ambient conditions apply. Enclose in a circle adjacent to the corresponding peak, e.g., “○ 77 K”.

Error and Special Markers

Plot error bars equal to ±1% of I_max for routine scans, ±0.3% for refined data–horizontal caps only, no vertical extensions. Use identical line weight as peak markers but in a contrasting color (orange for errors, purple for thermal factors). Add a single asterisk (*) next to peaks exhibiting preferred orientation, two asterisks (**) for instrumental artifacts.
