How Schematic Diagrams Simplify Technical Concepts Explained
Start with a clear labeling system–every resistor, capacitor, and transistor must have a unique identifier matching the parts list. Use IEC 60617 or ANSI Y32.2 symbols consistently; mixing standards causes confusion. Include a legend if non-standard symbols appear, even once. Reference designators should follow the signal path: power sources first, then branches, ground last.
Break complex networks into modular blocks. A power supply section, for instance, should isolate transformers, rectifiers, and regulators as discrete units. Group related components tightly but leave minimum 5mm spacing between unrelated circuits to prevent visual overlap. Color-code functional zones–red for high voltage, blue for digital logic, gray for auxiliary signals–using a palette under 8 colors to avoid sensory overload.
Annotate critical voltages, pinouts, and test points directly on the layout. Voltage values go above horizontal lines; node names below. For integrated circuits, list pin functions under the package outline in 8pt monospace font. Add measurement conditions–e.g., “VCC = 5V ±0.25V”–next to any value that requires calibration.
Validate the draft with a dry run: trace every path from source to ground without lifting the pen. Flood-fill unassigned areas with hatched stripes (45° angle, 2mm pitch) to highlight empty zones. Export in SVG with font embedding enabled to preserve scalability. Keep revision history in the file metadata–date, author, change description–to streamline collaboration.
How Circuit Blueprints Clarify Technical Designs
Begin by labeling every component on the layout with its reference designator (e.g., R1, C2, U3) and exact value–resistors in ohms, capacitors in farads, ICs with full part numbers. Use consistent notation: uppercase for fixed values (4.7K), lowercase for tolerances (10uF ±10%). Group related elements (power regulation, signal paths) into dashed-line zones, each annotated with a brief function description. Avoid vague terms like “module”; specify “5V buck regulator” or “RS-485 transceiver.”
For connectors, include:
- Pin numbering (left-to-right, top-to-bottom)
- Signal names (GND, TX+, VCC)
- Matching cable wiring if predefined
Mark test points with TP1, TP2 and define expected voltage/current ranges in a footnote. If using hierarchical blocks (e.g., MCU subsystem), expand each into a child layout with identical reference labels to prevent ambiguity. Keep lines orthogonal–45° angles only where necessary, never diagonal.
Minimizing Errors During Interpretation
Validate the drawing against a physical prototype early. Use a multimeter to confirm every net continuity matches the printed interconnects. Highlight power rails (red for VCC, black for GND) consistently across all sheets. For mixed-signal boards, isolate analog and digital ground planes with a single point connection, clearly marked on the layout. If component placement forces crossovers, use net ties sparingly; document each instance in a legend.
Critical checks:
- Verify polarized parts (LEDs, tantalum caps) orientation
- Ensure decoupling caps (0.1uF) sit ≤5mm from IC power pins
- Check thermal relief connections for solderability
- Cross-reference BOM against layout references 1:1
Layer silk screen annotations with component outlines–legible at 1:1 scale, rotated only in 90° increments. Export final version in vector formats (PDF, SVG) with embedded fonts to preserve clarity during zooming.
How to Decode Electrical Blueprint Symbols and Annotations

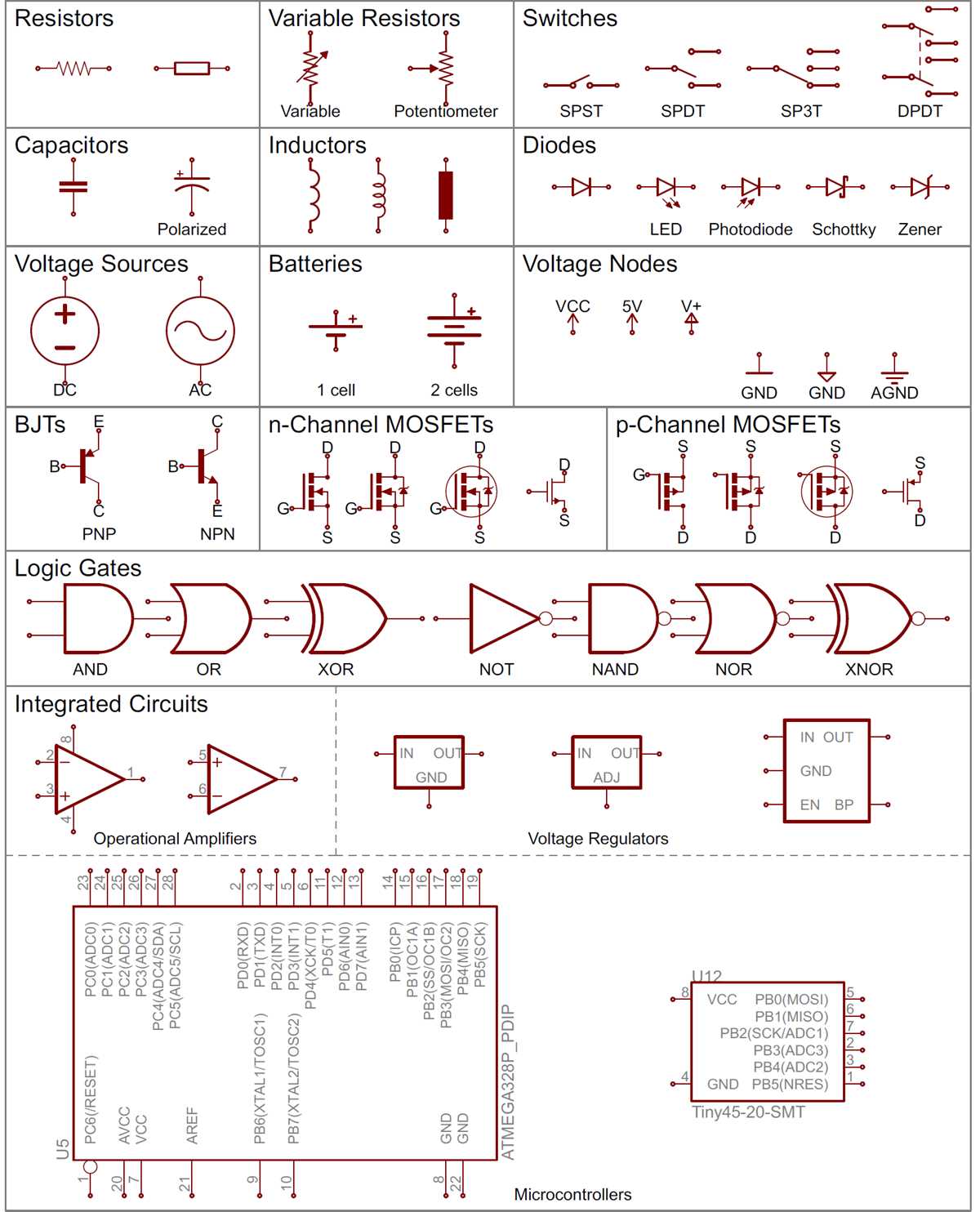

Begin by isolating common graphical elements: resistors use zigzag lines (IEEE) or rectangles (IEC), capacitors pair parallel lines, and inductors curl into loops. Reference standards–ANSI Y32.2, IEC 60617, or IEEE 315–clarify regional variations. Labelled pins (e.g., “VCC“, “GND”) identify power rails; arrows denote signal flow. A dot on a transistor terminal indicates the emitter. Cross-referencing a component’s designation suffix (“R5,” “C2”) against a bill of materials prevents mismatches.
| Symbol | Component | Key Annotations |
|---|---|---|
| ⏚ | Ground | Earth, chassis, or signal return |
| ⎓ | Diode (standard) | Cathode marked with band or triangle |
| ⏚⏚ | Battery (multi-cell) | Longer bar denotes positive terminal |
| ⚡ | Relay coil | Dashed rectangle encloses contacts |
Scrutinize polarity symbols: ‘+’, ‘−’, or silkscreen markings indicate orientation. Triangle arrows on operational amplifiers reveal signal direction. Dashed lines separate analog from digital domains; double-ended connectors suggest differential pairs. Footprint properties (“TO-220,” “SOIC-8”) appear in reference designators. When notation conflicts arise, default to the schematic’s revision history–earlier sheets may hold corrections.
Creating Your First Electrical Blueprint from Zero
Begin by listing every component your circuit requires. Classify them into three groups: active (transistors, ICs), passive (resistors, capacitors, inductors), and connectors (jumpers, terminals). Note exact values–220Ω for a resistor, 10µF for a capacitor–before touching paper. Use graph paper with a 5x5mm grid to maintain scale; alignment errors compound in complex layouts. Label each part with a reference designator (R1, C3, U2) in a corner where space allows; avoid overlapping text.
Position the power source at the top-left of your layout–this convention simplifies tracing currents downward. Draw power rails as thick horizontal lines (2mm width) spanning the entire width of the sheet. For GND, use a single 3mm line at the bottom; avoid branching it until all components are placed. If using a dual supply (e.g., ±12V), add a second rail 2cm above GND, clearly marked with voltage levels. Insert decoupling capacitors (0.1µF) next to each IC’s power pin, placing them within 5mm to minimize noise.
Route signal paths vertically, alternating left-to-right for inputs and right-to-left for outputs. Keep traces at least 0.8mm apart to prevent short circuits during etching. Use right-angle bends sparingly; 45° corners reduce signal reflection better. For high-frequency circuits (>1MHz), route critical signals (clock, data) first, prioritizing the shortest path. Avoid crossing traces–use vias (drilled holes) only if unavoidable, marking them with a 1mm diameter circle filled in black.
Add test points every 5-7 components, especially near microcontrollers or sensitive analog sections. Represent these as small solid circles (Ø0.5mm) labeled TP1, TP2, etc., linked by a dashed line to their node. Include a bill of materials (BOM) in the bottom-right corner: three columns–Designator, Part Number, Manufacturer–sorted alphabetically. Limit each column to 20 rows; overflow onto a second sheet if needed, but maintain consistency.
Verify connectivity with a continuity check: print the blueprint in 1:1 scale, overlay transparent tracing paper, and simulate the circuit’s flow with a red pen. Trace every path twice–once forward, once backward–highlighting missed connections in yellow. Finalize by scanning the original at 600dpi monochrome, saving as a vector PDF (not raster) to preserve scalability for fabrication.
Critical Errors in Interpreting Circuit Blueprints
Assuming ground symbols are always interchangeable leads to dangerous misconfigurations. A chassis ground (▯) connects to the device’s metal frame, while earth ground (⏚) ties to physical earth via a rod. Mixing them in power circuits can create unintended return paths, risking equipment damage or electrocution. Verify each symbol’s placement against the PCB layout–manufacturers often mark chassis grounds near mounting holes and earth grounds near AC inputs. For safety-critical designs (e.g., medical devices), trace every ground connection to its source; a single misread here can turn a 5V signal into a 120V hazard.
Overlooking component polarity marks wastes hours of troubleshooting. Electrolytic capacitors (+ | −), diodes (|⚐), and ICs (•) have non-negotiable orientation rules. A reversed capacitor swells and leaks, while a flipped diode blocks current entirely. Always cross-reference part footprints with datasheets–drawn lines or dots may denote either cathode (|) or anode (⚐) depending on the convention used. For SMD components, check silkscreen labels; a “1” or dot near pin 1 prevents a $500 BGA rework from a single misaligned chip.
Tools and Software for Designing Circuit Representations
KiCad stands as the most robust open-source option for engineers needing professional-grade PCB layouts and electrical blueprints. Version 7.0 introduced native differential pair routing, push-and-shove track placement, and interactive copper pour editing–features rivaling commercial tools. The built-in 3D viewer supports STEP model imports, allowing mechanical validation without third-party plugins. Custom EDA symbols and footprints are stored in Git-friendly libraries, ensuring version control compatibility. For multi-layer boards, KiCad’s zone management system automatically handles thermals and clearance rules, reducing manual error-prone adjustments.
Altium Designer remains the industry benchmark for high-complexity electronic schematics, particularly for teams requiring rigid-flex designs or HDI technology. Its unified editor synchronizes changes across bill-of-materials, netlists, and Gerber outputs in real-time, eliminating design-to-manufacturing discrepancies. Native SPICE simulation integration enables pre-layout signal integrity checks, while the ActiveBOM module automates supplier part selection with real-time cost tracking. Altium’s scripting API supports Python and Delphi, allowing automation of repetitive tasks like via stitching or silkscreen adjustments. License costs justify enterprise environments where compliance traceability and DFT requirements exist.
- OrCAD Capture: AI-assisted component selection filters parts by availability, lifecycle status, and RoHS compliance. The “Design True Forward Annotation” ensures schematic changes propagate to PCB layouts without manual re-syncs, critical for FPGA pin assignments.
- EAGLE: Now integrated with Fusion 360, it provides parametric 3D enclosure modeling alongside electrical connectivity design. The “Autodesk Redshark” plugin enables cloud-based thermal analysis during early design phases.
- Proteus: Unique VSM (Virtual System Modeling) technology allows circuit simulation with microcontroller firmware, eliminating separate hardware prototyping for validation. Supports 8051, AVR, ARM, and PIC families natively.
Specialized Tools for Niche Requirements
For RF and microwave applications, Cadence AWR Microwave Office excels with its electromagnetic (EM) simulation suite. The tool’s “AXIEM” solver handles multi-layer substrates and via fields, while “Analog Office” provides oscillator phase noise analysis. Designers working on mmWave circuits use AWR’s schematic-driven layout capability, where electrical connectivity auto-generates physical structures with impedance matching.
System architects prioritizing system-level block representations over detailed netlists rely on Mentor Graphics Capital Logic. This tool enforces hierarchical design rules, ensuring consistency across power domains and clock trees. Its “Partitioning” feature allows splitting complex projects among geographically distributed teams while maintaining netlist integrity. For automotive ISO 26262 compliance, Capital Logic’s traceability matrix links schematic elements directly to FMEA reports and safety requirements.
- Zuken CR-8000: Enables multi-board system co-design, where boards, flex circuits, and enclosure connectors are defined in a single project. The “Design Gateway” module prevents signal integrity issues by enforcing cross-board constraints. Used in aerospace for complex harness systems.
- Pulsonix: Combines schematic and PCB layout with native high-speed design rule checks (DRCs), including length matching and return path analysis. Its “Script Assistant” guides users through automating repetitive tasks like BGA fanout creation.
- Upverter: Browser-based solution with a modular approach, ideal for startups needing collaboration. Features cloud-based component libraries synchronized with Octopart for real-time pricing and obsolescence tracking. Supports Git for version control.
Free Alternatives and Educational Tools
QElectroTech targets electrical engineers needing industrial control system plans. Unlike PCB-focused tools, it specializes in wiring maps, terminal strips, and automation panel layouts. The software’s IEC symbols align with international standards (EN 81346, IEC 60617), ensuring compliance in regulatory documentation. Diagram elements link to user-defined data fields, enabling automatic generation of cable schedules or IO lists.
Fritzing caters to educators and IoT prototypers with its Arduino-compatible breadboard design interface. The tool exports netlists to Gerber, SVG, and Eagle formats, bridging prototyping and manufacturing. Its “Part Editor” simplifies creating custom sensors or breakout boards, while the community-maintained parts repository accelerates circuits with non-standard components. Note: Fritzing’s PCB autorouter lacks sophistication–manual trace adjustments are often necessary for compact layouts.
