Complete Guide to Designing Switching Power Supply Circuit Diagrams

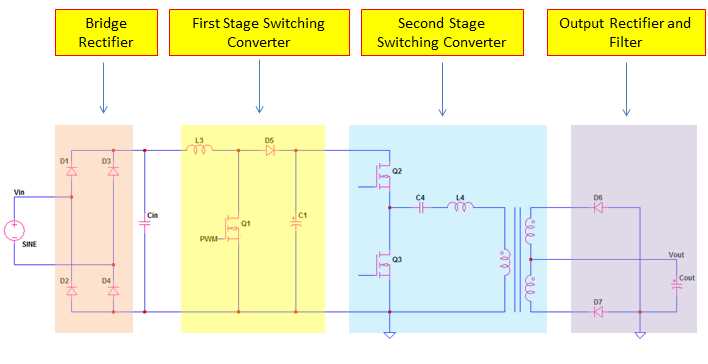

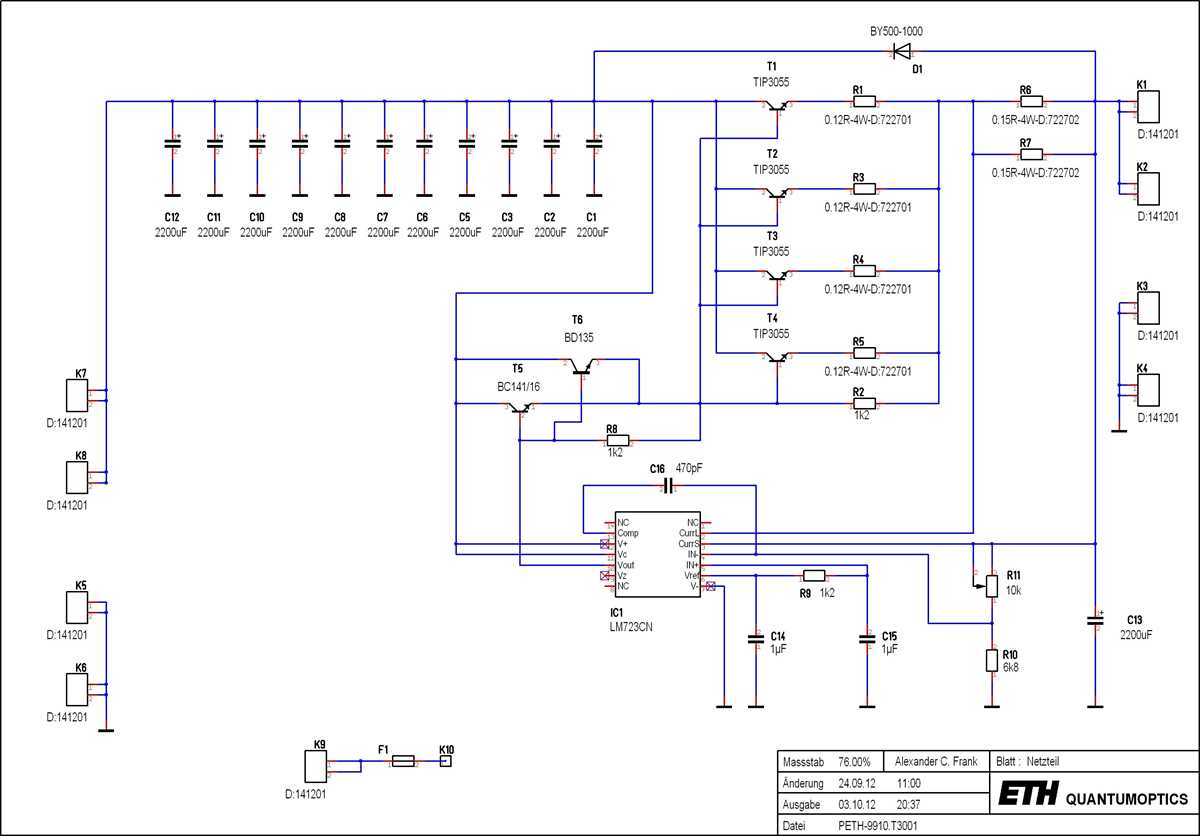

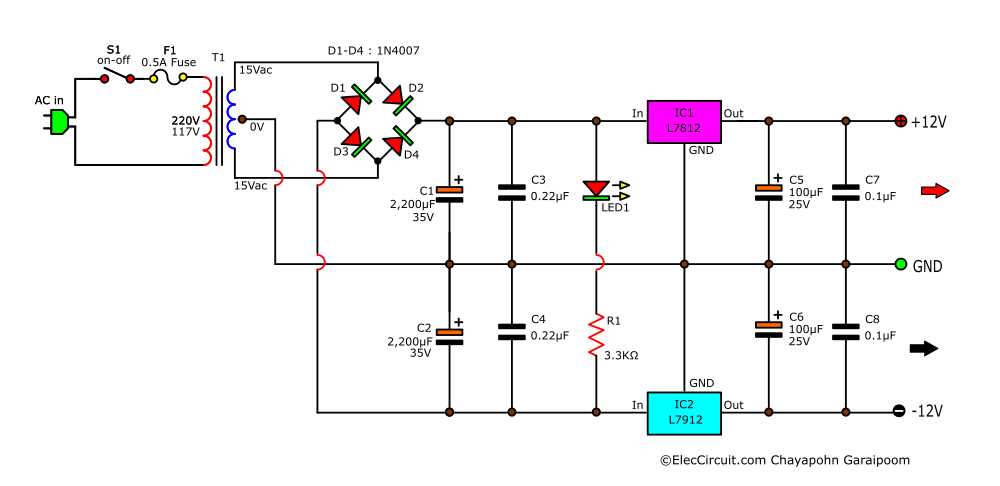

Start with a synchronous rectifier topology for buck or boost regulators when output currents exceed 3A. Replace traditional diodes with low-R_DS(on) MOSFETs (e.g., SiRA22DP or NTMFS4C08N) to reduce conduction losses by up to 40% at 12V/10A loads. Position the inductor (L) within 10mm of the switching node to minimize ringing and EMI. For input capacitors, use high-frequency ceramic types (X7R, 2.2µF–10µF) in parallel with bulk electrolytics to handle ripple current.

Route the feedback loop trace as a Kelvin connection to the output capacitor to avoid measurement errors. Keep the trace width at least 2.5x the copper thickness (e.g., 2oz copper = 3.3mm minimum). Use a dedicated ground plane for the controller IC (LM5141 or TPS51218) to isolate high-frequency currents from analog signals. Place snubber networks (e.g., 22Ω + 1nF) across switching MOSFETs if overshoot exceeds 10% of V_IN.

For multi-layer boards, dedicate the inner layers to high-current paths (V_IN, GND) to reduce inductance. Via stitching with a pitch ≤5mm improves thermal dissipation for components dissipating >1W. For flyback designs, isolate primary and secondary sides with a clearance ≥0.5mm (reinforced isolation per IEC 62368-1). Test the layout with a 20MHz bandwidth oscilloscope probe on the switching node to verify

Select gate resistors (R_g) between 2Ω–10Ω to balance switching speed and ringing. ForGaN devices (EPC2053), reduce R_g to 1Ω to prevent false turn-on. Add a small ferrite bead (e.g., BLM18KG221SN1) in series with V_CC to filter controller noise. In push-pull stages, phase-shift the driving signals by 180° to double effective switching frequency and halve output capacitor ripple.

Designing a High-Frequency Converter Circuit Layout

Start with a synchronous rectifier topology for voltages below 12V to achieve efficiency above 90%. Use MOSFETs with R_DS(on) under 5mΩ (e.g., Infineon OptiMOS or TI NexFET series) paired with a gate driver capable of 4A peak current to minimize switching losses. Place the driver within 1cm of the MOSFET to reduce parasitic inductance–and use a separate 10V bootstrap supply for high-side switches.

For the control loop, prioritize a type-III compensator when using voltage-mode control. The feedback network should include:

• A 2kΩ resistor in series with a 10nF capacitor for the first zero (~8kHz)
• A 15kΩ resistor and 2.2nF capacitor for the second zero (~50kHz)
• A 10kΩ resistor in parallel with a 100pF capacitor to set the high-frequency pole (~1MHz)

This configuration stabilizes the loop with a crossover frequency of 50-70kHz and 60° phase margin. Avoid ceramic capacitors in the feedback path–use film caps to prevent microphonic noise.

PCB layout demands strict separation of analog and switching nodes. Follow these rules:

1. Route the high-current path (input cap → inductor → output cap) on a single layer with 2oz copper to handle 10A+ RMS currents.
2. Keep the switching node (MOSFET drain/source) as small as possible–use vias liberally to distribute current and thermal load.
3. Place the input bulk capacitor (low-ESR aluminum or polymer) within 2mm of the MOSFET’s input terminals.
4. Isolate the feedback trace with a grounded copper pour on both sides to shield against EMI.

Star-ground the signal and power grounds at the output capacitor’s negative terminal to prevent ground loops.

For EMI mitigation, add a common-mode choke (e.g., Würth 74423 series) on the input side and a differential-mode filter (10μH inductor + 1μF capacitor) on the output. Snubber circuits across the MOSFETs–using a 10Ω resistor in series with a 1nF capacitor–reduce voltage spikes caused by parasitic inductance. Test emissions with a spectrum analyzer at 30MHz-1GHz; aim for Class B limits (-40dBμV).

When selecting components, aim for derating: capacitors should operate at ≤50% of rated voltage, FETs at ≤70% of current limits, and magnetics at ≤60% of saturation flux. For example, a 100μH inductor with 40mT saturation can handle 3.5A RMS–choose an amplified version if the design requires 5A. Always verify with a DC bias characterization tool (e.g., Coilcraft’s online calculator) to avoid core saturation during transients.

Critical Elements in a Modern DC Conversion Circuit

Select a high-efficiency MOSFET with a low R_DS(on) (under 50 mΩ for 10A loads) to minimize conduction losses. For 65W adapters, opt for 60V-rated devices like Infineon BSC0906NS or onsemi NTMFS5C604NL to handle transient spikes without derating.

Use an inductor with a saturation current 30-40% above your maximum load current. Core material matters: iron powder (e.g., Micrometals -2) suits 20-100kHz ranges, while ferrite (e.g., TDK PC44) works better above 200kHz. Calculate inductance using the formula:

• L = (V_in × D) / (f_sw × ΔI)
• Where D = duty cycle, f_sw = switching frequency, ΔI = 20-40% of I_out(max)

Choose output capacitors with low ESR (≤ 10 mΩ) to reduce ripple. X5R/X7R ceramic capacitors (e.g., Murata GRM series) outperform electrolytics in high-frequency applications. For 5V/3A outputs, a 22µF capacitor provides ≤ 50mV ripple. Parallel smaller values (e.g., 10µF + 10µF) to further lower ESR.

The controller IC dictates performance limits. For low standby power (

1. Maximum duty cycle (may need external clock sync for >90%)
2. Soft-start time (adjustable via external capacitor, typically 2-10ms)
3. Protection thresholds (overcurrent: 120-150% of I_nom, thermal shutdown: 135-150°C)

Snubber circuits prevent voltage overshoot. Calculate resistor value as R = √(L / C), where L is leakage inductance (measure with a scope). Use 2-5W resistors (e.g., Vishay CRCW) and ceramic capacitors (100-470pF, 250V). For flyback designs, a simple RCD clamp suffices; forward converters often require active clamps (e.g., TI UCC28950).

Feedback network directly impacts load regulation. Opt for

• Type II: 2-pole, 1-zero (C1 = 10nF, R1 = 10kΩ, C2 = 1nF)
• Type III: Additional high-frequency pole (R3 = 2kΩ, C3 = 100pF)

Layout determines EMI and efficiency. Follow these rules:

• Keep switching loops 2 (MOSFET drain → diode cathode → inductor → capacitor)
• Route high di/dt traces (gate drivers, inductors) away from analog signals
• Place input capacitors within 10mm of the controller IC
• Use star grounding for output return paths to avoid ground loops
• Thermal vias (1mm diameter, 2oz copper) for MOSFET pads should touch inner layers

Step-by-Step Assembly of a Flyback Converter Circuit

Begin by selecting a controller IC with isolated feedback capability, such as the LT3748 or UC3843. These chips integrate most critical functions–gate driving, error amplification, and overcurrent protection–reducing external component count. For the transformer, use an EE or EF core (e.g., EE20) with a turns ratio between 5:1 and 10:1, depending on input voltage (12V–48V) and output requirements (5V–24V). Wind the primary with #28 AWG enameled wire and the secondary with #22 AWG or thicker to handle peak currents up to 3A. Ensure 30% margin for insulation between windings to meet UL60950 safety standards.

Critical path components demand precise values. Choose a fast-recovery diode (e.g., STTH3R06) for the secondary rectifier, capable of blocking 2× V_out during flyback spikes. For the primary switch, an N-channel MOSFET (e.g., IPP60R190P6) with R_DS(on) < 0.2Ω minimizes conduction losses. Snubber circuits–RC networks (e.g., 1kΩ + 2.2nF)–across the primary winding and diode suppress voltage ringing, especially at switching frequencies 60kHz–150kHz. Below is a reference table for key components based on output power:

Output Power (W)	Primary Inductance (μH)	MOSFET Voltage Rating (V)	Diode Reverse Voltage (V)	Output Capacitor (μF)
10	50–100	100	60	470
30	20–50	200	100	1000
60	10–30	400	200	2200

During layout, prioritize minimizing loop areas for high-current paths. Place the MOSFET, diode, and transformer as close as possible, using 2oz copper for traces carrying >1A. The feedback network–typically an optocoupler (e.g., PC817) and TL431 shunt regulator–must be isolated from primary-side noise. For stability, add a 1μF ceramic capacitor between the controller’s compensation pin and ground, and a 10nF bypass capacitor near its V_CC pin. Prototype testing should include load-step responses (e.g., 10%–100% load) and thermal profiling of the MOSFET and diode under maximum load conditions.

Common Pitfalls in Circuit Layout Designs for High-Frequency Converters

Neglecting proper ground separation between control and power paths ranks as the most frequent mistake. A single shared return path induces noise coupling, forcing feedback loops into instability. Isolate analog grounds near the controller’s reference pin and tie them to the main return only at one point–preferably the input capacitor’s negative terminal. Failure to do so risks phase margin degradation, audible whine in transformers, or erratic PWM timing.

Oversizing trace widths for high-current nodes invites parasitic inductance, slowing transient response. Copper pours under MOSFETs or diodes should follow the 1 A/mm² rule for 1 oz boards, narrowed to 0.5 A/mm² for 2 oz. Exceeding these limits by even 20% can raise turn-off overshoot to double nominal voltages, triggering avalanche breakdown in 100 V-rated FETs. Use polygon cutouts to prevent thermal runaway and maintain Kelvin connections for gate drives.

Placing filter capacitors too far from switching elements creates voltage spikes. Input bulk caps must sit within 10 mm of the primary FET, while output caps belong 5 mm from rectifiers. Ceramic types (X7R) shrink ESR but lose capacitance under DC bias–derate values by 30% to avoid power sag during load steps. Aluminum electrolytics, though bulkier, tolerate ripple currents better if their ESR curve matches the converter’s frequency.

Ignoring component polarity in magnetics leads to flux imbalance. Toroidal cores require uniform winding distribution; uneven turns cause local saturation at 20% below datasheet ratings. Coupled inductors demand matched wound pairs–any phase mismatch above 5% doubles circulating currents, heating the core beyond Curie limits. Shield windings with a single-layer copper tape grounded at one end to block capacitive noise without forming a shorted turn.

Overlooking thermal reliefs for TO-220 or DPAK packages traps heat, reducing efficiency by 8-12% at full load. Thermal vias under MOSFET tabs should have ≥20 mil holes, filled with solder or thermal compound, spaced ≥1.2 mm apart. Surface-mount pads wider than 3 mm benefit from solder mask-defined openings to prevent tombstoning. Exposed pads on controllers need multiple vias connecting to inner ground planes to dissipate ≥0.5 W without temperature rise exceeding 40 °C.

Skipping layout reviews for creepage and clearance violates safety standards. Primary-to-secondary gaps must meet IEC 60950 (minimum 4 mm) even under conformal coating. Opto-isolators and feedback traces face straight routes without 90° bends, reducing EMI radiation. High-voltage nodes (>400 VDC) require ≥1 mm spacing per 100 V, adjusted upward for humid environments. Failures here pass lab tests but degrade in the field within
