Detailed Guitar Wiring Guide for Gibson Les Paul Schematics

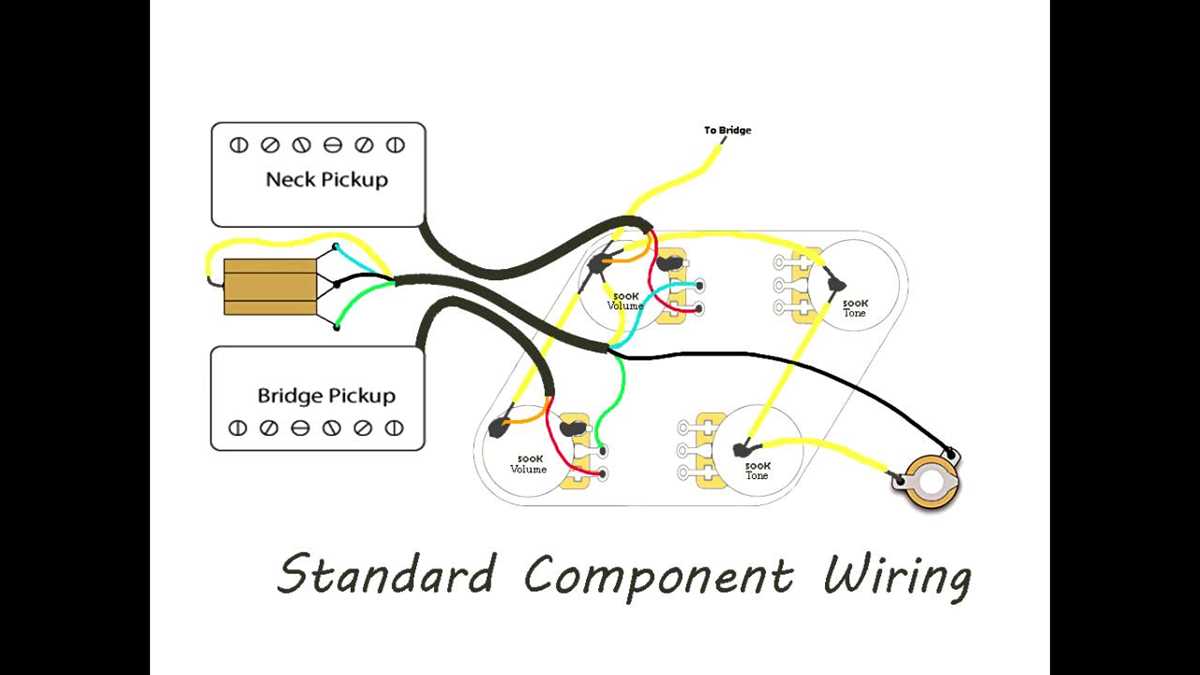

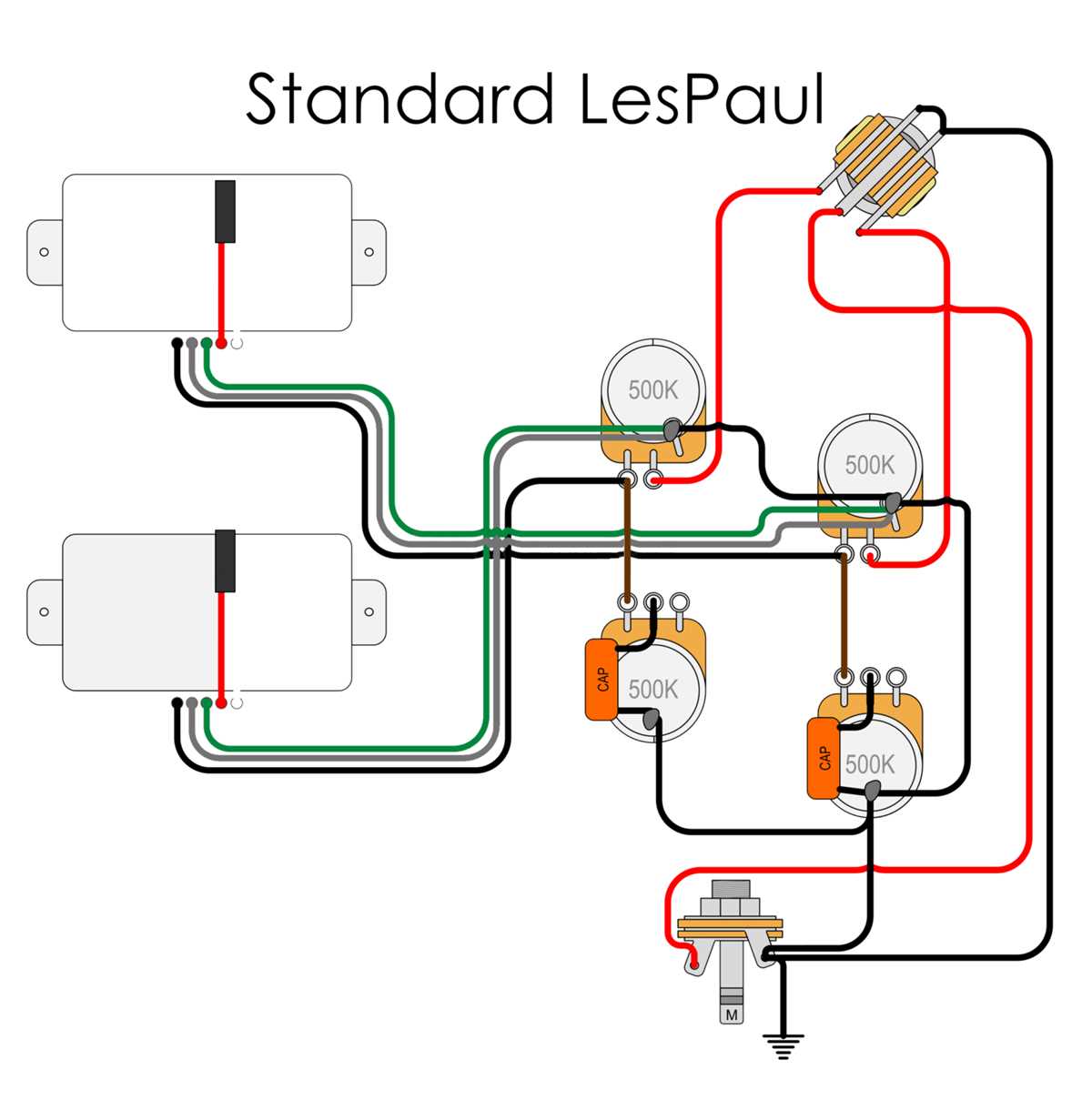

Start by sourcing a high-resolution electrical blueprint for the classic solid-body model. Ensure it includes four critical components: two humbuckers, a three-way toggle, one volume pot per pickup, and a single tone control. Confirm the pots are 500K audio taper–anything less will muddy high frequencies. Connect the bridge pickup’s hot wire to the toggle’s middle lug, then route the neck pickup’s hot to the rear lug. Ground wires from both pickups must terminate at the bridge or tailpiece, never at the pots, to minimize interference.
Use braided shielded cable for all signal paths–standard hookup wire introduces noise. Solder all connections directly to pot casings; avoid terminal strips or quick-connects, which degrade conductivity. For grounding, twist ground wires from pickups and pots into a tight bundle, then secure them to a star-ground point beneath the control cavity. Validate continuity with a multimeter: resistance between any ground point and the bridge should measure less than 1 ohm. Anything above indicates a weak connection needing rework.
If modifying the circuit, retain the original capacitor value (typically 0.022µF for polyfilm or orange drop). Swapping to ceramics alters treble response drastically–only use them if you’re chasing a brighter, more aggressive midrange. For push-pull pots, wire the coil-split so the south coil disengages, preserving output level. Always test phase alignment after splits: strumming open strings should yield near-identical volume with the toggle in the middle position.
Label every wire before disconnecting anything–mark pots clockwise from the lugs. For out-of-phase wiring, flip the start and finish connections of one humbucker’s coil; this cancels bass but sharpens pick attack. Limit parallel resistor loads (e.g., 220K across tone pots) to prevent signal bleed–values exceeding 470K dull highs. If installing treble bleed circuits, pair a 150pF capacitor with a 120K resistor to retain clarity during volume roll-offs.
Understanding the Electrical Blueprint for a Classic Solid-Body Guitar
Begin by soldering the potentiometers directly to the pickup outputs–bypass pre-wired harnesses entirely to eliminate signal degradation from cheap connectors. Use 500k logarithmic pots for standard humbuckers and 250k linear for single-coils if mixing configurations; this preserves tonal balance when splitting coils. Connect the bridge pickup’s hot lead to the volume pot’s input lug, then run a jumper from its wiper lug to the corresponding tone control’s input. Repeat for the neck pickup, ensuring each signal path remains isolated until the output jack.
Avoid ground loops by daisy-chaining all grounds to a single star point–typically the back of the volume pot casing. Secure the cable shield to this point with a solder joint, not a mechanical screw, to prevent intermittent crackle. The bridge’s tailpiece must also attach here via a separate wire; omit this step and hum will infiltrate even shielded pickup cavities.
Install a .022µF capacitor across the tone pot’s outer lugs for a traditional low-pass filter. Use Orange Drop polyfilm or Russian PIO for clarity, but swap to a .047µF for brighter pickups like P-90s to prevent excessive treble loss. Wire the output jack last: connect the output tip to the volume pot’s wiper, then solder the sleeve (ground) to the star point. Verify continuity with a multimeter before reassembling the scratch plate.
For push-pull coil splitting, route one humbucker coil’s start wire to a DPDT on/on switch’s center lug, then connect the finish wire to the switch’s opposite pole. The switch OUTPUT returns to the volume pot’s input lug. This preserves phase coherence when toggling between full and split modes. Test phase alignment by striking harmonics at the 12th fret–out-of-phase signals will sound thin or cancel entirely.
Modify the default 4-conductor wiring to integrate a series/parallel switch by adding a second DPDT push-pull pot. Label each conductor with heat-shrink tubing to avoid confusion during soldering. Series configuration connects the bridge and neck pickups in-line (hot to ground), while parallel joins them side-by-side (hot to hot, ground to ground), reducing output by ~3dB but increasing high-frequency response.
| Component | AWG Gauge | Insulation Type | Temperature Rating |
|---|---|---|---|
| Pickup leads | 22 | Teflon | 200°C |
| Ground wiring | 20 | PVC | 105°C |
| Switch jumper | 24 | Polyurethane | 150°C |
| Capacitor lead | 24 | Silicone | 220°C |
Route all wiring through the control cavity with a minimum 5mm clearance from the potentiometer casings to prevent microphonic feedback. Secure loose strands with a single wrap of electrical tape, not zip ties–resonance from rigid mounts transfers to the body. When installing humbuckers, orient the magnets with North poles facing the strings for consistent magnetic pull; reversing polarity on one pickup induces 60Hz hum when both are active.
Step-by-Step Guide to Assembling a Classic Dual-Pickup Electric Guitar
Start by soldering the ground wire from the bridge pickup to the back of the volume potentiometer’s casing. Use a 25-watt soldering iron with rosin-core solder (60/40 alloy) to ensure a clean, vibration-resistant connection. Heat the pot’s metal housing for 3-5 seconds before applying solder to prevent cold joints. Next, connect the pickup’s hot wire to the input lug of the nearest volume pot–typically the one closest to the bridge. For standard wiring, use 500K audio taper pots for humbuckers, balancing signal strength without excessive treble loss. Route all wires through the control cavity’s channels to avoid interference from body vibrations, keeping the hot signal wire at least 10mm away from grounded components.
Installing Tone Controls and Output Jack
Link the two volume pots with a 0.022µF capacitor between their output lugs to maintain consistent signal phase. Attach the first tone pot’s wiper lug to its own 0.022µF capacitor, then connect the capacitor’s opposite end to ground. Repeat for the second tone control. For the output jack, solder the hot wire to the remaining output lug of the second volume pot, and ground the sleeve to the control cavity’s metal shield or a dedicated ground lug. Test continuity with a multimeter–resistance between the bridge pickup’s ground and output jack sleeve should read below 1 ohm. Secure loose wires with cloth-backed adhesive tape to prevent microphonic feedback.
Advanced Guitar Circuit Adjustments for Single-Coil Tone Options
To enable coil splitting on a dual-humbucker instrument, replace the standard push-pull potentiometer with a DPDT mini-toggle (ON-ON) or a push-pull pot rated at 500K. Connect the outer lugs of the switch to the start and finish legs of each humbucker’s coil–locate these points on the pickup’s underside where the four-conductor wire exits. The center lug should link to the hot output terminal of the volume control. This bypasses one coil when toggled, delivering a brighter, lower-output sound characteristic of P-90 or Strat-style single-coils.
For humbuckers with four-conductor wiring, use this color-code guide to avoid phase cancellation:
- North coil start: Red
- North coil finish: White
- South coil start: Black
- South coil finish: Green
- Ground/shield: Bare or covered in clear tape
Solder the red and green wires together for standard series humbucker operation before connecting to the switch. Twist the white and black wires into a pair, treating them as the split phase–these attach to the outer lugs of the DPDT switch.
Calculate the resistance impact before proceeding. A full humbucker reads ~7.5K–12K ohms; splitting drops impedance to ~3.5K–6K, altering the guitar’s interaction with effects pedals and tube amps. Test the setup with a digital multimeter set to 20K ohms–probe the pickup’s lugs while toggling the switch. The reading should halve when engaged. If not, recheck solder joints and wire polarity.
Add a 0.022µF capacitor across the mini-toggle’s outer lugs to reduce high-frequency noise when split. This mimics the loading effect of the unused coil, preserving tonal balance. For humbuckers with uneven windings (e.g., BurstBucker, Seth Lover), experiment by splitting to the stronger coil–typically the bridge position benefits from the brighter coil, while the neck position favors the warmer one.
Document every connection with a labeled sketch before cutting wires. Use heat-shrink tubing on all solder joints to prevent shorts, especially near the toggle switch’s metal housing. Verify functionality by playing through a clean amp–hum should disappear when splitting, and high-gain tones should retain clarity without muddiness. If unwanted noise persists, route the bare ground wire to a star-ground point on the control cavity’s back rather than the potentiometer case.
Common Pitfalls in Electric Guitar Circuit Mods and Solutions
Incorrect pot values create muddy tones or weak output. Replace 500K pots with 250K for humbucker guitars needing clarity in rhythm playing. Verify resistance with a multimeter before soldering–uneven readings indicate faulty components. Use audio-taper pots for volume controls to preserve high-frequency response during gradual adjustments.
Grounding loops introduce hum in high-gain setups. Ensure all grounds converge at a single point on the bridge or control cavity’s metal wall. Avoid daisy-chaining grounds; instead, solder each wire directly to the common ground. Shield pickup cavities with conductive paint and connect it to the grounding system to reduce interference from fluorescent lights or power sources.
Capacitor Selection Errors
Overlooking capacitor types alters tonal character. Polypropylene caps (.022µF) deliver brighter treble, while ceramic caps dampen highs, causing dullness. Match cap values to pickup impedance: .047µF for single-coils, .022µF for humbuckers. Test caps by tapping with a screwdriver–audible pops confirm proper installation. Replace cracked or discolored caps immediately to prevent signal loss.
Phase cancellation occurs when pickup wires cross or polarity is reversed. Confirm humbucker coils are wired out-of-phase by checking color codes: hot (white) and ground (green) should connect to the same pot terminal. Use a phase tester to detect cancellations; adjust connections until signals align. For parallel wiring, ensure pickup selector switches maintain consistent polarity across all positions.
Loose connections degrade performance. Secure solder joints with rosin-core solder (60/40 alloy) and heat-resistant sleeves. Pre-tin wires and pots to prevent cold joints. After assembly, tug wires gently–any movement indicates poor adhesion. Inspect for stray wire strands causing shorts; trim excess length and wrap exposed wires in heat-shrink tubing for protection.
