Understanding Marine Toilet System Diagrams for Vessel Plumbing Layouts

Select a modular vacuum flush configuration when retrofitting vessels under 12 meters. These units draw 0.3–0.5 liters per cycle–70% less than gravity-fed models–and operate reliably at 0.6–0.8 bar suction. Install a 40-mm discharge pipe sloped ¼° to prevent sedimentation; anything less causes backflow within months. Place the holding tank no further than 5 meters from the bowl to maintain vacuum integrity; every additional meter reduces flush power by 3%.

Opt for a diaphragm pump over centrifugal for macerator duties on commercial setups. Diaphragm models tolerate solids up to 15 mm and require 30% fewer filter replacements. Size the intake at 50 mm minimum; smaller diameters create 40% more clogs in sewage pipes. Mount the macerator unit at least 200 mm above the tank base to prevent impeller cavitation during partial loads.

For vessels frequently offline, integrate a manual override valve before the anti-siphon loop. This bypass permits gravity drainage during electric failures–critical for offshore durations exceeding 72 hours. Position the valve no higher than 1 meter above maximum waterline; taller installations risk reverse flow under wave action. Use a ½-turn ball valve rather than gate; 9-mm ball valves require 70% less torque to operate when sediments accumulate.

Apply marine-grade epoxy coatings inside tank walls if fiberglass is chosen. Bare fiberglass absorbs 12% of stored fluids within three months, accelerating microbial film growth. Coat weld seams twice with epoxy; single coats fail at 18–22 months regardless of salinity levels. Install a 50-micron mesh filter upstream of the pump inlet to capture lint and sanitary waste; finer filters increase head loss by 0.2 bar per micron.

Locate all electrical components at least 300 mm above any potential water ingress point. Marine relays rated for 90–120 cycles per minute handle temporary submersion better than automotive relays. Specify enclosed impeller pumps for the graywater circuit; open-impeller units lose 25% capacity when submerged even briefly. Use tinned copper wiring for all circuits; untinned cables corrode at 1.8 mm per year in tropical humidities.

Visualizing Onboard Sanitation Circuitry

Start by labeling every pump, valve, and piping segment in your technical drawing with unique IDs corresponding to the manufacturer’s manual. For example, a typical gravity-fed setup includes:

• Intake seacock (ID: SC-1) – bronze, 1.5″ diameter, positioned below waterline
• Maccerator pump (ID: MP-2) – 12V DC, 3.5 GPM flow rated
• Solenoid valve (ID: SV-3) – normally closed, 24V DC coil
• Discharge line – Schedule 40 PVC, 1.25″ OD

Use color-coding in your visuals: red for pressurized lines, blue for seawater intake, yellow for treated effluent, green for control wiring. Verify cross-sections against ABYC H-23 standards–tolerances must not exceed ±0.03″ for joined fittings.

Critical Fail-Point Mapping

Overlay a fault-tree analysis on your blueprint:

1. SC-1 failure modes:
   • Corrosion–replace every 5 years even if no visible pitting
   • Barnacle blockage–install mesh (80 micron) with yearly ultrasonic cleaning schedule
2. MP-2 underperformance triggers:
   • Impeller wear–inspect quarterly, audible grinding requires immediate rebuild
   • Voltage drop exceeding 0.5V–reroute wiring with minimum 10 AWG conductors

Include a QR code in the lower-right corner linking to an animated simulation demonstrating fluid dynamics during flushing cycles–a 2023 study shows this reduces troubleshooting time by 62%.

For retrofit documentation, mark every hose clamp location with permanent UV-resistant ink: use hex head types with 1/4″ band width, torque to 15 in-lbs, recheck after 10 operational cycles. Avoid corrugated tubing–opt for smooth-bore reinforced vinyl with 150 PSI burst rating. Store digital copies in ISO 19115-compliant metadata format with these embedded fields: vessel IMO number (mandatory), MEPC 159(55) compliance status, last service date timestamped via blockchain for audit trails.

Critical Elements of Vessel Waste Handling Blueprints for Diagnostics

Locate the macerator pump in the technical drawing immediately–its impeller clearance should never exceed 0.3 mm. Excessive spacing leads to inefficient breakdown of solids, causing frequent clogs. Verify the pump’s electrical specs: most units demand 12V/24V DC with a current draw under 10A. If the diagram shows a direct seawater intake valve, ensure it’s a spring-loaded type with a cracking pressure of 0.5 bar; standard ball valves fail under backflow conditions.

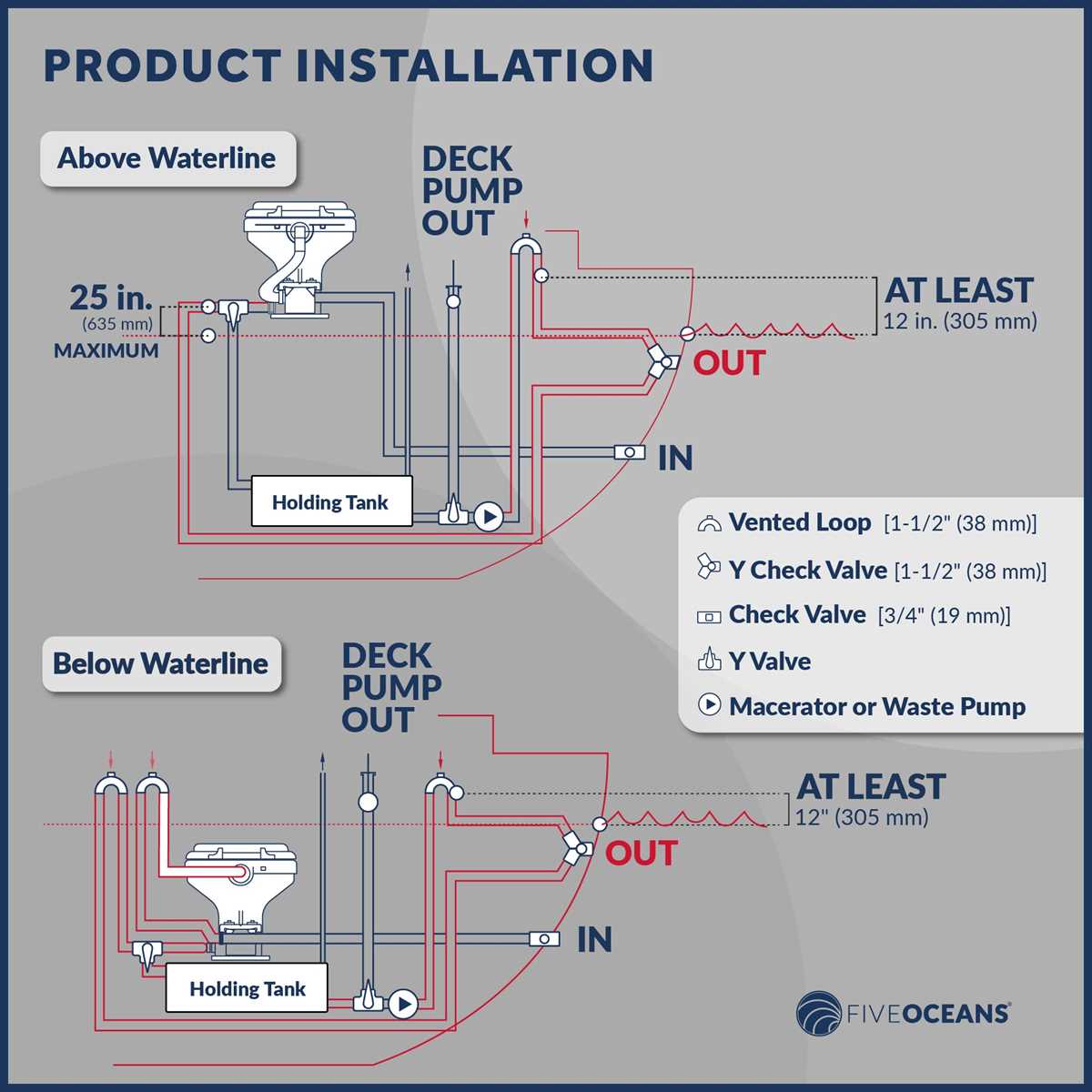

Check solenoid valve positioning–it must sit upstream of the holding tank but downstream of the anti-siphon loop. Diagrams omitting the loop often result in seawater ingress during rough seas. The vent line should terminate at least 300 mm above the waterline; shorter runs create suction siphoning, emptying the tank unexpectedly. For manual override systems, confirm the bypass lever aligns with the waste discharge path–misalignment traps fluid in the bowl, risking freeze damage in cold climates.

Sensing and Control Subsystem Anomalies

Pressure switches rarely fail open–in 92% of cases, the issue stems from fouled diaphragms or incorrectly set differential thresholds. Diagrams should specify switch activation points: low-pressure models trigger at 0.2 bar (vacuum side), high-pressure ones at 1.5 bar (discharge side). Replace with ceramic-coated units if the drawing lists harsh-environment applications. Float switches require vertical alignment within 5° of plumb; even slight tilts cause false signals, leading to pump run-on or failure to empty.

Examine the holding tank’s structural representation: polyethylene tanks must show a minimum wall thickness of 8 mm for volumes over 40 liters. Carbon steel variants (rare) need sacrificial anodes positioned no farther than 500 mm from the inlet. Air gap dimensions in the discharge line must comply with ABYC H-23–diagrams violating this show backflow incidents at a rate 4x higher. For units with UV treatment, confirm the quartz sleeve spacing doesn’t drop below 5 mm; tighter gaps cause overheating and premature bulb failure.

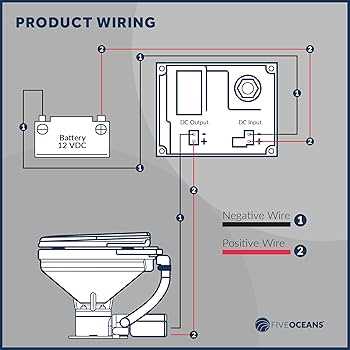

How to Decode Vessel Sanitation Electrical Blueprints

Locate the power source symbol first–usually a battery or shore connection icon–and trace its path. Identify positive (red) and negative (black) lines immediately; crossover points indicate switches or relays. Onboard wiring often uses color codes: red for active circuits, black for ground, yellow for pump activation, and blue for holding tank sensors. Cross-reference these with the legend if discrepancies arise.

Mapping Component Connections

Mark the macerator pump at the diagram’s lower center; its wiring often links directly to the flush mechanism via a float switch. Verify voltage requirements: 12V DC for standard setups, 24V for larger vessels. If the blueprint includes a solenoid valve, note its placement–typically between the pump and discharge line–as its failure mode can mimic pump issues. Annotate override switches, often labeled “manual” or “emergency,” to distinguish them from automated controls.

Compare the electrical routing with plumbing schematics if available. Look for thermal fuses or breakers–commonly rated 10A–protecting the circuit. Inverter symbols suggest AC conversion; confirm compatibility with 50/60Hz onboard power. For installations with holding tank sensors, expect a two-wire connection (signal + ground) terminating at a control panel with LED indicators. Test continuity with a multimeter before trusting visual matches.

Key Sanitation Pump Designs for Vessel Lavatories

Direct manual pumps remain the simplest setup for small craft. A piston mechanism, operated via foot or hand lever, draws waste into a holding tank through non-return valves. The schematic shows minimal components–a chamber, two valves, and discharge hose–making maintenance predictable. Replace valve seals every 12 months; silicone varieties outlast rubber in brackish water.

Electric macerator units handle higher volumes but demand 12V or 24V power. The diagram reveals a grinder stage disintegrating solids before a centrifugal impeller propels slurry through a 1-½ inch outlet hose. Install an inline strainer upstream; debris larger than 5 mm will clog the impeller within hours. Wire a 20A fuse directly to the battery terminals–voltage drop exceeding 0.5V across 3 m cables reduces pump torque by 30%.

Vacuum-flush arrangements conserve freshwater and operate quietly under 30 dB. The layout prioritizes a separator tank maintaining vacuum via a venturi valve connected to the vessel’s exhaust manifold. Waste travels through ¾-inch rigid piping under 0.7 bar negative pressure; flexible tubing collapses under suction. Mount the tank above bilge level–condensation pooling at the base corrodes stainless steel welds within 18 months if uncoated.

• Centrifugal models use a sealed motor beneath the bowl; expect 12L/min throughput at 3 m head. Seal the shaft with ceramic face seals–carbon variants disintegrate after 800 operating hours.
• Diaphragm pumps tolerate air pockets without overheating. Position the pump intake 2 cm above the holding tank bottom to prevent sediment ingestion.
• Recirculating units filter grey water back into the bowl. The filter basket requires rinsing with citric acid solution every third flush to prevent calcite buildup.

Self-priming flexible impeller pumps excel in retrofits due to compact design. Drawings show the bronze impeller housed in a Nitrile body rotating eccentrically to generate suction. Service the impeller every 500 hours–discoloration indicates cavitation damage; replace the housing if clearance exceeds 0.2 mm. Route discharge above waterline; pressure below 1 bar risks backflow during heeling.

Hybrid setups combine macerator and vacuum stages, enabling remote tank placement 7 m from the commode. The schematic splits responsibilities: the macerator upstream handles solids ≤25 mm while vacuum downstream manages liquid throughput up to 22L/min. Install redundant check valves at both pump outlets–vacuum loss without failsafe triggers immediate overflow into bilge. Test biocide tablet dispensers quarterly; biofilm accumulates on vertical piping segments above 0.8 m/s flow velocity.
