Understanding Screw Compressor Schematics and Key Components Layout

Start by identifying the two interlocking rotors–male and female helical profiles–as the core of the mechanical process. The male rotor typically features four lobes, while the female counter-component has six grooves. This 4:6 ratio ensures optimal meshing and minimizes leakage gaps during operation. Select rotors with precise tolerances (≤0.01 mm) to maintain volumetric efficiency above 90% at full load.

Locate the suction and discharge ports in the housing. The inlet should be positioned to maximize airflow entry before the rotors begin compression, while the outlet must align with the compression chamber’s end to prevent backflow. Use asymmetric port designs to reduce noise by up to 5 dB compared to symmetric alternatives. Ensure the suction filter (minimum 10 micron rating) is directly upstream to protect rotors from particulate damage.

Integrate a slide valve or lift valve mechanism for capacity control. A slide valve system adjusts volumetric output by shifting the suction port, offering 10–100% stepless modulation with ±1% accuracy. Alternatively, a lift valve provides discrete control but may introduce pressure spikes during cycling. Prioritize slide valves for applications requiring frequent load adjustments.

Include an oil separation system with a minimum three-stage process: coarse separation via centrifugal force, intermediate filtration using coalescing elements (99.9% efficiency at 1 micron), and final polishing through activated carbon or zeolite. Oil carryover should not exceed 5 ppm to prevent downstream equipment fouling. Use synthetic PAG or POE oils with viscosities between 46–100 cSt at 40°C for optimal lubrication and heat dissipation.

Design the cooling circuit with an aftercooler capable of reducing discharge air temperature to ≤10°C above ambient. For water-cooled units, maintain a heat exchanger effectiveness of ≥0.85. Air-cooled variants require a finned tube heat sink with a minimum 50 m² surface area per 100 kW of power input. Monitor interstage pressures–normal operation should show a 3:1 compression ratio per stage.

Incorporate vibration sensors on both rotor shafts and thrust bearings. Misalignment exceeding 0.05 mm in the coupling or worn bearings (threshold: ≥0.1 mm gaps) will trigger premature fatigue. Use thermocouples at the discharge port and oil sump; temperatures above 105°C indicate insufficient cooling or excessive oil degradation. For variable-speed drives, ensure the inverter’s switching frequency (typically 2–8 kHz) avoids rotor resonance frequencies (calculated as n × rotational speed/60, where n = number of lobes).

Understanding the Visual Blueprint of Rotary Twin-Shaft Machines

Begin by identifying the inlet and discharge ports on any illustrated layout–these are typically marked with directional arrows or color gradients (blue for suction, red for output). Ensure the suction port aligns with a minimum 1.5x intake diameter clearance from surrounding components to prevent flow restrictions that increase thermal load by up to 12%. Verify compressor housing tolerances; a clearance of 0.03–0.05 mm between helical rotors and casing walls prevents leakage while maintaining volumetric efficiency above 90%.

Examine the oil injection points–critical for temperature control and sealing–positioned along the rotor path at intervals of 90–120° rotation. Each injection nozzle should deliver 8–10 liters per minute at 4–6 bar, cooled to 50–60°C before entry, preventing viscosity breakdown and extending bearing life to 40,000+ hours. Confirm the separation tank’s position downstream; its cyclone design must achieve ≤5 ppm oil carryover to avoid fouling downstream heat exchangers or process lines.

Key Component Placement for Optimal Performance

Locator pins or dowels on the rotor assembly drawing indicate precise rotor alignment; misalignment by even 0.02 mm reduces isentropic efficiency by 3–5%. The male rotor typically has 4 lobes, the female 6, meshing at 50–60 Hz with a 1:1.5 gear ratio–this configuration balances compression ratios (3:1–12:1) without excessive torsional vibration. Check thrust bearings on both ends; axial displacement beyond 0.01 mm triggers automatic shutdown via proximity sensors integrated into the control panel schematic.

Unloader valves, if present, operate at 70–80% of full load, controlled via PID loops to prevent pressure spikes exceeding 10 bar. Their positioning adjacent to the discharge port ensures immediate response–delays longer than 0.3 seconds risk system surges damaging reed valves. Electrical wiring traces should demonstrate separation between motor windings (Class F insulation minimum) and compressor electronics, with shielded cables for variable-frequency drives to mitigate harmonic interference above 5 kHz.

Pressure transducers require calibration every 2,000 hours–drifts beyond ±0.5% invalidate performance maps causing inefficient loading cycles. Inspect the intercooler’s heat exchange surface area on drawings; undersized units (below 0.25 m² per kW) fail to drop discharge temperatures below 90°C, accelerating oil degradation. Finally, confirm condensate drains are routed away from electrical enclosures with a minimum 2% slope; standing water risks corrosion in aluminum components within 12–18 months.

Silencers attached to both suction and discharge ports reduce noise by 18–22 dB(A)–ensure their internal baffles are constructed from perforated stainless steel (75–85% open area) to avoid clogging from residual particles. Vibration isolators between the baseplate and enclosure frame must comply with ISO 10816-1, tolerating amplitudes below 4.5 mm/s RMS; exceeding this threshold indicates rotor imbalance requiring dynamic balancing within tolerance of G2.5 or better.

Key Components Illustrated in a Rotary Helical Machine Blueprint

Start by identifying the male and female rotors–core elements distinguishing this design. The male rotor typically features four lobes, while the female counterpart has six grooves. Their helical shapes interlock precisely, forcing gas inward as they rotate, minimizing clearance and maximizing volumetric efficiency. Ensure the blueprint clearly labels rotor pitch angle (commonly 30°–60°) and length-to-diameter ratio (often 1.2–1.8), as these dictate compression performance and oil carryover.

Locate the suction and discharge ports immediately–positioned at opposite ends of the housing. The intake port should cover approximately 180° of the rotor circumference, optimized for low-pressure gas entry without turbulence. The discharge port design demands attention: radial or axial layouts influence noise levels and adiabatic efficiency. Verify port geometries align with ISO 5388 standards to prevent backflow and pressure spikes.

• Bearings: Dual tapered roller bearings support axial loads, while cylindrical roller bearings handle radial forces. Blueprints must specify preload values (0.02–0.05 mm typical) to prevent rotor misalignment at high speeds (3,000–12,000 RPM).
• Seals: Labyrinth seals at the shaft ends prevent lubricant migration; mechanical seals are critical in oil-free variants. Check seal clearance (0.1–0.3 mm) and material compatibility (e.g., carbon graphite for high-temperature applications).
• Oil injection system: If present, map the injection ports (usually 3–5 along the rotor length). Flow rates (5–15% of gas volume) and temperature control (±2°C) directly impact thermal stability.

Examine the slide valve or capacity control mechanism–typically a servo-driven component adjusting the effective rotor length. Blueprints should detail its travel limits (20–30% of full load range) and response time (

Cross-reference the housing cooling channels–liquid-jacketed designs require precise path routing to avoid dead zones. Verify jacket pressure ratings (usually 1.5× maximum discharge pressure) and fluid compatibility (glycol-based for sub-zero applications). Omission of cooling details in the drawing risks thermal distortion and accelerated wear.

Step-by-Step Assembly of a Twin-Rotor Air End from Technical Blueprint

Begin by securing the male rotor horizontally in a precision vise, ensuring the helical lobes align with the reference lines marked on the housing flange. Apply a torque of 120–150 Nm to the flange bolts in a cross-pattern sequence to prevent warping; use a calibrated torque wrench with ±2% accuracy. Verify axial clearance between the rotors and casing with a 0.03 mm feeler gauge–adjust shims if measurements exceed specifications.

Critical Alignment Checks

Component Pair	Tool Required	Tolerance (mm)	Adjustment Method
Male-Female Rotor Mesh	Dial Indicator (0.01 mm)	0.02–0.04	Shim stack at drive end
Rotor-Housing Radial Gap	Bore Gauge	0.05–0.08	Honing or selective assembly
Axial Endplay	Depth Micrometer	0.01–0.03	Adjust thrust bearing preload

Install the female rotor by engaging the timing gears–ensure the marked teeth align perfectly to maintain phase synchronization. Lubricate the bearings with ISO VG 46 synthetic oil before seating them in the housing bores; use an arbor press to apply even pressure (300–400 N) and avoid brinelling. Finalize assembly by mounting the discharge silencer, verifying that the internal baffles correspond to the flow paths indicated by blue arrows on the technical drawings.

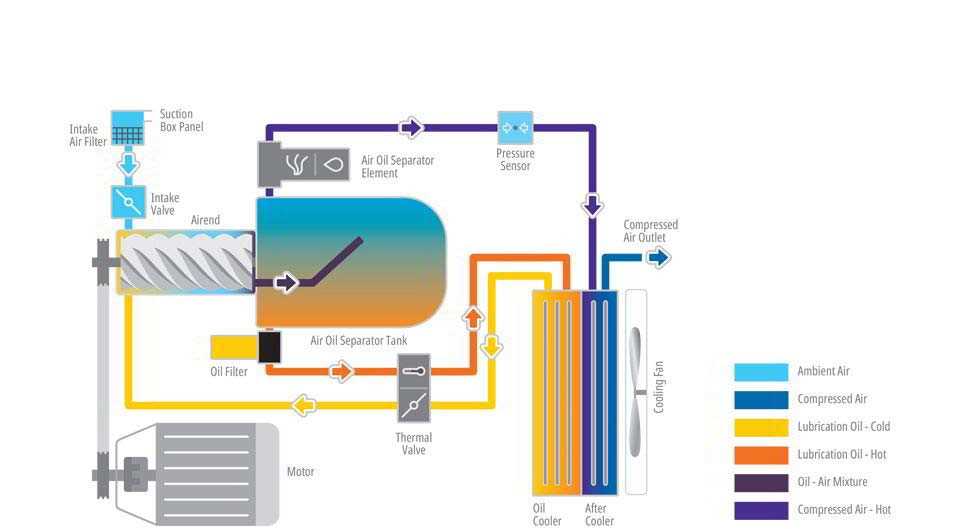

How to Trace Air and Lubricant Flow in Technical Blueprints

Locate the intake port first–marked by arrows or labels such as “Suction” or “Inlet”–usually positioned at the top left of the illustration. Air enters here and follows thick solid or dashed lines (often blue or green) toward the compression chamber. Check for directional indicators: arrows should point away from the inlet, guiding you along the primary pathway. If the lines split, prioritize the branch leading to the largest cylindrical housing, as this is the core working section where gas is pressurized.

Oil circulation routes appear distinctly from airflow. Look for:

• Separate conduits (thin or dotted lines, frequently red or brown)
• Labels like “Oil Injection,” “Separator Tank,” or “Cooler”
• Multiple entry points into the compression zone

Oil is injected near the compression stage to seal gaps and absorb heat, then extracted post-compression. Follow the path backward to identify the source (often a reservoir or pump symbol) and forward to spot the filtration/separation unit before the lubricant cycles again.

Cross-reference symbols with the legend if available. Standard markings include:

• Valves: triangular shapes or T-junctions
• Pumps: circular or oval icons with blades/impellers
• Coolers: zigzag or finned patterns
• Filters: diamond or box outlines with crossed lines

Air paths typically merge with oil at the compression stage but diverge afterward–air moves to discharge ports (designated “Outlet” or “Delivery”), while lubricant returns to the tank via dedicated loops.

Verify flow continuity by ensuring every line reconnects. Interrupted or isolated segments signal errors in interpretation. Use a highlighter to physically trace paths on paper copies: blue for air, red for oil. Digital tools like PDF annotators work similarly. If arrows conflict, defer to temperature/pressure annotations–higher values confirm compressed air or post-cooling stages, while lower readings indicate intake or pre-process zones.
