Understanding Common Schematic Symbols in Electrical Circuit Design

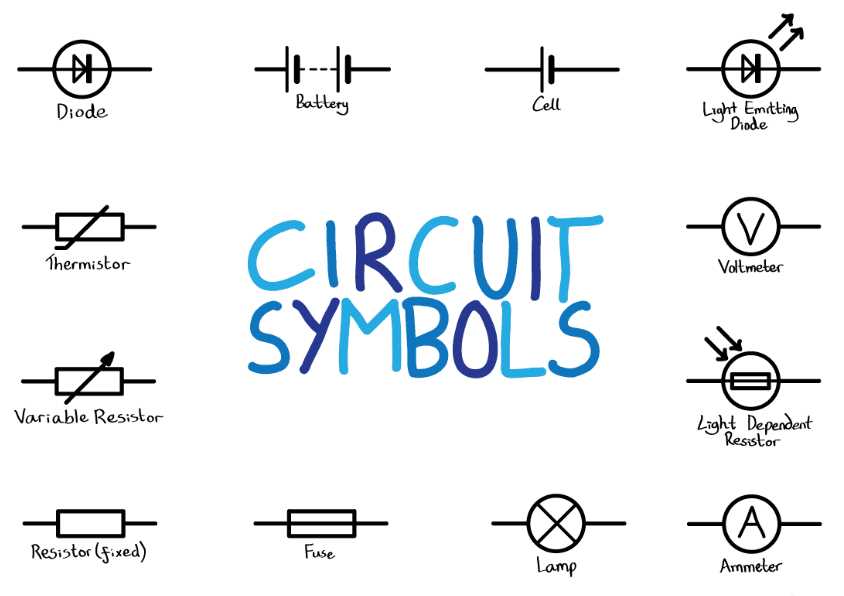

Start by memorizing five core glyphs–resistor (zigzag line), capacitor (parallel lines), inductor (coiled line), battery (unequal lines), and transistor (triangle-bar trio)–these form 80% of every board layout. Pair each glyph with its standard label (R1, C5, Q3) immediately to prevent confusion when tracing paths.
For integrated circuits, count pins clockwise from a dot or notch; miscounting flips power-ground connections, guaranteed rework. Keep a separate legend for logic gates: AND (flat arc), OR (curved arc), NOT (triangle-dot); confusion here hides short-circuit risks.
Ground symbols vary–three horizontal bars equal earth ground, a downward triangle signals chassis ground, a single bar denotes signal ground–mixing them invites noise or worse, permanent damage. Always verify dual-rail setups with a multimeter before applying power.
Avoid relying on software libraries alone; hand-sketch each new glyph at least twice to embed muscle memory. Cross-reference ANSI and IEC standards–ANS uses rectangles for op-amps, IEC opts for triangles–both appear in datasheets; inconsistencies here stall prototype assembly.
Keep a hyper-specific reference sheet taped above your workbench: diode direction (striped cathode), MOSFET gate-source-drain order, jumper connections (crossed lines with a dot intersection)–a 5-second glance prevents hours of debugging.
Graphical Representations in Electrical Blueprints
Start by memorizing core component icons like resistors (zigzag line), capacitors (parallel lines), and inductors (coiled wire) as they form the foundation of any technical drawing. For resistors, mark the value directly above or beside the graphical element using Ω notation (e.g., 10kΩ), while polarized capacitors require clear “+” annotation on the schematic layout. Transistors should always indicate emitter, base, and collector leads with standardized arrow directions to prevent miswiring.
Label all power rails distinctly–VDD for positive supply and VSS/GND for reference or negative–using bold, uppercase letters at both ends of connections. This eliminates ambiguity when tracing signal paths across complex blueprints. For integrated circuits, document pin numbers next to each terminal and cross-reference them with component datasheets during prototyping. Use dotted lines to represent shielded cables or Faraday cages, ensuring proper isolation notation.
Adopt unified conventions for switches (SPST/SPDT) and relays, depicting their normal state as open or closed based on rest position. Potentiometers warrant dual labels: the nominal resistance (e.g., 10k) and wiper adjustment direction (shown via a diagonal arrow). When incorporating sensors like thermistors or photodiodes, include directional arrows or polarity symbols to clarify their sensing orientation relative to the circuit flow.
Customize fault-tolerant representations by adding dashed rectangles around redundant components or critical safety mechanisms (e.g., fuses, varistors). Color-code sections using consistent hues–red for high-voltage paths, blue for signaling, and black for ground–to aid rapid visual parsing. Generate a legend in the documentation correlating each color, shape, and annotation to its functional purpose, ensuring scalability for future revisions.
Standard Notations for Passive Elements and Their Key Deviations

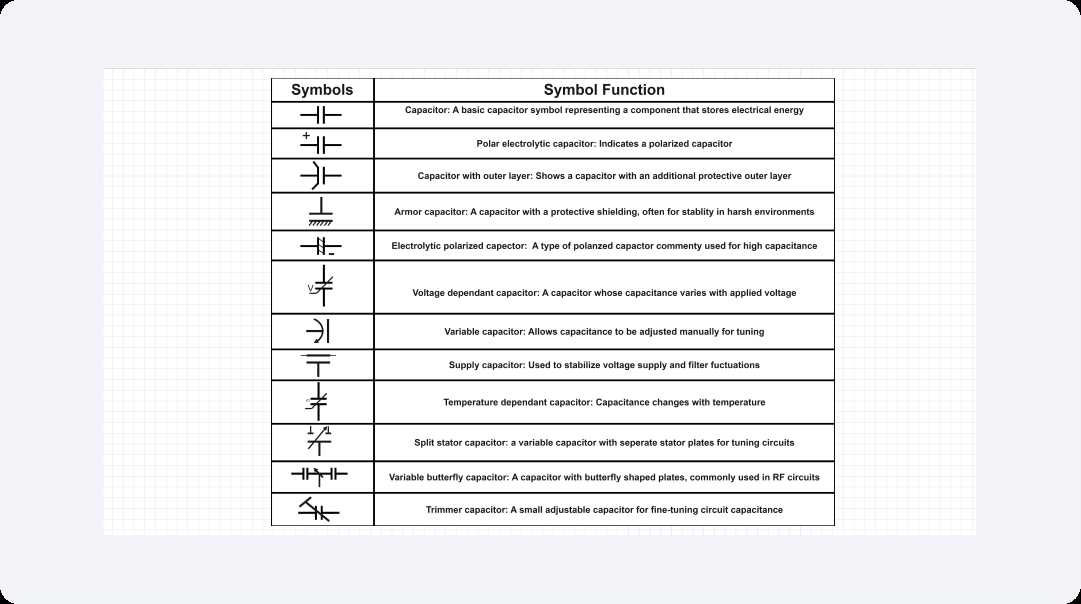

Always prioritize IEC 60617 or ANSI/IEEE Std 315 standards when selecting graphical representations for resistors, capacitors, and inductors–these minimize misinterpretation across global engineering teams. For resistors, the rectangular IEC shape (⎐) with resistance value inside is mandatory for precision applications, while the zigzag ANSI variant (⚟) persists in legacy documentation; avoid mixing them in the same project. Non-polarized capacitors use parallel lines (⏜) with spacing indicating dielectric type (e.g., wider gaps for film, narrower for ceramic), while electrolytic types require a “+” marker on the positive terminal; misplacing this marker risks reversed bias failures in production.
Variations by Region and Application
European schematics often include a slash through inductor coils (ϸ) to denote adjustable cores, a detail frequently omitted in North American drafts where only the coil (⌳) is standard–clarify this in cross-regional collaborations to prevent procurement errors for variable inductors. Military-grade and aerospace blueprints may append a dot to capacitor plates (⏝̇) to indicate polarity visually; omit this only if the adjacent text explicitly specifies non-polarized parts. For SMD components, use compact variants: a lowercase “r” disrupts lines for resistors (─r─), while capacitors shrink to a single thick line (─═─); these conserve space but demand consistent scaling to avoid misreading 0402 vs 0603 footprints.
Thermistors and varistors diverge with unique indicators: NTC thermistors overlay a T (⎐⏜T), PTC types mirror this with a “+” (⎐⏜+), and varistors append a V (⎐⏜V). Memristors, though rare, adopt a diagonal arrow intersecting the resistor bar (⍣); mark these distinctly to prevent confusion with potentiometers, which use an arrow penetrating the side (⎐⎍). Always cross-reference with manufacturer datasheets–some vendors introduce proprietary deviations (e.g., photoresistors use a circle around the resistor bar), and failing to note these overrides can invalidate automated BOM generation tools.

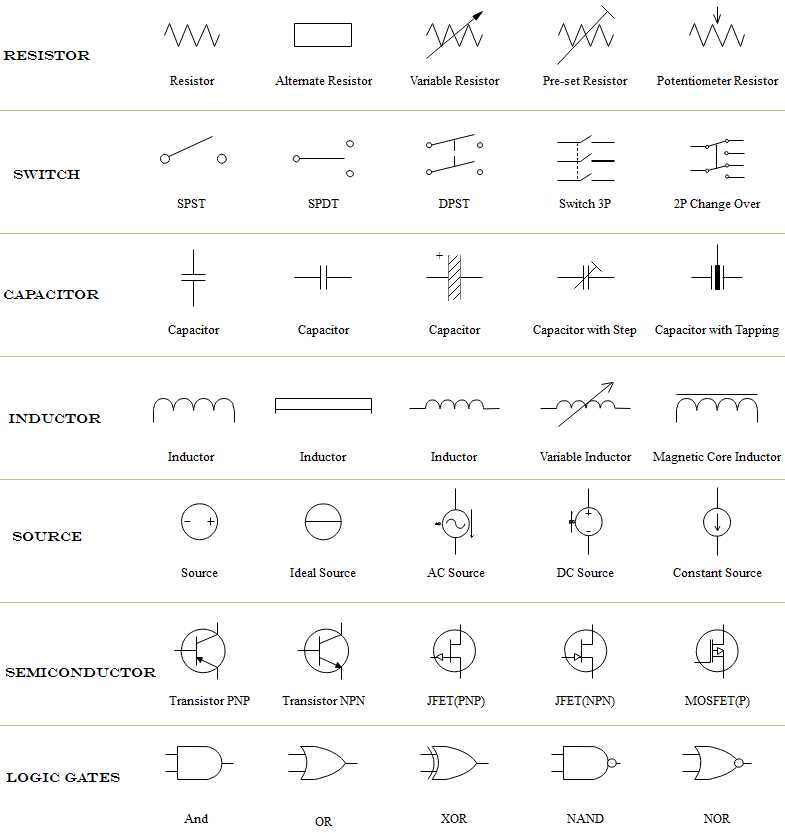

How to Distinguish Resistor, Capacitor, and Inductor Glyphs
Memorize the core shapes first: resistors appear as a straight or zigzag line, capacitors display two parallel lines (sometimes curved for polarized variants), and inductors resemble coiled loops. Use these base forms as anchors–any variations will branch from these templates. For resistors, note that the zigzag pattern may be replaced by an empty rectangle in some standards, while inductors might include a magnetic core depicted as a dashed line through the coils.
- Resistors: Check for a series of sharp angles or a plain rectangle. Precision models may include numeric values inside or adjacent to the glyph.
- Capacitors: Look for dual lines, sometimes with one curved for electrolytic types. Variable capacitors add an arrow diagonally across both lines.
- Inductors: Identify the distinctive spiral or series of half-circles. Saturable inductors may show a core line intersecting the coils to indicate material properties.
Active Component Icons in Electronic Blueprints
Begin by adopting standardized transistor shapes–BJTs require a straight line for the collector, a diagonal arrow for the emitter (pointing inward for PNP, outward for NPN), and a perpendicular base. MOSFETs split into depletion and enhancement types: the former uses a continuous channel line, the latter a dashed gap between source and drain. Always verify gate polarity: an inward arrow denotes N-channel, outward marks P-channel. Misorientation causes misinterpretation in high-speed or power designs where pinch-off voltage thresholds dictate performance.
Diodes present fewer variants but critical distinctions. Standard PN junctions show a triangle meeting a vertical line; Zener types add a small perpendicular bar at the cathode end, while Schottky diodes bend the vertical line into an arc. Light-emitting variants replace the line with two outward arrows. Place the anode (triangle base) upstream for correct forward bias–an error here in rectifier layouts wastes 0.7V silicon potential. For transient protection circuits, TVS diode symbols swap the triangle for a double-line enclosed rectangle, indicating bidirectional clamping.
| Component | Key Visual Marker | Critical Placement Rule |
|---|---|---|
| BJT (NPN) | Arrow on emitter (outward) | Base lead perpendicular to collector/emitter axis |
| Enhancement MOSFET | Dashed channel between S/D | Gate symbol closest to source |
| Zener Diode | Perpendicular bar at cathode | Reverse bias cathode downstream |
| Thyristor (SCR) | Arced gate connection | Gate arrow points to cathode side |
Integrated circuit outlines demand concise pin labeling. Digital logic ICs like the 7400 series use a squat rectangle with evenly spaced leads–number inputs sequentially from top-left (pin 1) clockwise. Analog chips such as op-amps display an offset triangle: inputs on the inverted (–) and non-inverted (+) sides, output at the apex. Power ICs (LDOs, buck converters) often feature a thermal tab symbol–a thick vertical line beside the package outline–indicating metal-topped TO-220 or QFN packages where PCB heat-sinking determines current ratings.
For mixed-signal chips combining ADCs/DACs, annotate power rails: VDD typically sits above ground (VSS) on dual-supply symbols. Crystal oscillators add two opposing arrows intersecting a rectangle, with load capacitors (CL) explicitly drawn even if internal to avoid startup failures. Always cross-check manufacturer datasheets–some fabs invert voltage regulator feedback polarity symbols, potentially inverting loop stability.
Surface-mount vs through-hole variants rarely change core symbol geometry but frequently adjust pin spacing in layout views. QFN packets add dotted circles for exposed pads, distinguishing them from BGA ball grids which use solid circles. Double-gate MOSFETs in RF circuits stack two gate inputs vertically; interchanging them in a 50Ω matching network distorts gain flatness across UHF bands. Rotate symbols 90° counter-clockwise only when necessary–text orientation must remain horizontal for readability.
