Complete Guide to Semi Trailer 7 Pin Wiring Schematic Installation

Start by verifying ground connection integrity. Corrosion or loose mounting at the primary grounding point (typically the white wire) accounts for over 60% of intermittent faults in commercial tow setups. Use a brass-bristle brush to clean the chassis contact area and apply dielectric grease before securing with a torque of 12-15 Nm. Mismatched grounding causes voltage drop across lighting circuits, leading to bulb burnout or flickering.

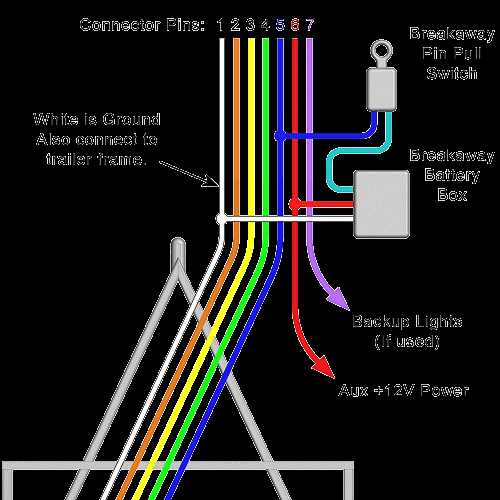

Follow the color-coded standard for North American configurations: yellow (left turn/stop), green (right turn/stop), brown (tail/marker), white (ground), blue (electric brake), red (auxiliary power), black (12V+ hot lead). European variants swap brown and black; confirm label alignment before splicing. Incorrect pairing between brake and signal wires risks controller damage on vehicles equipped with ABS modules.

Install an inline circuit protector rated for 30A continuous on the power feed (black wire). Use 12-gauge wire for primary circuits and 14-gauge for auxiliary feeds. Maintain a bend radius no tighter than 4x cable diameter at junction points to prevent insulation cracks. Replace factory crimp connectors with soldered joints for towing applications exceeding 10,000 lbs gross weight; vibration loosens crimps over time.

Test voltage drop under load using a multimeter. Probe the input terminal and feed destination with all lights and brake system activated; deflection should not exceed 0.5V. Excessive drop indicates undersized wiring or poor junction conductivity. For trailers equipped with hydraulic brake actuators, ensure the blue circuit delivers 12V pulsing current at 2-4 amps; continuous activation triggers fault codes in modern ECUs.

Insulate connections with heat-shrink tubing featuring adhesive lining. Avoid electrical tape for prolonged outdoor exposure; UV degradation causes adhesion failure within 12-18 months. Seal unused connector pins with silicone dielectric compound to prevent moisture ingress. Periodic inspection intervals should coincide with routine brake maintenance–inspect every 3,000 miles for heavy-use scenarios.

Electrical Connection Guide for Heavy-Duty Vehicle Plugs

Begin by matching the color-coded wires to their corresponding functions before securing connections. Standard configurations follow this layout:

• White: Ground (minimum 12 AWG wire gauge)
• Brown: Tail/running lights (maximum 2.5 amps per circuit)
• Green: Right turn/brake signal (LED-compatible, 7.5 amp fuse)
• Yellow: Left turn/brake signal (identical specs to green)
• Blue: Electric brakes (12V DC, requires 30-amp relay)
• Red: Auxiliary power (up to 40 amps, separate 40A breaker)
• Black: Reverse lights (10 amp fuse, connects to backup switch)

Use waterproof heat-shrink connectors for all exposed joints and verify voltage drops across each circuit with a multimeter–no more than 0.5V loss under load is acceptable. For ABS systems, dedicate the blue wire to brake module power exclusively, avoiding shared circuits to prevent signal interference.

Before finalizing, test all lighting sequences in this order: tail lights, brake lights, turn signals (independent and simultaneous), then reverse lights. Apply dielectric grease to plug contacts to prevent corrosion–particularly critical for the blue wire due to brake module sensitivity. Replace any plug showing signs of pitting or oxidation immediately; even minor resistance can trigger fault codes in modern braking systems. For air brake-equipped vehicles, cross-check the blue wire’s continuity with the tractor’s ECU to ensure proper trailer recognition.

Secure harnesses every 18 inches along the frame using UV-resistant zip ties, avoiding sharp edges or moving parts. Route auxiliary power (red wire) through a dedicated 12V-12V isolator if connecting to refrigeration units–direct hookups risk battery drain. When troubleshooting, prioritize checking the ground connection first; 80% of electrical issues stem from poor grounding. For international compatibility, note ISO 7638 mandates a separate 5-pin connector for ABS, though North American setups often repurpose the existing 7-connector blue wire.

Understanding Roles in a 7-Way Heavy-Duty Vehicle Plug

Check the center contact first–it’s live at all times and supplies continuous power to auxiliary systems like interior lights or charging circuits in attached cargo modules. Label this connection clearly, as accidental grounding can trip the main breaker or drain the vehicle’s battery overnight.

Grounding terminals occupy the outer casing and one designated slot; verify conductivity by testing for less than 0.5 ohms resistance between each pin and chassis metal. Use tinned copper wire no smaller than 10 AWG here to prevent voltage drop under heavy loads.

The remaining five contacts handle turn indicators, brake lights, reverse lamps, and two spare channels whose functions vary by manufacturer. Consult the build sheet or standardized color codes: yellow for left turn/brake, green for right turn/brake, brown for running lights, white for backup lamps, and blue or red for auxiliary circuits.

Ring-test each contact with a 12V probe before attaching cables–mismatched assignments risk blowing fuses, damaging relays, or triggering false ABS errors. For bent connectors, straighten prongs gently with needle-nose pliers, ensuring a 90-degree angle to the socket base for secure mating.

Water ingress degrades connections; apply dielectric grease after every inspection, especially if operating in humid climates or off-road environments where spray exposure is frequent. Replace cracked housings immediately–corrosion on brass contacts spreads quickly to adjacent circuits.

Leverage a multimeter’s continuity mode to trace circuits back to the source if symptoms occur only under specific conditions (e.g., flickering markers when brakes are applied). Common faults include intermittent shorts in door-mounted switches or faulty RPM-sensing relays that trigger tail circuits incorrectly.

Keep a reference card clipped inside the towing vehicle’s glovebox detailing voltage readings under load: running lights should pull ~2.1A, turn signals ~4.2A, and brakes ~8.5A. Deviations indicate aging bulbs, corroded splices, or undersized wiring–address immediately to prevent overheating and fire risk.

Step-by-Step Guide to Connecting Heavy-Duty Vehicle Electrical Systems

Begin by verifying the connector type on your commercial transport and matching cargo module–most European models use ISO 1185, while North American setups follow SAE J560 standards. Identify the 7-point harness layout before proceeding; incorrect alignment can damage ABS, turn signals, or marker lamps immediately upon activation.

Use a multimeter to check for voltage (12V or 24V) at each terminal before connecting wires–this prevents shorts in charging circuits or lighting arrays. Test the ground wire first (typically white or black) by probing the chassis connection; resistance should read near zero ohms. Poor grounding causes intermittent failures in even the most robust systems.

Label each wire with heat-shrink tubing or cable markers according to this standard color scheme:

Color	Function	Voltage (DC)
Yellow	Left turn signal	12/24
Green	Right turn signal	12/24
Brown	Tail/license plate lamps	12/24
White	Ground	0
Red	Brake lights	12/24
Black	Auxiliary power	12/24
Blue	Reverse lamps/ABS	12/24

Strip 5mm of insulation from each conductor, then crimp with gold-plated connectors–tin-plated variants corrode within months in humid conditions. For heavy-duty applications, solder all connections after crimping; this prevents vibration-induced failures common in agricultural or logging equipment.

Troubleshooting Cross-Wired Circuits

If turn signals flash abnormally, disconnect both units and re-check polarity–swapped yellow and green wires cause hyper-flashing on one side. For dim or flickering lamps, inspect the brown wire connection at the junction box; loose terminals increase resistance, reducing brightness by up to 40%. ABS-equipped rigs require uninterrupted blue wire continuity; any break triggers dashboard warnings even if braking remains functional.

Route wires through corrugated loom (minimum 12mm diameter) and secure every 30cm with nylon clamps–not zip ties, which degrade under UV exposure. Avoid sharp edges or exhaust components within 15cm to prevent chafing. Finally, apply dielectric grease to the connector housing before mating; this blocks moisture that leads to terminal corrosion within 18-24 months.

Diagnosing Electrical Problems in Heavy-Duty Towing Connections

Check for corrosion on the plug contacts first–discoloration or pitting disrupts voltage transfer even under light oxidation. Use dielectric grease after cleaning to prevent future buildup; standard contact cleaner removes impurities without damaging insulation. If voltage tests show abnormal resistance at the coupling, verify wire gauge matches commercial towing standards–undersized cables overheat and fail under 24V loads.

Ground loops create phantom failures in lighting circuits. Measure resistance from the vehicle chassis to the return path–values above 0.5 ohms indicate poor grounding. Corrosion-resistant terminals (tin-plated copper) outlast bare brass in road salt exposure by 60%. Replace any connector showing green oxidation within 30 miles of detection to avoid intermittent brake light malfunctions.

Intermittent turn signals often trace to loose sockets or fractured conductors inside cable jackets. Flex each wire near connector entry while observing bulb activation–breakage appears as erratic flickering. For hidden fractures, slice through the outer sheath 6 inches from the plug and expose inner cores; wrap the repair with heat-shrink tubing rated for 125°C continuous operation.

Reverse polarity checks are mandatory after connector rewiring. Insert a multimeter probe into socket recess contacting the pin tip; voltage polarity must match International Organization for Standardization standard 1185-1:2015. Incorrect polarity burns out ABS modules in under 90 seconds–fuse link installation prevents catastrophic failure during polarity testing.

LED upgrades frequently trigger false bulb failure alerts on newer tractors. Install a 60-ohm load resistor across LED fixture terminals to simulate incandescent current draw. Ensure resistors handle 5 watts dissipation minimum; undersized units melt within 4 minutes under continuous braking.

Moisture ingress causes 80% of roadside failures. Inject silicone dielectric compound into plug cavities after each disconnect; avoid petroleum-based lubricants that degrade thermoplastic insulation. Replace cracked weatherproof boots immediately–UV exposure accelerates degradation, reducing boot lifespan to 2,500 operational hours.

• Test trailer side circuits independently from the truck–activate each function (running lights, right turn) while stationed.
• Measure current draw: 21-watt incandescent bulbs pull 1.75A; modern LED assemblies draw 0.25A per fixture.
• Verify tractor-side fuse integrity–blown 10A fuses indicate short circuits requiring wire routing inspection.

Overloaded circuits manifest as dim lighting or melted connector housings. Confirm total power draw remains below 80% of connector rating (20A continuous for 7-way harnesses). Distribute lighting loads across multiple circuits–central tail lights should never exceed 7.5A combined draw on a single return path.
