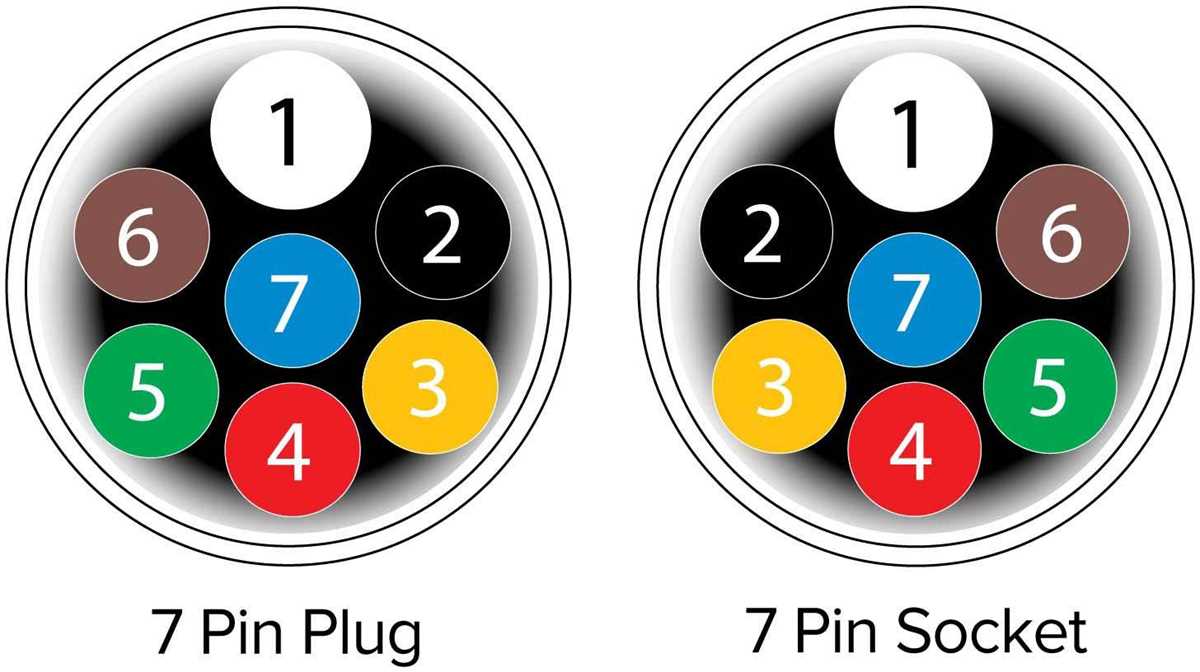

Complete 7-Pin Trailer Wiring Harness Diagram and Connection Guide
Begin by sourcing a verified reference chart–either a printed pocket guide or a PDF from a manufacturer like Curt, Hopkins, or Pollak. Printed copies prevent screen glare errors during field connections, while digital files should be stored offline to avoid loss if mobile networks fail. Cross-reference three independent sources before trusting any single schematic to rule out legacy discrepancies in older models.
Use a multimeter in continuity mode, not voltage, to map each terminal. Probe the vehicle-side socket first: pin 1 (marked by a white stripe or embossed “1”) delivers 12V auxiliary power for trailer brakes or interior lights, though some utilities omit this on European-style adapters. Probe the ground contact next–often the center stud–for zero-ohm resistance against the chassis; corrosion here mimics broken circuits during backup camera tests.
Label every cable with heat-shrink sleeves before severing the factory end. White wires denote brake controllers, brown carries running lights, yellow manages left turn/stops, green right turn/stops, blue toggles electric brakes, red feeds auxiliary (unless fused through the trailer socket directly), and black acts as the primary hot lead (always routed through a circuit breaker rated 30A). Test each color against the SAE J2863 standard to intercept common miswired brake controllers.
Avoid silicone sprays on terminal blocks; use dielectric grease instead to block moisture ingress without creating a conductive film. Twist stranded cores 180° before inserting into spade receptacles to ensure gas-tight connections resistant to vibration-induced loosening. Inspect for nicks after each tug test–minimum pull strength: 15 lbs–for crimped joints or soldered alternatives, backed by a de-soldered verification if using flux-core 60/40.
Store spare harness segments inside a sealed polyethylene bag with a silica desiccant packet. Conduct seasonal resistance audits using a clamp meter clamped around the entire harness–not individual wires–targeting >1 MΩ when dry,
Understanding 7-Way Trailer Electrical Connections

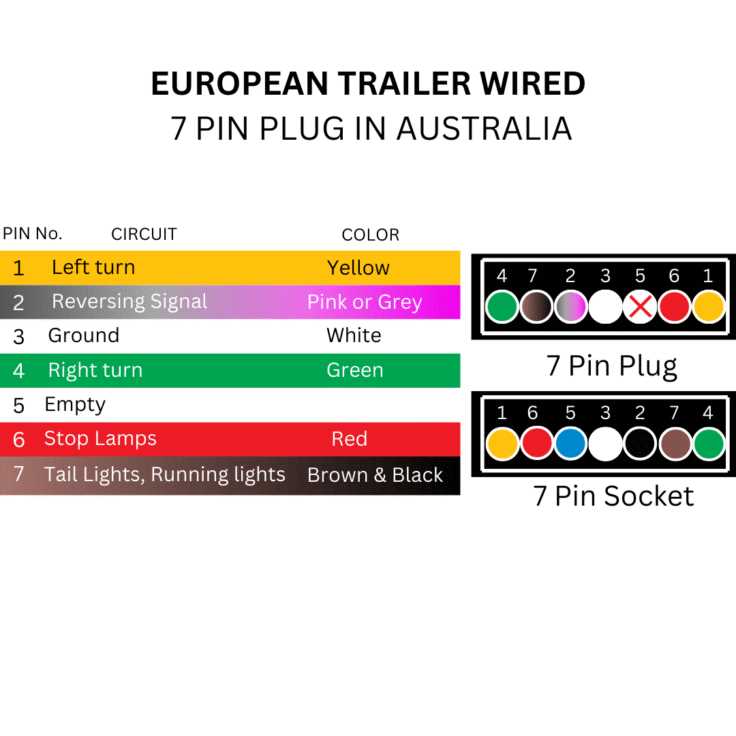

Prioritize color-coding your connectors before installation. Use yellow for left turn/brake, green for right turn/brake, brown for tail lights, white as ground, blue for electric brakes, red or black for auxiliary power, and black for reverse lights. Verify compatibility with SAE J2863 standards if towing mixed equipment–some European trailers follow ISO 1724 instead. For heavy-duty applications, upgrade gauge thickness: 14 AWG for lighting circuits, 10 AWG for brake controllers, and 8 AWG for power outputs. Install a relay if auxiliary circuits draw over 20 amps to prevent overheating.
Troubleshooting Common Issues
Check voltage drops with a multimeter between the tow vehicle and trailer–anything below 12V indicates corroded terminals or undersized cables. Replace factory connectors if oxidation appears; marine-grade sealed units resist moisture better. For intermittent lighting failures, test continuity while wiggling connections–broken strands require full wire replacement, not splicing. If brakes engage erratically, inspect the controller’s gain settings and ensure the blue wire carries 12V only during activation. Never exceed 40A total draw on standard connectors; upgrade to Anderson plugs for demands above this threshold.
Decoding the Circuits in Your Trailer Plug Configuration
Always verify voltage on the ground circuit before connecting any live leads–most failures stem from faulty grounding, not broken wires. Use a multimeter set to ohms or continuity mode; probe between the connector’s frame ground (typically the center post or largest terminal) and the vehicle’s bare metal chassis. A reading above 0.5 ohms indicates corrosion, loose connections, or damaged cable sheathing that must be rectified before proceeding.
Assign each conduit according to its standardized function–confusion leads to reverse polarity or short circuits. Below is the expected mapping for a standard 7-way connector:
| Circuit Color | Function | Voltage (Nominal) | Fusing Requirement |
|---|---|---|---|
| White | Chassis return (ground) | 0V | None |
| Brown | Running lamps | 12V | 10A |
| Yellow | Left turn/brake signal | 12V pulsed | 15A |
| Green | Right turn/brake signal | 12V pulsed | 15A |
| Blue | Electric brake controller | 12V modulated | 20A |
| Black | Battery charge line | 12V–14.4V | 30A |
| Red (or Purple) | Reverse lamps/auxiliary | 12V | 10A |
Route the black (charge) conduit through a relay only if the trailer has deep-cycle batteries–direct connection without a relay risks overcharging and boiling electrolyte. Mount the relay near the tow vehicle’s battery, using 10-gauge wire minimum; thinner wire creates voltage drop under load. Confirm the relay’s coil draws less than 0.2A to avoid draining the starting battery during extended parking.
Isolate the brake circuit with a dedicated controller calibrated to the trailer’s gross mass–undersized controllers overheat, oversized units lock wheels prematurely. Set proportional gain between 3.0 and 5.0 for most tandem-axle trailers; trailers under 2,000 kg may require gain as low as 1.5. Always test controller response on gravel before highway speeds–sharp deceleration without wheel chatter confirms proper tuning.
How to Wire a Trailer Connector to Your Car: Detailed Steps
Start by matching the colored cables inside the plug to the corresponding terminals on your vehicle’s socket using a multimeter. Test each wire by setting the meter to continuity mode–touch the probe to the exposed copper at the plug end and the other to the socket terminal. A beep confirms correct pairing. Standard color codes apply:
- Yellow: Left turn/brake signal (typically connected to terminal 1)
- Green: Right turn/brake signal (terminal 4)
- Brown: Tail/running lights (terminal 5)
- White: Ground (terminal 6–ensure a clean, rust-free connection to chassis)
- Blue: Electric brakes (terminal 2–only for trailer brake controllers)
- Black: 12V auxiliary power (terminal 7–protect with a fuse)
Strip 5mm of insulation from each wire end using wire strippers, twist the copper strands tightly, and tin them with solder if available. Twist-on connectors work for quick installations, but soldered joints resist vibration better for heavy loads. Crimp connectors must be secured with heat-shrink tubing to prevent moisture corrosion. Insert each prepared wire into its designated terminal and tighten the screw or clamp until snug–avoid overtightening, which can cut the wire.
Verify ground integrity by connecting the white wire to a bare metal point on the vehicle’s frame, not a painted surface. A weak ground causes flickering lights or intermittent brake signals. For auxiliary circuits (black wire), install a 15–20 amp fuse within 18 inches of the battery to prevent short-circuit fires. Route all cables away from sharp edges, hot exhaust pipes, or moving suspension parts using loom tubing or zip ties spaced every 12 inches.
After securing all connections, apply dielectric grease to the plug terminals to block moisture. Snap the plug into the socket and test every function with a trailer simulator or by connecting a tester light to each circuit. Check for proper voltage (12V at brake signals, 12V constant for auxiliary) and ensure no terminals show voltage drop exceeding 0.5V. If brakes are installed, activate the controller to confirm the blue wire pulses current during test stops.
For vehicles with integrated trailer modules (common in modern trucks), consult the manual to bypass or reprogram the module if error codes appear. Some systems require a load resistor on turn signal circuits to mimic a bulb’s resistance–omit this step only if the vehicle doesn’t monitor trailer lights. Recheck all connections after 50 miles of towing; vibrations can loosen improperly secured wires.
Store spare connectors and a circuit tester in your toolkit. Corrosion is inevitable–clean terminals with contact cleaner if lights dim or flicker. Replace cracked or melted plugs immediately; they’re a fire hazard under load. For auction-purchased trailers, verify the wiring matches your vehicle before towing–mismatched configurations can burn out fuses or damage controllers.
Diagnosing Problems in Vehicle Trailer Connections
Check for corrosion on contacts first–clean terminals with a wire brush and dielectric grease if oxidation is present. Corroded connections cause intermittent failures, especially in wet conditions.
Test voltage at each circuit using a multimeter while activating corresponding lights or functions. Readings below 10.5V at the plug indicate a faulty ground, blown fuse, or broken wire in the bundle.
- Left turn signal: 2.1-2.5 ohms
- Right turn signal: 2.1-2.5 ohms
- Brake lights: 1.8-2.2 ohms
- Tail lights: 3.5-4.0 ohms
- Reverse lights: 0.5-0.8 ohms
- Electric brakes: 3.0-6.0 ohms
- Auxiliary power: 0 ohms (direct feed)
Inspect fuses for continuity if functions fail completely–replace with identical amperage. Common fuse ratings include 15A for lighting circuits and 30A for brake controllers.
Trace individual conductors from the plug to the vehicle’s junction box using a tone generator if a specific circuit is dead. Listen for the signal through a probe; silence pinpoints the break.
Verify trailer-side connector compatibility–some older trailers use 6-way round plugs instead of the flat blade configuration. Adapter cables exist for mismatched connections.
Examine the bundle’s outer sheath for cracks where wires enter the plug or along the frame. Reinforce exposed sections with heat-shrink tubing and zip ties to prevent chafing against metal edges.
For intermittent brake controller issues, adjust gain settings incrementally while monitoring trailer brakes–excessive gain causes lockup, while insufficient gain leads to weak braking.
