Complete Seymour Duncan Pickup Wiring Guide with Colors and Diagrams
For split-coil humbucker setups, connect the series link to the pickup’s middle lug while grounding the outer lug to the baseplate. This preserves hum cancellation without sacrificing single-coil clarity. Use 250k pots for brighter tones or 500k if reducing high-end harshness is a priority–pre-wired harnesses often default incorrectly here.
Avoid soldering directly to the pot casing; instead, use a dedicated ground wire to the back of the volume knob. This prevents unwanted microphonics and ensures consistent shielding. If using a push-pull pot for coil-splitting, wire the switch to disengage one coil by breaking the connection to the hot output–grounding the unused coil introduces noise.
For out-of-phase wiring in HSS configurations, reverse the magnet polarity of the middle pickup (or flip its leads) and connect the finish output to the bridge’s phase switch. This creates a nasally, aggressive tone ideal for rhythm work. Test phase alignment with a multimeter–proper cancellation should read near-zero DC resistance between pickups.
Use braided shielded wire for output connections to the jack, keeping the braid grounded at one end only. Twist signal wires tightly to reduce interference, especially in high-gain applications. For active electronics, bypass the onboard preamp’s ground to avoid loops–connect directly to the battery’s negative terminal.
Dual-humbucker setups benefit from a 3-way toggle with a parallel/split/series switch. Wire the middle position to split both humbuckers via individual mini-switches, preserving hum cancellation while enabling pseudo-single-coil tones. Always use ceramic disc caps for tone circuits (0.022µF for brighter cuts, 0.047µF for warmer rolls).
Custom Humbucker Installation Schematic Guide
Start by matching the pickup’s color-coded leads to the potentiometer terminals: solder the core wire (typically white or yellow) to the volume pot’s input lug (lug 2), while grounding the bare shield wire to the back of the pot casing. For series wiring on a 4-conductor humbucker, connect the red and white wires together at the pickup’s base before routing the black wire to the tone pot’s input lug–this preserves high-end clarity while canceling hum. Use a 500k audio taper pot for humbuckers to maintain balanced frequency response at lower volumes; linear taper pots will unevenly attenuate treble frequencies.
For parallel wiring, split the coil by linking the red and green wires to the switch, leaving white and black free–this reduces output by ~30% but retains single-coil articulation. Avoid soldering directly to toggle switches; instead, use a short jumper wire to prevent overheating the delicate phenolic switch contacts. Always twist stranded wires 3-4mm before tinning to prevent frayed strands from creating shorts, and test continuity with a multimeter before reassembling the guitar to confirm no bridges exist between hot and ground circuits.

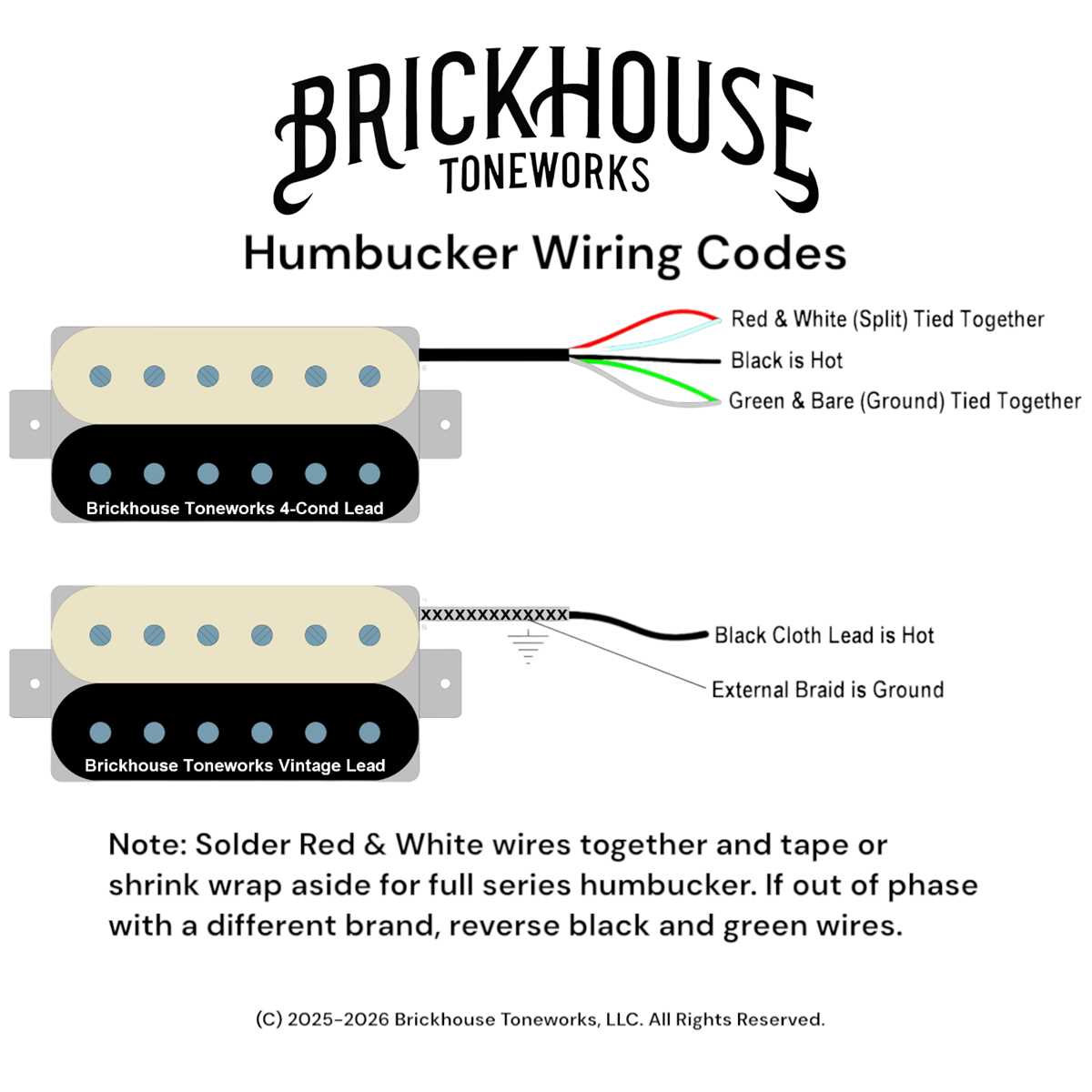

Decoding Pickup Manufacturer Color Codes for Precision Installation
Begin by identifying the four-core wire scheme used in most humbucking pickups. The standard anatomy includes:
- Hot lead (signal output): Typically white or cream, though black is used in some models
- Ground reference: Usually green, sometimes bare wire
- Coil start/finish: One coil uses red, the other black (or both may use red and white in reversed configurations)
- Coil tap selector: Often yellow, though not present in all models
Verify polarization before soldering: connect a 1.5V battery to the green (ground) and white (hot) wires momentarily. If the pickup emits a pop or click when touching strings, the phases are correct. For out-of-phase results, swap the red and black coil wires–this preserves hum cancellation while correcting tone.
For split-coil operations, follow this sequence: solder the yellow wire (if present) to a push/pull pot’s lug 3 or a dedicated switch. The remaining wires–typically red and white–function as the split signal path, with green remaining grounded. Avoid heat damage by using 25W-40W irons and 60/40 rosin-core solder, applying heat for no more than 3 seconds per joint.
Tolerance variations exist across production batches. Always cross-reference the resistance values printed on the pickup’s spec sheet (e.g., 8.1kΩ for a vintage output, 16.2kΩ for high-gain models) with your multimeter readings. A deviation exceeding ±5% indicates either miswired coils or internal damage. For aged pickups, examine insulation integrity–frayed wire jackets near solder points require heat-shrink tubing reinforcement to prevent short circuits.
Hum-canceling configurations demand polarized orientation. Mount north- and south-pole pickups in adjacent positions with reversed wiring (hot and ground swapped). Use a continuity tester to confirm no signal interference before finalizing installation. For neck/bridge combinations, match the former’s black wire to the bridge’s red wire–this maintains tonal balance while eliminating 60-cycle hum.
Step-by-Step Installation Schematics for Single-Coil Tone Sensors
Begin by mapping the guitar’s electronic cavity to locate the potentiometers, output jack, and grounding points. Use a multimeter to verify continuity–ground wires should register near 0 ohms when touching the bridge or shielding. Pre-tin all connection points with rosin-core solder to minimize oxidation risk during assembly.
For standard Stratocaster setups, connect the neck sensor’s hot lead to the middle lug of a 250K audio taper pot, reserving the first lug for the tone capacitor (typically 0.022µF or 0.047µF). Route the bridge sensor directly to its volume control if using a two-pickup configuration, ensuring the selector switch aligns with the correct terminals.
Grounding and Shielding Techniques
| Component | Recommended Gauge | Connection Method |
|---|---|---|
| Ground wire | 22 AWG braided | Solder to back of pot casing |
| Pickup casing | N/A | Bridge to shield via copper tape |
| Output jack sleeve | 18 AWG solid | Star-ground to bridge cluster |
Isolate pickup cavities with adhesive copper foil, overlapping seams by 3mm to block interference. Terminate all grounding paths at a single central point–typically the bridge ground lug–to eliminate hum loops. Avoid twist-lock jacks in noisy environments; their design exacerbates signal bleed.
Capacitor and Resistor Pairings
Match tone capacitors to pickup output: vintage treble-heavy units pair with 0.022µF polyfilm, while modern high-output designs benefit from 0.047µF orange drop capacitors. For hum-canceling variants, add a 150K resistor across the volume pot’s first and third lugs to preserve high-frequency response when rolling back volume.
For parallel coil setups, wire the neck sensor’s negative terminal to the bridge sensor’s positive lead via a push-pull pot’s DPDT switch. This configuration retains single-coil clarity while enabling out-of-phase tones. Label all wires with heat-shrink tubing before soldering to prevent mid-assembly confusion.
Test phasing immediately after initial connections by strumming open strings while toggling positions. If hum persists in parallel modes, reverse the bridge sensor’s magnet orientation or flip its polarity by swapping hot and ground leads. Store unused wires coiled in the control cavity to maintain signal integrity.
For guitars with active electronics, substitute the standard pots with 500K linear taper versions and reduce the tone capacitor to 0.01µF to prevent high-end loss. Always shield battery compartments with foil-lined enclosures to prevent RF interference from mobile devices.
Common Humbucker Pickup Circuit Variations Demystified
For optimal hum cancellation in standard two-conductor setups, connect the finish lead of one coil to the start lead of the opposite coil–this series link (4-wire) reduces hum while maintaining full output. Parallel wiring splits coils into separate paths, lowering impedance for a brighter tone with honest Fender-style clarity but slightly weaker string articulation. For coil-splitting, wire the finish lead of the active coil to the selector switch (send it to ground when disengaged)–a 500k push-pull pot works best here, preserving treble response without muddiness.
Tapped Humbuckers: Quick Reference for Tone Shaping
Use a mini-toggle for series-parallel switching to retain low-end punch while engaging single-coil chime–a 0.22µF cap between leads prevents popping. For phase inversion, swap hot and ground on one coil only; this cancels fundamentals for funk-friendly midrange honk. Ensure solders on bridge-ground connections remain cold-resistant (silver-bearing alloy) to prevent microphonics at high gain settings.
Resolving Hum and Buzz in Pickup Installations
Start by verifying the ground connection at the volume pot’s casing. A poorly soldered or fractured joint here introduces 60-cycle hum even in passive circuits. Use a multimeter in continuity mode to confirm contact between the pot’s metal tab and the guitar’s bridge or control cavity shielding. If resistance exceeds 0.5 ohms, reflow the solder joint with 63/37 tin-lead alloy–avoid high-temperature irons (over 350°C) to prevent lifting traces on backward-printed circuit boards.
Check the string ground wire for oxidation at the bridge saddle. Chrome-plated steel saddles corrode faster than brass; scrape the contact surface with 800-grit wet/dry sandpaper before reattaching the braided wire. Ensure the wire’s bare end makes contact with at least 80% of the saddle’s underside–threaded inserts (common on modern bridges) require an additional ground lug soldered directly to the baseplate.
Isolate shielded cables where they pass through tight routs. Frayed shielding rubs against uncoated wood or ferrule edges, creating intermittent shorts. Wrap exposed sections in self-fusing silicone tape (3M-44), then secure with heat-shrink tubing–discard zip ties, as they compress shielding unevenly. For guitars with active electronics, separate audio signal grounds (star grounding) from chassis grounds to eliminate ground loops.
Test potentiometer values under load. A 250k audio taper pot reads ~245kΩ when measured cold but drops to ~5-10kΩ with a 1MΩ test signal applied. If readings fluctuate, the carbon track is degraded; replace the pot rather than cleaning sliders, which temporarily masks the issue. For noiseless setups, use 1% tolerance resistors in parallel to split-phase humbucker coils–match values within 5% to maintain coil integrity.
Inspect output jack sleeve contact for tarnish. Gold-plated jacks oxidize at the base; remove with a DeoxIT applicator, not abrasives, to avoid thinning the plating. Ensure the ground wire connects to the jack’s ring terminal–swapping with the tip terminal inverts signal polarity, canceling hum in single-coil configurations but inducing noise in hum-canceling circuits.
Verify pickup selector switch continuity across all positions. Rotary switches (e.g., Les Paul styles) develop open circuits between wafers; apply contact cleaner (CRC-2905) while toggling rapidly 20-30 times. For toggle switches, solder the middle lug last–applying heat to adjacent lugs first prevents flux migration into the switch body, which causes silent positions. Replace switches if resistance exceeds 2Ω between poles.
Use a non-conductive pickguard (nitrocellulose or PVC) to rule out capacitive coupling. Metallic pickguards (aluminum, brass) require full shielding (copper foil, 2 mils thick) grounded at a single point–avoid daisy-chaining grounds, as this creates antenna loops. For guitars with covered pickups, ensure the metal cover connects to the baseplate with a dedicated ground wire; floating covers act as RF collectors, amplifying buzz in high-gain settings.
