How to Read and Design Shop Electrical Wiring Layouts Step by Step

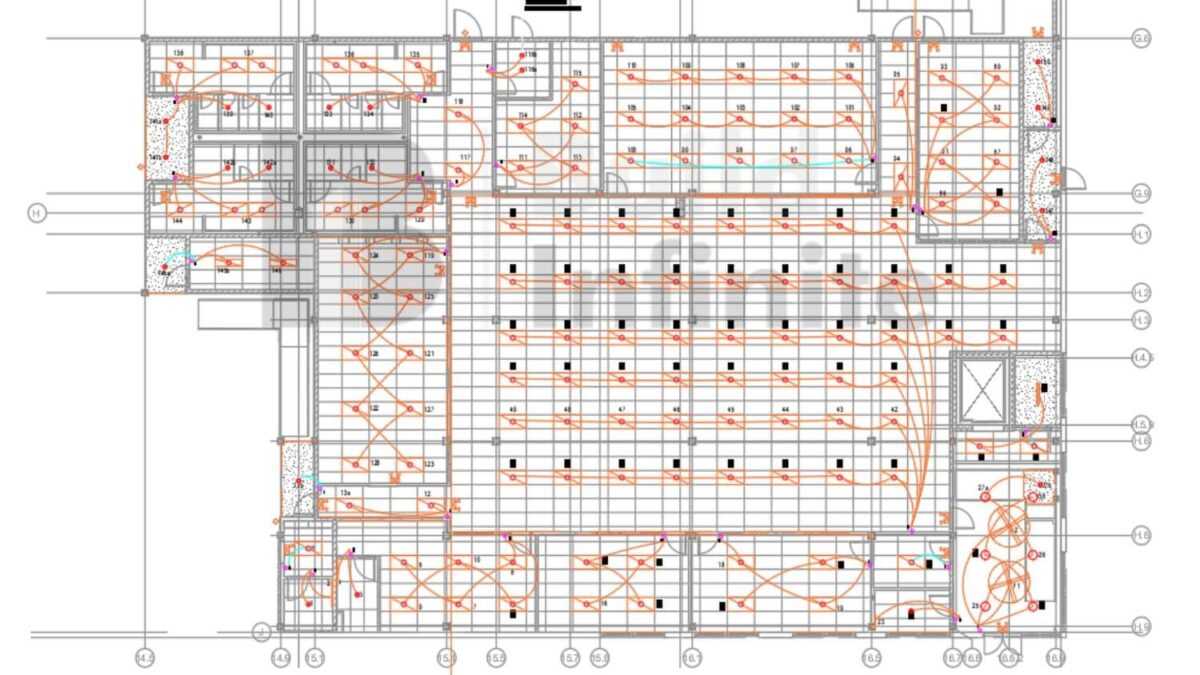

Start by sketching a scaled floor plan of the premises, marking all outlets, lighting points, and heavy-duty appliances. Allocate separate circuits for refrigeration units, climate control, and security systems–each rated for at least 20% above peak load to prevent tripping. Use 12-gauge copper cable for general circuits and 10-gauge for high-demand zones like walk-in coolers. Label every circuit at the breaker panel with permanent tags to simplify troubleshooting.

Install ground-fault circuit interrupters (GFCIs) within 6 feet of sinks, beverage stations, and outdoor connections to comply with NEC Article 210.8. For areas with frequent equipment movement, embed metal-clad (MC) cable in flexible conduits to resist physical damage. Keep neutral and ground wires isolated except at the main service panel to avoid stray currents.

Run dedicated 240V lines for HVAC units and ovens, using double-pole breakers sized to the equipment’s nameplate amperage. Position electrical panels centrally to minimize voltage drop–no more than 3% from panel to furthest outlet. Color-code wires: black for hot, white for neutral, green/bare for ground, and red for switched legs. Test each circuit with a multimeter before final connections.

Use tamper-resistant (TR) receptacles in customer-accessible areas, even if local codes don’t require them. For fluorescent or LED lighting, wire in parallel to prevent cascading failures. Document every modification in an updated as-built drawing, including cable types, breaker specs, and outlet heights. Store a copy on-site for maintenance teams.

Blueprint for Retail Space Power Layouts

Start by mapping each circuit to a dedicated breaker labeled with load type–lighting, outlets (15A), machinery (20A), and refrigeration (single-phase, 240V). Use 12-gauge copper for 20A circuits and 14-gauge for 15A, ensuring wire gauge matches breaker amperage to prevent overheating.

Divide the floor plan into zones: front counter (panel A), storage area (panel B), and workstations (panel C). Install subpanels at least 6 feet apart to simplify troubleshooting and reduce voltage drop, which should not exceed 3% for branch circuits.

Component	Standard	Recommendation
Conduit size (1″+ conductors)	EMI-compliant metallic	Rigid schedule 40 PVC for outdoor lines
Grounding rod	8 feet, copper-clad	Install two rods 6 feet apart for low resistance (<25Ω)
Switch placement	48″ from floor	Mount GFCI outlets 12″ from floor in wet zones

Run separate neutrals for each circuit to eliminate interference, especially for LED drivers and variable-speed motors. Ground all metal enclosures with at least 6-gauge bare copper wire, bonding to the main service panel’s ground bus.

Include a 30mA residual-current device (RCD) for outlets near sinks or outdoor connections. Label each wire at both ends with heat-shrink tubing: neutral (white), hot (black/red), ground (green). Color-code phase conductors in three-phase systems (L1: black, L2: red, L3: blue).

Test all connections with a megohmmeter after installation–minimum 1MΩ between conductors and ground. For machinery over 1HP, use dual-voltage motors (120/240V) wired in series for 120V or parallel for 240V.

Calculate load demand using this formula: (Total watts ÷ 120V) × 1.25 = minimum breaker amperage. For example, 1800W ÷ 120V = 15A × 1.25 = 18.75A (use 20A breaker).

Mount the main disconnect within 6 feet of the entrance, accessible without tools, and install emergency stop buttons (red, mushroom-head) near hazardous equipment. Document the layout with a digital schematic, including conduit paths, outlet counts, and breaker assignments, stored in a locked cabinet near the main panel.

Critical Elements for a Commercial Facility Power Layout

Start with a precise load calculation based on ANSI/NFPA 70 standards. Factor in peak demand for all machinery, lighting circuits, and HVAC systems–include a 25% safety margin above calculated totals. Oversizing conductors or panels by this ratio prevents thermal overloads during extended operations.

Plan subpanel locations near high-draw equipment clusters. Install dedicated 20A or 30A circuits for tools like band saws or compressors, ensuring each circuit feeds no more than three outlets to avoid voltage drop. Use metal-clad cables (Type MC) in exposed areas for better mechanical protection.

Integrate ground fault circuit interrupters (GFCIs) within 6 feet of any sink, outdoor receptacle, or wash station. For permanent appliances like air handlers or dust collectors, opt for arc fault circuit interrupters (AFCIs) to eliminate fire risks from damaged wires. Label every breaker clearly with its connected device and calculated amperage.

Designate separate conduits for low-voltage control systems (12V/24V) and power lines. Keep communication wiring (Ethernet, phone) at least 12 inches away from high-voltage runs to avoid interference. Use shielded cables for sensitive equipment like CNC controllers.

Mount disconnect switches within sight of motors and heavy machinery–compliance with OSHA 1910.303 requires this for emergency shutoff. Install weatherproof covers on outdoor outlets and enclosure locks on distribution panels to prevent unauthorized access.

Specify wire gauge according to NEC Table 310.16: 12 AWG for 20A circuits, 10 AWG for 30A. For runs exceeding 100 feet, increase gauge by one size to compensate for voltage drop. Copper conductors are mandatory for most commercial applications due to superior conductivity.

Include a backup power strategy: a manual transfer switch for generators or UPS units sized to support critical loads (lights, alarms) for at least 30 minutes. Test backup systems quarterly under load conditions matching real-world demand to ensure reliability.

How to Map Out Protective Devices for Balanced Power Allocation

Label every breaker with its corresponding room, appliance, or zone immediately–use a permanent marker or pre-printed adhesive tags. Include wattage ratings for major equipment (e.g., “Kitchen – 20A – Microwave 1200W, Fridge 800W”) to avoid overloading single circuits. Group related outlets under one device: consolidate lighting on a 15A line, while dedicated 20A lines handle high-draw tools like space heaters or air compressors.

• Measure the actual load of each circuit with a clamp meter at peak usage. Compare readings against the panel’s rated capacity–most 15A breakers should not exceed 12A continuously, and 20A breakers should stay below 16A.
• Distribute large loads across different phases if your setup uses split-phase power. Connecting a 3000W welder to one leg and a 2500W kiln to the opposite leg prevents voltage imbalance.
• Reserve two adjacent slots for future expansion–mark them “Spare – 20A” and ensure the busbar has capacity.

Color-code breaker switches by zone: red for workbenches, blue for lighting, yellow for climate-control devices. Install a plastic overlay on the panel door listing each color’s purpose and maximum allowed load. For panels over 100A, prioritize balancing between left and right columns; a difference exceeding 10% indicates uneven distribution and risks tripping.

Test every breaker under full load annually. Trip each manually while connected to a 100W bulb–if the breaker holds for 10 seconds, it’s functional. Replace any that fail immediately; degraded units overheat and degrade further under sustained current. Maintain a logbook inside the panel door with dates, load readings, and replacement notes to track performance trends.

Step-by-Step Guide to Labeling Conductors and Receptacles

Begin by assigning a unique identifier to each circuit at the breaker panel. Use pre-printed adhesive tags (e.g., Brady B-499 labels) or a handheld label maker with thermal-resistant tape. Mark both the breaker switch and its corresponding neutral bar entry with the same code–e.g., “L1-Kitchen Lights” for line one, kitchen illumination. Consistency eliminates guesswork during maintenance or emergencies.

Field Marking Methods

At each fixture or junction, apply labels within 3 inches of the connection point. For exposed runs, use flexible nylon sleeves (Panduit LS6) slipped over the conductor before termination. In crowded boxes, wrap flags (HellermannTyton 518-00125) around the sheathing 2–3 times, securing with a single twist. Avoid masking tape–it degrades under heat and leaves residue. For GFCI outlets, note downstream loads on the outlet’s faceplate with a permanent marker, referencing the panel’s code.

Generate a digital backup via spreadsheet or CAD schematic with columns for: identifier, circuit purpose, breaker amperage, conductor gauge, outlet type, and last inspection date. Export as PDF and store on a cloud service with offline access. Update this record within 24 hours of any modifications to prevent outdated documentation from causing errors during future work.

Frequent Errors in Retail Facility Circuit Blueprints

Avoid omitting junction boxes in your layout. Many designers skip these critical nodes, assuming they’ll “figure it out later” during installation. This oversight forces last-minute rerouting, often violating building codes that mandate accessible splicing points. The Canadian Electrical Code (CEC) Rule 12-3000 explicitly requires junction boxes to be placed within 1,8 m of each cable termination. Ignoring this leads to inspections failures and costly rework–up to 40% of project delays stem from overlooked splices, according to a 2023 NECA study.

Label everything immediately. Unmarked feeds, switches, or breakers turn troubleshooting into guesswork. A standard 200 m² retail space contains 68–92 individual conductors; without labels, identifying the correct one takes an average of 12 minutes per instance. Use durable, non-fading tags–thermal printers or engraved metal plates last 15+ years, while handwritten labels fade in 18 months. Color-code conductors by phase and function: black for line, red for switched, blue for neutral, yellow for 277 V circuits.

Never scale a drawing freehand. Precision matters–0,5 mm deviation on paper equals 12 cm misalignment on-site. CAD software calculates exact conductor lengths, box fill ratios, and voltage drop, but only if inputs are accurate. Manually sketched schematics underestimate conduit fill by 22% on average, causing thermal overloads. Use IEEE 399-2023’s fill tables: 40% for four or fewer conductors, 35% for 5–7, and 30% for 8+. Violations trigger NEC 310.15(B)(7) derating penalties, reducing ampacity by 20–30%.

Single-line diagrams often omit grounding details entirely. Grounding conductors must be sized per NEC Table 250.122–8 AWG copper for 40 A circuits, 6 AWG for 60 A, and proportionally larger for higher loads. Missing these entries triggers GFCI failures during inspections. Grounding rods require 3 m spacing from each other; closer rods reduce resistance non-linearly–3 rods at 2 m apart yield 78% of a single rod’s effectiveness, while 6 m spacing achieves 92%. Soil resistivity varies: 10–50 Ωm for clay, 100–500 Ωm for gravel, and 1 000+ Ωm for rock. Always test with a Wenner four-probe meter before finalizing rod depth.
