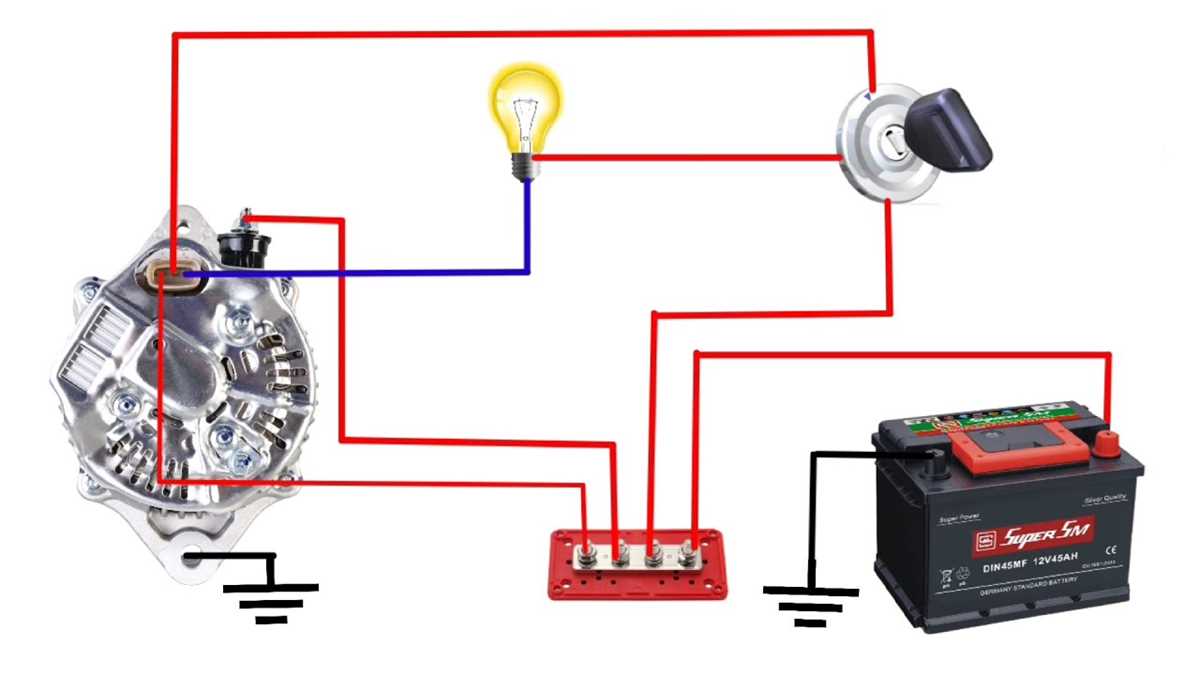

How to Wire a Basic 3-Wire Alternator Step-by-Step Guide
Locate the Battery Positive (B+) terminal on the unit–this is typically a large stud marked with a red insulator or a “+” symbol. Attach a heavy-gauge cable (6-8 AWG) directly to this point, ensuring the connection is secured with a crimped ring terminal and a locking nut. Avoid using clip-style connectors, as vibration can loosen them over time, leading to voltage drops or intermittent charging failures.
Identify the Indicator Lamp (L) or Excitation (IG) pin–usually a smaller spade or bullet connector. Route a 14-16 AWG lead from this terminal to the ignition switch, then through a 5-10W resistor or an LED cluster if using a dashboard light. The resistor prevents excessive current from damaging the unit’s internal regulator while still allowing the warning lamp to function. Omit this resistor only if the system’s regulator is designed for direct LED compatibility.
The Ground (G) or Negative (N) terminal should be tied to the unit’s case using a braided strap or a 4-6 AWG cable. Ensure the mounting surface is clean, bare metal, and free of paint or corrosion–use a star washer under the mounting bolt for a reliable path. In systems where the frame serves as ground, verify continuity between the unit’s housing and the battery negative terminal with a multimeter; resistance should not exceed 0.1 ohms.
For vehicles with external voltage regulators, disconnect the battery negative cable before making any connections to prevent short circuits. Reconnect the cable only after verifying all leads are properly routed away from moving components, exhaust manifolds, and sharp edges. Use split-loom tubing or spiral wrap to protect exposed conductors from chafing. Test the setup by starting the engine and monitoring the output voltage at the battery terminals–ideal readings range between 13.8V and 14.5V at 2,000 RPM.
Key Connections for a Three-Terminal Generator Setup
Start by linking the battery’s positive post to the main output terminal on the charging unit using 10-gauge or heavier conductive strand–this ensures minimal resistance under load. The second connection runs from the ignition switch to the excitation terminal, typically marked “IG” or “S,” which activates the voltage regulator when the engine starts. Use a 12-gauge strand here and add an in-line 5-amp fuse within 7 inches of the battery to prevent short circuits. Ground the mounting frame of the charging unit directly to the engine block with a 6-gauge strand, avoiding painted surfaces to guarantee a solid return path.
Critical Safety and Troubleshooting Steps
- Inspect strands for fraying or corrosion every 6 months–replace if resistance exceeds 0.5 ohms.
- Install a voltmeter across the battery posts; normal readings should stabilize at 13.8–14.4 volts within 3–5 seconds of startup.
- If voltage drops below 13 volts at idle, check the excitation strand for breaks or loose crimps.
- Ensure the conductive strand from the stator’s neutral post (if present) is routed away from moving parts to avoid chafing.
For vehicles with aftermarket tachometers, connect the “R” or “TACH” post on the charging unit to the tach’s signal input using a shielded 18-gauge strand. Secure all splices with heat-shrink tubing and test continuity with a multimeter before sealing. Avoid daisy-chaining grounds or outputs–each terminal should have a dedicated path back to the battery or engine block to prevent voltage drop under heavy loads, such as during winch operation or high-beam use.
Identifying the Three Terminals on Your Generator Unit
Locate the voltage regulator connector first–typically a small plug with three pins protruding from the rear or side housing. The largest terminal is almost always the battery output, designated by a thicker post or stud marked “B+” or “Bat.” Measure its diameter: it should exceed 8mm on most passenger vehicle models, distinguishing it from smaller connectors. Verify the marking stamped near the base if visual identification is ambiguous.
The remaining two pins serve distinct functions. The smaller one–often 5mm or less–is the ignition exciter, labeled “IG,” “R,” or occasionally “15” on European units. This connection draws power from the ignition switch to initiate magnetic field generation. The final terminal, frequently 4-6mm, is the stator or sense lead, marked “S,” “L,” or “D+” and tied to the dash warning lamp circuit. Its role is to monitor system voltage and trigger indicator alerts if discrepancies arise.
Use a multimeter set to continuity mode to confirm assignments. Probe the battery output terminal while grounding the tester–expect a direct circuit to the positive battery cable. Test the exciter pin against ignition-on voltage (typically 12V), then move to the sense terminal, which should show 5-7V when the engine runs. Mismatched readings indicate mislabeled connectors or internal faults.
| Terminal Label | Typical Size | Voltage (Engine Off) | Voltage (Engine Running) | Primary Function |
|---|---|---|---|---|
| B+ / Bat | 8-10mm | 12.0-12.6V | 13.8-14.5V | Battery charging output |
| IG / R / 15 | 4-5mm | 0V | 12V | Ignition-controlled exciter |
| S / L / D+ | 4-6mm | 0V | 5-7V | Voltage sensing and warning light driver |
Check for corrosion or insulation damage on each post–oxidized copper disrupts current flow. Clean terminals with a wire brush and apply dielectric grease to prevent future buildup. Replace cracked housings immediately; even minor fractures allow moisture ingress, leading to short circuits or erratic voltage regulation.
Cross-reference terminal identification with the manufacturer’s service manual if labels are missing or illegible. Aftermarket replacements sometimes deviate from OEM standards–Delco units, for instance, may swap “L” and “S” roles, while Bosch variants consolidate the sense lead into a single “D+” post. Double-check with a schematic before reattaching connectors to avoid reverse polarity damage.
Reassemble the electrical assembly after verification. Secure connections with torque specs: 10-12 Nm for battery output posts, 3-5 Nm for smaller terminals. Loose fasteners cause intermittent charging failures, while overtightening strips threads. Test under load last–attach a battery tester and monitor output current at 2000 RPM. Readings below 30A suggest faulty diodes or worn rotor bearings.
Step-by-Step Power Source and Ignition Circuit Hookup
Begin by identifying the three primary conductors on your charging system: the field control lead (typically marked “F” or with a red stripe), the voltage sensing conductor (often white or yellow), and the main output terminal (bold, heavy-gauge cable, usually red). Verify these labels against your vehicle’s service manual to avoid misconnection–incorrect pairing risks damaging the regulator or battery.
Disconnect the vehicle’s negative battery terminal first to prevent accidental shorts. Use a 10mm or 12mm wrench, depending on terminal size, and set the clamp aside. Never skip this step, as live circuits can arc and cause severe burns or component failure.
Attach the field control conductor to the ignition switch output. Locate the switch’s accessory or “ACC” terminal–commonly a spade or screw post–and secure the connection with a ring terminal crimped tightly. Use automotive-grade heat shrink tubing to insulate the joint, then apply a small amount of dielectric grease to prevent corrosion.
Connecting the Voltage Sensing Path
Route the sensing lead directly to the battery’s positive post. Strip 6mm of insulation from the conductor’s end, then crimp on a lead-sealed ring terminal. Ensure the terminal matches the post’s thread size (usually M6 or M8). Tighten the nut firmly–10-12 Nm of torque–to guarantee reliable voltage feedback to the regulator.
Link the main output cable to the battery’s main positive connection. This path carries the full charging current, so use at least 6-gauge cable for most passenger vehicles, and 4-gauge for trucks or high-output systems. Secure the terminal with a torque wrench (15-18 Nm) and cover the connection with a plastic terminal cover to shield against accidental grounding.
Finalizing the Ground and Testing
Reconnect the negative battery terminal securely, torquing the clamp to 12-15 Nm. Double-check all connections for proper insulation–exposed copper strands can melt wiring looms or start fires. Start the engine and measure voltage at the battery posts: 13.8-14.5V at idle signals correct operation, while readings below 13V or above 15V indicate regulator or connection faults.
If voltage fluctuates or drops after a few seconds, inspect the ignition switch output and field control path for loose or corroded joints. Clean terminals with a wire brush and reapply dielectric grease. For persistent issues, substitute a known-good regulator before condemning the charging system–faulty units often mimic wiring failures.
Tracing the Voltage Sensing Line for Reliable Power Delivery
Locate the B+ terminal on the generator’s output post–this is where the charging circuit’s reference point begins. Follow the thin gauge conductor (typically red or orange) from this post to its connection at the battery’s positive terminal or the vehicle’s main power distribution block. Use a multimeter set to DC voltage: probe the sensing line at both ends while the engine runs at 2,000 RPM. A reading below 13.8V indicates a broken path, corroded joint, or improper splice. Check for voltage drops above 0.2V between the generator’s output and the battery; this signals resistance in the sensing loop that disrupts optimal regulation.
Inspect every crimp, solder joint, and inline fuse holder along the sensing path–these often hide oxidation or loose connections invisible under insulation. If the conductor routes through a fusible link or ignition relay, bypass it temporarily with a jumper to isolate faults. Replace any damaged segments with 18-20 AWG tinned copper cable, matching the original routing to avoid interference from high-current circuits or inductive loads like ignition coils.
Verify the sensing line’s ground reference by testing continuity between the generator’s housing and the battery’s negative post–resistance should not exceed 0.1 ohms. If the regulator fails to maintain 14.2–14.6V under load, reroute the sensing conductor directly to the battery terminal, eliminating any intermediate connections that may introduce noise or voltage sag.
