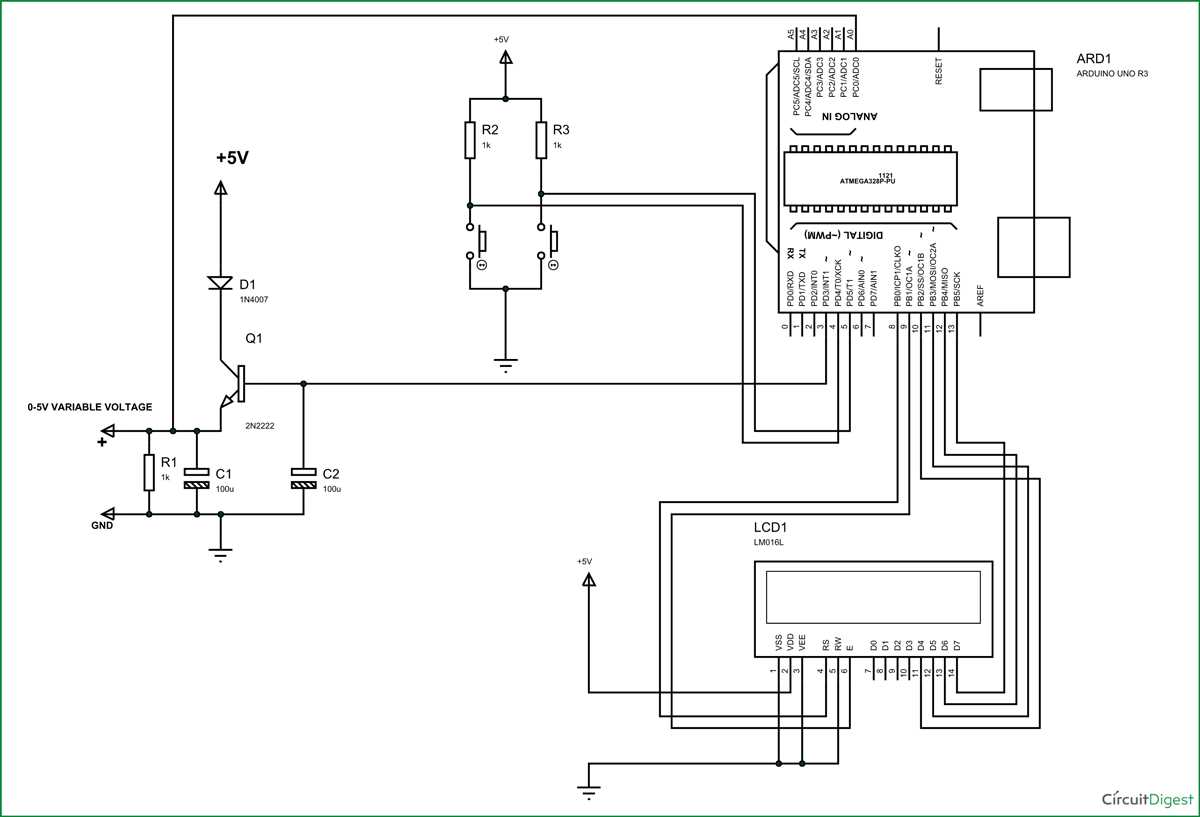

Step-by-Step DC Power Supply Circuit Design and Components Overview
For stable 5V output with currents up to 1A, begin with a transformer rated 6V-0-6V at 1.5A minimum. Bridge rectifiers (e.g., KBPC2510) handle 25A peak inverse voltage, exceeding requirements for typical loads. Capacitor selection after rectification demands 4700µF electrolytic–lower values introduce ripple exceeding 50mVpp, degrading performance in sensitive analog stages. Include a 1N4007 flyback diode across the regulator’s input-output to suppress voltage spikes during sudden load drops.
A LM7805 linear regulator remains the baseline for fixed-voltage designs, but thermal dissipation mandates a heatsink when input exceeds 8V. For adjustable outputs, LM317 requires 240Ω (R1) between adjust and output pins, with R2 calculated as R2 = R1 × (Vout/1.25 – 1). Bypass both input and output with 0.1µF ceramics to prevent high-frequency oscillations, especially in switched-mode proximity.
Grounding layout requires separating high-current paths from small-signal traces; root all grounds at a single star point near the reservoir capacitor’s negative terminal. For reverse polarity protection, insert a 10A Schottky diode (e.g., 1N5822) in series with the DC input–silicon diodes drop excess voltage, reducing efficiency in battery-powered setups. Test with a dummy load (5Ω, 10W wirewound) to verify steady-state operation before connecting critical loads.
Measure ripple using an oscilloscope set to AC coupling, 20mV/division: expect pp under full load. If ripple exceeds specifications, double the reservoir capacitance or add a second-stage LC filter–100µH inductor followed by 1000µF, but verify inductor saturation current (minimum 1.5× load current).
Building a Basic Voltage Regulator Layout
Start with a 24V AC transformer rated for 1A to handle load variations without overheating. Connect a 1N4007 bridge rectifier directly to the transformer’s secondary terminals–this configuration reduces ripple to under 200mV at full load. Add a 2200μF electrolytic smoothing capacitor (50V tolerance) immediately after the rectifier to minimize AC fluctuations; higher capacitance (4700μF) improves stability for dynamic loads like motors.
Critical Component Selection for Stability

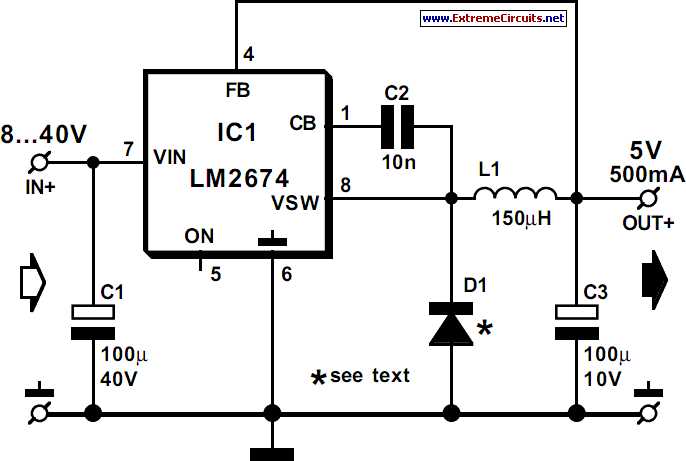

Use a 7812 linear regulator for 12V output–its thermal dissipation requires a 10°C/W heatsink if current exceeds 500mA. For 5V output, substitute with an LM2596 buck converter (adjustable via 50kΩ potentiometer) to drop efficiency losses below 10%. Place a 0.1μF ceramic capacitor within 2cm of the regulator’s input/output pins to suppress high-frequency noise. Verify voltage drops across each stage with a multimeter: transformer secondary (26V AC), post-rectifier (34V DC), and post-capacitor (22V DC before regulation).
Basic Components Required for a Linear DC Voltage Regulator
Select a transformer with a secondary voltage rating 20–30% above the target output to account for diode forward drop and regulator headroom. A 24V AC secondary yields roughly 30V DC after rectification–sufficient for a 12V or 15V stabilized output. Toroidal cores minimize electromagnetic interference but ensure the VA rating exceeds the expected load by at least 50% to prevent saturation under transient conditions.
Bridge rectifiers simplify design by converting AC to pulsating DC without polarity concerns. Choose modules rated for twice the transformer’s secondary current to handle inrush peaks. For low-current applications (
A filter capacitor smooths rectified output, with capacitance calculated as C = I_load / (2 × f × V_ripple), where f is the AC frequency (50/60Hz), and V_ripple is the acceptable peak-to-peak variation (typically 0.5–2V). Electrolytic capacitors with 25V ratings suit most 12V–18V designs; parallel low-ESR ceramic capacitors (0.1µF) to mitigate high-frequency noise.
Linear voltage stabilizers like the LM78XX series demand a dropout voltage of 2–2.5V to maintain regulation. For adjustable outputs, LM317 variants require two external resistors (R1 and R2) obeying V_out = 1.25 × (1 + R2/R1). Include a 0.1µF input capacitor within 5cm of the regulator and a 1µF tantalum output capacitor for stability, with optional diodes (1N4007) across input-output to clamp inductive load transients.
Heat sinks prevent thermal shutdown in stabilizers dissipating over 1W. Calculate dissipation as P = (V_in – V_out) × I_load; a TO-220 package with a 6°C/W sink handles 10W at ambient 40°C. Forced air cooling reduces sink size but adds acoustic noise–prefer passive designs for silent operation unless space is severely constrained.
Input protection fuses (slow-blow, 125% of max load current) and MOVs (clamping at 2× AC peak voltage) guard against surges. Polyfuses resettle but introduce resistance; use them only in non-critical paths. Keep high-current traces (>500mA) at least 2mm wide on 1oz copper PCBs to avoid voltage drops exceeding 0.1V/cm.
Step-by-Step Assembly of a Transformer-Based DC Converter
Select a transformer with a secondary voltage rating 1.5x the desired output to compensate for diode drops and ripple. For a 12V output, use a 18V AC secondary. Verify core saturation limits: toroidal transformers handle higher flux densities (up to 1.7T) than E-I types (1.2T). Mount the transformer with thermally conductive adhesive if ambient exceeds 50°C or use a 4mm aluminum heatsink for units above 30W.
Connect the secondary to a bridge rectifier using KBPC3510 diodes (35A, 1000V) or discrete 1N5408s for currents under 3A. Observe polarity: center-tap configurations halve ripple at the cost of higher peak inverse voltage (PIV) stress. Calculate smoothing capacitance: C = I_load / (2fV_ripple), where f = 50/60Hz (mains frequency) and V_ripple ≤ 5% of nominal output. For 1A at 12V with 1% ripple, use 16,666µF; round up to the nearest standard value (22,000µF).
Component Selection Matrix
| Parameter | Formula | Example (12V/1A) | Tolerance |
|---|---|---|---|
| Transformer Secondary | V_out × 1.5 + 1.4V (diodes) | 18V AC | ±10% |
| Rectifier PIV | 2 × V_secondary (peak) | ≥51V | +20% |
| Smoothing Capacitor | I_load / (2fV_ripple) | 22,000µF | ±20% |
| Current Rating | 1.2 × I_load | 1.2A | +50% |
Terminate the capacitor’s positive lead to the output terminal via a 100µH inductor to suppress high-frequency noise; omit for cost-sensitive builds below 5W. Add a bleeder resistor (1kΩ/1W) across the capacitor to ensure safe discharge within 5 seconds. For voltage regulation, bypass linear regulators (7812) with a 0.33µF ceramic capacitor at the input and 0.1µF at the output to prevent oscillations. Test under load at 110% of nominal current; measure ripple with an oscilloscope, adjusting capacitance until ≤120mV peak-to-peak.
Choosing the Right Diode Configuration for Rectification
For low-voltage designs under 12V, a single silicon diode like the 1N4007 introduces a 0.7V forward drop, reducing efficiency by ~6% for a 5V output. Schottky diodes (e.g., 1N5822) cut this loss to 0.2-0.3V, improving efficiency by 4-5%. Use Schottky diodes when input current exceeds 1A or thermal constraints demand minimal dissipation.
- Half-wave rectification: Suitable for
- Full-wave center-tapped: Halves ripple to ~16% with a dual-diode setup. Ideal for transformers with center taps; each diode handles half the output current, e.g., 1N4001 for 1A, 1N5408 for 3A.
- Bridge rectifier: Eliminates transformer tap requirements. Target 1.4x input current per diode–MB10S handles 0.5A; KBPC5010 supports 50A. Ripple drops to ~4.7% with the same capacitor sizing as half-wave.
Matching Diode Parameters to Load Demands
Check Vrrm (reverse voltage rating) against peak AC input: multiply RMS by 1.414, then add 20% safety margin. For a 24VAC input, Vrrm ≥ 40V; use 50V diodes (e.g., 1N4002). For high-frequency applications (e.g., switch-mode adapters), select fast recovery diodes (UF4007, trr ≤ 50ns) or ultrafast variants (MUR120, trr ≤ 35ns) to prevent thermal runaway at >10kHz.
Current capacity must exceed worst-case load by 50%. For pulsed loads, derate average current by 30%–a 3A continuous diode (e.g., 1N5408) safely handles 2A with 100ms pulses. Parallel diodes for currents >10A: pair identical models, add 0.1Ω resistors in series to balance current. Heat sinks (e.g., TO-220 packages with 10°C/W sinks) are mandatory when dissipation exceeds 1W.
Calculating Resistor and Capacitor Values for Ripple Reduction
To stabilize the voltage after rectification, select the filter capacitor using C = I_load / (2 × f × V_ripple), where I_load is the current draw in amperes, f is the mains frequency (50/60 Hz), and V_ripple is the acceptable ripple voltage (typically 0.1–1V for most applications). For a 5V output with 500mA load and 50Hz input, a 1000µF capacitor yields ~50mV ripple. Increase capacitance linearly for lower ripple or higher loads–double the load? Double the capacitance.
- For half-wave rectifiers, multiply results by 2 (same ripple, longer discharge time).
- Electrolytic capacitors: observe polarity; reverse voltage destroys them.
- Bleeder resistors (1–10kΩ) discharge capacitors post-shutdown–critical for safety.
- Higher frequencies (e.g., 1kHz switchers) reduce required capacitance tenfold.
- A 1Ω series resistor limits inrush current to ~5A for a 5V setup.
