How to Build a Basic Flip Flop Circuit Step by Step Guide
Start with two cross-coupled NAND or NOR gates to form a stable latch–this configuration ensures two distinct output states. Use 74HC00 (NAND) or 74HC02 (NOR) ICs for reliable performance at 5V logic levels. Power supply stability is critical: decouple each IC with a 0.1µF ceramic capacitor no farther than 2cm from the VCC pin to prevent transient voltage spikes.
Connect a momentary push button to the set/reset inputs through 10kΩ pull-down resistors to avoid floating nodes. For debouncing, add a 1µF capacitor in parallel with the switch–this eliminates false triggers caused by mechanical bounce. Replace the push button with an SPDT switch for manual toggling if continuous state retention is needed.
For clock-driven applications, pair the latch with a D-type edge-triggered register (74HC74) to capture input signals on rising or falling edges. Feed the clock signal through a Schmitt trigger (74HC14) to clean up noisy waveforms–this prevents metastability in synchronous systems. Keep trace lengths under 5cm between components to minimize signal degradation.
Test the design with a logic analyzer or oscilloscope: probe the output nodes while toggling inputs to verify clean transitions. If glitches appear, reduce the clock speed or increase the decoupling capacitance near sensitive pins. For low-power operation, substitute CMOS gates with 4000-series ICs and run at 3.3V, but note the trade-off in slower propagation delays (typically 50–150ns).
Avoid connecting high-current loads directly to the latch outputs–buffer with a 74HC244 or similar driver if interfacing with LEDs, relays, or motors. For battery-powered projects, add a low-dropout regulator (LDO) to maintain steady voltage during load changes. Document your schematic with clear pin labels and component values to simplify troubleshooting.
Building a Basic Latch Using Logic Gates
Start with two cross-coupled NAND gates for a Set-Reset configuration. Connect the output of each gate to one input of the other gate–this feedback loop creates stable states. Use a push button or switch for input: grounding one input sets the output high, while grounding the other resets it low. Ensure unused inputs tie to a logic-high signal (VCC) via a 10kΩ resistor to prevent floating states.
For reliable operation, verify gate propagation delays. A 74HC00 quad NAND gate typically switches in 10–15 ns, while a 4011 CMOS version may take 50–100 ns. Select components based on required speed–faster gates reduce metastability but increase power consumption. Avoid exceeding the manufacturer’s recommended supply voltage (e.g., 5V for TTL, 3–18V for CMOS) to prevent damage or erratic behavior.
- Power requirements: TTL (74LS series) draws ~2–4 mA per gate; CMOS (HC/HCT) consumes ~1 µA static current.
- Debounce inputs: Add a 0.1 µF capacitor across push-button switches to filter noise.
- Troubleshooting: Probe outputs with a logic analyzer or LED (with 220Ω resistor) to confirm state changes.
Extend functionality by adding clocked control. Replace NAND gates with NOR gates for active-high inputs, or use a D-type latch (e.g., 74LS74) for edge-triggered synchronization. For sequential designs, cascade multiple latches–connect the output of one to the input of the next to build counters or shift registers. Always simulate first in LTspice or Falstad to validate behavior before physical assembly.
Basic Components Required for a Bistable Logic Device
For constructing a reliable bistable mechanism, select two cross-coupled NOR or NAND logic gates as the foundation. NOR-based configurations offer edge-triggered behavior when paired with an inverter, while NAND gates require direct feedback loops with pull-up resistors (10kΩ–100kΩ) for stable states. Ensure the gates comply with TTL (74LS series) or CMOS (4000/HC series) specifications–TTL tolerates higher currents (up to 16mA sink), while CMOS operates at lower power (1–10μA quiescent) but demands careful handling to avoid electrostatic damage. Verify propagation delays: typical values range from 10ns (TTL) to 50ns (CMOS), critical for synchronizing clock pulses.
Critical Supporting Elements
| Component | Specification | Purpose |
|---|---|---|
| Resistors | 470Ω–1kΩ (current limiting), 10kΩ–100kΩ (pull-up/down) | Prevent gate input floating; stabilize logic levels |
| Capacitors | 10pF–100nF (ceramic/X7R) | Debounce switch inputs; filter noise on clock lines |
| Clock Source | 555 timer (astable) or crystal oscillator (32.768kHz–20MHz) | Ensure precise edge transitions; avoid duty cycles >60% |
| Transistors (optional) | 2N3904 (NPN) or 2N3906 (PNP) for discrete builds | Buffer outputs; drive higher loads (LEDs, relays) |
Power the assembly with regulated 3.3V or 5V DC–exceeding 5.5V risks CMOS latch-up, while below 3V may cause TTL undefined states. For discrete designs (transistor-based), use Schottky diodes (1N5817) to clamp inductive loads and prevent back EMF. Test stability by toggling inputs at 1Hz–10kHz; observe output transitions on an oscilloscope–ringing or metastability indicates improper decoupling (add 0.1μF ceramic capacitors near gate power pins). Clocked variants demand setup/hold times of at least 5ns; violate this, and the device enters unpredictable oscillation.
Step-by-Step Assembly of an SR Latch Using NOR Gates
Begin by placing two NOR gates on a breadboard or schematic, ensuring their inputs and outputs are clearly labeled. Connect the output of the first NOR gate to one input of the second, and vice versa–this cross-coupling forms the core feedback loop. Use jumper wires to link the remaining inputs: one for *Set* (S) and one for *Reset* (R), tying unused inputs to ground through pull-down resistors if working with physical components.
Apply a logic *HIGH* signal (e.g., 5V) to the *Set* input while keeping the *Reset* input *LOW* (0V). Verify the output of the NOR gate tied to *Set* transitions to *LOW*, forcing the other NOR’s output to *HIGH*. This establishes the *latch* in its first stable state. Switch roles: drive *Reset* *HIGH* and *Set* *LOW* to observe the opposite state change, confirming the latch’s bistable behavior.
To test edge cases, introduce metastability by momentarily setting both *S* and *R* to *HIGH*. Note the outputs will settle unpredictably–this undefined condition must be avoided in designs. Use a 0.1µF decoupling capacitor near the NOR gates’ power pins if noise causes erratic toggling, especially in high-speed applications. For clocked implementations, add an enable gate or clock signal after verifying static operation.

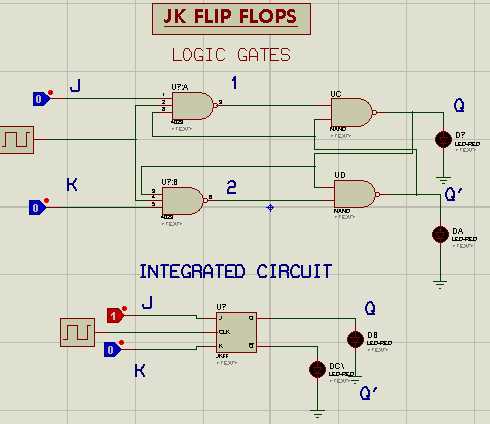

Constructing a JK Storage Element with NAND Gates for Timed Signals
Begin by connecting the clock input to a dual-input NAND gate alongside the J input, with the output feeding into the next stage. Use a second NAND gate pairing the clock with the K input, ensuring both gates share the same timed pulse source. The outputs of these gates must then route to the cross-coupled NAND pair forming the core bistable element, where the absence of feedback resistors prevents metastability during transitions.
Apply a 1 kΩ pull-down resistor on the J and K inputs if mechanical switches supply the signals to eliminate floating states, which disrupt predictable toggling. For reliable triggering, confirm the clock pulse width exceeds twice the propagation delay of the NAND gates–typically 20–50 ns for standard 74HC series ICs–avoiding race conditions during state changes. Test with an oscilloscope by probing the clock input and bistable outputs, ensuring clean transitions without glitches or partial pulses that degrade performance.
To minimize induced noise on the timed pulse line, keep traces under 10 cm when prototyping on breadboard or PCB, using decoupling capacitors (0.1 µF) close to each IC power pin. If spurious toggles persist, insert a Schmitt-trigger NAND gate (e.g., 74HC132) at the clock input to clean slow-rising edges, which often cause erratic behavior in standard gates.
Common Pitfalls in Sequential Logic Design and How to Sidestep Them
Ignoring setup and hold time violations guarantees erratic behavior. Always verify these parameters against your clock frequency using manufacturer datasheets. A 5 ns setup time requirement violated by even 0.1 ns can cause metastability in 74HC74 devices. Use delay elements or adjust clock edges if timing margins shrink below 20%.
Overloading outputs leads to signal degradation. Connect no more than 10 standard TTL loads to a single latch output. Exceeding this causes voltage levels outside valid ranges–0.8V for low, 2V for high in 5V systems. Use buffer gates or switch to CMOS variants for higher fan-out.
Ground loops introduce noise that disrupts state retention. Keep power supply traces wide–at least 2 mm for 500 mA currents–and separate analog and digital grounds. Connect them at a single point near the power source to prevent 50 mV spikes from resetting states unexpectedly.
Asynchronous input changes during clock transitions create race conditions. Synchronize data inputs with the clock before feeding them into any storage element. A two-stage synchronizer chain reduces metastability probability from 1e-6 to 1e-12 per clock cycle in 74AUP1G74 devices.
Incorrect power sequencing damages components. Apply VCC before input signals to prevent latch-up in CMOS stages. A sudden 3.3V input to a powered-down 5V chip triggers parasitic thyristor structures, drawing 100 mA surges that burn traces.
Neglecting decoupling capacitors invites transient failures. Place a 0.1 µF ceramic capacitor within 2 mm of every IC power pin. On high-speed designs, add a 10 µF tantalum capacitor for every five chips to suppress 100 MHz noise from switching edges.
Assuming default states leads to initialization failures. Explicitly reset all stages at power-up with a dedicated line. A floating RESET pin can settle into an invalid logic level 40% of the time, causing unpredictable startup behavior in shift registers and counters.
