Easy DIY On Delay Timer Circuit Build Guide for Beginners

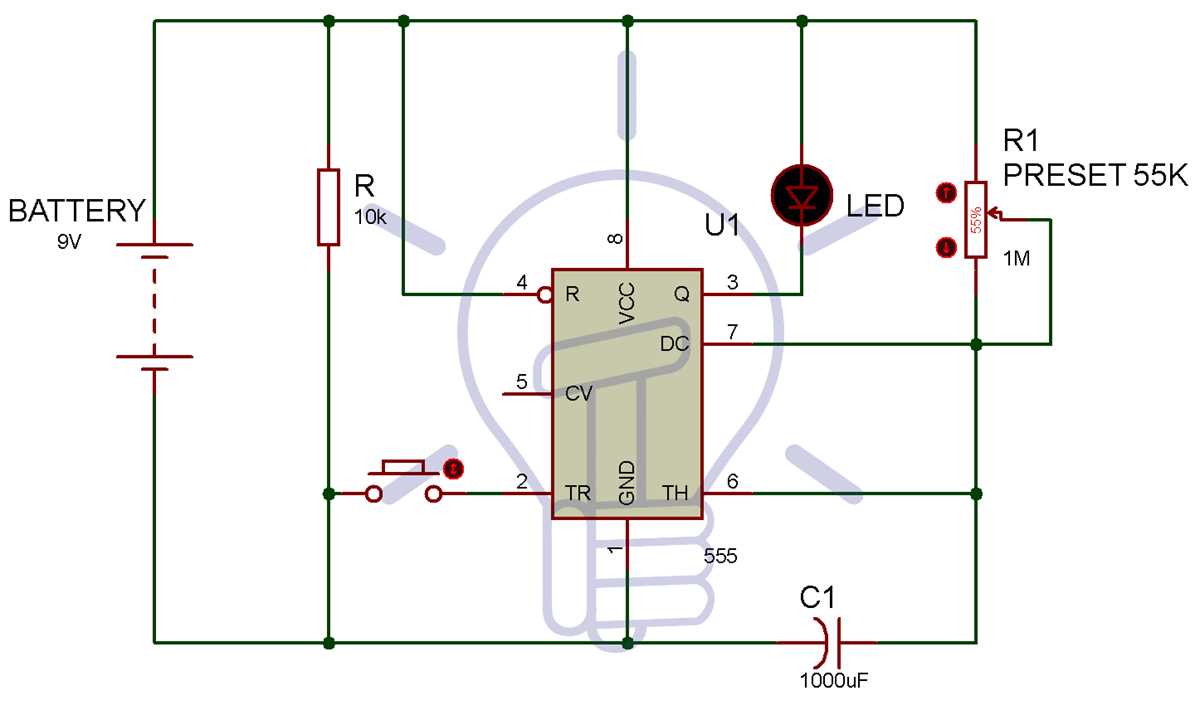

Start with a 555 IC in monostable mode–an industry-standard solution for controlled postponement. Connect pin 2 to ground via a pushbutton or low-trigger signal, and tie pin 6 (threshold) to pin 7 (discharge) through a timing capacitor. Use a 10kΩ resistor between pin 7 and VCC to charge the capacitor, while a 1MΩ potentiometer adjusts the interval from 1 second to 10 minutes.
For power, a 9V DC supply suffices, but ensure a 100μF decoupling capacitor near the IC to prevent false triggers. At the output (pin 3), insert a 2N2222 transistor to drive loads up to 500mA–ideal for relays or small motors. Add a flyback diode (1N4007) across inductive loads to suppress voltage spikes.
Calibration requires precision: measure capacitor charge time with a multimeter at pin 6. For intervals below 5 seconds, reduce capacitance to 10μF; for delays exceeding 30 minutes, swap the IC for a CD4060 oscillator-divider combo. Avoid electrolytic capacitors in high-temperature environments–choose polypropylene or tantalum for stability.
To expand functionality, integrate an optocoupler (PC817) at the output for isolation when controlling mains-powered devices. For digital interfacing, replace the 555 with a PIC12F675 microcontroller–program a counter loop for delays up to 24 hours with ±1% accuracy. Always include a fuse (500mA) in the power path to protect against short circuits.
Building an Automatic Activation Sequence with Basic Components
Start with a 555 IC in monostable mode for reliable time-based switching. Connect pin 2 (trigger) to a push-button or sensor output via a 10kΩ pull-down resistor to ground. Use a 1μF capacitor between pin 6 (threshold) and ground, paired with a 100kΩ resistor to Vcc for a 0.1-second hold period–adjust values proportionally for longer intervals (e.g., 1MΩ + 10μF = 10-second hold). Pin 3 (output) drives a low-power relay or MOSFET (e.g., 2N7000) with a flyback diode (1N4007) across the coil to prevent voltage spikes. Power the setup with a regulated 5–12V supply, ensuring decoupling with a 0.1μF capacitor near the 555’s Vcc pin.
| Component | Typical Value | Adjustment Range | Function |
|---|---|---|---|
| Timing Resistor | 100kΩ | 10kΩ–2MΩ | Sets hold duration |
| Timing Capacitor | 1μF | 0.1μF–470μF | Defines time constant |
| Load Transistor | 2N7000 | IRFZ44N (high current) | Switches output device |
For precise tuning, measure the actual hold time with an oscilloscope or multimeter on frequency mode–expect ±10% deviation due to component tolerances. Replace the push-button with an optocoupler (e.g., PC817) for isolated triggering from logic circuits or PLCs. Add a 10kΩ potentiometer in series with the timing resistor for adjustable delays without recalculating component values. Test the sequence under full load conditions to verify the relay/MOSFET handles inductive loads (e.g., motors) without chatter; if detected, increase the flyback diode’s current rating (e.g., 1N4148 → 1N5822).
Selecting Components for a Basic Time-Lag Mechanism
Begin with a resistor-capacitor (RC) pair as the foundation. For a 5-second interval, use a 100kΩ resistor with a 47µF electrolytic capacitor–this combination delivers predictable charge/discharge behavior. Precision matters: film capacitors offer tighter tolerances than electrolytics for critical applications, though they cost more. If space is limited, a ceramic capacitor (X7R or NP0 type) can substitute, but avoid values below 1µF to prevent leakage currents from skewing results.
Match the trigger device to your load requirements. A 2N3904 NPN transistor handles currents up to 200mA, sufficient for driving relays or small motors directly. For heavier loads, opt for a logic-level MOSFET (e.g., IRLZ44N), which activates at 5V gate voltage with minimal heat dissipation. Verify the threshold voltage–some MOSFETs require 10V for full conduction, incompatible with low-voltage microcontroller outputs.
Choose the control element based on input stability. A schmitt-trigger inverter (e.g., 74HC14) sharpens slow RC transitions into clean logic edges, preventing false triggers from noise. If a programmable solution is needed, a PIC12F675 or ATTiny13 microcontroller allows adjustable pauses via firmware, but adds complexity. For purely analog setups, a comparator (LM393) with a reference voltage set by a voltage divider eliminates the need for digital logic entirely.
Validate component interactions before finalizing the layout. Long RC time constants (>30 seconds) risk capacitor leakage distorting the interval–switch to a 3.3MΩ resistor paired with a 10µF film capacitor to mitigate this. Always test the charging path with a multimeter: voltage across the capacitor should reach ~63% of VCC at the calculated time constant (τ = R × C). For AC loads, isolate the output stage with an optocoupler (e.g., PC817) to prevent back-EMF spikes from damaging sensitive components.
Step-by-Step Assembly of a Transistor-Based Controlled Interval Setup
Gather components first: a 9V battery, 2N3904 NPN transistor, 1000μF capacitor, 100kΩ resistor, 1kΩ resistor, LED, breadboard, and jumper wires. Verify polarities–capacitors and LEDs are directional. Incorrect orientation risks damaged parts.
Insert the transistor into the breadboard, ensuring the flat side faces left (emitter at the bottom). Connect the 100kΩ resistor from the battery’s positive terminal to the transistor’s base. This resistor controls the charging rate, defining the activation period.
- Link the capacitor’s positive leg to the transistor’s base node.
- Attach the negative leg to ground.
- Solder or clamp the 1kΩ resistor between the collector and LED’s anode to limit current.
- Secure the LED’s cathode to ground.
Power the assembly by attaching the battery. The capacitor charges through the 100kΩ resistor, gradually biasing the transistor. Once voltage reaches ~0.7V, the transistor saturates, switching the LED on. Adjust resistor or capacitor values to fine-tune intervals; doubling the capacitor’s capacitance doubles the wait.
Verification and Optimization
Test with a multimeter: measure voltage across the capacitor during charge. Expect a smooth ramp from 0V to ~8V. If the LED flickers, increase the base resistor or verify solder joints. For extended lapses, add a 470kΩ resistor in series; for shorter ones, reduce the capacitor to 470μF. Ensure all connections are tight to prevent false triggers.
Fine-Tuning Pause Intervals via Resistance and Capacitance Parameters
To modify the pause period, alter the resistor-capacitor pair values using the formula T = R × C × k, where T is the duration in seconds, R in ohms, C in farads, and k is a constant (typically 1 for basic setups). A 1MΩ resistor paired with a 100µF capacitor yields ~100 seconds; halve the resistance to 500kΩ for ~50 seconds.
Use polyester or ceramic capacitors for stability under 1µF; electrolytic types suit values above 10µF. Note leakage current in electrolytics may reduce accuracy by 5–15% over prolonged intervals–prefer low-leakage alternatives like tantalum capacitors for critical applications.
Adjust resistance incrementally: 10kΩ steps for coarse tuning, 1kΩ increments for precision. For example, switching from 470kΩ to 475kΩ extends the interval by ~1%. Logarithmic potentiometers simplify hands-on calibration, letting users sweep through durations without recalculations.
Temperature drift affects timing: ±200 ppm/°C for standard resistors and ±30 ppm/°C for NP0 ceramic capacitors. For consistent behavior across 0–70°C, pair metal-film resistors (50 ppm/°C) with polypropylene capacitors (20 ppm/°C). Avoid carbon-film resistors in variable environments.
Account for component tolerance: a 5% resistor and 10% capacitor can combine to alter timing by ±15%. Multiply nominal RC values by 0.85 for worst-case minimum duration and 1.15 for maximum to estimate bounds.
For microsecond intervals, use nanofarad capacitors and kilo-ohm resistors: 1kΩ with 1nF gives 1µs. Below 1kΩ, parasitic effects like trace inductance and capacitor ESR dominate–simulate with SPICE models if sub-millisecond precision is required.
Nonlinear adjustments are possible with varistors or photoresistors: a CdS cell’s resistance drops from 1MΩ to 10kΩ under bright light, dynamically shortening the pause. Thermistors enable temperature-responsive variations–an NTC type (10kΩ at 25°C) increases interval duration as temperature rises.
Verify calculations with an oscilloscope: measure the capacitor’s charge curve to confirm the 63.2% threshold aligns with the expected RC product. Deviations suggest parasitic influences or incorrect component values–recheck connections and replace suspect parts.

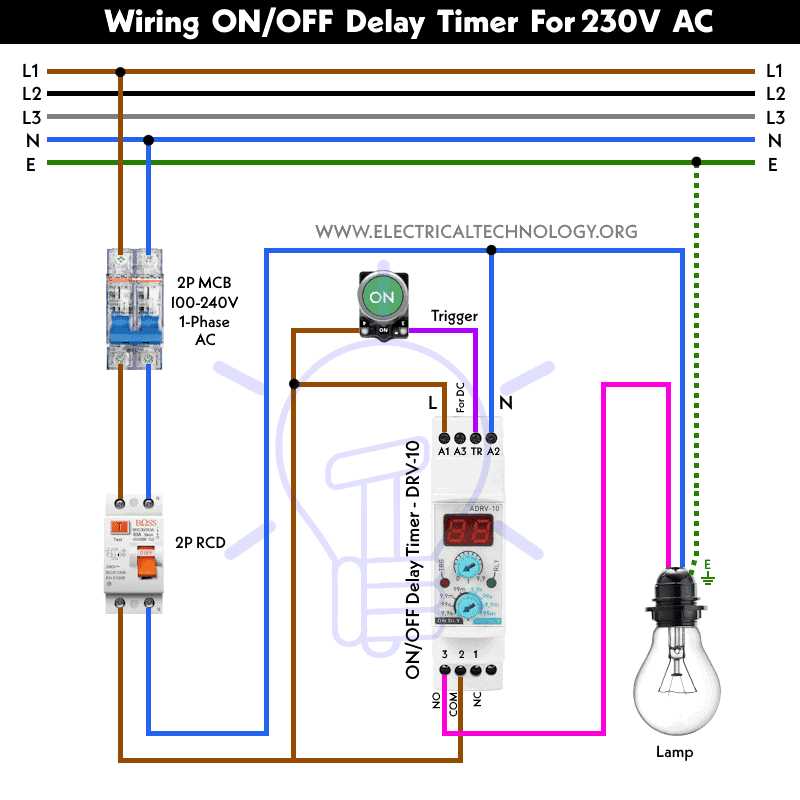

Wiring a Relay for Load Switching in Sequential Control Setups
Connect the relay coil directly to the output of your time-based control module to ensure precise activation. Use a 12V or 24V DC relay rated for at least 120% of the load current you intend to switch–this prevents overheating and premature failure. For AC loads, verify the relay’s contact rating matches the voltage and current of your application, such as 250V/10A for standard household appliances. Wire the common (COM) terminal to the power source and the normally open (NO) terminal to the load, leaving the normally closed (NC) terminal unused unless bypass functionality is required.
Place a flyback diode (1N4007) across the relay coil with the cathode connected to the positive side to absorb voltage spikes generated when the coil de-energizes. For inductive loads like motors or solenoids, add a snubber network (0.1µF capacitor in series with a 100Ω resistor) across the relay contacts to suppress arcing. Ensure the relay’s switching capacity exceeds the inrush current of the load–motor starting currents can be 6-10 times their running current. Keep wiring runs short between the control output and relay coil to minimize voltage drop and interference pickup.
Grounding and Noise Considerations
Ground the relay module’s reference point to the same ground as your control logic to avoid ground loops. Use shielded cables for signal wires when the control module is more than 1 meter from the relay, grounding the shield at one end only. Separate high-current load wires from low-voltage control lines to prevent induced noise from disrupting timing accuracy. If the setup is in a noisy environment (e.g., near variable frequency drives), opt for a solid-state relay with optical isolation for cleaner operation.
Test relay activation with a multimeter in continuity mode before connecting the full load. Measure the coil’s pull-in voltage–it should match the control module’s output voltage within ±10%. Check contact resistance with the load disconnected; readings above 1Ω indicate degraded contacts requiring replacement. For critical applications, wire a secondary relay as a fail-safe, ensuring the load reverts to a safe state if the primary relay sticks or fails. Document the wiring layout, including wire colors and terminal labels, to simplify troubleshooting.
