Build a Basic Touch Sensor Circuit Step-by-Step Guide

Construct a reliable conductive proximity detector using a single transistor, two resistors, and a small capacitor. A 2N3904 NPN transistor paired with a 1MΩ resistor forms the core amplification stage–human skin’s natural capacitance (typically 100–300 pF) alters the transistor’s bias when fingers approach the exposed pad, triggering a logic-level output. Breadboard this setup first; confirm stability by measuring voltage swings across the collector (use a 5V supply for immediate compatibility with microcontrollers).

Refine sensitivity by testing different resistor values: a 470kΩ pull-down resistor increases reaction speed but risks false triggers in noisy environments, while 2.2MΩ improves noise immunity at the cost of slower response. Add a 10nF ceramic capacitor between the base and ground to filter high-frequency interference common in mains-powered setups. Place the detection plate at least 3 mm from grounded surfaces to prevent parasitic coupling; copper tape works well for prototyping, but gold-plated pads last longer in high-touch applications.

Integrate the assembly with a 3.3V GPIO pin on a Raspberry Pi or Arduino–ensure the output swings cleanly between logic low (≤0.4V) and high (≥2.9V) to avoid erratic behavior. For battery-powered projects, replace the 2N3904 with a BC547C for lower power consumption (typical collector current drops from 200 µA to 80 µA). Test under various humidity levels; skin moisture can falsely activate the system–mitigate with a thin insulating layer (polyimide tape) if needed.

Building a Basic Capacitive Plate Detector Setup

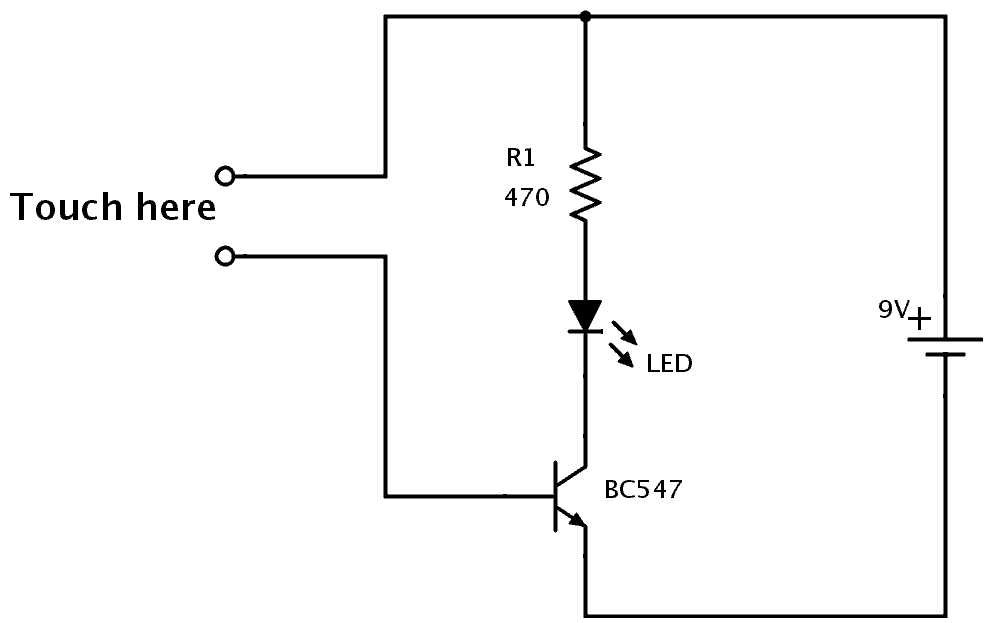

Start with a BC547 transistor as the core switching element–its base connects to the sensing pad via a 1MΩ resistor to limit current while allowing capacitive coupling. Use a 10kΩ pull-down resistor on the base to ensure the transistor stays off until contact occurs. For the output, wire an LED with a 220Ω series resistor to the collector (or a relay for higher loads) and attach the emitter to ground. The sensing pad should be a small copper-clad board (1×1 cm) or even conductive ink on paper–larger surfaces increase sensitivity but may pick up interference.

Key Adjustments for Reliability

If false triggers appear, reduce the 1MΩ resistor to 470kΩ or add a 100pF ceramic capacitor between the pad and ground to filter noise. For temporary setups, swap the BC547 for a 2N2222 if higher current handling is needed (up to 800mA). Test the pad’s response radius–move a finger within 5mm to confirm activation before finalizing the layout. Replace the LED with a 5V piezoelectric buzzer for audible feedback in low-light conditions.

Key Components for a Basic Capacitive Detection System

Choose a microcontroller with built-in capacitive sensing pins for direct integration. ATtiny85 or ESP32 variants offer dedicated touch channels, eliminating external component needs. Verify pin count–some require adjacent GND references for stable readings.

Use a conductive material as the sensing pad–copper tape (3M 1181) or ITO-coated glass works best. Maintain a clearance of at least 5mm from surrounding traces to prevent false triggers. For flexibility, consider self-adhesive conductive fabric (e.g., nickel-copper polyester).

Signal Processing Essentials

• Low-pass filter: A 100nF capacitor between the sensing pad and ground smooths noise–critical for 50Hz/60Hz interference rejection.
• Pull-down resistor: 1MΩ resistor ensures a defined state when untouched; values between 470kΩ–2MΩ balance sensitivity and stability.
• Shielding: Grounded copper foil beneath the pad isolates environmental noise (e.g., AC wiring). Keep at least 1cm separation from high-current traces.

For threshold calibration, pair the microcontroller with a 10-bit ADC input–this provides 1024 discrete levels for nuanced detection. Implement hysteresis in firmware: typical baseline drift ranges 5–15 units (ADC counts), so set thresholds at ±20 units from idle readings to avoid flickering.

Power supply stability directly impacts reliability. Use a linear regulator (e.g., AMS1117) or decouple with a 10µF tantalum capacitor near the microcontroller VCC. Avoid switching regulators–their ripple (>50mV) can couple into readings.

Firmware Optimization

1. Initialize sensing pins in input with pull-up mode (weak pull-ups simplify wiring but reduce sensitivity by ~15%).
2. Enable internal oscillator calibration–ESP32’s RTC oscillator drifts
3. Configure debounce in software: require 3 consecutive consistent readings (sample every 50ms) before registering a state change.

For extended range (beyond 5cm), add a driven shield electrode behind the pad. Drive it with an inverted signal (via a unity-gain op-amp like MCP6001) to cancel parasitic capacitance. This extends detectability through 3mm acrylic or glass.

Environmental factors skew baselines. Compensate with:

• Humidity: Increase hysteresis by 30% in RH >70% conditions (water film formation alters capacitance).
• Temperature: ATtiny’s internal temperature sensor can auto-adjust thresholds at ±0.1pF/°C drift rates.
• EMI: Twist sensor leads or use shielded cable (e.g., Lapp ÖLFLEX) for lengths >20cm.

Validate the assembly with a multimeter in capacitance mode–untouched pads typically read 5–20pF, while contact should shift the reading by ≥2pF. For debugging, log raw ADC values to a serial plotter (e.g., Arduino IDE’s Serial Plotter) to visualize noise floors and responses.

Step-by-Step Wiring for a Resistive Switch Assembly

Begin by connecting a 10 kΩ pull-down resistor between the microcontroller’s input pin and ground to stabilize readings. A 4-wire resistive panel requires precise layer pairing: solder the top conductive layer to the positive voltage rail (3.3V–5V) via a 220 Ω series resistor, while the bottom layer links directly to the input pin. Avoid floating inputs–this configuration ensures consistent contact detection without erratic triggers.

Component	Value	Connection Node
Series Resistor	220 Ω	Top Layer → VCC
Pull-Down Resistor	10 kΩ	Input Pin → GND
Voltage Rail	3.3V–5V	Power Source → Top Layer

Use a multimeter in continuity mode to verify traces before energizing the assembly. Probe each conductive layer’s edge–resistance should drop below 500 Ω when pressed and return to open-circuit state when released. If readings fluctuate beyond ±10%, inspect solder joints for cold connections or oxidized pads; reflow with flux if necessary.

For debounce handling, implement a 20 ms delay in your firmware loop to filter mechanical bounce. Below is a minimal code snippet for an Arduino-compatible board, optimized for 8-bit precision:

const uint8_t inputPin = 2;
uint16_t lastReading = 0;
void setup() {
pinMode(inputPin, INPUT);
}
void loop() {
uint16_t rawValue = analogRead(inputPin);
if (rawValue > lastReading + 100 || rawValue
Enclose the assembly in a non-conductive frame (e.g., 3 mm acrylic) drilled with a 1.5 mm hole for the contact point. Adhere layers with double-sided conductive adhesive only at edges–central regions must remain unrestricted for pressure transmission. Test durability by applying 50–100g force across the active area; repeat cycles should not degrade response beyond ±5% deviation.
Calibrating Sensitivity for Human Finger Detection
Adjust the threshold resistor (R1) between 1MΩ and 10MΩ for optimal fingertip responsiveness. Lower values (1MΩ–5MΩ) detect firmer presses, while higher resistances (5MΩ–10MΩ) register lighter grazes. Test with a multimeter: target a baseline capacitance change of 10–50pF when a fingertip approaches within 5mm. If false triggers occur, increment R1 in 1MΩ steps until stability is achieved under typical environmental noise (20–40°C, 30–70% humidity). For conductive surfaces, reduce R1 to 220kΩ–1MΩ to compensate for increased coupling.
Fine-Tuning with Reference Materials
Use a grounded copper plate (10×10cm) as a benchmark to standardize calibration. Measure the quiescent voltage at the detection node–aim for 0.3–0.7V with no contact. Introduce a fingertip; the voltage should drop by 30–60% for reliable activation. If drift exceeds ±10% over 10 samples, recalibrate by swapping the feedback capacitor (C1) to a polystyrene type (10–100pF) for temperature stability. For non-conductive overlays (glass/plastic), increase C1 to 220–470pF to extend range while maintaining a 50–150ms response time.
Integrating the Design with a Controller or Switching Device
Choose a 3.3V or 5V logic-compatible controller for reliable interfacing. The signal output from the detection module should connect directly to a digital input pin–avoid using pins shared with high-current peripherals to prevent interference. For AVR-based boards like Arduino Uno, use pins 2–13 for interrupt-capable sampling. STM32 platforms benefit from dedicated touch-input channels (e.g., TSC peripheral), reducing latency to under 20µs.
For low-power applications, opt for a latching relay to maintain state without continuous power draw. Connect the module’s output to the relay coil via a driver transistor (e.g., PN2222 for 5V coils, IRLZ44N for 12V). Include a flyback diode (1N4007) across the coil to suppress voltage spikes. Use a resistor (220Ω–1kΩ) between the controller output and transistor base to limit current. For AC loads, attach a solid-state relay rated for the expected voltage/current (e.g., CPC1966B for 12A at 240VAC).
Calibrate the sensitivity by adjusting the module’s threshold potentiometer or software debounce timing. Test responsiveness in the target environment–humidity, EMI, and conductive surfaces affect performance. If using an analog comparator (e.g., LM393), connect the module’s signal to the non-inverting input and a reference voltage (0.5V–2V) to the inverting input. This bypasses the controller’s ADC, improving response time for fast-switching applications like vending machines or industrial actuators.
Isolate high-voltage sections with optocouplers when interfacing with mains-powered relays. An MOC3041 provides 7500V RMS isolation and zero-crossing detection for dimmable AC loads. For DC loads under 60V, a BJT (e.g., TIP120) with a freewheeling diode suffices. Always verify the module’s output voltage matches the controller’s logic level–misalignment risks data corruption or hardware damage.
