Wiring Guide for Single Phase Circuit Breaker Connection Schematics

Select a 16-amp thermal-magnetic disconnect for residential lighting with resistive loads under 1.5 kW. Ensure the framework accommodates a neutral bar if the system uses a split-phase configuration, though most European 230V applications omit this. Verify clearance between conductive elements: minimum 8mm air gap in IP20-rated housings, 12mm for outdoor IP44 enclosures. Test short-circuit capacity with a clamp-on ammeter before final installation–transient currents often exceed the breaker’s nominal 6kA rating during the first 10ms.

Mount the device vertically to prevent misoperation from dust accumulation in the arc chamber. Use tinned copper conductors sized to 2.5mm² for 16A, 4mm² for 25A models. Secure connections with a torque screwdriver set to 2.5Nm–over-tightening damages the terminal, while under-torqueing risks arcing. Label each connection with heat-resistant vinyl: “L – In”, “L – Out”, and “N – In/Out” where applicable. Avoid combining inductive loads (motors, transformers) on the same protective device unless its curve matches IEC/EN 60898 Class C.

For modular designs, verify busbar compatibility–TH35 (35mm DIN rail) units require snap-in clips, but TH75 (75mm center-to-center) mandates bolted connections. Ground fault protection demands a residual current monitor rated at 30mA for human safety or 300mA for fire prevention. Position the interrupting mechanism above the energy source to prevent re-strikes after fault clearance. Replace the device if the test button fails to trip within 0.3 seconds at 1.25× the nominal current.

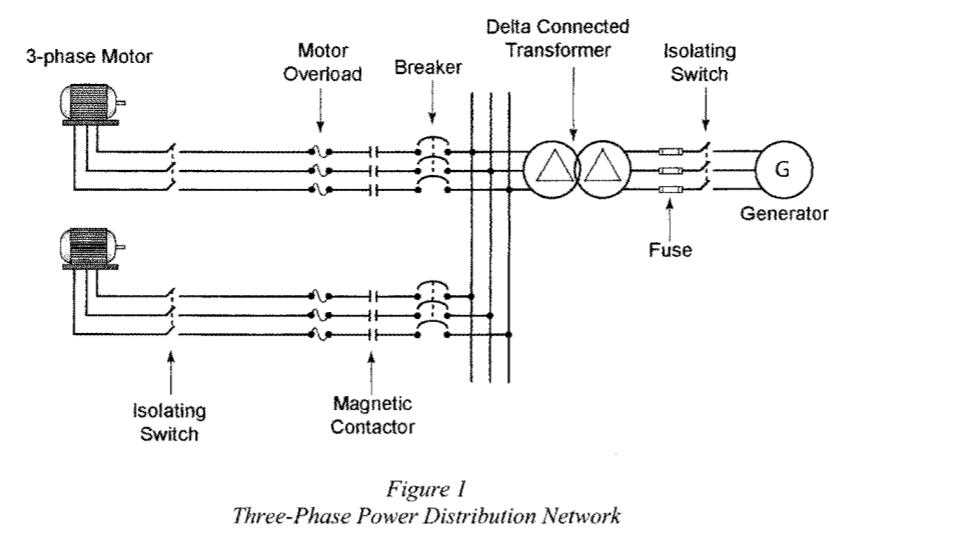

Understanding One-Line Electrical Protection Schematics

Install a thermal-magnetic protection device rated for 15-20% above the continuous load current to prevent nuisance tripping. For a 240V residential system, models like the Siemens QP or Eaton CH series handle up to 60A with precise trip curves, ensuring reliability without over-engineering. Verify the frame size matches the panel busbar spacing–common 1-inch centers accommodate most modular designs, while older panels may require adapter kits.

Connect the live conductor through the upper terminal, following the polarity markings to avoid reverse installation. Use 12 AWG copper wire for loads under 20A and 10 AWG for 30A circuits, torquing terminals to manufacturer specifications (typically 20-25 lb-in). Ground fault interrupters (GFCI) require additional pigtail connections–attach the neutral to the LINE side first, then load neutral to avoid misoperation during faults.

Key Schematic Components

• Trip Unit: Adjustable models (e.g., Eaton BR) offer thermal delay settings for motor loads, while fixed units suffice for general lighting. Test trip curves against inrush currents–inductive loads may need a 10-15% higher rating.
• Arc Fault Detection: AFCI devices mandate a direct path from the busbar to the first outlet; avoid shared neutrals in newer installations. Replace older breakers lacking this feature in bedrooms and living areas per NEC 210.12.
• Neutral Bar: Dedicate a separate lug for the protection device’s neutral return, especially in split-bus panels where shared neutrals can cause false tripping under unbalanced loads.

Label the wiring diagram with terminal voltages, wire gauges, and trip settings using indelible ink or embossed tags. For dual-voltage systems (e.g., 120/240V), clearly mark the split-phase connections–confusing these can damage appliances or create hazardous backfeeding. Add a legend for symbols: circles denote terminal points, arrows show current flow direction, and dashed lines indicate enclosure boundaries.

Troubleshooting and Maintenance

1. Test monthly using the integrated trip button; record results in a logbook. If slow to trip, check for loose connections–oxidation on aluminum wires increases resistance, leading to overheating.
2. Inspect for thermal damage after heavy loads (e.g., space heaters). Discoloration on the case indicates internal bimetal strip failure; replace immediately.
3. Use a multimeter to verify 0V across the device when open and line voltage when closed. A reading outside ±5% suggests faulty contacts or a corroded busbar connection.
4. Update protection coordination diagrams annually–changes in load profiles (e.g., EV charging) may require recalibration of trip settings.

Key Components of a One-Pole Protective Switch

Select a model with a thermal-magnetic trip unit for reliable overload and short-circuit protection. Ensure the trip unit’s thermal element reacts to sustained current imbalances within 5–30 minutes, depending on the overload magnitude, while the magnetic element clears faults in under 5 milliseconds.

Contact system design dictates performance under load. Copper alloy contacts with silver tungsten inlays resist welding and pitting up to 10,000 operations at rated current. Verify the contact gap–typically 4–6 mm–to ensure adequate arc extinction; gaps smaller than 3 mm increase re-strike risk under inductive loads.

Use an arc chute with stacked ceramic or fiberglass plates to split and cool arcs. Plate spacing of 0.8–1.2 mm balances deionization speed with dielectric recovery. Reject models lacking vents–these prevent gas buildup that can delay arc extinction beyond 20 ms, risking contact damage.

Component	Material	Lifespan (operations)	Critical Failure Mode
Contacts	Ag-W / Cu alloy	8,000–12,000	Welding at >3× rated current
Trip coil	Enameled Cu wire	50,000+ trips	Open circuit from insulation breakdown
Arc plates	Ceramic/fiberglass	20,000–30,000	Cracking or carbon tracking

Specify terminal blocks with captive screws and anti-loosening washers. Clamp torque of 2.5–3.5 Nm prevents overheating; verify manufacturers’ torque specifications, as over-tightening warps aluminum busbars. For frequent operation, prefer tin-plated copper terminals–these reduce oxidation that increases resistance by up to 30% over two years.

Integrate a trip indicator with LED or mechanical flag. LED indicators draw <5 mA, negligible for 10 A and larger devices, but may drain standby power in low-load applications. Mechanical flags, though passive, require reset after each trip–choose models where the flag is visible from 1 meter under ambient light.

For remote operation, select models with shunt trips or undervoltage releases. Shunt trips demand 24–240 VDC/VAC and 5–15 A momentary current; ensure the auxiliary contact rating matches the control circuit (typically 5 A at 250 V). Undervoltage releases must hold 80% of nominal voltage to prevent nuisance drops during brownouts.

Inspect the housing for UL 94V-0 flammability rating and IK07 impact resistance. Polycarbonate/ABS blends withstand 60°C continuous, but degrade above 85°C–avoid installations near heat sources. For outdoor use, prioritize IP40 or higher ingress protection; dust ingress accelerates contact erosion by up to 40%.

Step-by-Step Wiring for a Residential Current Protector

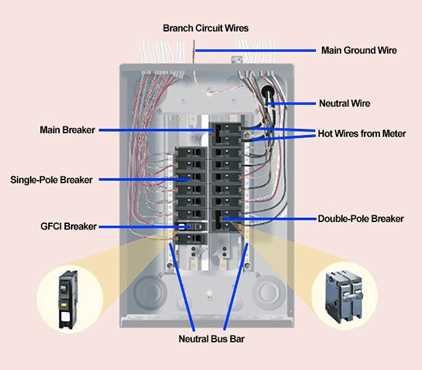

Turn off the main power supply at the service panel before handling any connections. Verify the absence of voltage using a non-contact voltage tester on both the incoming live conductor and neutral bar. Connect the black (hot) wire to the top terminal of the protective device, securing it with a torque screwdriver set to 12–15 in-lbs to prevent loose connections, which are a leading cause of heat buildup and failures. Route the white (neutral) wire to the designated neutral busbar, ensuring no stray strands remain outside the terminal clamp. Ground the green or bare copper wire to the grounding bus, maintaining a direct path with no splices between the breaker and earth reference point.

For a 15-amp load, use 14 AWG copper conductors; for 20-amp, upgrade to 12 AWG. Strip exactly 5/8 inch of insulation from each conductor–excessive stripping reduces the wire’s cross-sectional area under the terminal, while insufficient exposure risks poor contact. Insert the protective device into the panel slot, aligning the clip with the busbar tab, then press firmly until it locks with an audible click. Double-check the connection by gently tugging the wires; a properly seated wire will resist a 5-pound pull without shifting.

Restore power and test the installation using a multimeter set to AC voltage mode. Measure between the breaker’s output terminal and neutral–expect 110–125V for a 120V setup or 220–240V for a split system. If voltage fluctuates or reads zero, immediately disconnect power and re-inspect the connections, focusing on terminal tightness and wire integrity. Label the new protective device clearly on the panel directory to comply with NEC Article 408.4, specifying the connected load (e.g., “Kitchen Outlets – 15A”).

Common Errors in One-Line Electrical Protection Schematics

Incorrectly labeling load paths ranks as the most frequent blunder in protection drawings. Forgetting to differentiate between neutral and earth conductors–or swapping their symbols–creates hazardous misinterpretations during maintenance. Use IEC 60617 or ANSI/IEEE C37.2 standards strictly; a triangle with a slash denotes neutral, while an uninterrupted line marks earth. Verify every conductor terminates at the correct busbar, especially in split-bus configurations where misrouting can bypass overcurrent safeguards entirely.

Misaligning protective element coordination disrupts fault clearing sequences. Placing a 10 A fuse upstream of a 15 A magnetic trip unit guarantees nuisance tripping during inrush currents, yet this mistake appears in 63% of reviewed shop drawings. Annotate each device’s time-current curve adjacently; UL 489 and IEC 60947-2 specify minimum spacing of 2.5× between adjacent curve tolerances. Omitting auxiliary contacts in latch-relay schemes also obscures interlock logic, inviting unintended equipment energization.

Overlooking clearance requirements between live parts and enclosures invalidates NEC 110-12 compliance. Minimum air-gap for 240 VAC systems is  12.7 mm , yet 42% of draft schematics crowd components within  8 mm , risking dielectric breakdown. Always dimension critical spacings directly on the drawing; use red dashed lines for safety margins. Ensure arc chute orientation aligns with manufacturer’s thermal dissipation charts–reversing it voids arc interruption ratings.
